Name
|

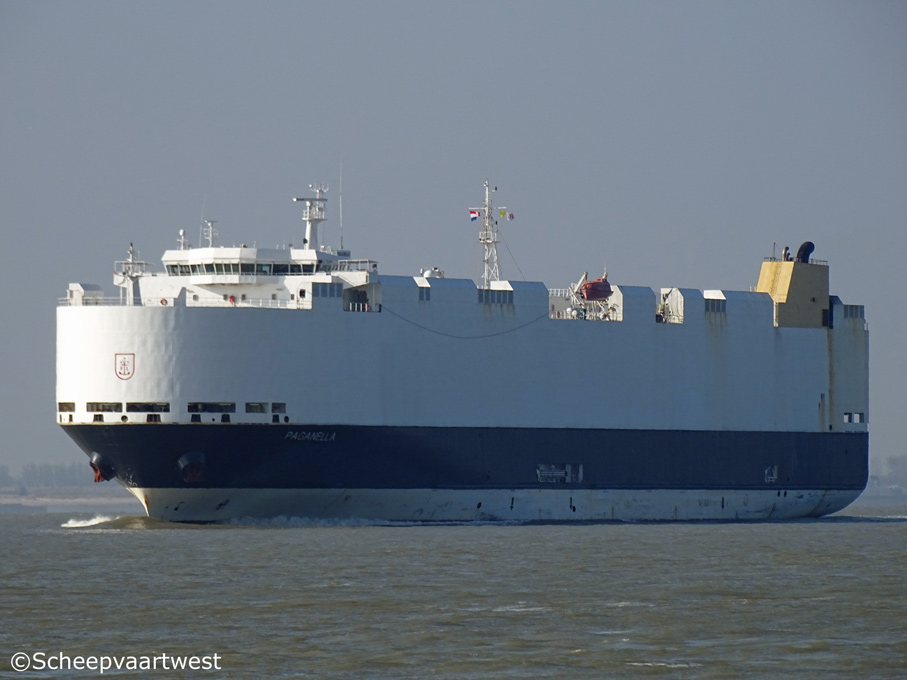

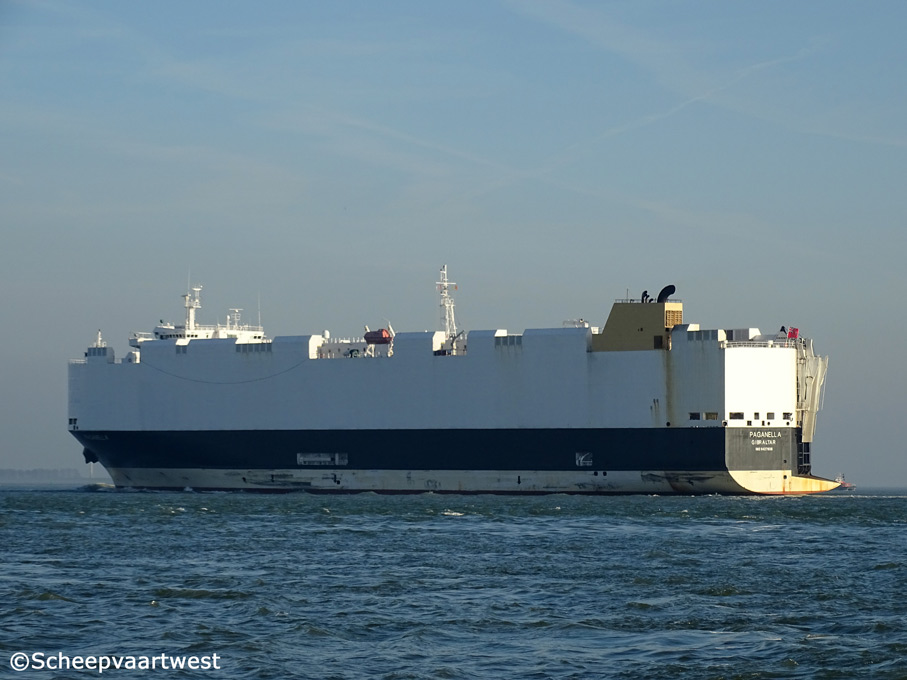

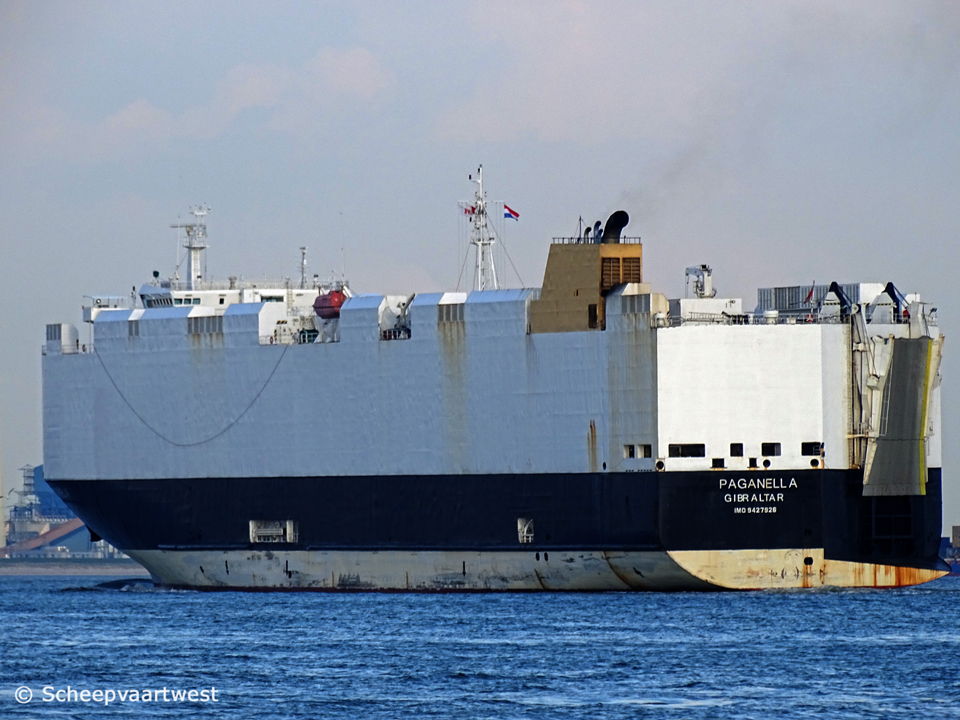

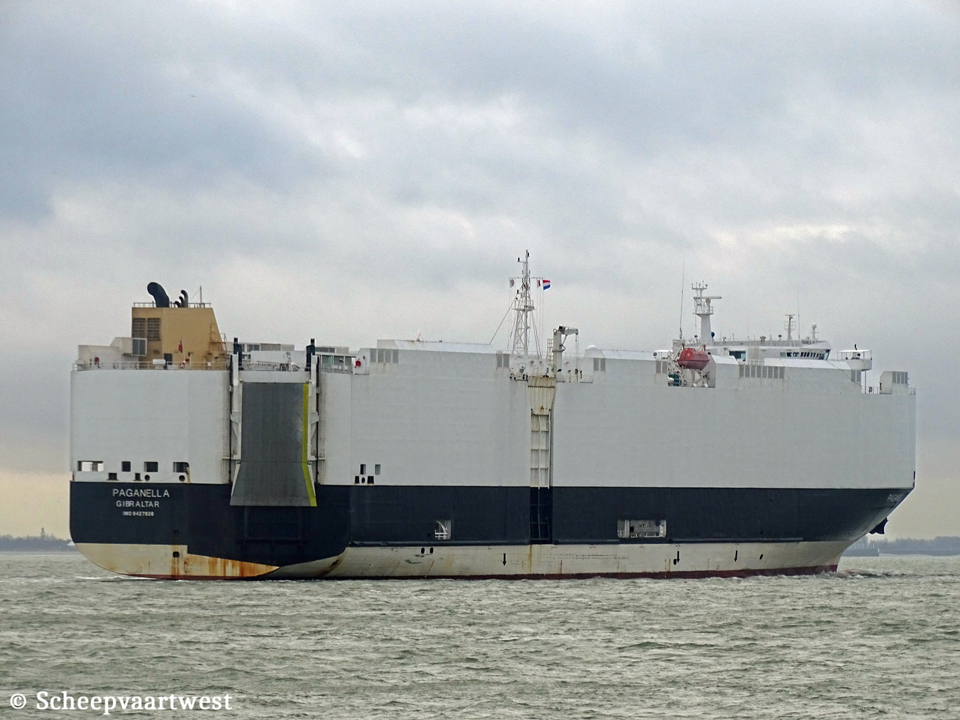

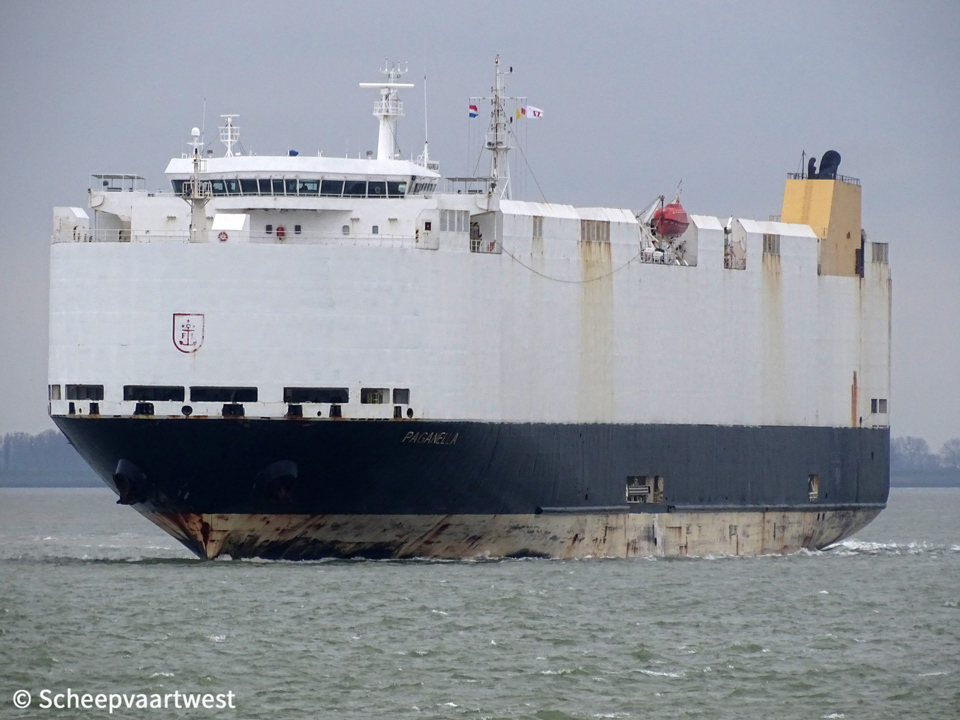

PAGANELLA
|
|
Previous names
|
2009 - 2014 CSAV Rio Illapel
|
|
Type
|
Roll-On/Roll-Off carrier
PCTC - Pure Car and Truck carrier
|
|
IMO-number
|
9427926
|
|
Call sign
|
ZDNC7
|
|
Flag
|
Gibraltar
|
|
Port of registry
|
Gibraltar
|
|
Previous flags
|
2009 - 2012 Liberia, Monrovia - Call sign: A8TC4
2012 - 2014 Gibraltar - Call sign: ZDNC7
2014 - 2016 Germany, Rostock - call sign: DEDG2
|
|
GT
|
47.020 t
|
|
DWT
|
Summer: 11.453,69 t
|
|
NT
|
14.106 t
|
|
Length
|
182,97 m overall
170,20 m between perpendiculars
|
|
Breadth
|
32,12 m extreme
31,50 m moulded
|
|
Draught
|
8,75 m
|
|
Depth
|
12,80 m
|
|
Speed
|
20,0 knots
|
|
Built
|
2009
|
|
Keel laid
|
11/09/2008
|
|
Launch date
|
28/04/2009
|
|
Date of completion
|
13/10/2009
|
|
Builder
|
Zhoushan Shipyard (Yangfan Group Co., Ltd.)
Zhoushan
China
|
|
Yard number
|
2073
|
|
Hull material
|
Steel
|
|
Main engine
|
1x MAN-B&W/Hyundai 9S50MC-C - 2 stroke 9 cylinder 500 x 2.000 mm combustion engine 14.220 kW / 19.334 hp at 127,0 rpm
Builder: MAN Diesel & Turbo, Filial of MAN Diesel & Turbo SE - Germany
|
|
Propellers
|
1x Fixed pitch propeller
|
|
Boilers
|
1x Auxiliary boiler, exhaust gas heated KIP/DV-1.85/7
1x Auxiliary boiler, oil/gas fired KLN/VM-2/7
|
|
Generators
|
2x Hyundai/Himsen 7H21/32 diesel generatorsets
1x Hyundai/Himsen 5H21/32 diesel generatorset
|
|
Emergency generator
|
1x MAN D 2866 TE 20 diesel generatorset
|
|
Number of ramps
|
2
|
|
Number of cars
|
5.000
|
|
Movable decks
|
3
|
|
Tank capacities
|
Ballast: 5.366 m³
|
|
Anchor equipment
|
Length: 649,00 m
Diameter: 76 mm
|
|
Crew size
|
31
|
|
ISM & commercial manager
|
Reederei F. Laeisz GmbH
Lange Strasse 1A
18055 Rostock
Germany
|
|
Registered owner
|
MS "Paganella 2" GmbH & Co. KG
|
|
Latest data adjustment
|
10 July 2023
|
