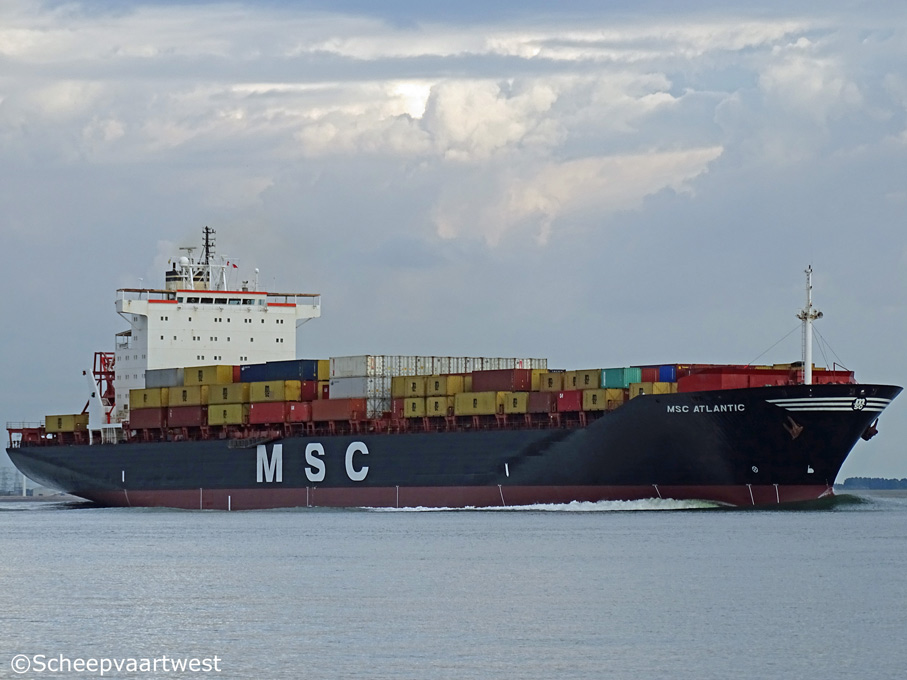

MSC Atlantic 02

Westerschelde 19 September 2016

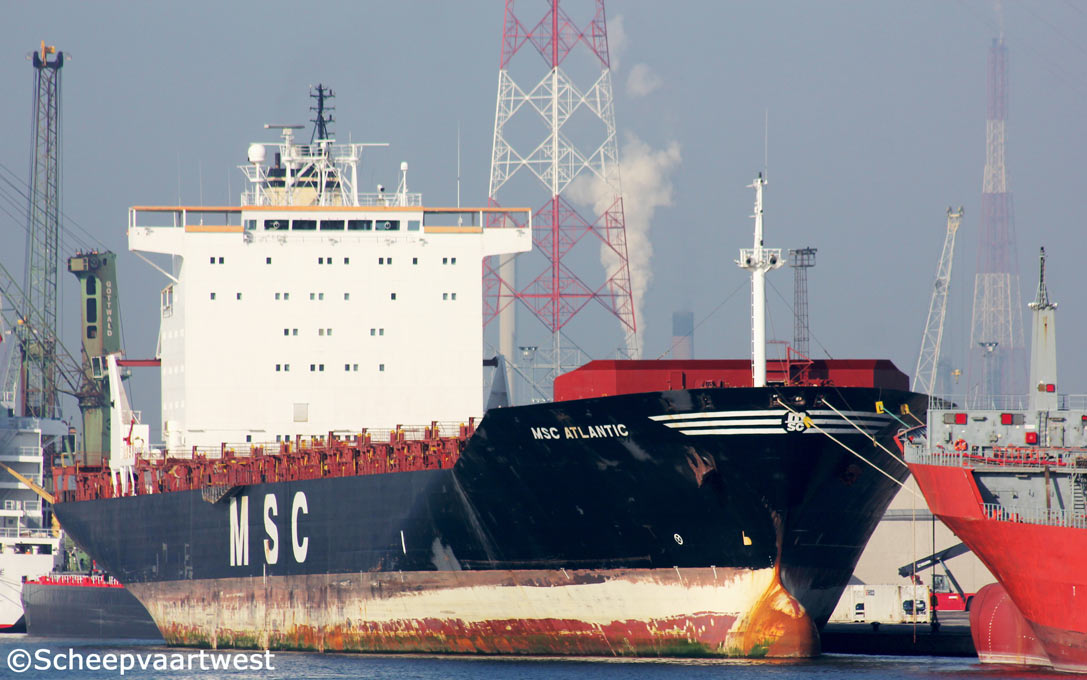

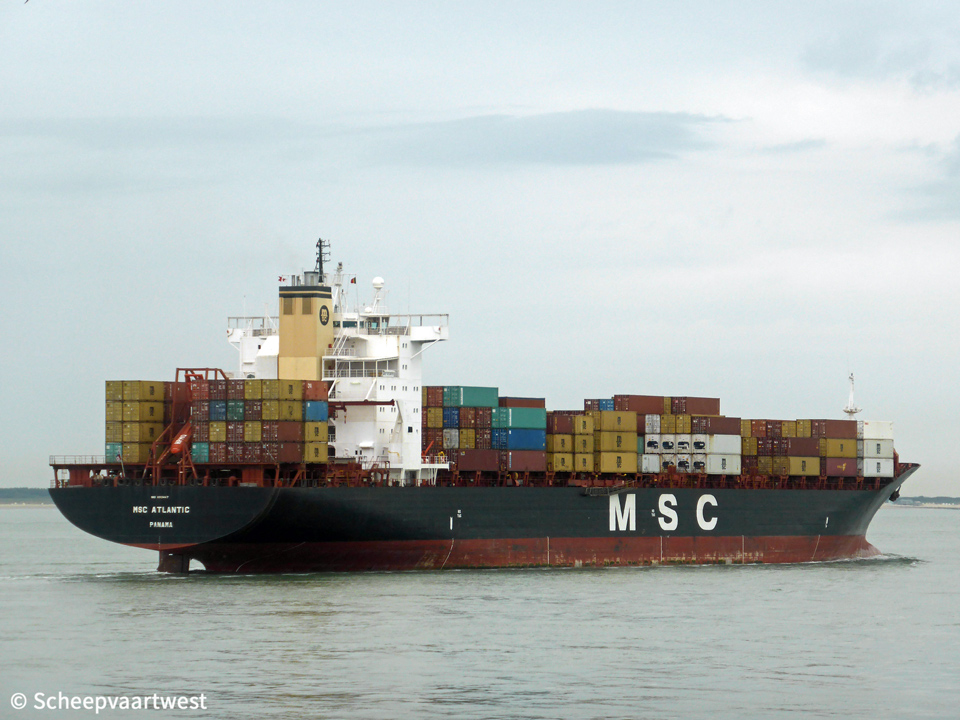

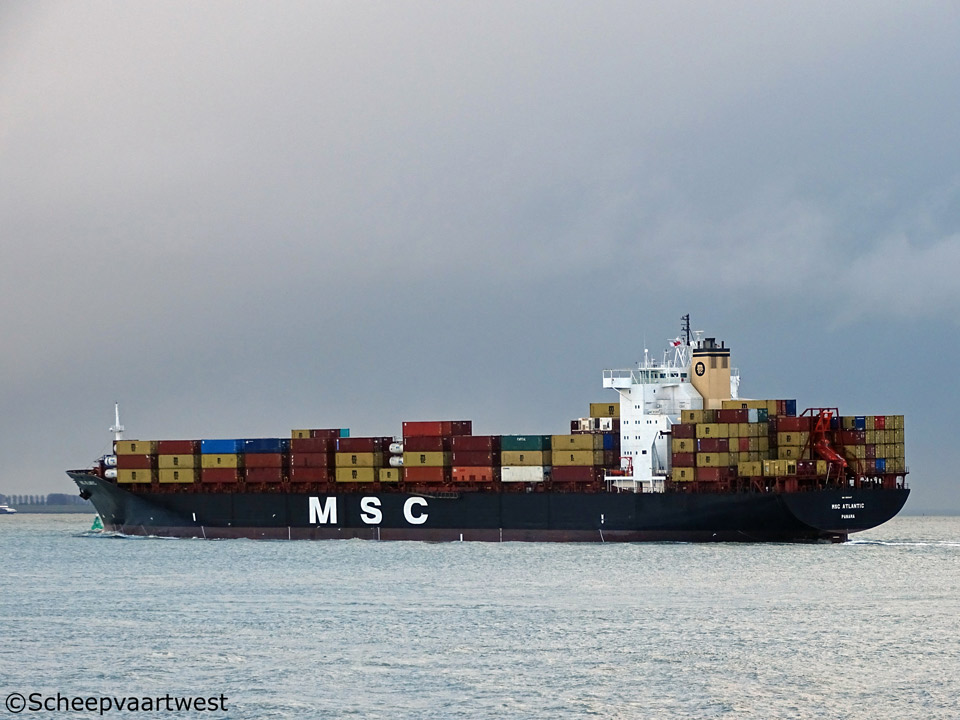

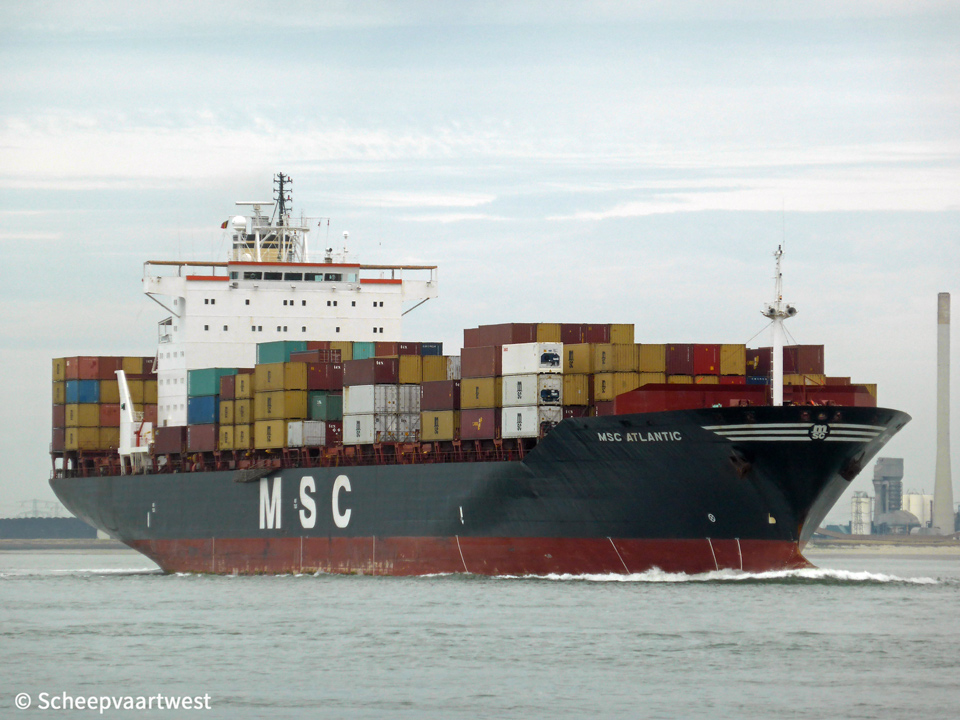

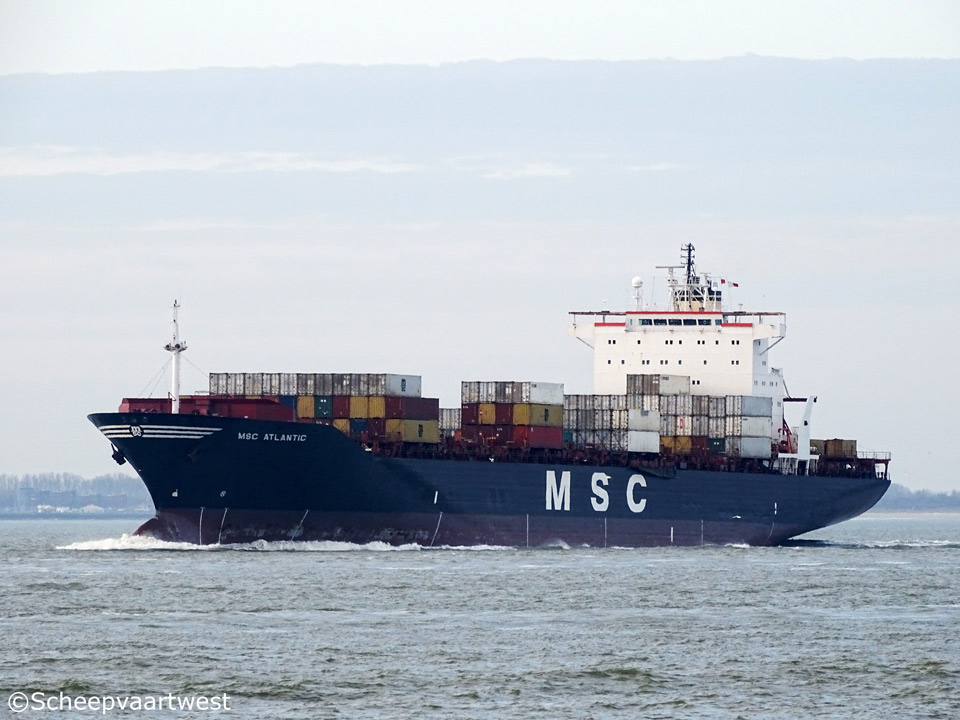

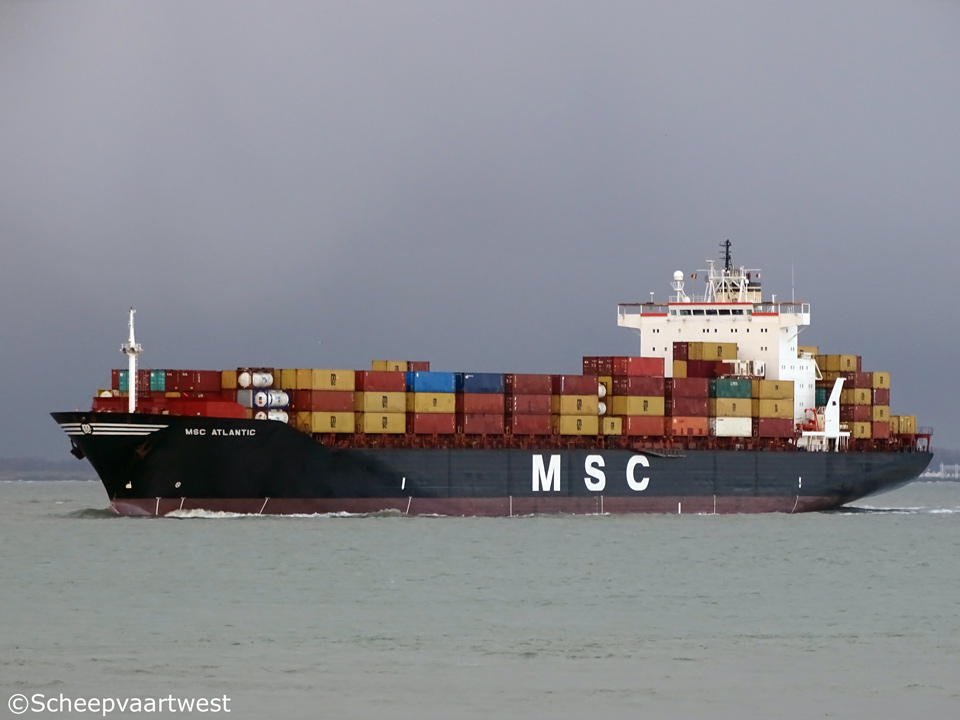

MSC Atlantic 03   MSC Atlantic 04   MSC Atlantic 05   MSC Atlantic 06   MSC Atlantic 07   MSC Atlantic 01
Westerschelde 14/01/17 Westerschelde 14/01/17 Westerschelde 28/01/17   Westerschelde 28/06/15   Westerschelde 28/06/15   Antwerpen 03/10/14

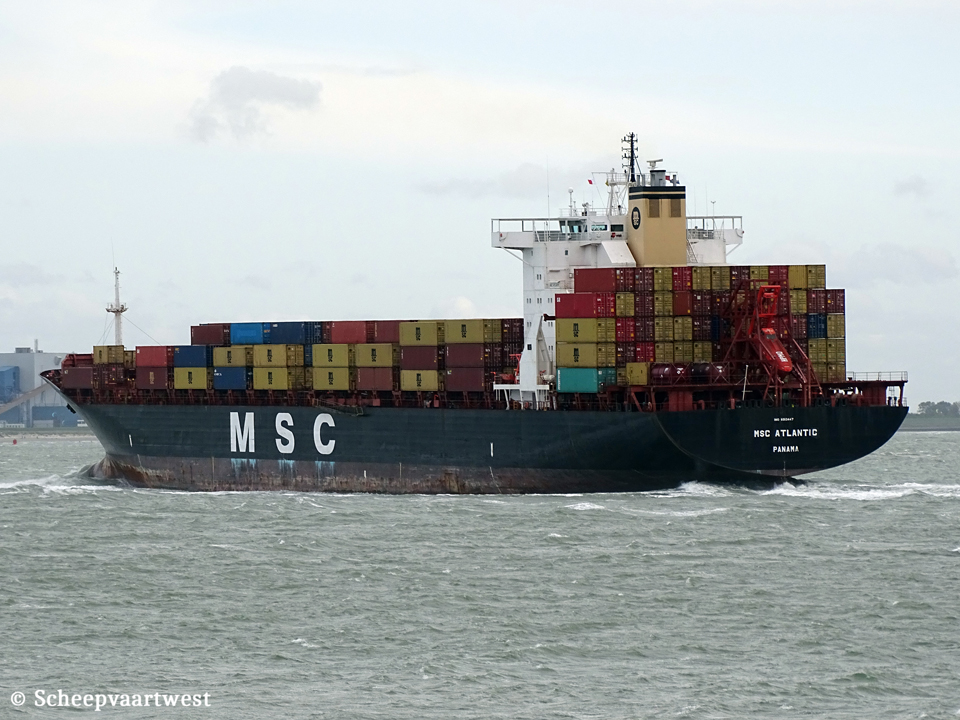

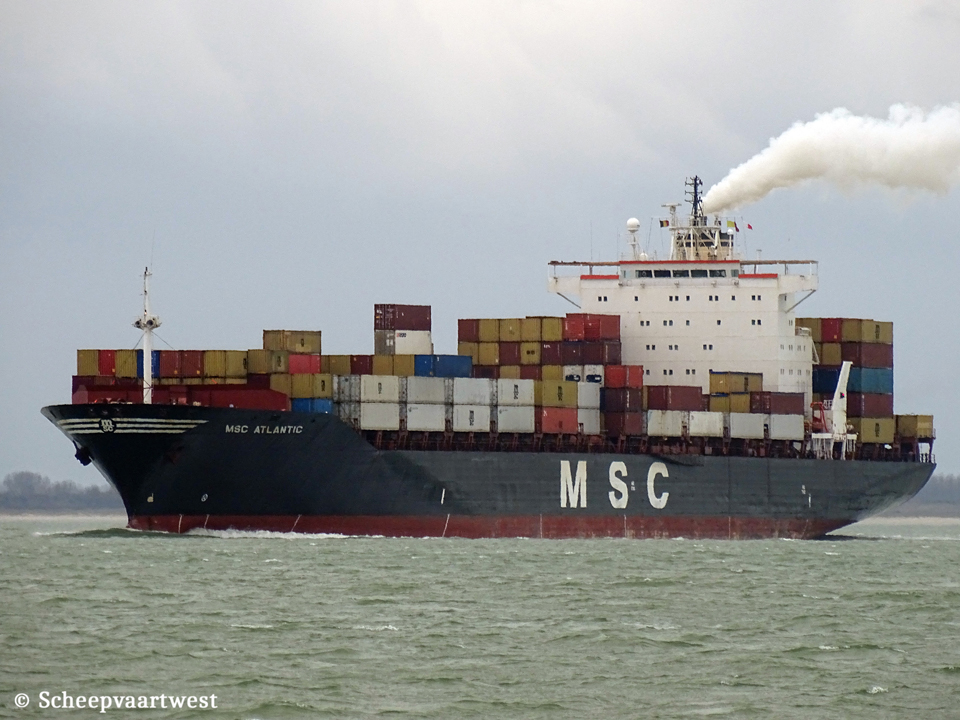

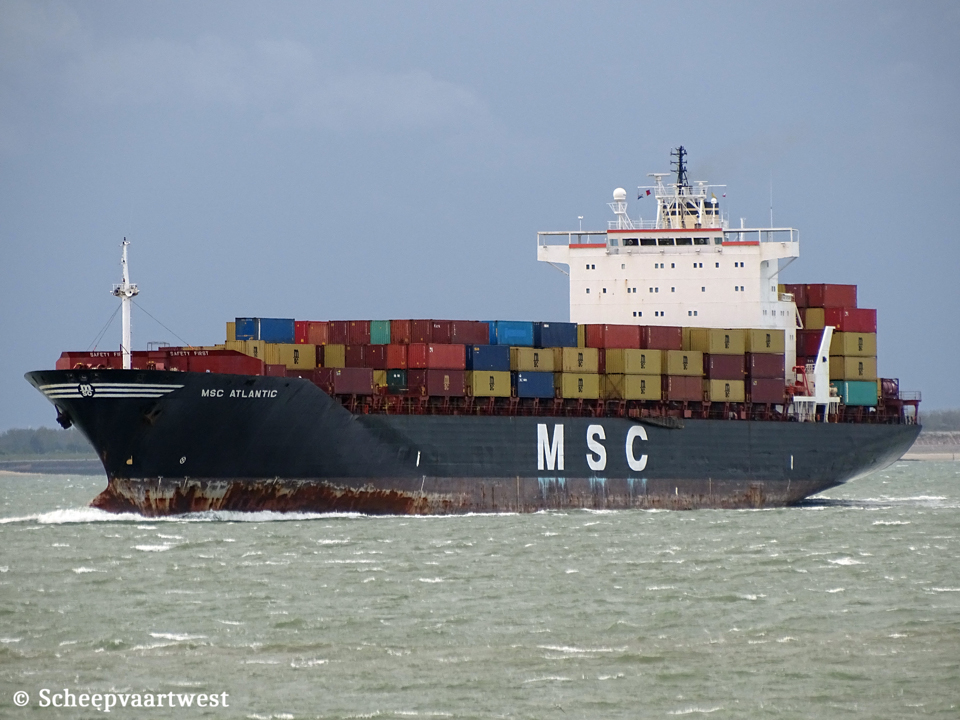

MSC Atlantic IMO 8913447 08   MSC Atlantic IMO 8913447 09   MSC Atlantic IMO 8913447 10
Westerschelde 18/10/19   Westerschelde 18/10/19   Westerschelde 0502/16


Name

MSC ATLANTIC

Previous names

1991 - 06/2000 DSR Rostock

06/2000 - 22/08/2002 Rostock Senator - Liberia, Monrovia - from Unicom Management Services (Cyprus) Ltd., Limassol

Type

Cellular containership - Panamax

IMO-number

8913447

Call sign

HPMQ

Flag

Republic of Panama

Port of registry

Panama City

GT

37.071 t

DWT

Summer: 46.975 t

NT

15.889 t

Number of 20ft containers

In hold: 1.334

On deck: 1.671

Total: 3.005

Container capacity 14t

2.480

Reefer capacity

100

Length

237,00 m overall

227,70 m registered

Breadth

32,20 m registered

Draught

11,98 m

Depth

18,80 m

Speed

21,0 knots

Built

1991

Keel laid

17/12/1990

Launch date

28/06/1991

Date of completion

24/09/1991

Builder

Howaldtwerke-Deutsche Werft GmbH

24143 Kiel

Federal Republic of Germany

Yard number

268

Hull material

Shipbuilding steel (higher tensile)

Hull type

Double bottom, continuous from peak to peak bulkhead

Watertight bulkheads

10

Continuous decks

1

Main engine

1x MAN-B&W 7L80MC - 2 stroke 7 cylinder 800 x 2.892 mm combustion engine Mcr 21.700 kW / 29.503 hp at 88,0 rpm

Year of Manufacture: 1991

Manufacturer: Bremer Vulkan AG Schiffbau und Maschinenfabrik

Lindenstr. 110

28755 Bremen

Federal Republic of Germany

Propellers

1x Solid propeller (keyless) - aft at 88,0 rpm

Boilers

1x Steam boiler, oil fired - 10,0 bar

Heating surface: 54,0 m²

1x Steam boiler, exhaust gas heated - 10,0 bar

Heating surface: 320,0 m²

Year of manufacture: 1990

Manufacturer: ThyssenKrupp Marine Systems GmbH

Werftstr. 112-114

24143 Kiel

Federal Republic of Germany

Electric installations

3x Plants each 450/220 V - 1.138 kVA

1x Plant 450 V - 1.500 kVA

1x Plant 450 V - 180 kVA

Shaft generator

1x 1.500 kVA / 1.200 kW

Generators

3x MAN-B&W 6L23/30H - 4stroke 6 cylinder 225 x 300 mm diesel engines each Mcr 950 kW connected with generators each 910 Kw / 1.138 kVA

Emergency generator

1x Diesel generatorset 180 kVA

Compressed air receivers

1x Receiver 250 litres - 40,0 bar

2x Receivers each 12.000 litres - 31,0 bar

1x Receiver 40 litres - 30,0 bar

Bow thruster

1x Fixed pitch propeller Lips - 1.300 kW / 1.767 bhp, forward

Number of holds

7

Number of hatches

34

Tank capacities

Fuel oil: 3.085 m²

Water ballast: 19.198 m³

Anchor equipment

3x Anchors weight each 11.100 kg

Chain length: 687,50 m

Diameter: 81 mm

Cargo gear

Gearless

Crew size

19

Commercial manager

Niki Shipping Co., SA

Building A, 24, Filellinon Street

105 57 Athens

Greece

ISM manager

MSC Shipmanagement Ltd.

MSC House 8, Spyrou Kyprianou Avenue

3070 Limassol

Republic of Cyprus

Registered owner

Atlantic Oceanway Limited

Care of Niki Shipping Co SA

Building A, 24, Filellinon Street

105 57 Athens

Greece

Renamed

05/2023 MSC Atlantic III

Republic of Panama, Panama City - Call sign: HPMQ

Owner: Atlantic Oceanway Ltd.

Manager: MSC Mediterranean Shipping Co.

Latest data adjustment

13 May 2023
