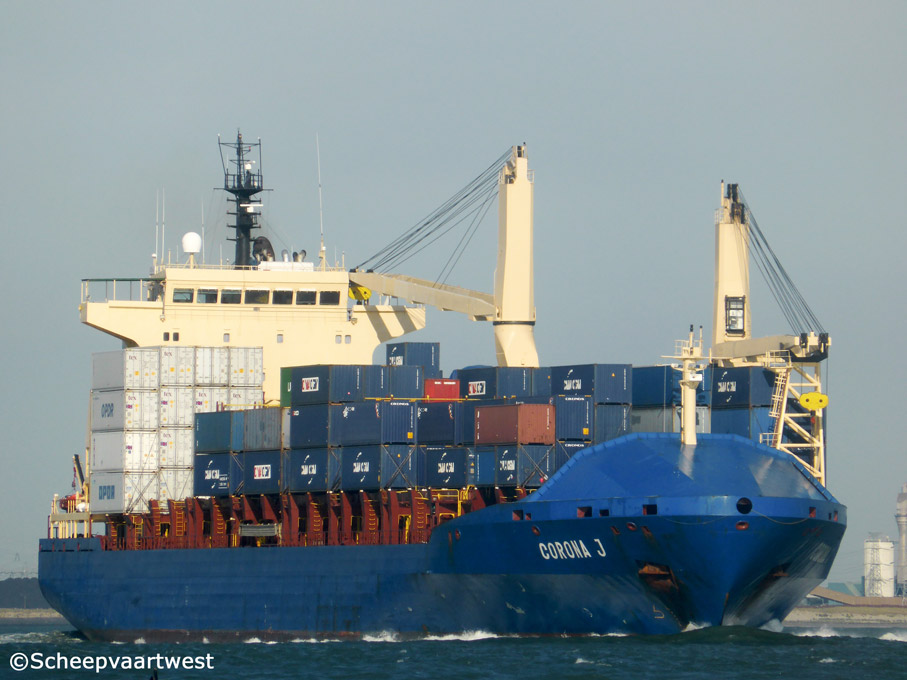

Corona J - IMO 9238686

Westerschelde 14 July 2014

Name

CORONA J

Previous names

2002 - 07.2008 Maersk Rio grande

Type

Containership

IMO-number

9238686

Call sign

V2BG1

Flag

Antigua & Barbuda

Port of registry

St. John's

GT

16.129 t

DWT

Summer: 16.794 t

NT

6.440 t

Number of 20ft containers

1.180

Reefer plugs

358

Length

161,10 m overall

152,063 m registered

Breadth

25,00 m registered

Draught

9,50 m

Depth

14,90 m

Speed

19,2 knots

Built

2002

Keel laid

08.09.2001

Launch date

29.04.2002

Date of completion

02.12.2002

Builder

Jiangsu Yangzijiang Shipbuilding Co., Ltd.
38 Shiyugang Road
Jiangyin, 214431 Jiangsu
People's Republic of China

Yard number

619-C33

Hull material

Shipbuilding steel (standard)

Hull type

Double bottom

Watertight bulkheads

8

Continuous decks

2

Main engine

1x MAN-B&W/Hudong 8S50MC-C - 2 stroke 8 cylinder 500 x 2.000 mm diesel engine - 12.640 kW / 17.180 hp at 127,0 rpm

Year of manufacture: 2002

Manufacturer: Hudong Heavy Machinery Co., Ltd.
2851, Pudong Dadao
200129 Shanghai
People's Republic of China

Propellers

1x Solid propeller (keyless) - aft at 127,0 rpm

Boilers

1x Steam boiler, oil fired - 9,0 bar

Heating surface: 18,0 m²

1x Steam boiler, exhaust gas heated - 9,0 bar

Heating surface: 417,0 m²

Year of manufacture: 2001

Manufacturer: Alfa Laval Aalborg A/S Division Boiler Production
Gasvaerksvej 24
9100 Aalborg
Kingdom of Denmark

Electric installations

2x Plants each 440/220 V - 1.200 kVA

2x Plants each 440/220 V - 1.820 kVA

1x Plant 440 V - 175 kVA

Generators

2x MaK 9M20 main diesel generatorsets each 1.820 kVA / 1.456 kW

2x MaK 6M20 main diesel generatorsets each 1.200 kVA / 960 kW

Emergency generator

1x Diesel generatorset 175 kVA

Compressed air receivers

2x Receivers each 5.000 litres - 30,0 bar

1x Receiver 200 litres - 30,0 bar

1x Receiver 1.000 litres - 8,0 bar

Bow thruster

1x Fixed pitch propeller KAMEWA - 800 kW, forward

Tank capacities

Fuel oil: 2.178 m²

Water ballast: 6.087 m³

Anchor equipment

3x Anchors weight each 6.450 kg

Chain length: 605,00 m

Cargo gear

2x Cranes - SWL 45,0 t each

Crew size

32

Manager

Jüngerhans Maritime Services GmbH & Co. KG
Boschstr. 31
49733 Haren/Ems
Federal Republic of Germany

Registered owner

Euphonia Schiffahrtsgesellschaft UG (haftungsbeschränkt) & Co. KG
Boschstr. 31
49733 Haren/Ems
Federal Republic of Germany

Latest data adjustment

02 January 2015
