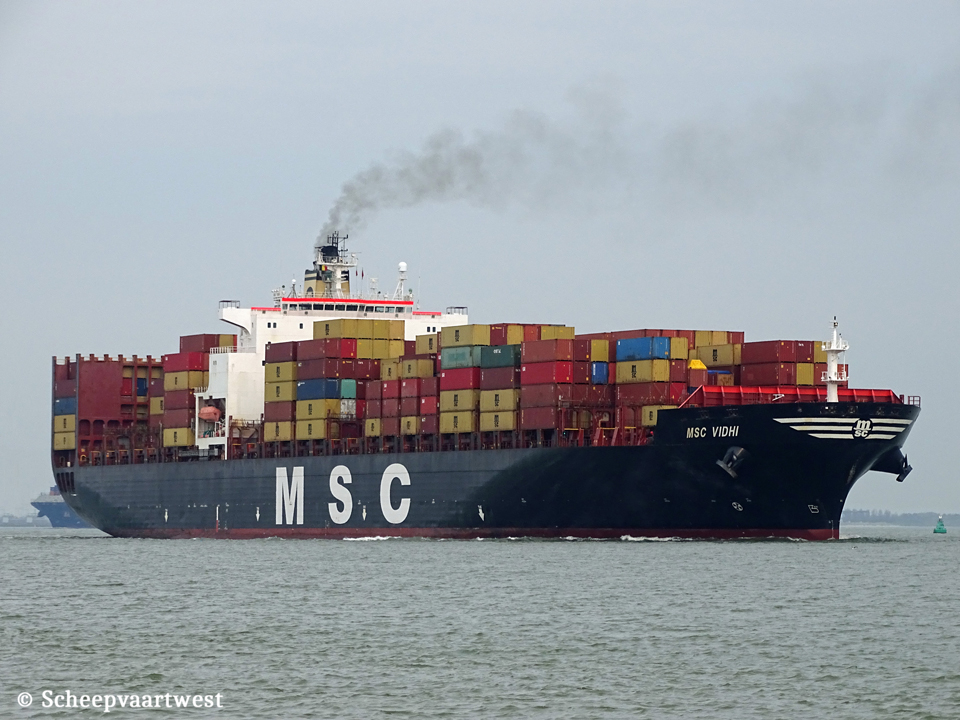

MSC Vidhi IMO 9238739 05

Westerschelde 09 April 2019

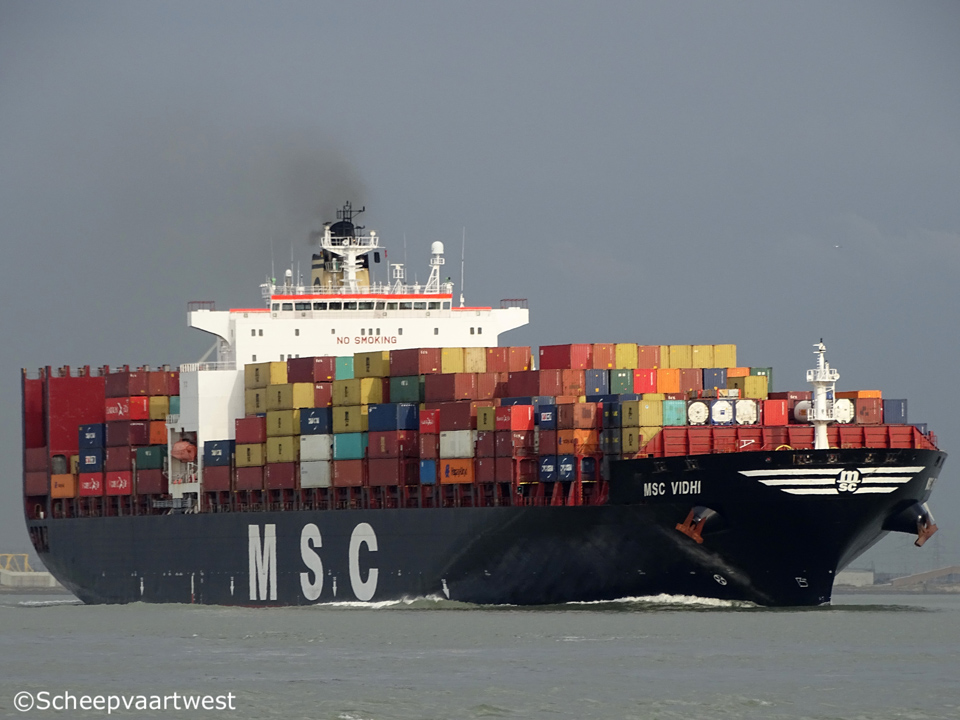

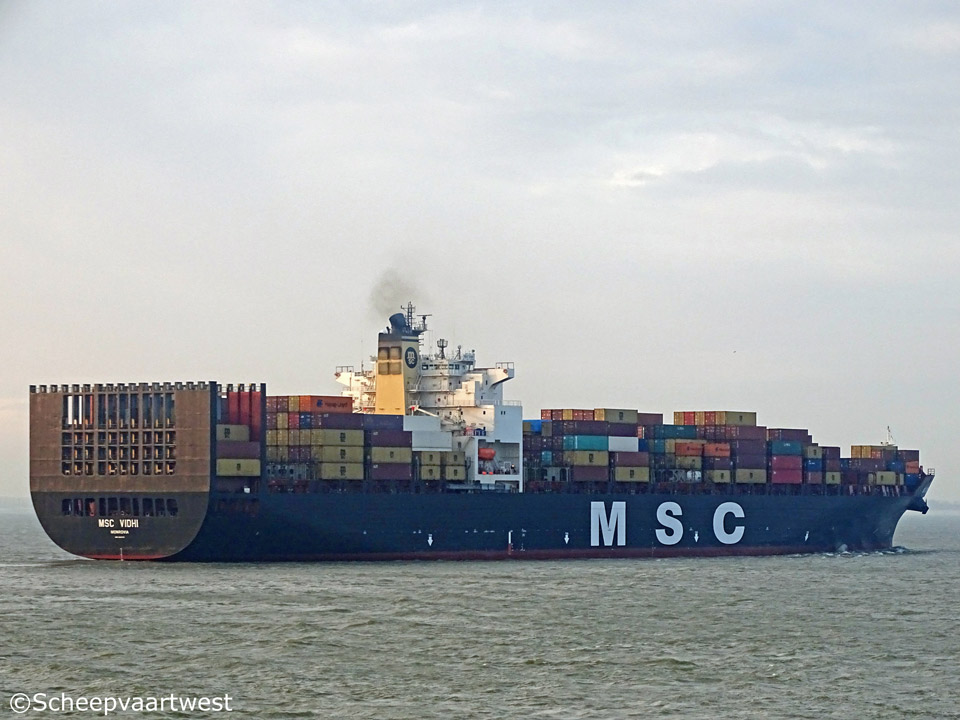

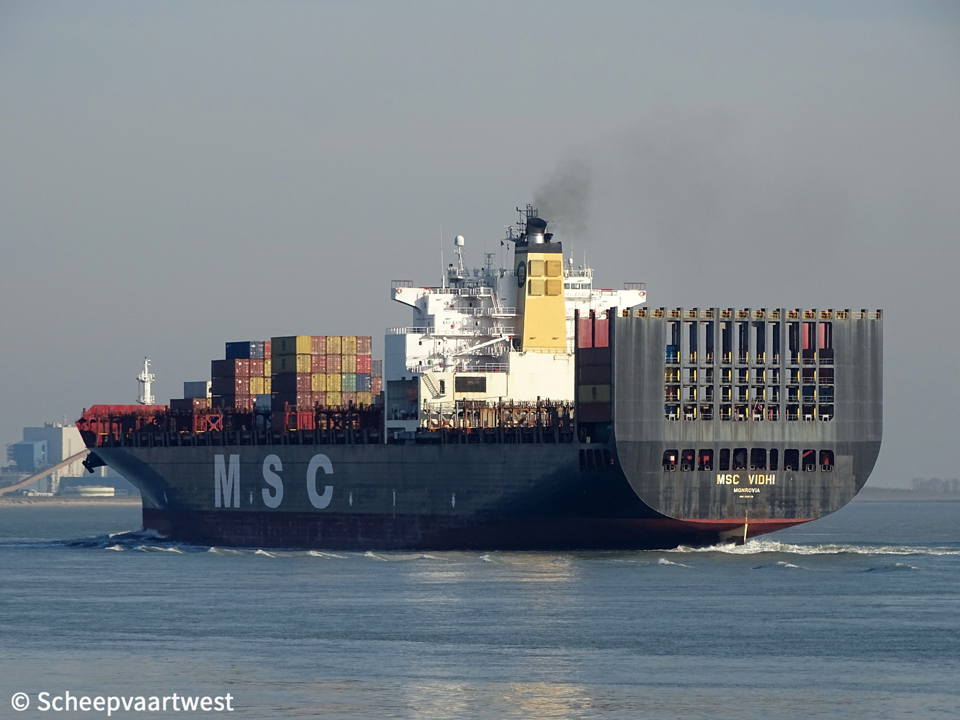

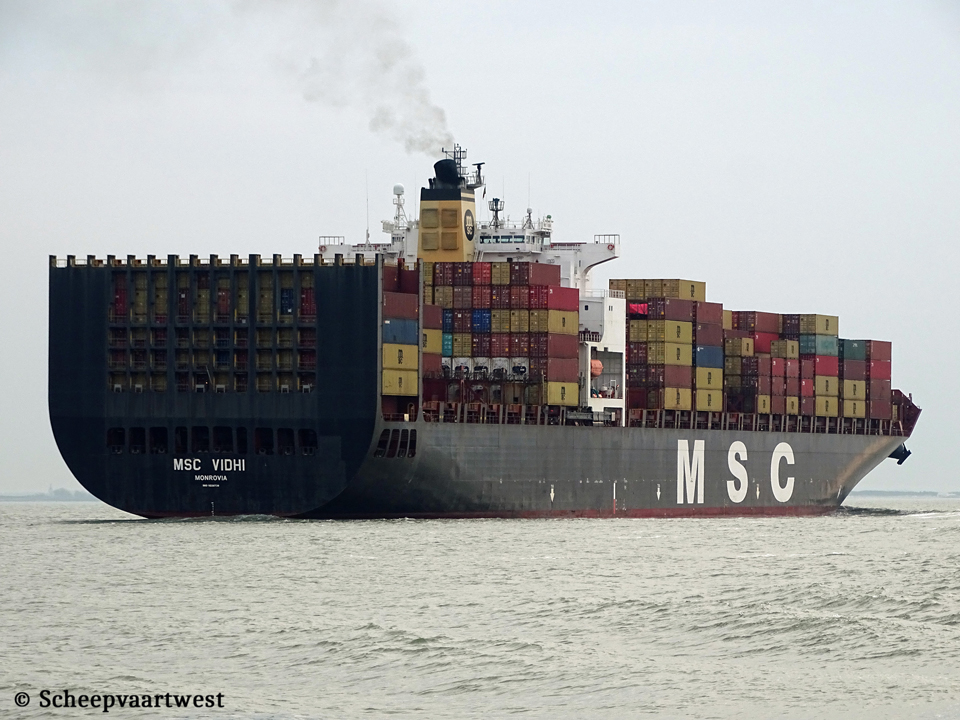

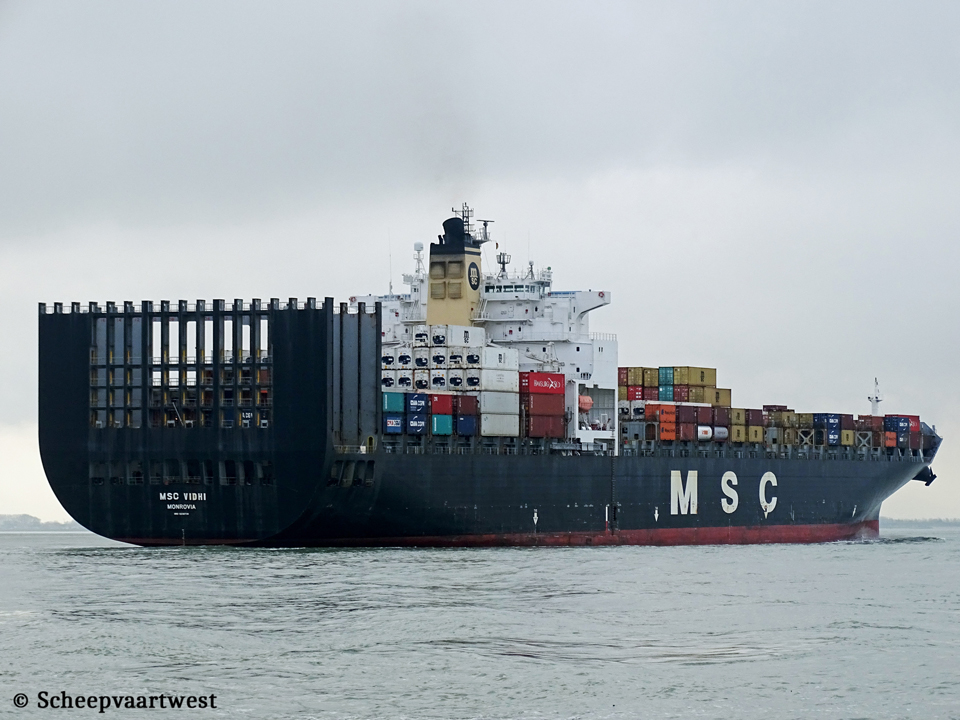

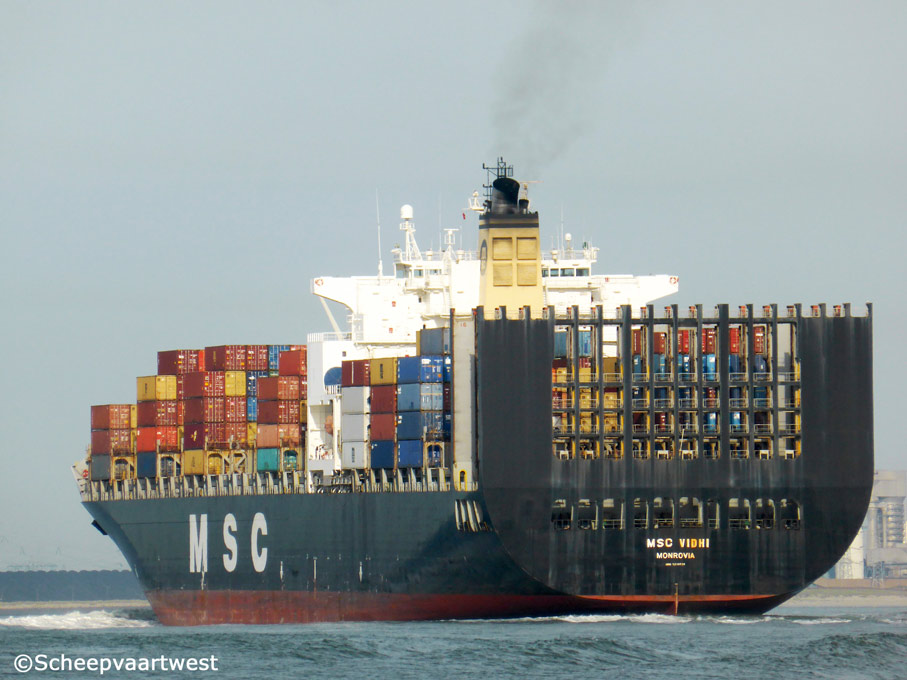

MSC Vidhi IMO 9238739 06   MSC Vidhi 03   MSC Vidhi 01   MSC Vidhi 02   MSC Vidhi 04   MSC Vidhi IMO 9238739 07
Westerschelde 09/04/19 Westerschelde 01/04/17 Westerschelde 11/05/15 Westerschelde 29/01/17   Westerschelde 23/06/19   Westerschelde 06/01/16

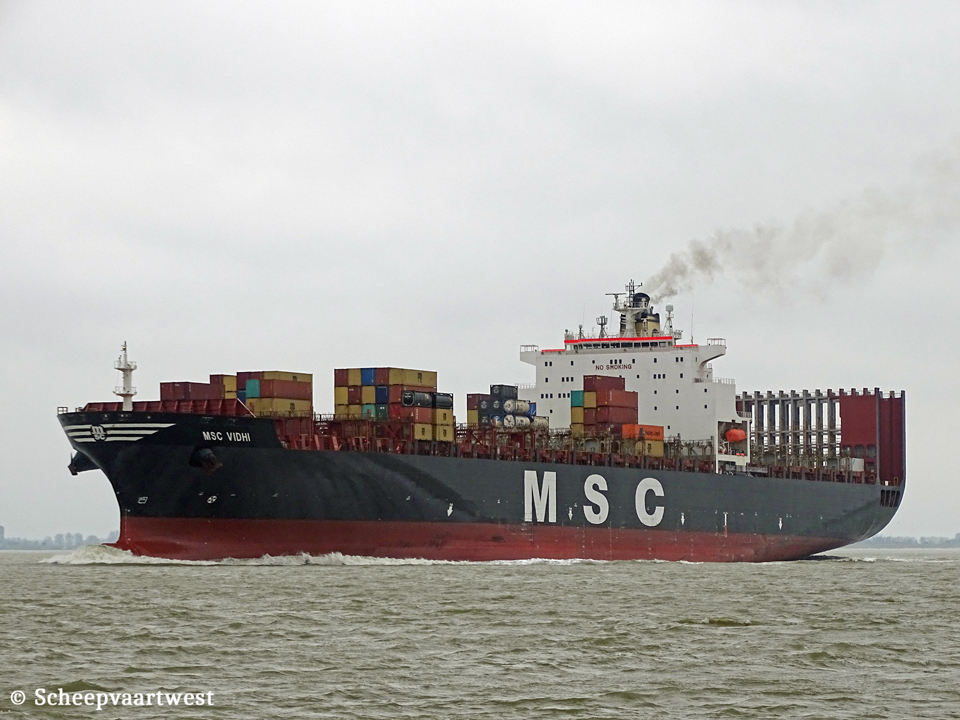

MSC Vidhi IMO 9238739 08
Westerschelde 25/02/17


Name

MSC VIDHI

Previous names

2001 - 07/2009 OOCL Korea

07/2009 - 10/2010 Santa Victoria

10/2010 - 09/2012 Cap Valiente

09/2012 - 04/2013 CCNI Angamos

04/2013 - 04/2014 Santa Victoria

Type

Cellular containership

IMO-number

9238739

Call sign

D5GE2

Flag

Liberia

Port of registry

Monrovia

GT

66.500 t

DWT

Summer: 67.796 t

NT

34.274 t

Number of 20ft containers

5.514

Reefer point

632

Length

277,30 m overall

263,15 m registered

Breadth

40,00 m registered

Draught

14,00 m

Keel to mast end

60,00 m

Forecastle

255,25 m

Poop

7,90 m

Depth

24,30 m moulded

Speed

Max.: 24,9 knots

Built

2001

Keel laid

23/04/2001

Launch date

23/06/2001

Date of completion

24/09/2001

Builder

Samsung Heavy Industries Co., Ltd. Geoje Shipyard

530, Jangpyeong-ri, Sinhyeon-eup

Geoje

South Korea

Yard number

1378

Hull material

Shipbuilding steel (higher tensile)

Hull type

Double bottom, continuous from peak to peak bulkhead

Watertight bulkheads

9

Continuous decks

2

Main engine

1x MAN-B&W 12K90MC - 2 stroke 12 cylinder 900 x 2.550 combustion engine 54.840 kW / 74.639 hp at 94,0 rpm

Year of manufacture: 2001

Propellers

1x Solid propeller (keyless) - aft at 94,0 rpm

Boilers

1x Steam boiler, oil fired - 10,0 bar

Heating surface: 40,2 m²

1x Steam boiler, exhaust gas heated - 10,0 bar

Heating surface: 1.033,0 m²

Year of manufacture: 2001

Manufacturer: Alfa Laval Qingdao Ltd.

86 Guangzhou Road North Jiaozhou

Qingdao

People's Republic of China

Electric installations

3x Plants each 440/220 V - 3.625 kVA

1x Plant 440 V - 2.450 kVA

1x Plant 440 V - 188 kVA

2x Plants each 24 V - 200 Ah

12x Plants each 24 V - 200 Ah

Shaft generator

1x 2.450 kVA

Generators

3x Main diesel generatorsets each 3.625 kVA

Emergency generator

1x Diesel generatorset 188 kVA

Batteries

2x Batteries for UPS radio each 200 Ah

Compressed air receivers

2x Receivers each 16.500 litres - 25,0 bar

2x Receivers each 150 litres - 25,0 bar

1x Receiver 100 litres - 25,0 bar

Bow thruster

1x Transverse thruster 2.000 kW, forward

Tank capacities

Fuel oil: 8.737 m³

Ballast water: 15.061 m³

Anchor equipment

3x Anchors weight each 15.400 kg

Chain length: 742,50 m

Diameter: 97 mm

Commercial manager

MSC Mediterranean Shipping Co.

chemin Rieu, 12-14

1208 Geneva

Switzerland

ISM manager

MSC Shipmanagement Ltd.

MSC House 8, Spyrou Kyprianou Avenue

3070 Limassol

Republic of Cyprus

Operator

MSC - Mediterranean Shipping Company S.A.

Registered owner

SFL Victoria Inc., Monrovia - Republic of Liberia

Care of MSC Mediterranean Shipping Co SA

chemin Rieu, 12-14

1208 Geneva

Switzerland

Latest data adjustment

01 May 2022
