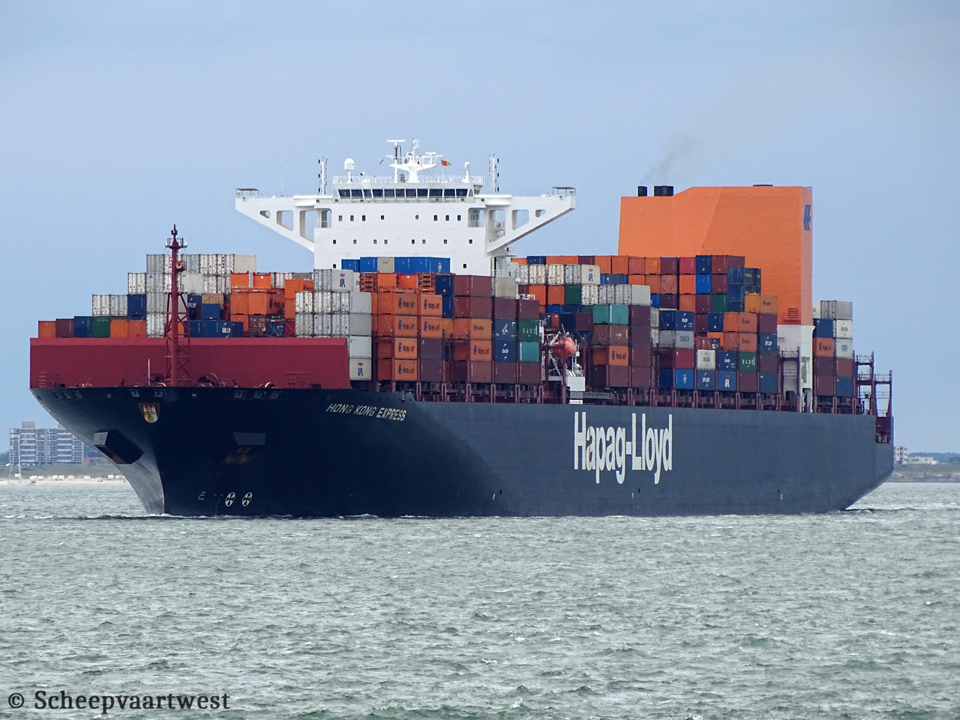

Hong Kong Express 03

Westerschelde 21 June 2020

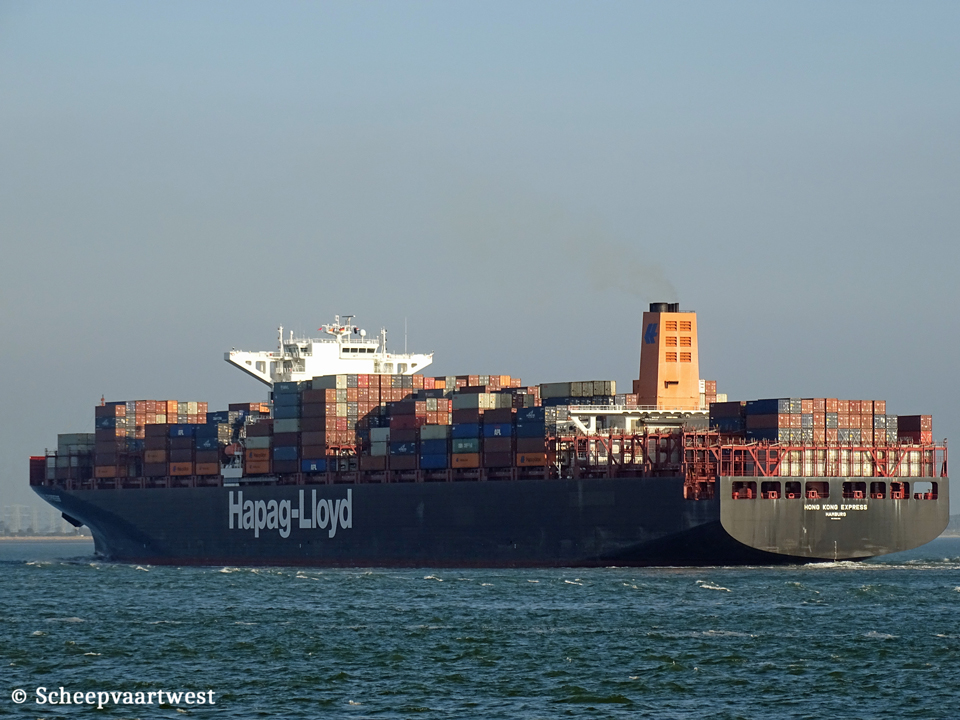

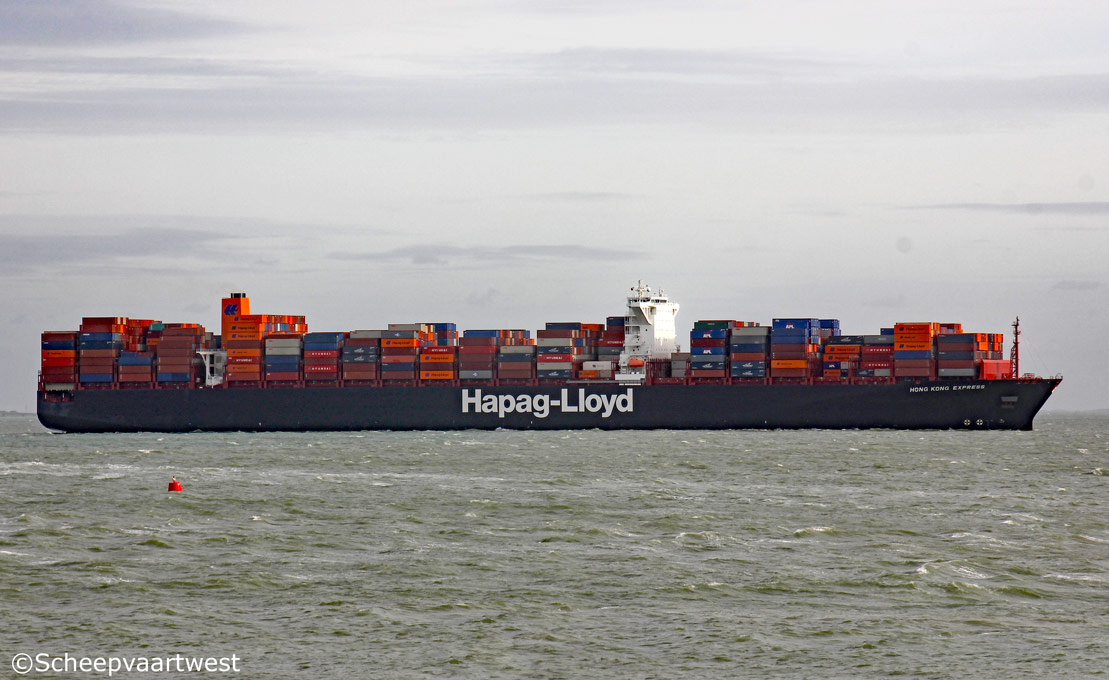

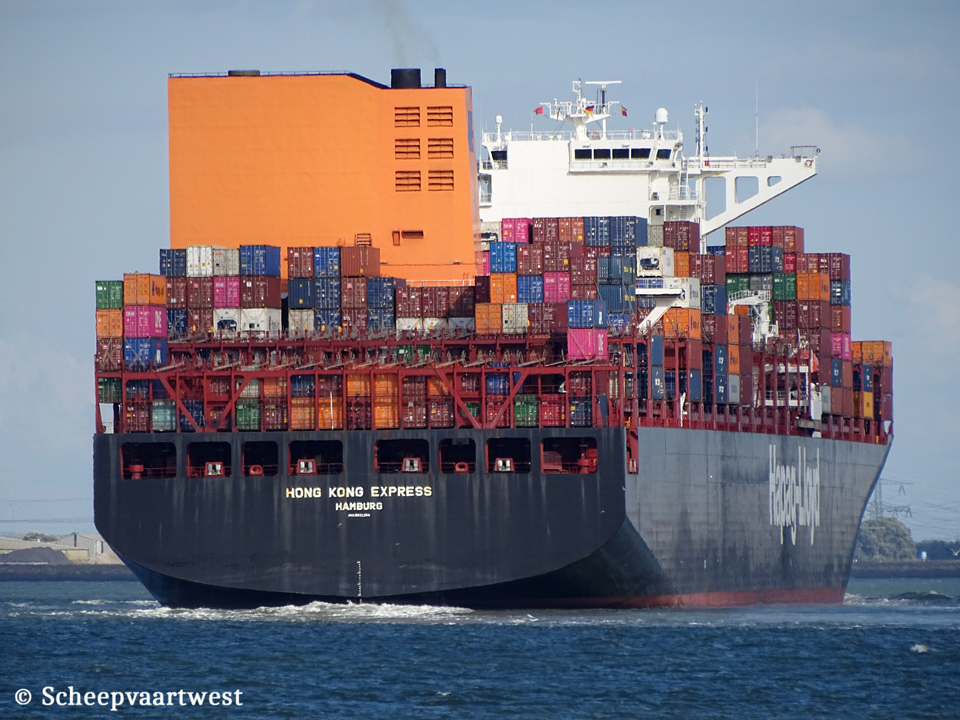

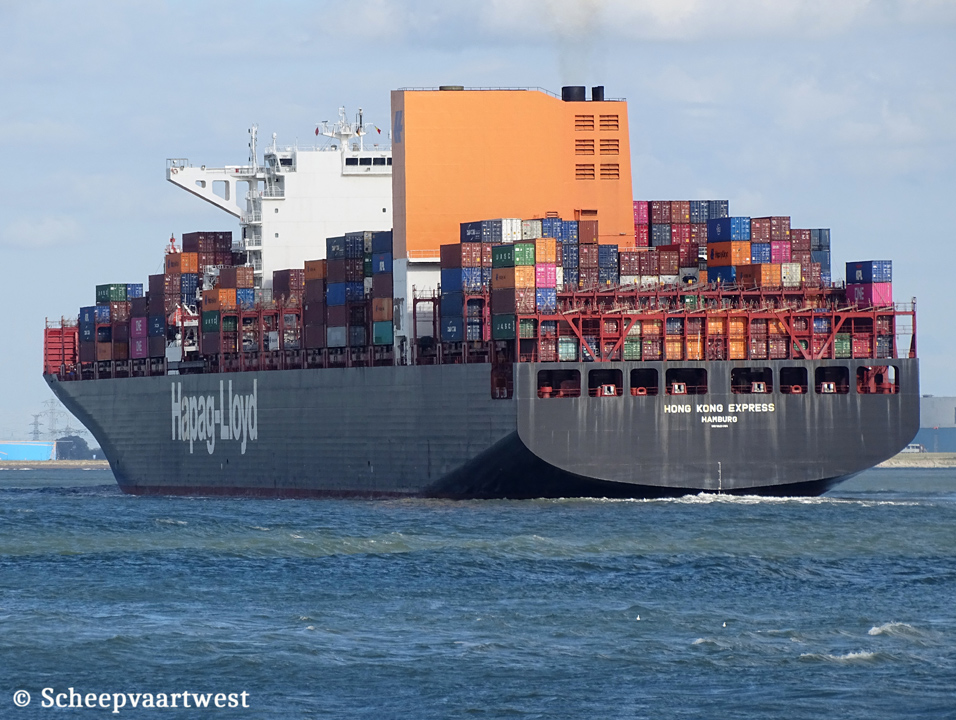

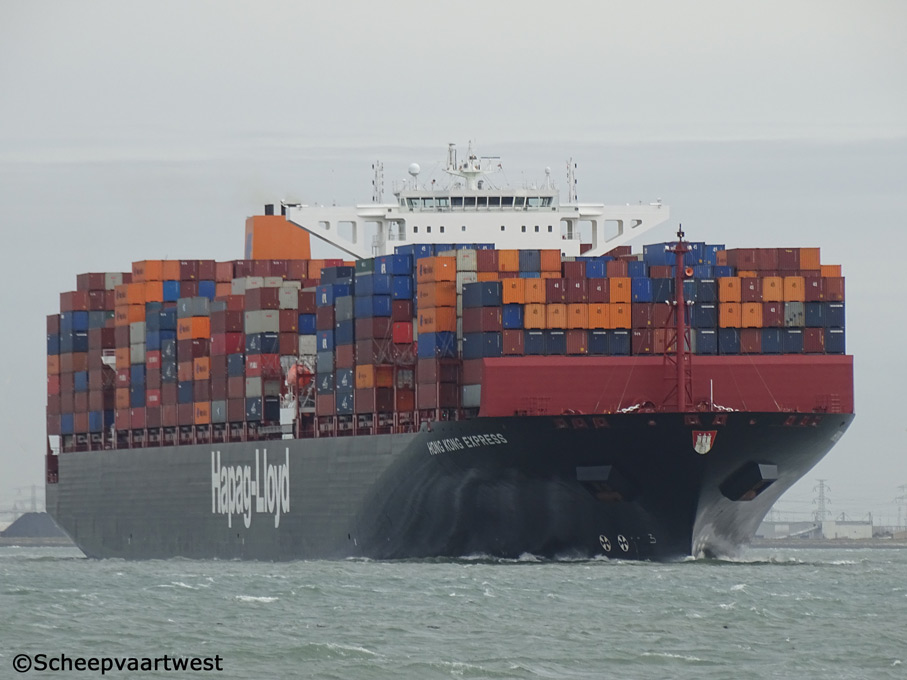

Hong Kong Express 01   Hong Kong Express 02   Hong Kong Express IMO 9501356 04   Hong Kong Express IMO 9501356 05   Hong Kong Express IMO 9501356 07
Westerschelde 09/11/15 Westerschelde 09/11/15 Westerschelde 23/08/20 Westerschelde 23/08/20   Westerschelde 15/10/16


Name

HONG KONG EXPRESS

Type

Cellular containership

IMO-number

9501356

Call sign

DJAZ2

Flag

Germany

Port of registry

Hamburg

GT

142.295 t

DWT

142.018 t

NT

60.481 t

Number of 20ft containers

13.167

Container capacity 14t

9.082

Reefer capacity

800

Length

366,52 m overall

350,00 m between perpendiculars

Breadth

48,35 m extreme

Draught

15,50 m

Depth

29,85 m

Speed

Max.: 25,2 knots

Service: 24,0 knots

Built

2013

Keel laid

15/10/2012

Launch date

21/12/2012

Date of completion

28/02/2013

Builder

Hyundai Heavy Industries Co., Ltd.

Ulsan

South Korea

Yard number

2244

Hull material

Shipbuilding steel (standard)

Hull type

Partly double bottom (e.g. interrupted in way of machinery space)

Watertight bulkheads

11

Continuous decks

2

Main engine

1x MAN-B&W/HHI 11K98ME-7 - 2 stroke 11 cylinder 980 x 2.660 mm combustion engine 58.274 kW / 79.229 hp at 92,0 rpm

Build: 2012

Builder: Manufacturer Hyundai Heavy Industries Co., Ltd.

Propellers

1x Fixed pitch propeller - aft at 92,0 rpm

Boilers

Steam boiler, oil fired / exhaust gas heated - 8,0 bar

Heating surface : 175,0 m²

Heating surface: 876,0 m²

Build: 2012

Manufacturer: Saacke Qingdao Marine Boiler Co., Ltd.

Electric Installations

1x Plant 6.600 V - 3.666,7 kVA

1x Plant 6.600 V - 4.866,7 kVA

1x Plant 6.600 V - 4.866,7 kVA

1x Plant 6.600 V - 4.866,7 kVA

1x Plant 6.600 V - 5.175 kVA

1x Plant 690 V - 625 kVA

2x Plants each 12 V - 150 Ah

2x Plants each 12 V - 200 Ah

2x Plants each 24 V - 2 Ah

12x Plants each 24 V - 200 Ah

12x Plants each 24 V - 400 Ah

5x Plants each 36 V - 19 Ah

Shaft generator

1x 5.175 kVA

Generators

3x Daihatsu 8DC-32e main diesel generatorsets each 4.866,7 kVA

1x Daihatsu 6DC-32e main diesel generatorset 3.666,7 kVA

Emergency generator

1x Scania DI16 55M diesel generatorset 625 kVA

Batteries

2x Batteries for start emergency engine each 200 Ah

12x Batteries for other purpose each 200 Ah

12x Batteries for UPS radio each 200 Ah

2x Batteries for other purpose each 150 Ah

5x Batteries for other purpose each 19 Ah

2x Batteries for other purpose each 2 Ah

Compressed air receivers

2x Receivers each 16.000 litres - 30,0 bar

1x Receiver 480 litres - 30,0 bar

1x Receiver 350 litres - 7,7 bar

1x Receiver 2000 litres - 7,0 bar

Bow thruster

2x Transverse thruster each 1.800 kW, forward

Tank capacities

Ballast: 34.519,4 m³

Anchor equipment

3x Anchors weight each 24.500 kg

Length: 770,00 m

Diameter: 122 m

Cargo gear

Gearless

Crew

28

Crew size

36

ISM & commercial manager

Hapag Lloyd Aktiengesellschaft

Haus Ballindamm 25

D-20095 Hamburg

Germany

Registered owner

Hapag Lloyd Aktiengesellschaft

Hapag-Lloyd Haus

Ballindamm 25

20095 Hamburg

Germany

Latest data adjustment

18 January 2022
