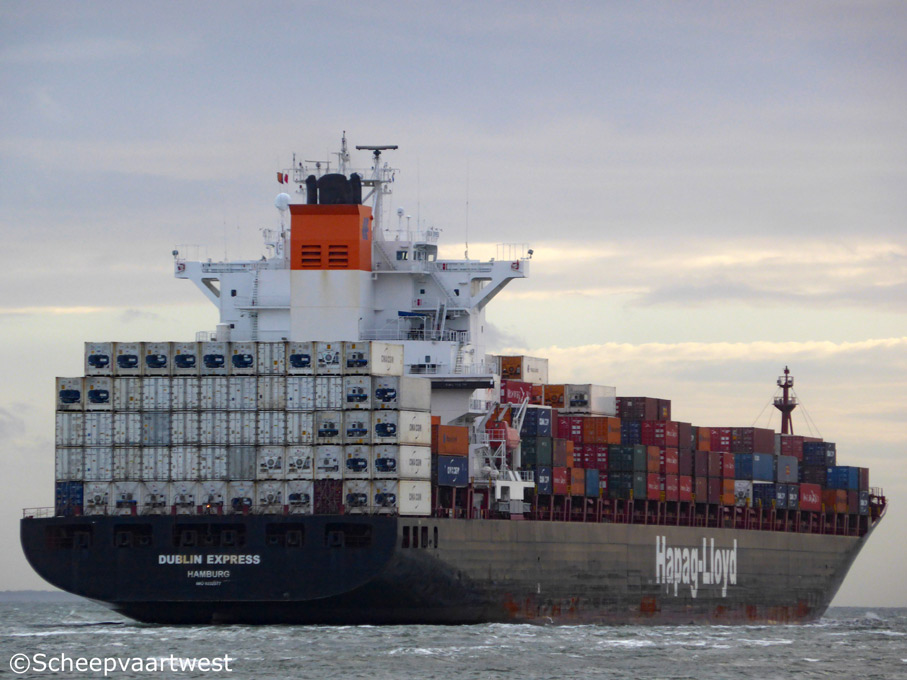

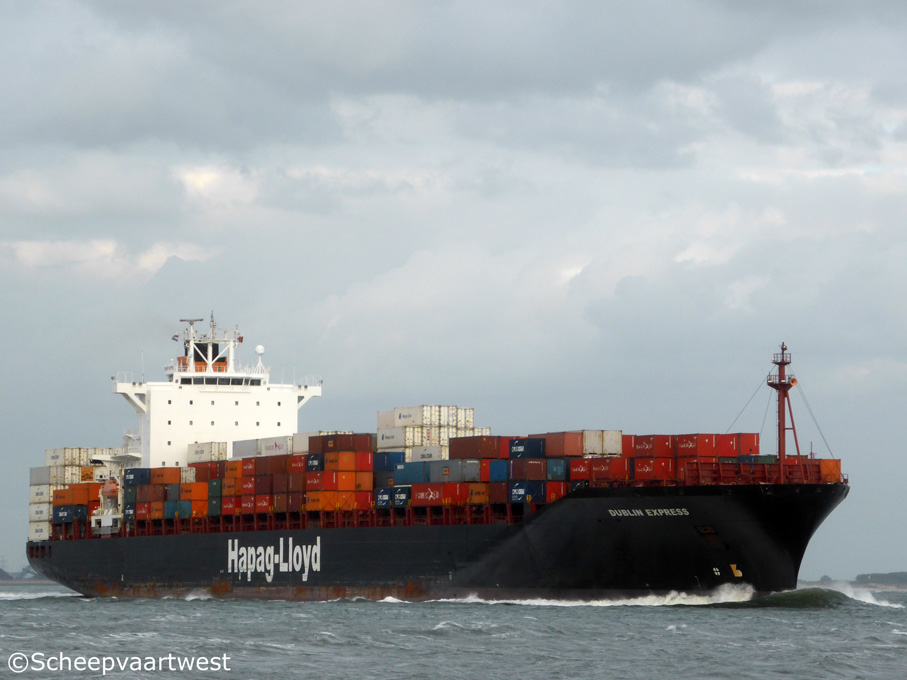

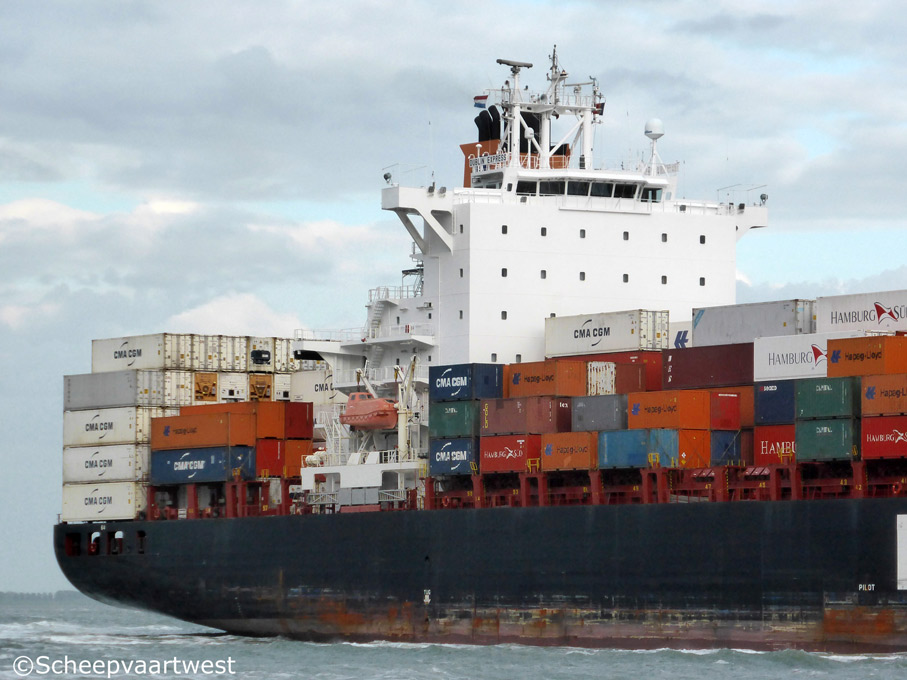

Westerschelde 07 May 2014 |
 |
 |
|
| Westerschelde 07/05/14 | Westerschelde 07/05/14 | |
|
Name |
DUBLIN EXPRESS |
|
Previous names |
2002 - 07/2005 Contship Australis 07/2005 - 02/2006 CP Australis 02/2006 - 12/2007 Maersk Dale |
|
Type |
Cellular containership |
|
IMO-number |
9232577 |
|
Call sign |
ZCHC7 |
|
Flag |
Bermuda |
|
Port of registry |
Hamilton |
|
Previous flags |
2002 - 2006 United Kingdom 2006 - 2021 Germany, Hamburg - Call sign: DDSB2 |
|
GT |
46.009 t |
|
DWT |
Summer: 54.155 |
|
NT |
25.880 t |
|
Number of 20ft containers |
4.121 |
|
Container capacity 14t |
2.718 |
|
Reefer capacity |
1.304 |
|
Length |
281,00 m overall 269,96 m between perpendiculars |
|
Breadth |
32,23 m extreme |
|
Draught |
Summer: 12,50 m |
|
Freeboard |
7.350 mm |
|
Depth |
19,85 m |
|
Speed |
25,2 knots |
|
Built |
2002 |
|
Keel laid |
21/05/2002 |
|
Launch date |
17/08/2002 |
|
Date of completion |
05/12/2002 |
|
Builder |
DSME - Daewoo Shipbuilding & Marine Engineering Co. Ltd. 1 Aju-Dong Geojesi 656-714 Gyeongsangnam-do Republic of Korea |
|
Yard number |
4083 |
|
Hull material |
Steel |
|
Hull type |
Single hull |
|
Bulkheads |
Longitudinal: 2 Transverse: 9 |
|
Main engine |
1x Sulzer 9RTA96C-B - 9 cylinder combustion engine 51.480 kW / 69.360 bhp at 102,0 rpm Manufacture: Wärtsilä NSD Switzerland Ltd. |
|
Propellers |
1x Mono-block propeller Builder: Yundai Heavy Ind. Co. Ltd. |
|
Boilers |
1x Exhaust gas smoke tube (Steam generation) 1x Horizontal shell (Smoke tube) marine auxiliary boiler Builder: KangRim Industries. Co. Ltd. |
|
Generators |
2x Wärtsilä W9L32 main diesel generatorsets each 3.900 kW 2x Wärtsilä W8L32 main diesel generatorsets each 3.400 kW Builder: Wärtsilä Finland Oy |
|
Emergency generator |
1x Cummins LTA10-G2 diesel generatorset 220 kW |
|
Tank capacities |
Ballast: 14.302,5 m³ |
|
Cargo gear |
Gearless |
|
Manager |
Anglo-Eastern (Germany) GmbH |
|
Owner |
Hapag-Lloyd Aktiengesellschaft |
|
Previous owners |
2002 - 2004 CPS Number 3 Limited 2004 - 2006 CPS Number 2 Limited 2006 - 2006 Hapag-Lloyd Ships Ltd. 2006 - 2006 Hapag-Lloyd AG 2006 - 2007 TUI Aktiengesellschaft Hannover |
|
Latest data adjustment |
07 December 2023 |
