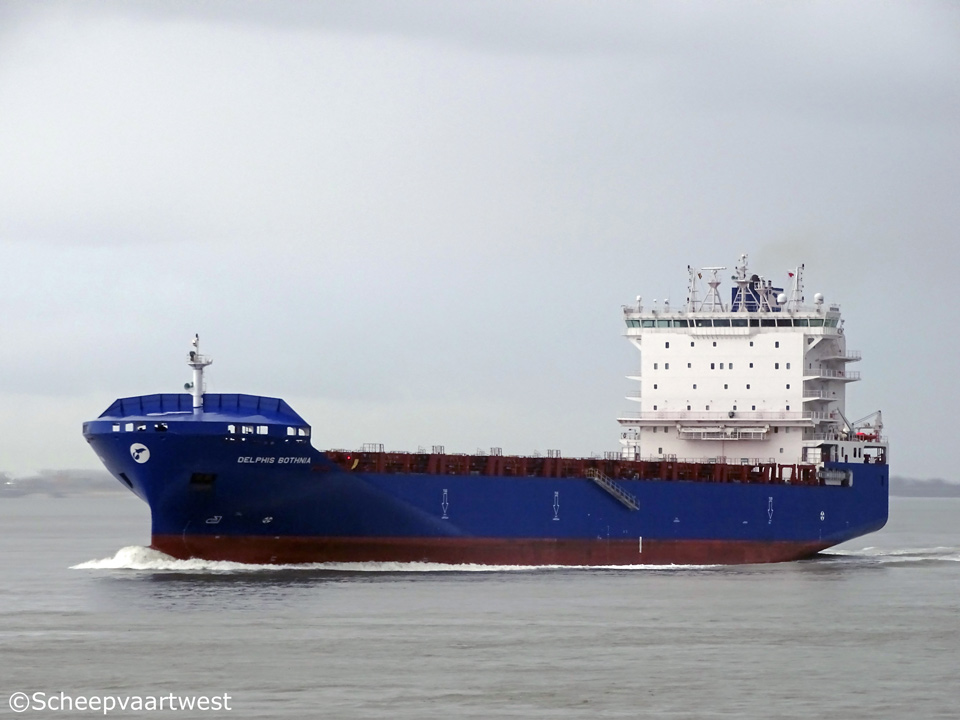

Delphis Bothnia 01

Westerschelde 15 January 2017

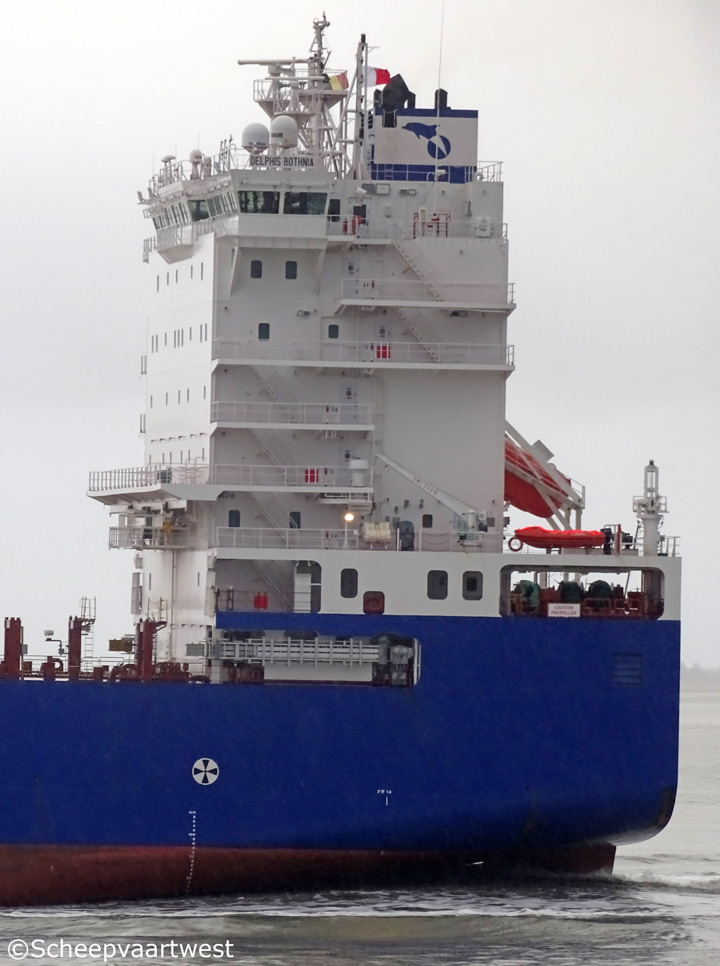

Delphis Bothnia 02
WS 15/01/17



Name

DELPHIS BOTHNIA

Type

Cellular containership

IMO-number

9763710

Call sign

VRPU4

Flag

Hong Kong - China

Port of registry

Hong Kong

GT

25.715 t

DWT

24.700 t

NT

7.715 t

Number of 20ft containers

1.926

Length

177,56 m overall

169,52 m between perpendiculars

Breadth

30,54 m extreme

Draught

9,50 m

Freeboard

2.478 mm

Depth

16,80 m

Speed

Max.: 18,0 knots

Built

2016

Keel laid

21.12.2015

Launch date

14.04.2016

Date of completion

29.08.2016

Builder

Hanjin Heavy Industries & Construction Co., Ltd.
Busan
South Korea

Yard number

263

Hull material

Steel

Main engine

1x MAN-B&W 6S60ME-C8 - 6 cylinder diesel engine 14.280 kW

Propellers

1

Boilers

1x Auxiliary boiler, composite (Composite Boiler)

Builder: Kangrim Heavy Industries Co.,Ltd.

Generators

3x HimSen 8H21/32 main diesel generatorsets

1x HimSen 6H21/32 main diesel generatorset

Builder: Hyundai Heavy Industries Co., Ltd.

Emergency generator

1x Cummins 855 diesel generatorset

Bow thruster

1.100 kW, forward

515 kW, stern

Tank capacities

Ballast: 10.249,09 m³

Anchor equipment

Length: 660,00 m

Diameter: 76 mm

Crew

14

Manager

Anglo-Eastern (Germany) GmbH

Operator

Delphis N.V.

Schaliënstraat 3
2000 Antwerpen
Belgium

Registered owner

Alpha Vessel Ltd.

Latest data adjustment

14 May 2017
