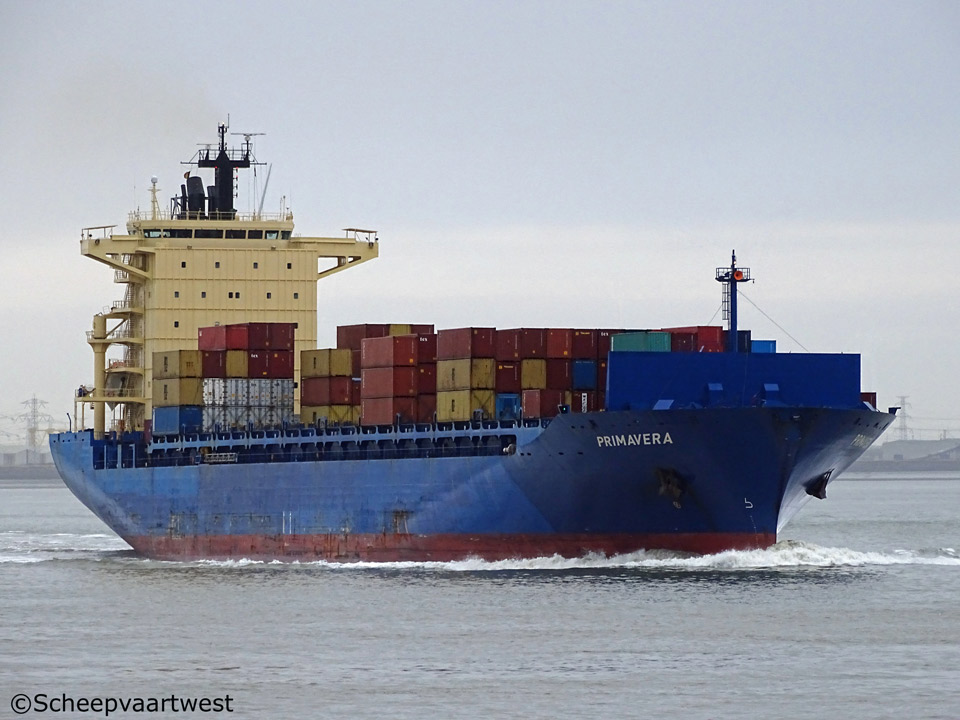

Primavera 01

Westerschelde 15 January 2017

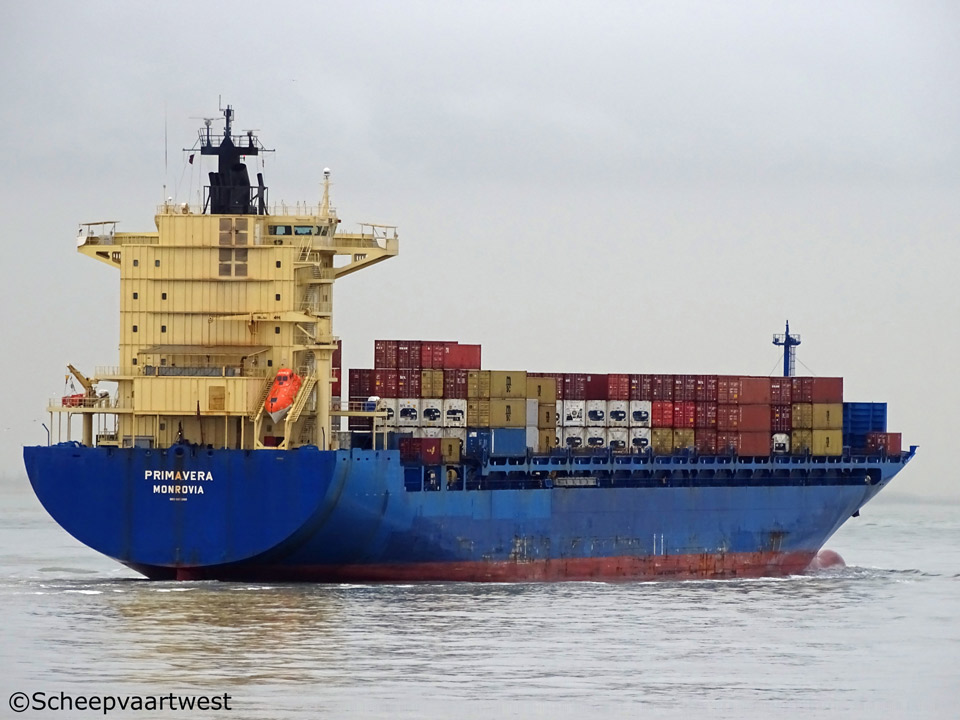

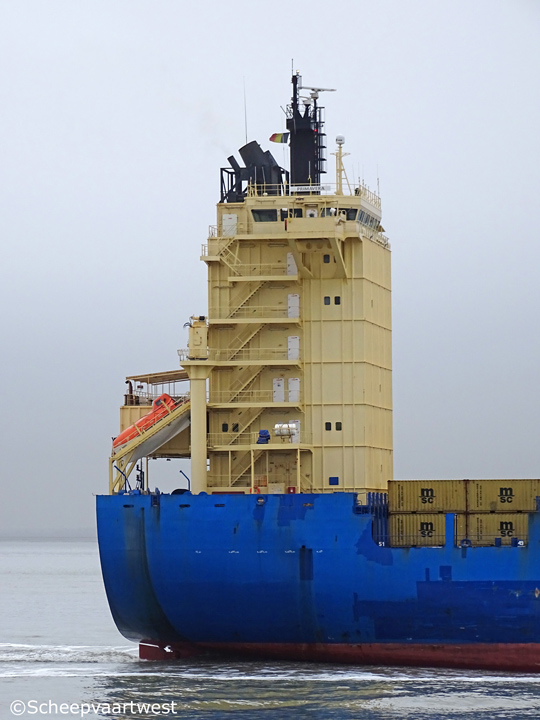

Primavera 03   Primavera 02
Westerschelde 15/01/17 WS 15/01/17



Name

PRIMAVERA

Previous names

2008 - 07.2013 CSAV Rungue

Type

Cellular containership

IMO-number

9372860

Call sign

A8QL5

Flag

Liberia

Port of registry

Monrovia

GT

36.087 t

DWT

Summer: 42.594,2 t

NT

15.774 t

Number of 20ft containers

On deck: 2.028

In hold: 1.398

Total: 3.426

Number of 40ft containers

On deck: 1.066 + 16 TEU

IN hold: 688 + 22 TEU

Total: 1.694 + 38 TEU

Container capacity 14t

2.500

Reefer points

500 reefer sockets whereof 108 in holds CEE model supplying 440 V, 60 cycles, 3 phases

Length

228,62 m overall

218,20 m between perpendiculars

220,23 m registered

Breadth

32,22 m registered

Draught

12,00 m

Forecastle

17,16 m

Poop

14,30 m

Freeboard

6.580 mm

Depth

18,55 m moulded

Speed

23,25 knots

Built

2008

Keel laid

19.09.2007

Launch date

09.05.2008

Date of completion

28.08.2008

Builder

Emder Werft und Dockbetriebe GmbH
Zum Zungenkai
26725 Emden
Federal Republic of Germany

Yard number

556

Hull material

Shipbuilding steel (standard)

Higher tensile steel

Hull type

Double bottom

Watertight bulkheads

8

Continuous decks

1

Main engine

1x MAN-B&W-Hitachi 8K80MC-C - 2 stroke 8 cylinder 800 x 2.300 mm diesel engine - 28.880 kW at 104,0 rpm

Year of manufacture: 2008

Manufacturer: Hitachi Zosen Diesel and Engineering Co., Ltd.
1, Ohaza Ariake, Nagasu-machi
Tamana-Gun
Japan

Propellers

1x Solid propeller (keyless) - aft at 104,0 rpm

Boilers

1x Steam boiler, oil fired - 10,0 bar

Heating surface: 81,0 m²

1x Steam boiler, exhaust gas heated - 10,0 bar

Heating surface: 550,0 m²

Year of manufacture: 2008

Manufacturer: TPK Nova d.o.o.
Slavonska avenija 20
10000 Zagreb
Croatia

Electric installations

1x Plant 450 V - 2.150 kVA

2x Plants each 450 V - 2.780 kVA

1x Plant 450 V - 296 kVA

2x Plants each 24 V -h 110 Ah

4x Plants each 24 V - 110 Ah

2x Plants each 24 V - 200 Ah

Generators

2x Mak 8M25 main diesel generatorsets each 2.780 kVA

1x Mak 6M25 main diesel generatorset 2.150 kVA

Emergency generator

1x MAN D2866 LXE20 diesel generatorset 296 kVA

Batteries

2 Batteries for UPS navigation each 200 Ah

2 Batteries for automation each 110 Ah

4 Batteries for start emergency engine each 110 Ah

Compressed air receivers

2x Receivers each 10.000 litres - 30,0 bar

1x Receiver 30 litres - 30,0 bar

1x Receiver 1.000 litres - 11,0 bar

Bow thruster

1x Transverse thruster 1.200 kW, forward

Number of hatches

11x Steel pontoons type

No. 1-2: 12,64 × 22,96 m, 2 covers
No. 3 – 11: 12,64 × 28.,5 m, 3 covers

Tank capacities

Ballast: 11.912,8 m³

HFO: 3.600 m³

MGO: 550 m³

Anchor equipment

3x Anchors weight each 11.700 kg

Chain length: 687,50 m

Diameter: 84 mm

Cargo gear

Gearless

Crew size

32

Manager

Kontor 17 Shipmanagement GmbH & Co. KG
Burchardstraße 17
20095 Hamburg
Germany

Previous managers

Maritime Gesellschaft für Maritime Diensleistungen mbh

Registered owner

"PRIMAVERA" Beteiligungsges. mbH & Co. KG

Latest data adjustment

21 May 2017
