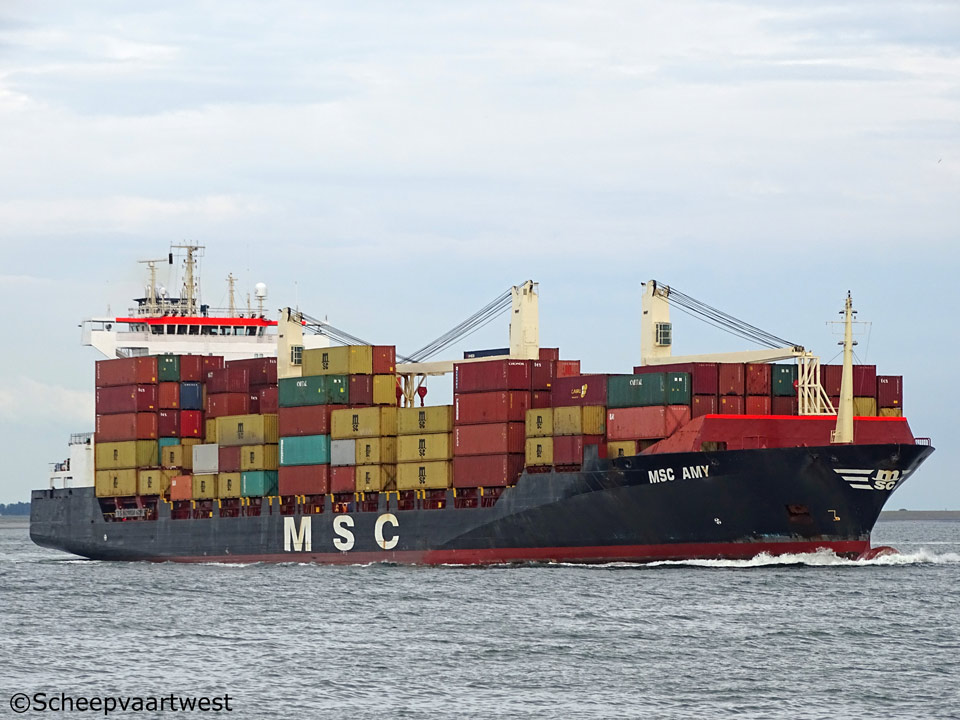

MSC Amy 01

Westerschelde 03 June 2017

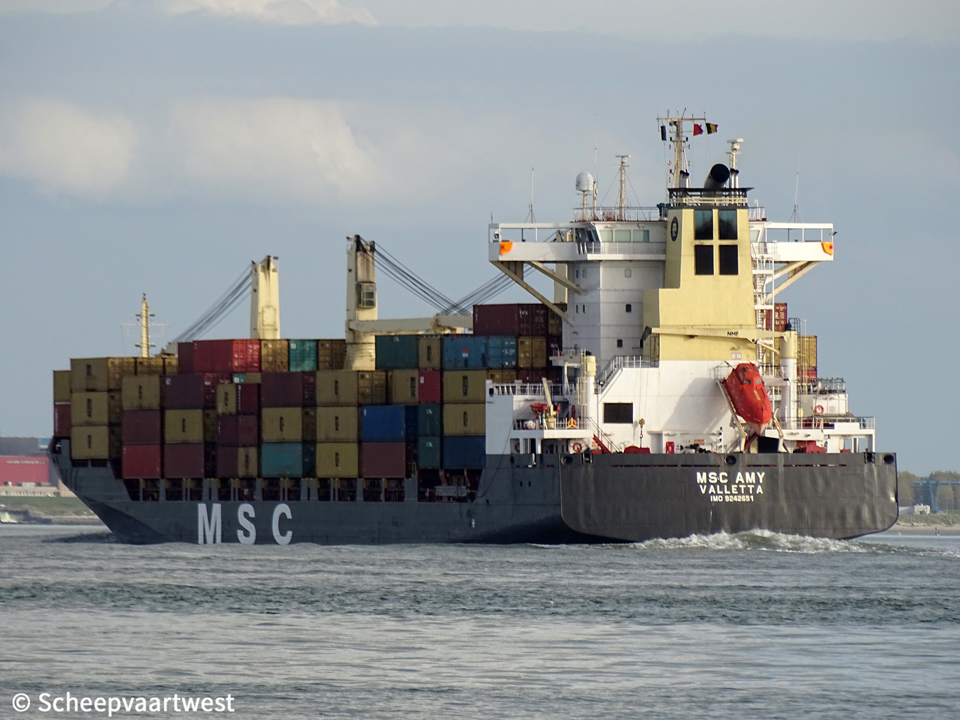

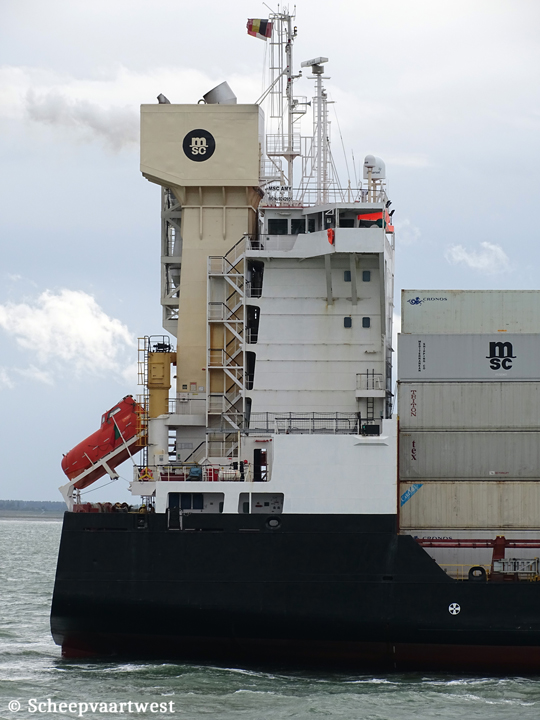

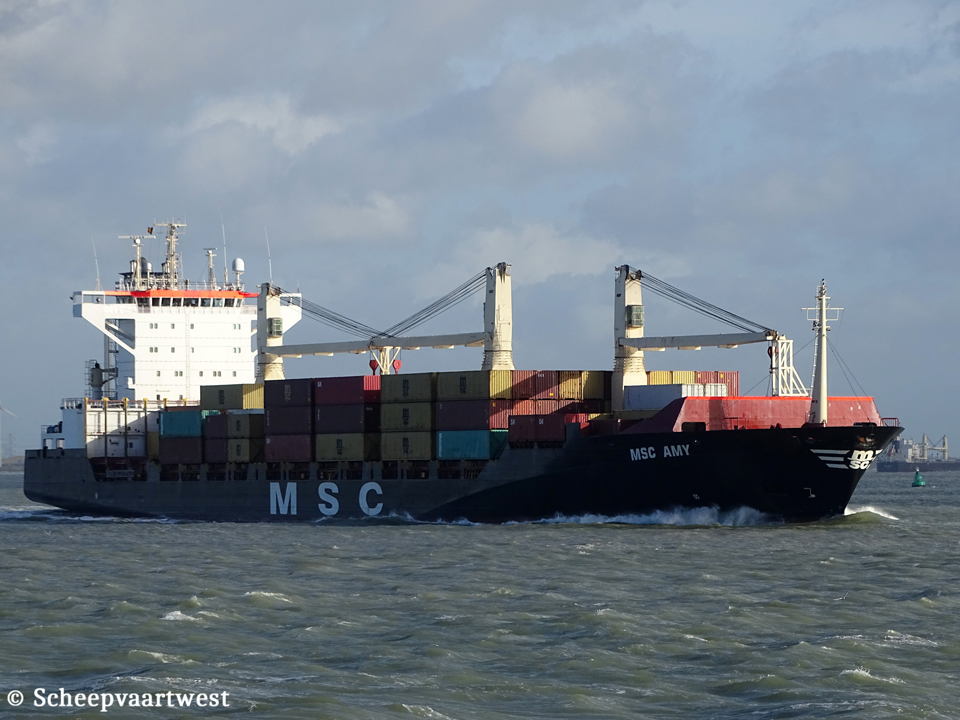

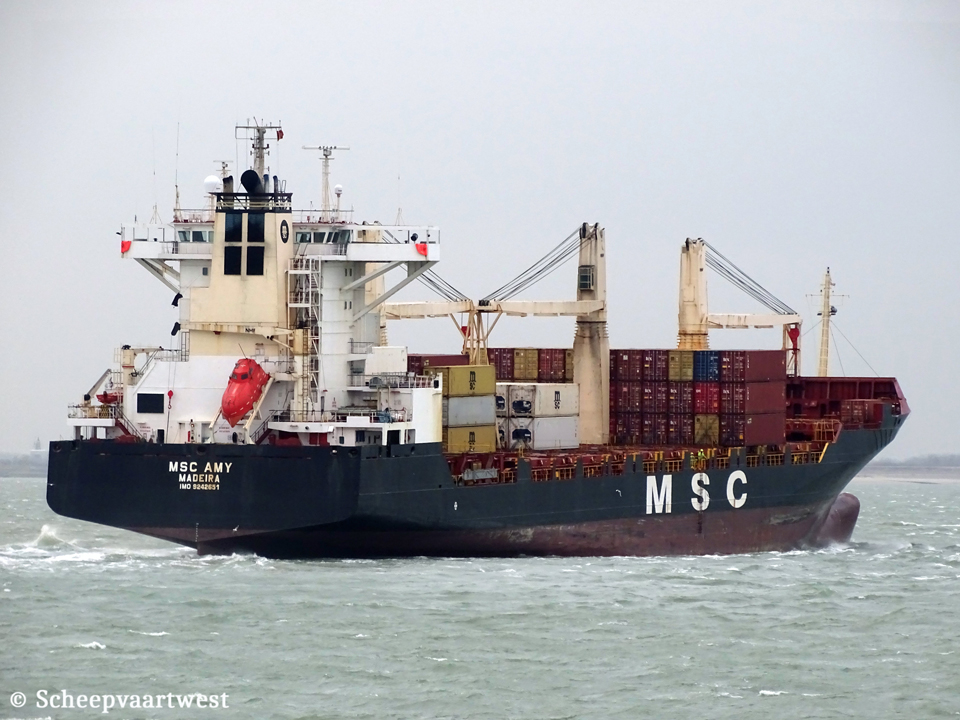

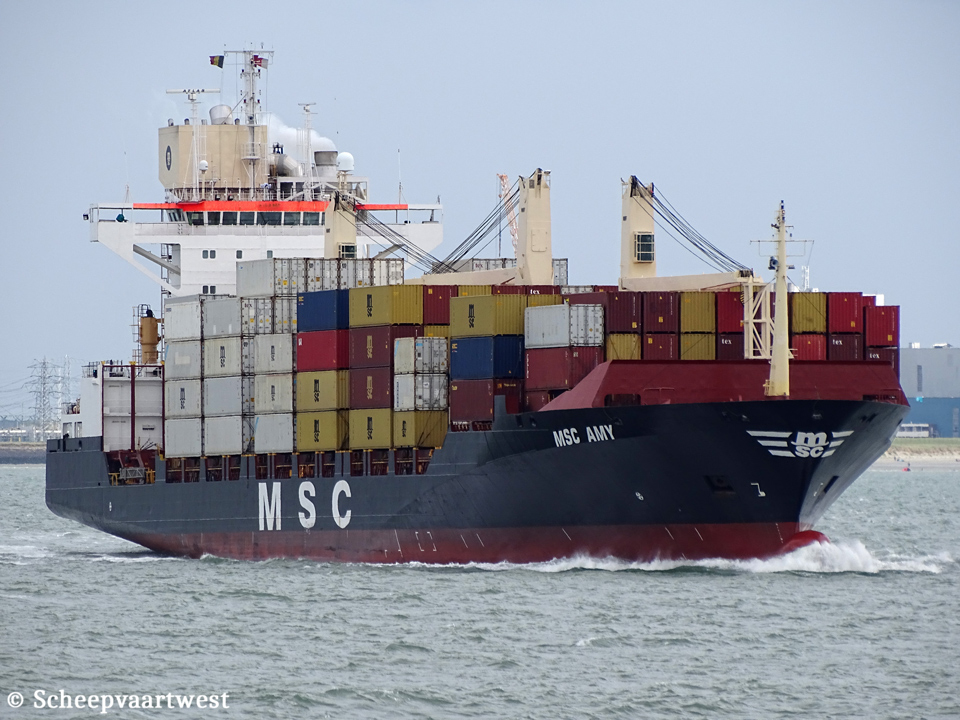

MSC Amy 02   MSC Amy 03   MSC Amy IMO 9242651 05   MSC Amy IMO 9242651 06   MSC Amy IMO 9242651 10   MSC Amy IMO 9242651 07
Westerschelde 30/03/16 Westerschelde 25/10/15 Westerschelde 07/02/19 Westerschelde 34/06/20   Westerschelde 10/12/19   WS 24/09/20

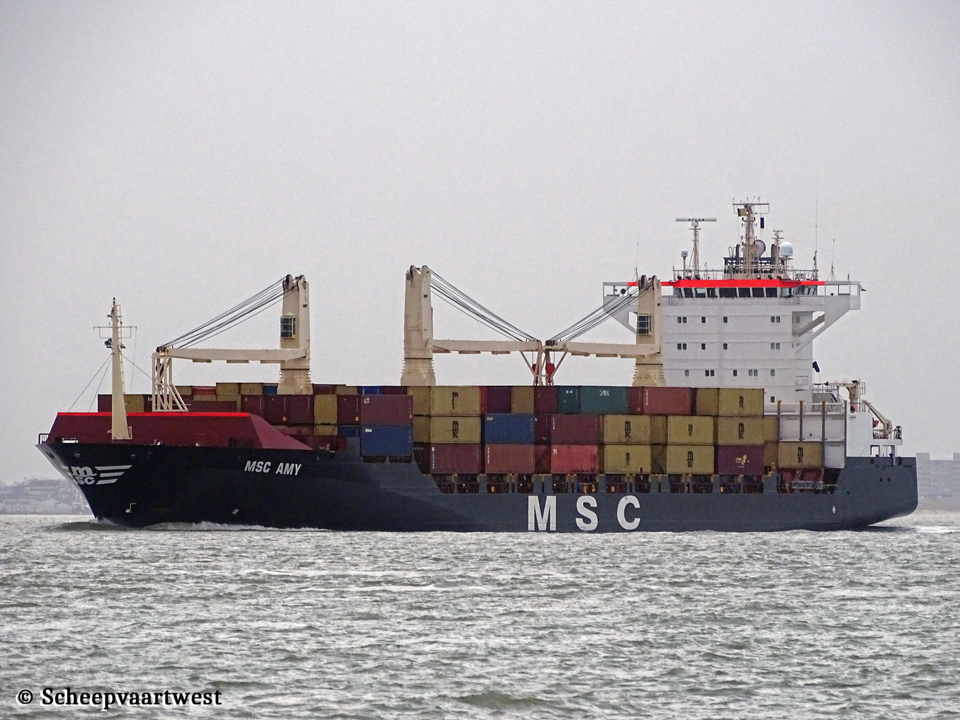

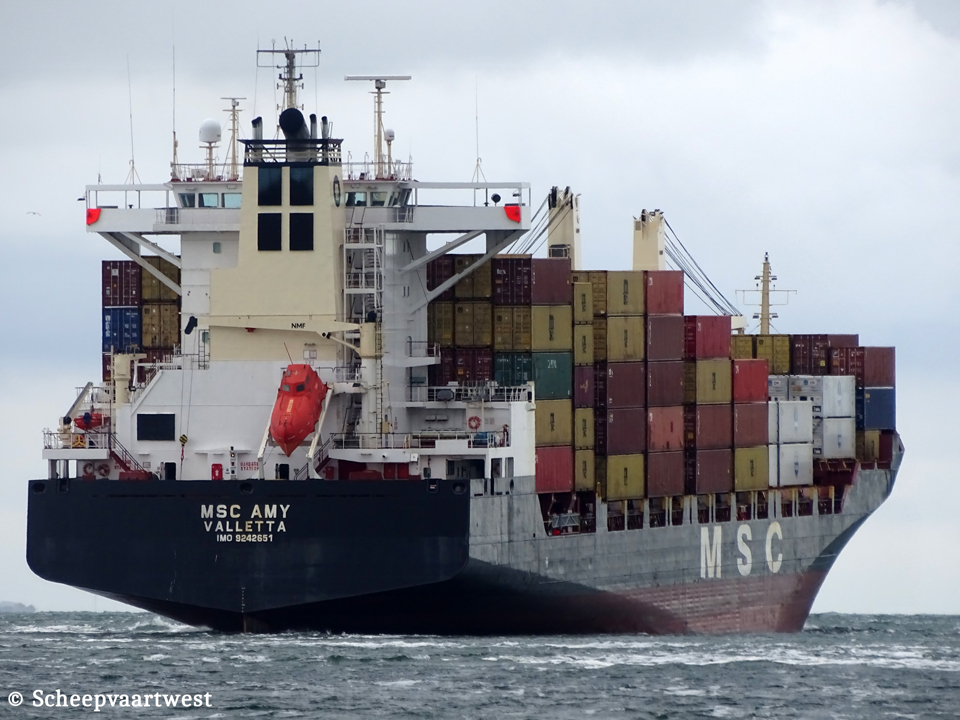

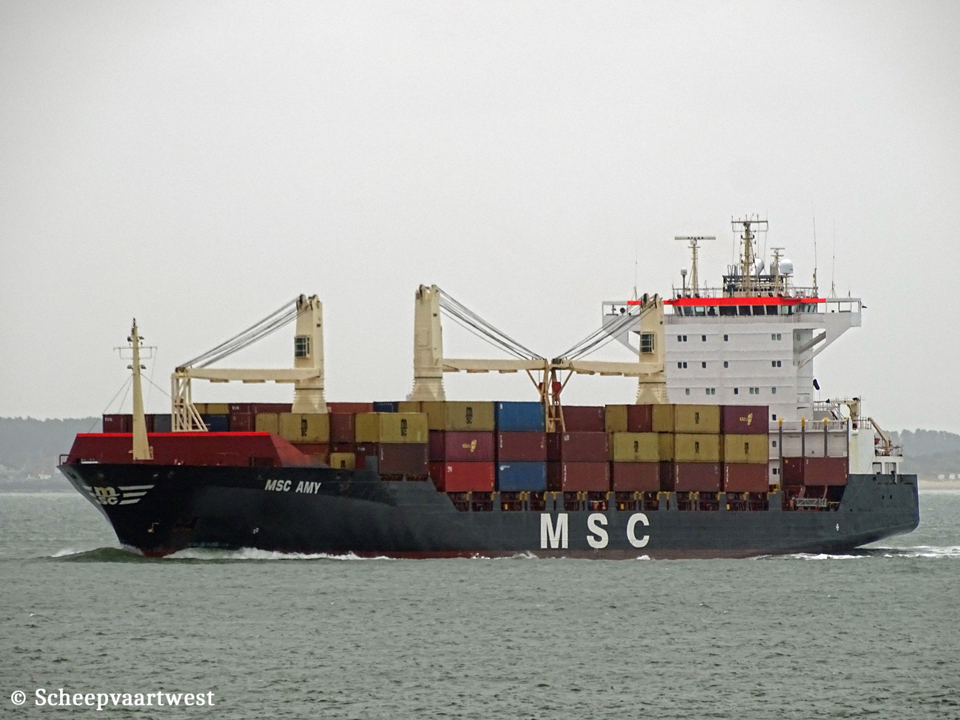

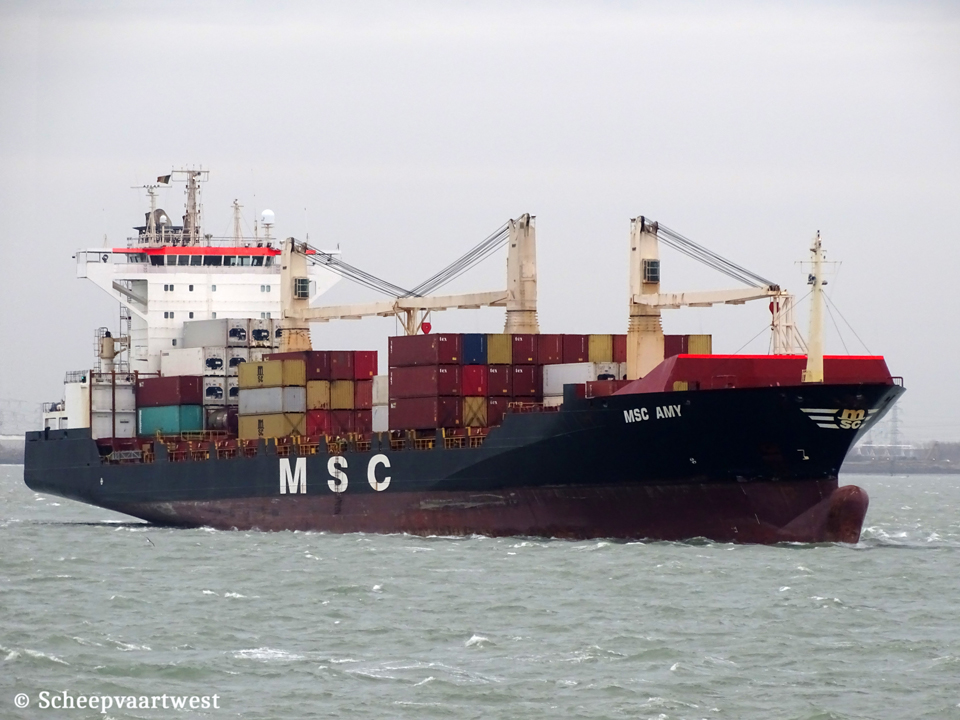

MSC Amy IMO 9242651 08   MSC Amy IMO 9242651 11   MSC Amy IMO 9242651 13   MSC Amy IMO 9242651 14
Westerschelde 10/12/19   Westerschelde 19/05/17   Westerschelde 02/01/18   Westerschelde 01/07/17


Name

MSC AMY

Previous names

Launch as: Landstar

2002 - 2003 Maersk Venice

Type

Cellular containership

IMO-number

9242651

Call sign

CQIV7

Flag

Portugal

Port of registry

Madeira

Previous flags

2002 - 2014 Gibraltar - Call sign: ZDFH7

2014 - 2017 Malta, Valletta - Call sign: 9HA3711

GT

17.189 t

DWT

Summer: 22.308 t

NT

9.038 t

Number of 20ft containers

1.683

Number of 40ft containers

792

Container capacity 14t

1.305

Reefer capacity

400

Length

178,57 m overall

168,65 m between perpendiculars

Breadth

27,60 m extreme

Draught

10,87 m

Keel to mast end

49,95 m

Freeboard

3.762 mm

Depth

14,58 m

Speed

Max.: 20,5 knots

Built

2002

Keel laid

21/11/2000

Launch date

13/06/2002

Date of completion

23/08/2002

Builder

J.J. Sietas KG Schiffswerft GmbH & Co.

Neuenfelder Fährdeich 88

Hamburg

Germany

Yard number

1203

Hull material

Shipbuilding steel (higher tensile)

Hull type

Single hull

Double bottom

Watertight bulkheads

5

Continuous decks

1

Main engine

1x MAN-B&W 6L70MC Mk VI - 2 stroke single acting 6 cylinder 700 x 2.268 mm combustion engine 16.980 kW / 23.071 hp at 108,0 rpm

Propellers

1x Solid propeller (keyless)

Boilers

1x Thermal oil heater, oil fired - 10,0 bar

Heating surface: 64,1 m²

1x Thermal oil heater, exhaust gas heated - 10,0 bar

Heating surface: 466,0 m²

Electric installations

4x 450/230 V - 5.200 kVA

1x 450 V - 220 kVA

1x 24 V - 310 Ah

1x 230 V - 16 kVA

Generators

4x MAN 6L23/30H main diesel generatorsets each 1.169 kVA - 935 kW - 1.223 hp

Emergency generator

1x Diesel generatorset 220 kVA / 176 kW

Batteries

2x Batteries for start emergency engine each 155 Ah

Compressed air receivers

2x Receivers each 6.500 litres - 30,0 bar

1x Receiver 150 litres - 30,0 bar

Bow thruster

1x Transverse thruster 900 kW, forward

1x Transverse thruster 700 kW, aft

Number of holds

5

Total capacity of holds

30.025 m³

Tank capacities

Fuel oil: 2.407,4 m³

Water ballast: 6.478 m³

Anchor equipment

3x Anchors weight each 7.350 kg

Length: 607,20 m

Diameter: 66 mm

Cargo gear

3x NMF cranes - SWL 45,0 t each

Crew size

25

ISM & commercial manager

MSC Shipmanagement Ltd.

MSC House, 8, Spyrou Kyprianou Avenue

Limassol

Cyprus

Operator

MSC - Mediterranean Shipping Company

Registered owner

Serpens Shipping Corporation

Care of MSC Shipmanagement Ltd , MSC House

8, Spyrou Kyprianou Avenue

Limassol

Cyprus

Latest data adjustment

27 May 2022
