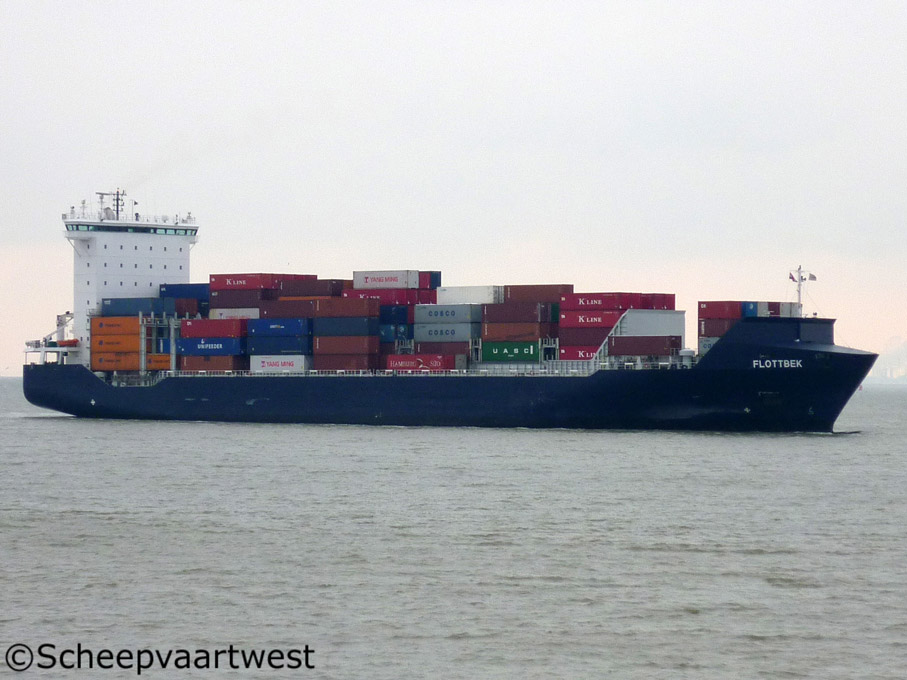

Flottbek 02
Westerschelde 08 February 2012

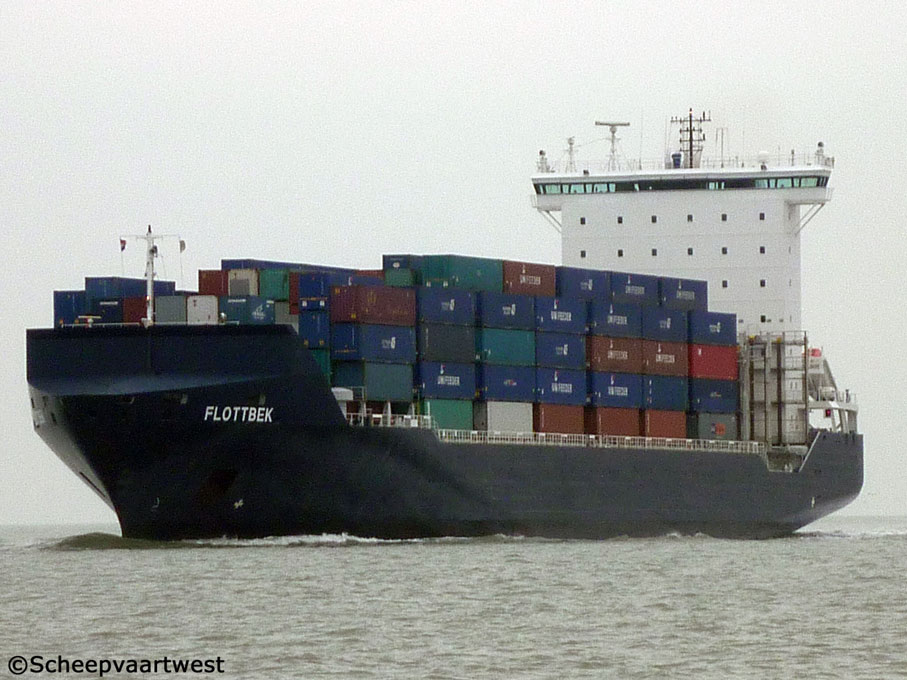

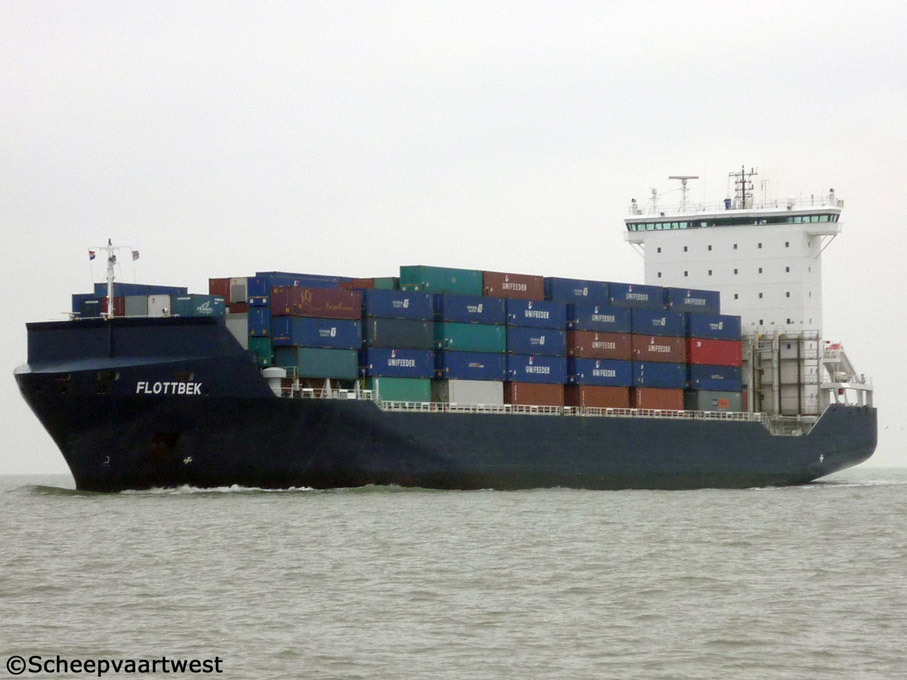

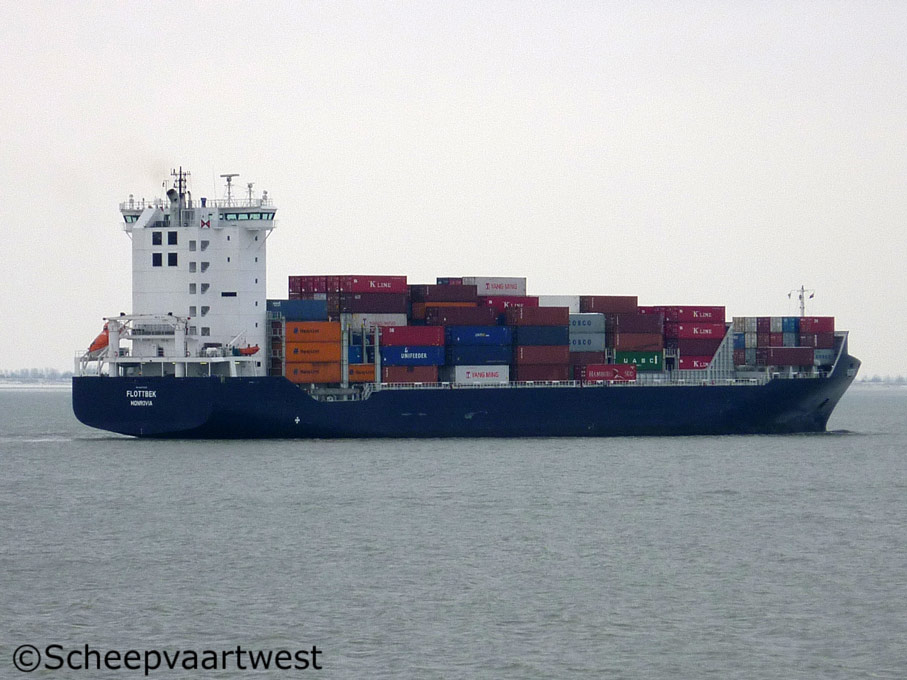

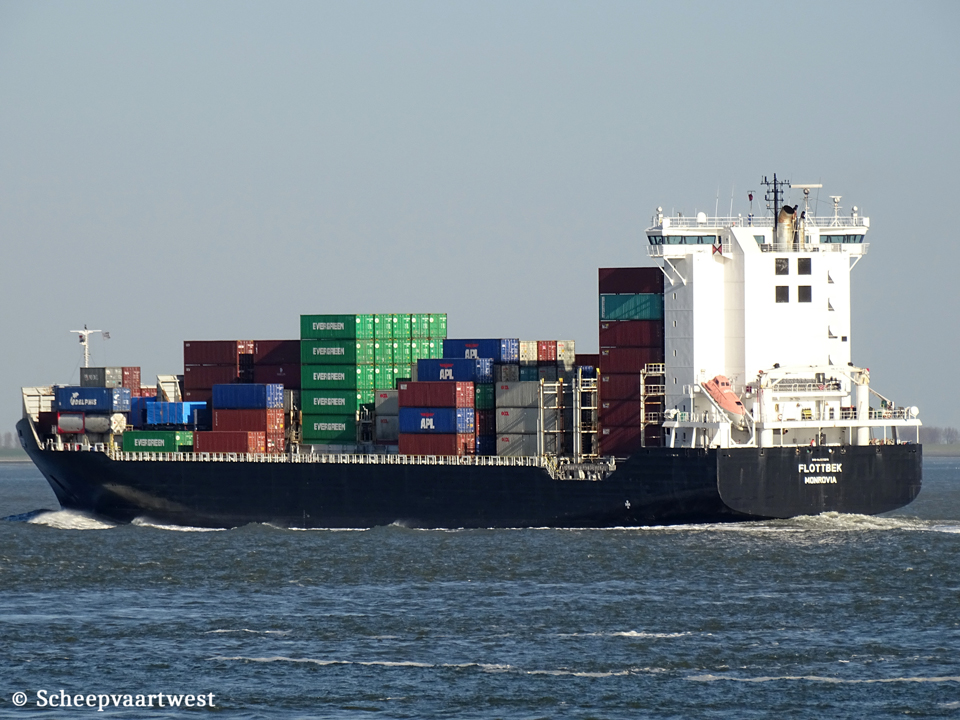

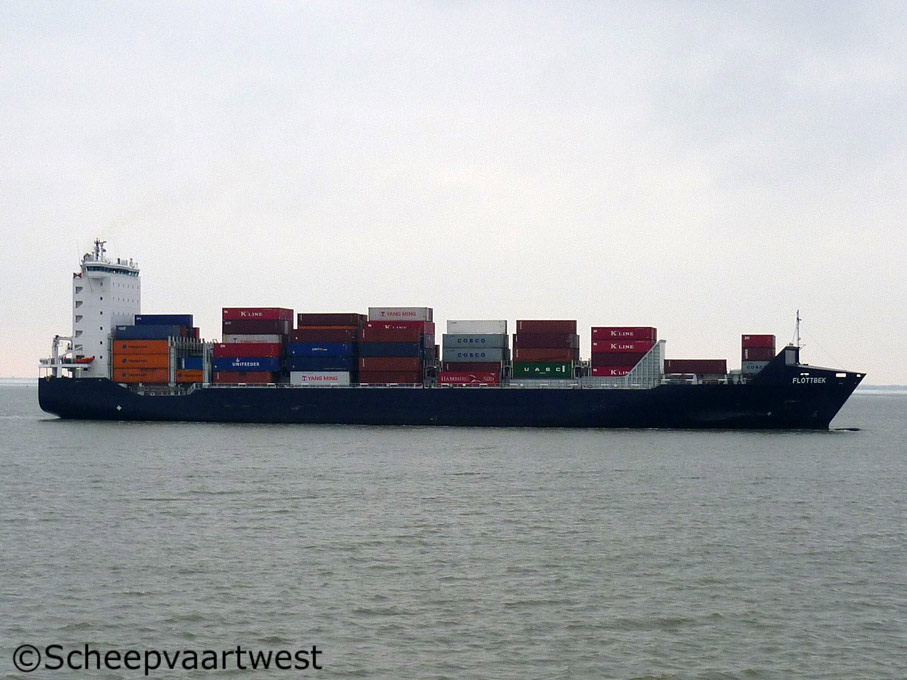

Flottbek 04   Flottbek 10   Flottbek 11   Flottbek 13   Flottbek IMO 9313216 16
Westerschelde 08/02/12 Westerschelde 08/02/12 Westerschelde 06/03/12 Westerschelde 06/03/12   Westerschelde 20/04/16


Name

FLOTTBEK

Type

Cellular containership

IMO-number

9313216

Call sign

A8YI8

Flag

Liberia

Port of registry

Monrovia

2005 - 2011 United Kingdom, London - Call sign: MNVK8

GT

16.324 t

DWT

15.933 t

NT

6.450 t

Number of 20ft containers

On deck: 1.417

in hold: 221

Total: 1.638

Container capacity 14t

1.090

Reefer capacity

312

Length

169,00 m over all

159,60 m registered

Breadth

27,20 m registered

Draught

9,00 m

Forecastle

35,20 m

Bridge

92,00 m

Poop

32,80 m

Freeboard

3.810 mm

Depth

13,60 m

Speed

20,0 knots

Built

2005

Keel laid

14/05/2004

Launch date

03/01/2005

Date of completion

04/05/2005

Builder

Meyer Werft GmbH

Industriegebiet Süd

26871 Papenburg

Federal Republic of Germany

Yard number

673

Hull material

Shipbuilding steel (standard)

Hull type

Double bottom, continuous from peak to peak bulkhead

Watertight bulkheads

7

Continuous decks

1

Main engine

1x MAN-B&W 8S50MC-C - 2 stroke single acting 8 cylinder 500 x 2.000 combustion engine Mcr 12.640 kW / 17.185 hp at 127,0 rpm

Year of manufacture: 2004

Manufacturer: MAN B&W Diesel A/S Frederikshavn

Niels Juels Vej 15

9900 Frederikshavn

Kingdom of Denmark

Propellers

1x Controllable pitch propeller - aft at 127,0 rpm

Boilers

1x Steam boiler, oil fired - 9,0 bar

Heating Surface: 56,4 m²

1x Steam boiler, exhaust gas heated - 9,0 bar

Heating Surface: 405,2 m²

Year of manufacture: 2004

Manufacturer: VKK Standardkessel Köthen GmbH

Am Holländerweg 21-23

06366 Köthen

Federal Republic of Germany

Electric installation

3x Plants each 400/230 V - 1.000 kVA

1x Plant 400 V - 2.250 kVA

1x Plant 400 V - 625 kVA

1x Plant 24 V - 115 Ah

1x Plant 24 V - 225 Ah

1x Plant 24 V - 225 Ah

Shaft generator

1x 2.250 kVA / 1.800 kW

Generators

3x Cummins KTA-38-M - 4 stroke 12 cylinder 159 x 159 mm diesel engines each Mcr 850 kW connected with generators each 800 kW / 1.000 kVA

Emergency generator

1x Diesel generatorset 625 kVA

Batteries

2x Batteries for UPS navigation each 225 Ah

2x Batteries for UPS radio each115 Ah

2x Batteries for start emergency engine each 225 Ah

Compressed air receivers

2x Receivers each 3.000 litres - 33,0 bar

1x Receiver 30 litres - 30,0 bar

Bow thruster

1x Transverse controllable pitch thruster - 950 kW / 2.292 bhp, forward

1x Transverse controllable pitch thruster - 650 kW / 884 bhp, aft

Number of holds

8

Anchor equipment

3x Anchors weight each 8.300 kg

Chain length: 632,50 m

Cargo gear

Gearless

Manager

RHL Reederei Hamburger Lloyd GmbH & Co. KG

Zirkusweg 2

20359 Hamburg

Federal Republic of Germany

Registered owner

Schiffahrtsgesellschaft MS "FLOTTBEK" mbH & Co. KG

Johannisbollwerk 19

20459 Hamburg

Federal Republic of Germany

Renamed

2017 - 2020 Baltic Petrel

Cyprus, Limassol - call sign: 5BSJ4

2020 -2021 SCA Tunadal

Cyprus, Limassol - call sign: 5BSJ4

2021 Baltic Petrel

Republic of Singapore, Singapore City - Call sign: 9V8689

Manager: X-Press Feeders - Republic of Singapore

Owner: Kanteles Enterprises Ltd.- Republic of Singapore

Latest data adjustment

29 July 2023
