Hanse Courage 09
Westerschelde 15 July 2014

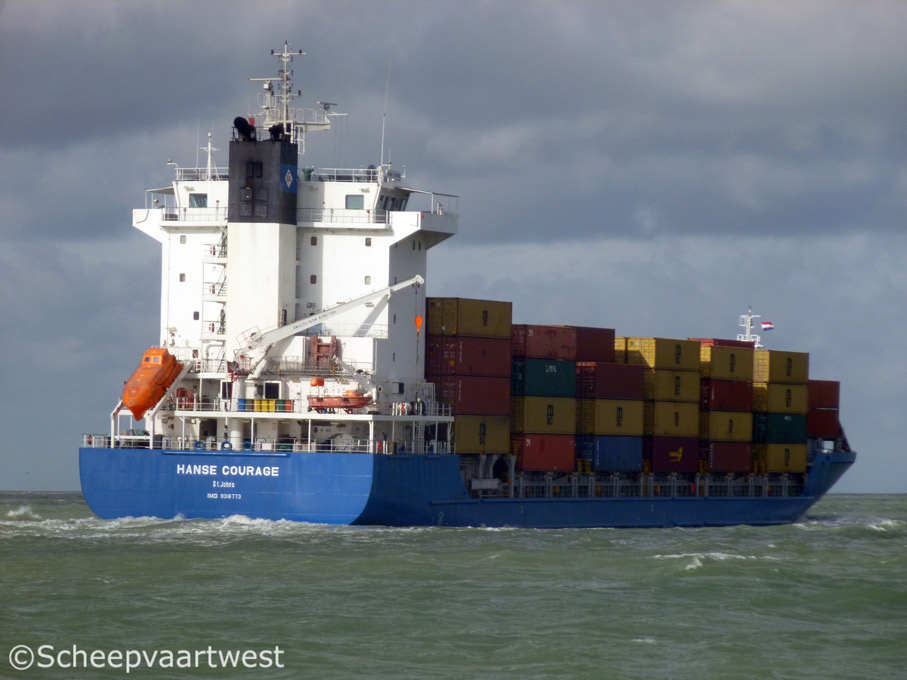

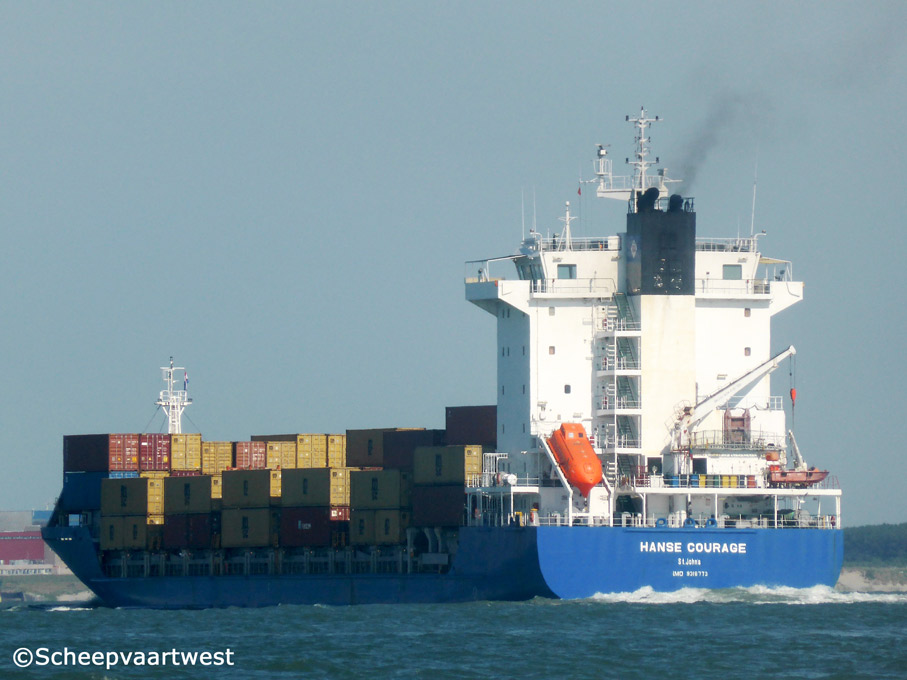

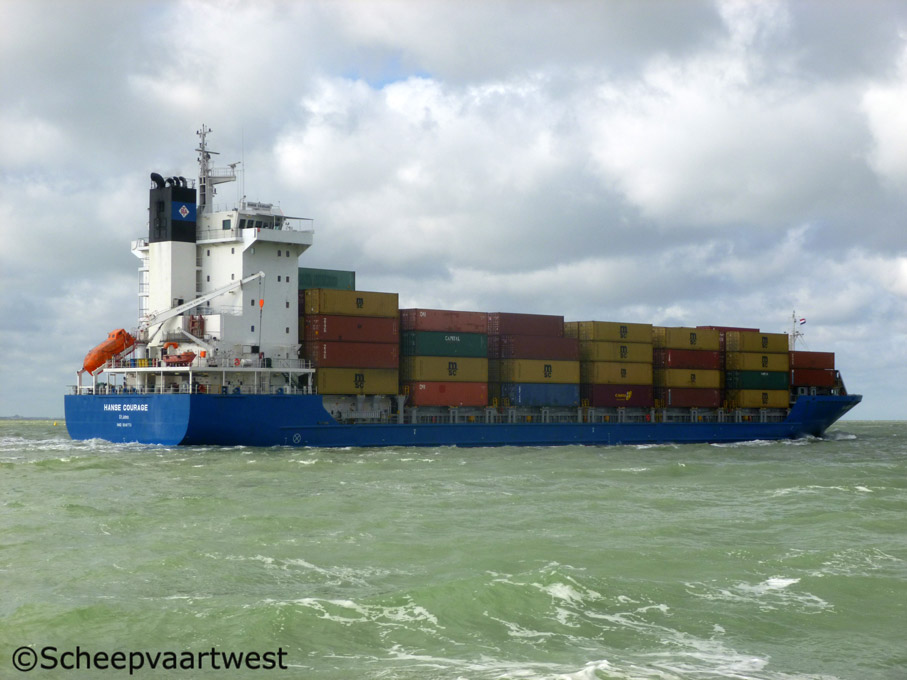

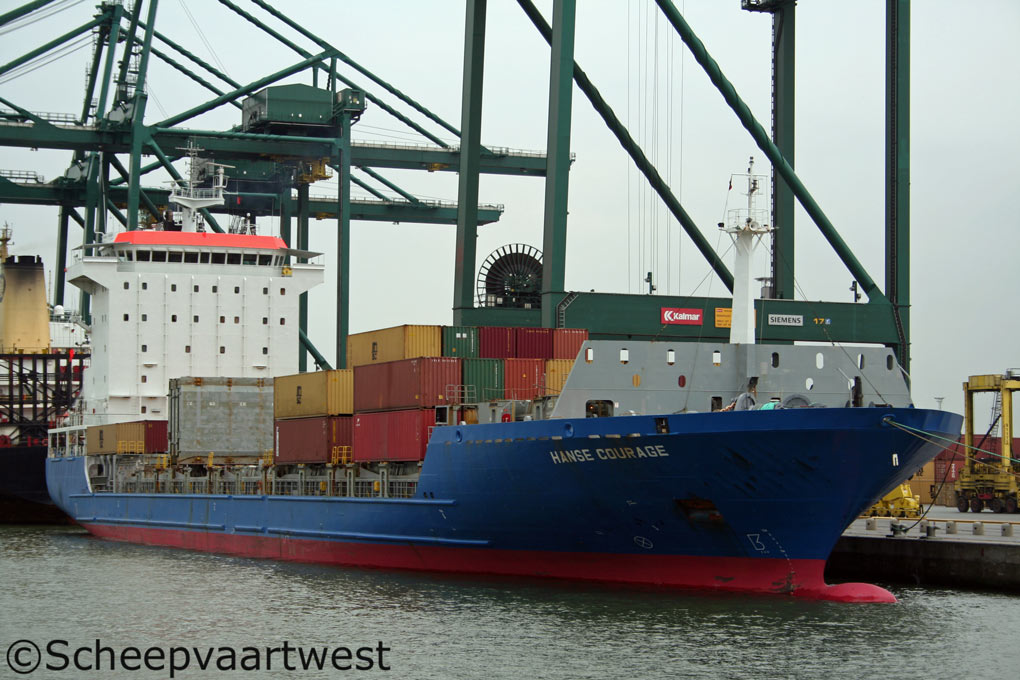

Hanse Courage 02   Hanse Courage 06   Hanse Courage 01   Hanse Courage 08
Westerschelde 25/09/12 Westerschelde 25/09/12 Antwerpen 31/08/11 Westerschelde 14/07/14



Name

HANSE COURAGE

Previous names

2005-23/08/2005 TS Nagoya

2005-31/10/2007 TS Pusan

2007-17/12/2007 Gabriella

2007-19/04/2009 X-Press Elbrus

Type

Gearless cellular container vessel

IMO-number

9318773

Call sign

V2OT7

Flag

Antigua & Barbuda

Port of registry

St. John's

GT

9.701 t

DWT

11.023 t

NT

3.972 t

Number of 20ft containers

830

Container capacity 14t

697

Reefer capacity

195

Length

140,39 m overall

132,24 m registered

Breadth

22,80 m registered

Draught

8,68 m

Forecastle

24,80 m

Poop

22,58 m

Depth

11,35 m moulded

Speed

Max.: 18,0 knots

Built

2005

Keel laid

30/09/2003

Launch date

30/09/2004

Date of completion

22/07/2005

Builder

China Changjiang Shipping Group Qingshan Shipyard

Chuan Chang Xin Cun Industry Port, Qingshan District

430082 Wuhan , Hubei

People's Republic of China

Yard number

QS20020303

Hull material

Shipbuilding steel (standard)

Hull type

Double bottom, continuous from peak to peak bulkhead

Watertight bulkheads

9

Continuous decks

1

Main engine

1x MAN-B&W 5S50MC-C - 2 stroke 5 cylinder 500 x 2.000 mm combustion engine 7.900 kW at 127,0 rpm

Year of manufacture: 2004

Manufacturer: Hudong Heavy Machinery Co., Ltd.

2851, Pudong Dadao

200129 Shanghai

People's Republic of China

Propeller

1x Solid propeller (keyless) - aft at 127 rpm

Boilers

1x Steam boiler, oil fired - 10,0 bar

Heating surface: 24,0 m²

1x Steam boiler, exhaust gas heated - 10,0 bar

Heating surface: 195,0 m²

Year of manufacture: 2004

Manufacturer: Saacke Qingdao Marine Boiler Co., Ltd.

Machinery Industry Park Qingdao Development Area

266500 Qingdao

People's Republic of China

Electric installations

1x Plant 440/230 V - 1.137 kVA

1x Plant 440/230 V - 1.325 kVA

1x Plant 440/230 V - 1.325 kVA

1x Plant 440 V - 170 kVA

1x Plant 24 V - 40 Ah

1x Plant 24 V - 135 Ah

1x Plant 24 V - 140 Ah

1x Plant 24 V - 200 Ah

Diesel generators

2x MAN-B&W 7L23/30H main diesel generatorsets each 1.060 kW / 1.325 kVA

1x MAN-B&W 6L23/30H main diesel generatorset - 910 kW / 1.137,5 kVA

Emergency generator

1x Diesel generatorset 170 kVA

Batteries

2x Batteries for UPS radio each 135 Ah

Compressed air receivers

2x Receivers each 4.500 litres - 33,0 bar

1x Receiver 250 litres - 33,0 bar

1x Receiver 50 litres - 33,0 bar

2x Receivers each 250 litres - 11,0 bar

Bow thruster

1x Transverse thruster - 600 kW, forward

1x Transverse thruster - 300 kW, aft

Number of holds

5

Number of hatches

6

Anchor equipment

3x Anchors weight each 5.610 kg

Chain length: 577,50 m

Cargo gear

Gearless

Crew size

25

Manager

Johs. Thode GmbH & Co. KG

Köhlbrandtreppe 2

22767 Hamburg

Federal Republic of Germany

Registered owner

Hanse Twin Feeder Schiffahrtsges. mbH & Co. KG

Köhlbrandtreppe 2

22757 Hamburg

Federal Republic of Germany

Sister ships

2005 Hanse Confidence

Renamed

2015 E.R. Wellington

Antigua & Barbuda, St. John’s - Call sign: V2OT7

Latest data adjustment

25 August 2020
