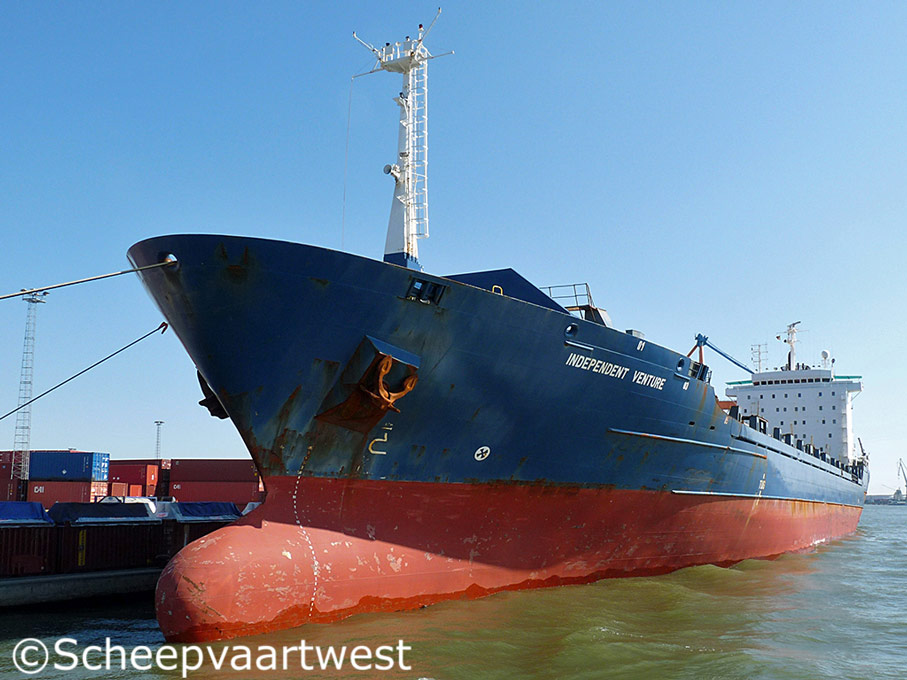

Independent Venture 02
Antwerpen 06 April 2010



Name

INDEPENDENT VENTURE

Previous names

1993-1998 Nautique

1998-1999 Sea Voyager
1999 Independent Venture

Type

Cellular containership

IMO-number

9064762

Call sign

A8CG2

Flag

Liberia

Port of registry

Monrovia

GT

14.849 t

DWT

20.540 t

NT

7.642 t

Number of 20ft containers

1.468

Container capacity 14t

1.014

Reefer capacity

150

Length

167,24 m overall

157,85 m registered

Breadth

25,00 m registered

Draught

Summer: 9,84 m

Forecastle

23,80 m

Poop

13,56 m

Depth

13,40 m moulded

Speed

Max.: 18,6 knots

Built

1993

Keel laid

01.02.1993

Launch date

11.06.1993

Date of completion

27.10.1993

Builder

Kvaerner Warnow Werft GmbH
Werftallee 10
18119 Rostock
Federal Republic of Germany

Yard number

424

Hull material

Shipbuilding steel (higher tensile)

Hull type

Double bottom

Watertight bulkheads

8

Continuous decks

2

Main engine

1x Sulzer 7 RTA 58 - 2 stroke single acting 7 cylinder 580 x 1.700 mm diesel engine - 11.130 kW at 127 rpm

Year of manufacture: 1993

Manufacturer: Dieselmotorenwerk Rostock GmbH
Werftallee 13
18119 Rostock
Federal Republic of Germany

Propeller

1x Solid propeller (keyless) - aft at 127 rpm

Boilers

1x Steam boiler, oil fired - 9,0 bar

Heating surface: 30,0 m²

1x Steam boiler, exhaust gas heated - 9,0 bar

Heating surface: 198,0 m²

Year of manufacture: 1993

Manufacturer: Aalborg Industries A/S
Gasvaerksvej 24
9100 Aalborg
Kingdom of Denmark

Electric installations

1x Plant 440/220 V - 1.105 kVA

1x Plant 440/220 V - 1.105 kVA

1x Plant 440/220 V - 1.105 kVA

1x Plant 440 V - 1.250 kVA

1x Plant 440 V - 175 kVA

Shaft generator

1.000 kW / 1.250 kVA

Generators

3x MaK 6M20 main diesel generatorsets each 884 kW / 1.105 kW

Emergency generator

1x Diesel generatorset 175 kVA

Compressed air receivers

2x Receivers each 6.300 litres - 30,0 bar

1x Receiver 250 litres - 30,0 bar

1x Receiver 100 litres - 30,0 bar

1x Receiver 30 litres - 30,0 bar

1x Receiver 750 litres - 10,0 bar

Bow thruster

1x Transverse thruster ULSTEIN - 750 kW forward

Cargo capacity

Grain: 26.094 m³

Anchor Equipment

3x Anchors weight each 6.450 kg

Chain length: 605,00 m

Ballast water

5.533 m³

Crew size

30

Manager

Herm. Dauelsberg GmbH & Co. KG
Am Wall 128-134
28195 Bremen
Federal Republic of Germany

Operator

Independent CL

Owner

Fünfte Beteiligungs-KG TIM Shipping mbH & Co.
Elbchaussee 133
22763 Hamburg
Federal Republic of Germany
