Westerschelde 05 March 2018 |
|
Name |

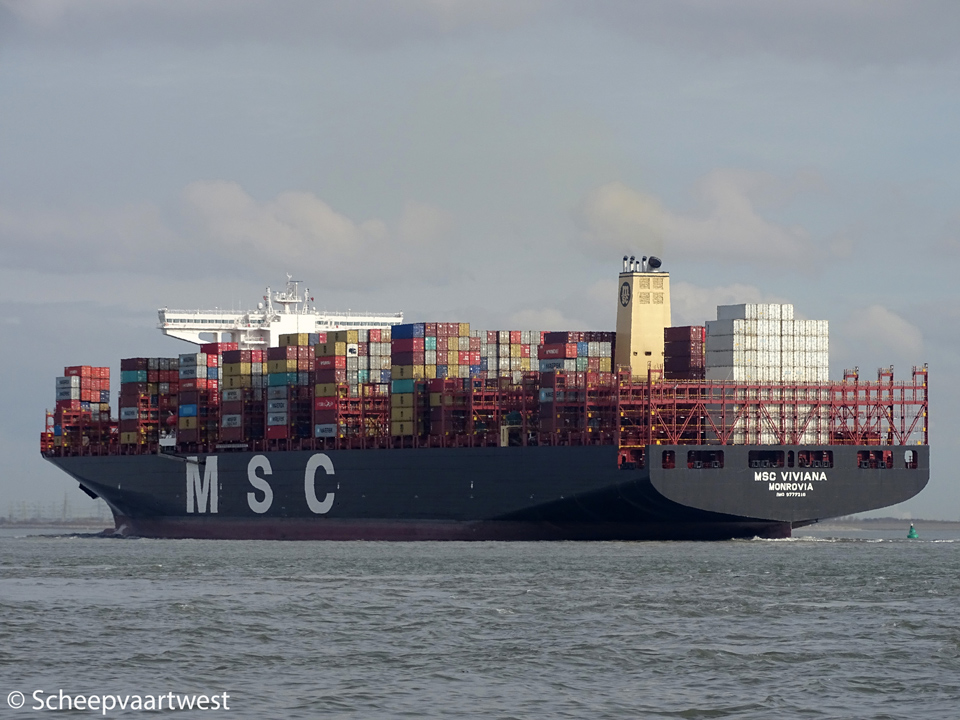

MSC VIVIANA |
|
Type |
Cellular containership |
|
IMO-number |
9777216 |
|
Call sign |
D5ND7 |
|
Flag |
Liberia |
|
Port of registry |
Monrovia |
|
GT |
187.587 t |
|
DWT |
185.503 t |
|
NT |
85.485 t |
|
Number of 20ft containers |
19.368 |
|
Container capacity 14t |
15.522 |
|
Reefer capacity |
1.000 |
|
Length |
399,98 m overall 383,00 m between perpendiculars |
|
Breadth |
58,60 m extreme |
|
Draught |
Max: 16,00 m |
|
Depth |
30,50 m |
|
Speed |
23,8 knots |
|
Built |
2017 |
|
Keel laid |
30/11/2015 |
|
Launch date |
18/11/2016 |
|
Date of completion |
15/03/2017 |
|
Builder |
Hyundai Heavy Industries Co., Ltd. |
|
Yard number |
2843 |
|
Hull material |
Steel |
|
Continuous decks |
1 |
|
Main engine |
1x Doosan/MAN-B&W 11G95ME-C - 2 stroke single acting 11 cylinder 950 x 3.460 mm combustion engine 60.140 kW / 81.766 hp at 80,0 rpm Manufacturer: Doosan Engine Co Ltd - South Korea |
|
Propellers |
1x Fixed pitch propeller - aft at 80,0 rpm |
|
Boilers |
1x Auxiliary boiler, exhaust gas heated (EGB) 1x Auxiliary boiler, oil/gas fired (OFB) 2x Auxiliary boiler, exhaust gas heated (EGE) Manufacturer: Kangrim Heavy Ind. Co., Ltd. |
|
Generators |
2x MAN-B&W 8L32/40CD 4 stroke 8 cylinder 320 x 400 combustion engines each 4.000 kW coupled with 2 generators each 3.900 kW 2x MAN-B&W 9L32/40CD 4 stroke 8 cylinder 320 x 400 combustion engines each 4.500 kW coupled with 2 generators each 4.400 kW |
|
Emergency generator |
1x Cummins QSK19 diesel generatorset |
|
Bow thruster |
2x Tunnel thruster each 2.500 kW / 3.399 bhp, forward |
|
Tank capacities |
Ballast: 47.893,9 m³ |
|
Anchor equipment |
Length: 770,00 m Diameter: 132 mm |
|
Crew size |
24 |
|
Manager |
Mediterranean Shipping Co., Srl |
|
Registered owner |
Xinshi International Ship Lease Co., Ltd. |
|
Latest data adjustment |
05 February 2019 |
