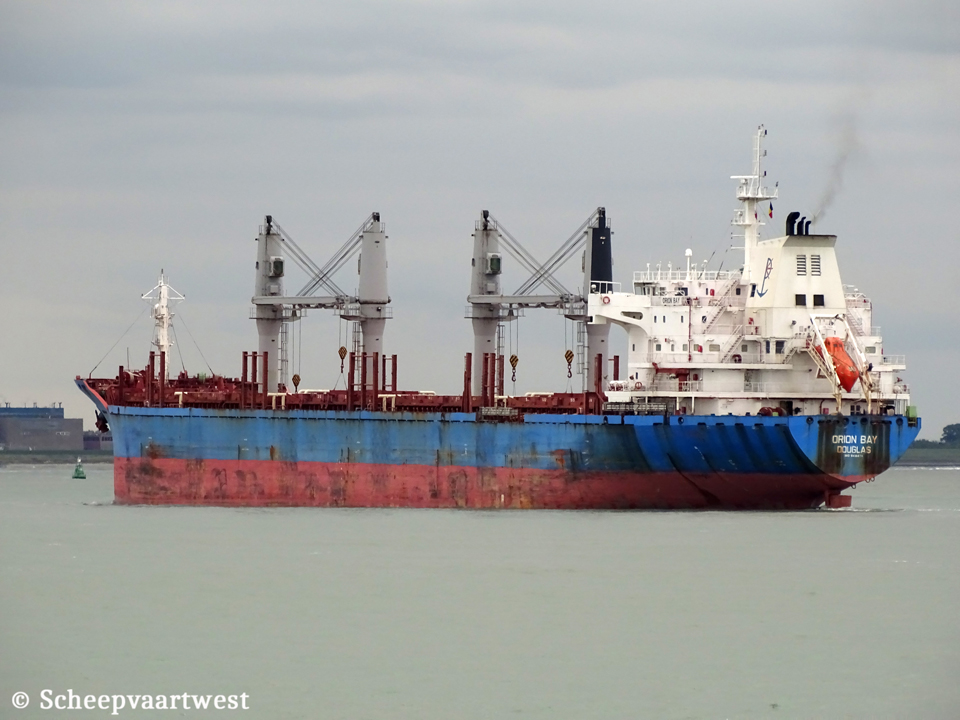

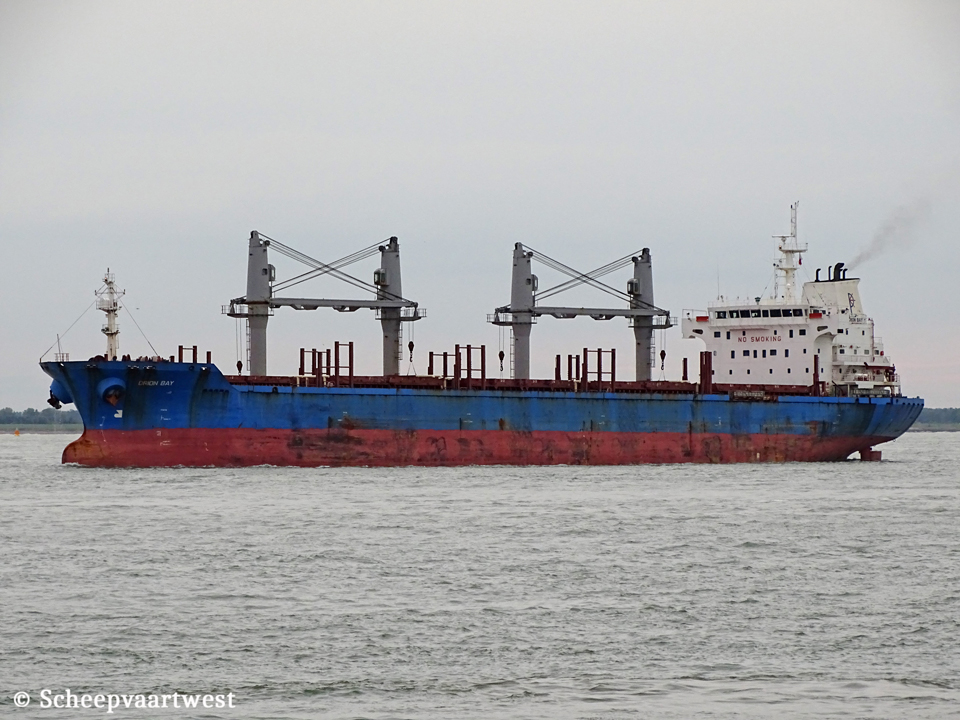

| Westerschelde 03 October 2019 |
 |
|
| Westerschelde 03/10/19 | |
|
Name |
ORION BAY |
|
Previous names |
09/2012 - 03/2014 Fengli 12 |
|
Type |
Bulk carrier |
|
IMO-number |
9414474 |
|
Call sign |
2HHT9 |
|
Flag |
Isle of Man - United Kingdom |
|
Port of registry |
Douglas |
|
Previous flags |
09/2012 - 03/2014 Republic of Panama, Panama City - Call sign: 3EVT5 |
|
GT |
19.999 t Suez: 20.707,18 t |
|
DWT |
Summer: 29.996,9 t Winter: 29.111,5 t |
|
NT |
10.419 t Suez: 18.716,09 t |
|
Displacement |
Summer: 38.529,5 t Winter: 37.644,1 t |
|
Length |
178,70 m overall 170,00 m between perpendiculars |
|
Breadth |
28,05 m |
|
Draught |
Summer: 9,82 m Winter: 9,61 m |
|
Keel to mast end |
43,70 m |
|
Freeboard |
Summer: 4.184 mm Winter: 4.388 mm |
|
Depth |
14,00 m moulded |
|
Speed |
14,1 knots |
|
Built |
2012 |
|
Keel laid |
30/12/2011 |
|
Launch date |
18/07/2012 |
|
Date of completion |
21/09/2012 |
|
Builder |
Tsuji Heavy Industries (Jiangsu) Co., Ltd. China |
|
Yard number |
NB0024 |
|
Hull material |
Steel |
|
Main engine |
1x STX/MAN-B&W 6S42MC7-TII - 2 stroke 6 cylinder 420 x 1.764 mm combustion engine 6.323 kW at 131,0 rpm |
|
Propellers |
1x Fixed pitch propeller |
|
Boilers |
1x Auxiliary boiler, composite Mission OC Builder: Alfa Laval Aalborg A/S |
|
Generators |
3x Yanmar 6EY18AL main diesel generatorsets |
|
Number of holds |
5 |
|
Cargo hold capacity |
Grain: 40.639,4 m³ Bale: 38.601,5 m³ |
|
Number of hatches |
5 Hatch 1: 16,60 x 15,00 m Hatches 2,3,4,5: 20,80 x 21,00 m |
|
Max permitted loads |
Tanktop: 20,0 t/m² Hatch 1: 2,58 t/m² Hatch 2: 2,24 t/m² Hatches 3,4: 2,37 t/m² Hatch 5: 1,34 t/m² |
|
Tank capacities |
Ballast: 19.498,4 m³ |
|
Anchor equipment |
Length: 605,00 m Diameter: 64 mm |
|
Cargo gear |
4x Hydraulic deck cranes - SWL 30,0 t (max outreach 22,00 m radius) |
|
Commercial manager |
Pioneer Marine Advisers Pte 19-08, Prudential Tower, 30, Cecil Street Singapore 049712 Republic of Singapore |
|
ISM manager |
V Ships Ship Management India Unit S005, Ground Floor, Delta Wing, Raheja Towers, 177, Annasalai Chennai, 600002 India |
|
Registered owner |
PNR Marine Trading XIII LLC Care of Pioneer Marine Advisers Pte Ltd. 19-08, Prudential Tower, 30, Cecil Street Singapore 049712 Republic of Singapore |
|
Renamed |
2022 Aspasia Bay Isle of Man - United Kingdom, Dougles - Call sign: 2HHT9 Owner: Apollo Asset Ltd., Monte Carlo - Monaco Manager: Pioneer Marine Hellas S.A., Glyfada, Athens - Greece |
|
Latest data adjustment |
27 October 2022 |
