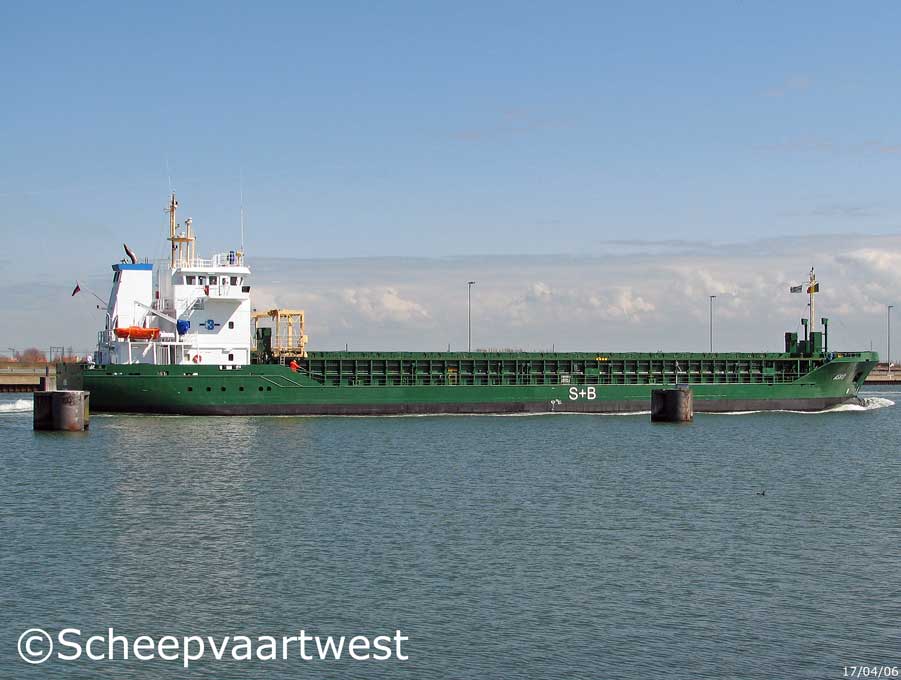

Asko 01
Zeebrugge 17 April 2006

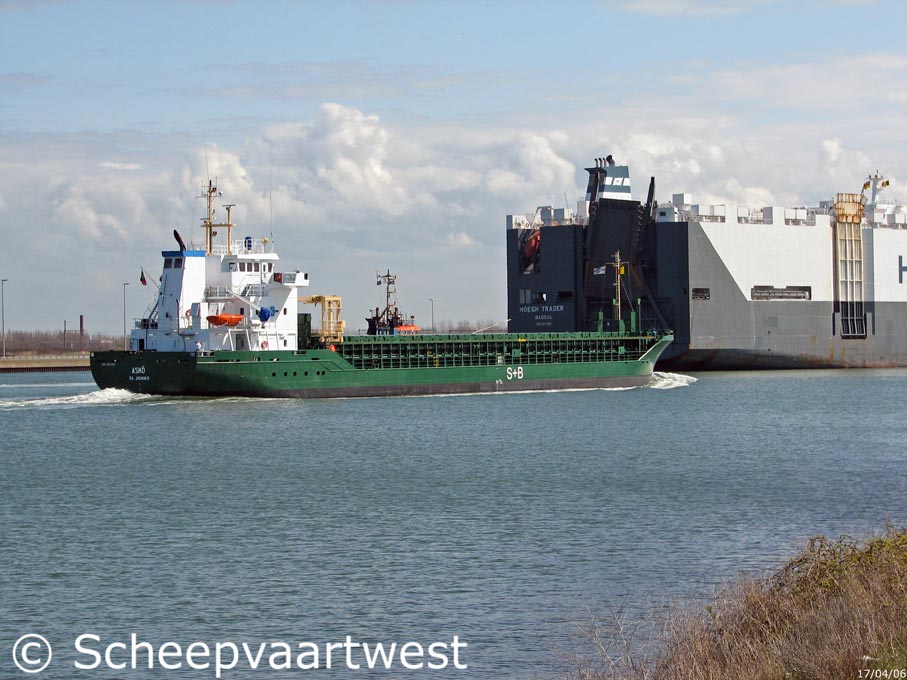

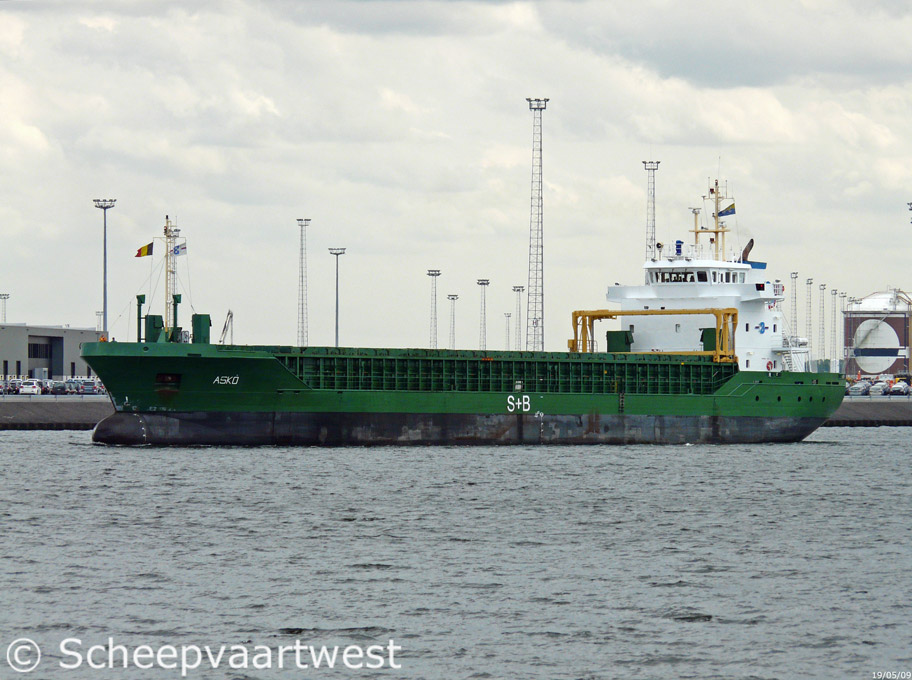

Asko 04   Asko 06
Zeebrugge 17/04/06 Zeebrugge 19/05/09



Name

ASKÖ

Type

General cargo

IMO-number

9333450

Call sign

V2BK1

Flag

Antigua & Barbuda

Port of registry

St. John’s

GT

3.183 t

Summer

Summer: 4.518 t

NT

1.765 t

Number of 20ft containers

216

Length

89,94 m overall
84,98 m between perpendiculars
85,19 m registered

Breadth

15,20 m moulded

Draught

Summer: 5,25 m

Freeboard

1.350 mm

Depth

6,90 m

Speed

12,00 knots

Built

2005

Keel laid

30.06.1994

Launch date

05.05.2005

Date of completion

29.09.2005

Builder

Bodewes Shipyards B.V.
Werfkade 22
9601 LG Hoogezand
The Netherlands

Yard number

654

Hull material

Shipbuilding steel (higher tensile)

Hull type

Single hull
Partly double bottom

Watertight bulkheads

4

Continuous decks

1

Main engine

1x Caterpillar MaK 6M25 - 4 stroke single acting 6 cylinder 255 x 400 mm diesel engine - 1.850 kW

Starter type: Compressed air direct

Built: 2005

Builder: Caterpillar Motoren Kiel - Germany

Number of screws

1x Controllable pitch propeller - aft

Boiler

1x Water heater, oil fired - 5,0 bar
Heating surface: 7,0 m²
Manufacturer: Carbofuel Officine Meccaniche S.p.A.

Electric installations

1x 400/220 V - 175 kVA

1x 400 V - 435 kVA

1x 400 V - 175 kVA

Shaft generator

1x 435 kVA

Main generator

1x Main diesel generatorset 175 kVA

Emergency generator

1x Main diesel generatorset 175 kVA

Compressed air receivers

2x Receivers each 250 litres - 30,0 bar

Bow thruster

1x Transverse thruster - 300 kW forward

Hold capacity

Abt. 225,745 ft³ / 6.388 m³

Tank capacities

Fuel oil: 216 m³

Water ballast: 2.026 m³

Anchor equipment

3x Anchors weight each 2.280 kg

Chain length: 467,50 m

Crew

8

Manager

Hermann Buss GmbH & Cie KG
Hafenstr. 2
26789 Leer
Federal Republic of Germany

Shipping company

Hermann Buss GmbH Cie.

Owner as completed

Hermann Buss GmbH & Cie.
Saint John's
Antigua & Barbuda

Owner

MS "ASKÖ" Schiffahrtsges. mbH & Co. KG
Hafenstr. 2
26789 Leer
Federal Republic of Germany
