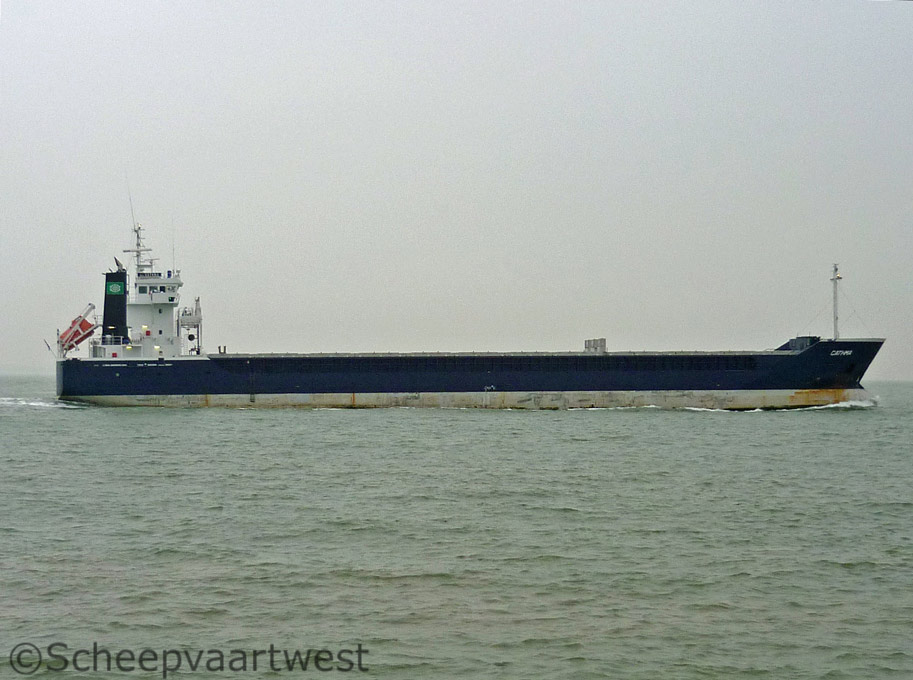

Cathma 01
Westerschelde 17 November 2011



Name

CATHMA

Previous names

Launch as: Gouverneur

Type

Multi-purpose dry cargo carrier - Heavycargo - Container ship

IMO-number

9357482

MMSI-number

306832000

Call sign

PJTL

Flag

Netherlands Antilles

Port of registry

Willemstad

GT

3.990 t

DWT

Summer: 6.090 t

NT

2.208 t

Number of 20ft containers

242

Length

110,78 m overall

104,48 m between perpendiculars

Breadth

14,00 m

Draught

6,09 m

Air draft

23,00 m

Freeboard

2.054 mm

Depth

8,13 m

Speed

13,0 knots

Built

2007

Date of completion

18.04.2007

Builder

Scheepswerf Ferus Smit B.V.
Hoogezand
The Netherlands

Yard number

371

Hull material

Steel

Hull type

Single hull

Watertight bulkheads

7

Continuous decks

1

Main engine

1x MaK Caterpillar 8M25 - 4 stroke 8 cylinder 255 x 400 mm diesel engine - 2.640 kW / 3.587 hp at 750 rpm

Built: 2006

Builder: Caterpillar Motoren GmbH & Co. KG, Kiel - Germany

Electrical propulsion gen.

1x 390 kW - 400 Volt

Propelling system

1x Screw Propeller Controllable pitch at 200 rpm

Electrical installation

Power voltage: 400 V

Lighting voltage: 230 V

Frequency: 50 Hz

Generators

2x Diesel generatorsets each 175 kVA - 140 kW - 222 hp

Emergency generator

1x Diesel generatorset 52 kVA - 42 kW - 68 hp

Number of holds

2

Hold 1: 27,58 x 11,47 x 9,00 m

Hold 2: 50,88 x 11,47 x 9,00 m

Cargo hatchways

2

Hatch 1: 27,58 x 11,47 m

Hatch 2: 50,88 x 11,47 m

Fuel capacity

370 m³

Manager

Wagenborg Shipping
Delfzijl
The Netherlands

Registered owner

Largs Shipping BV
Willemstad (John McEvoy)
Netherlands Antilles
