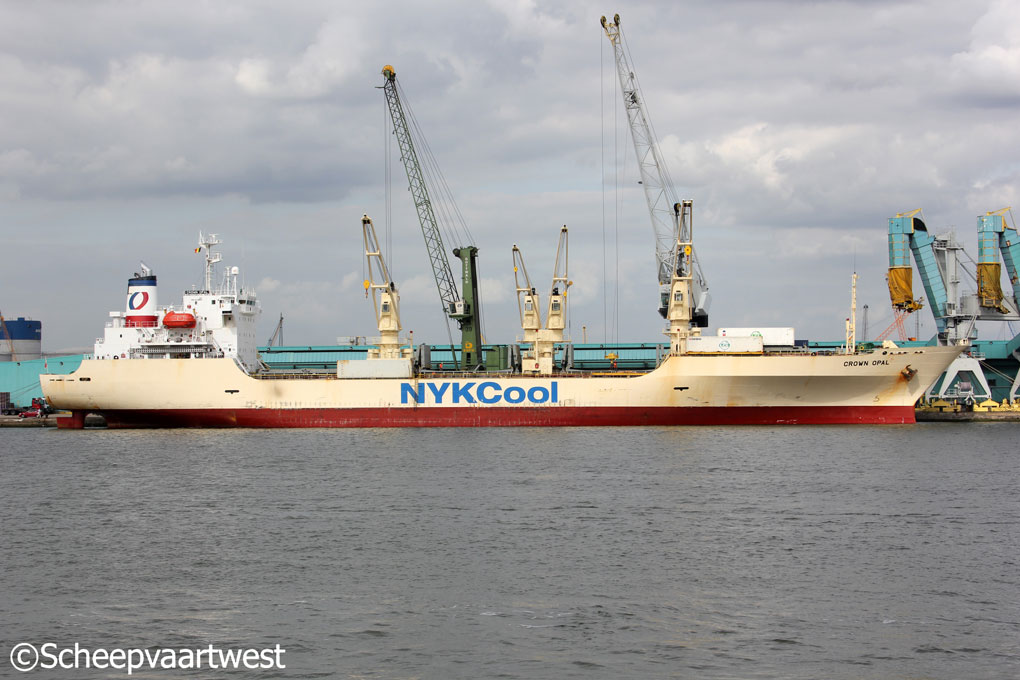

Crown Opal 01
Antwerpen 16 August 2012

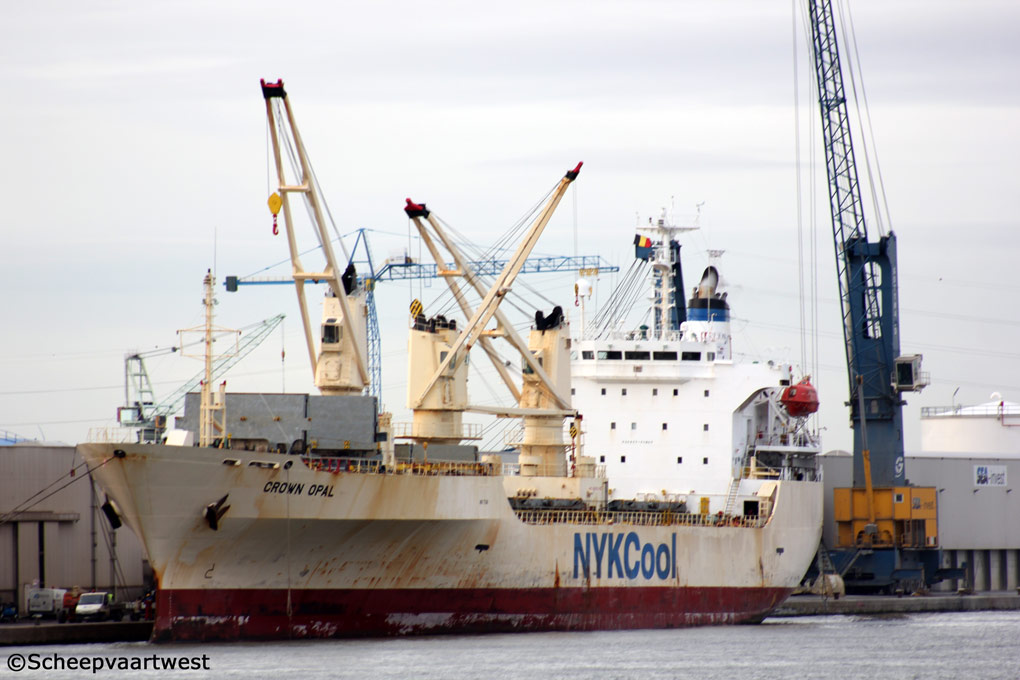

Crown Opal 02
Antwerpen 31/12/13



Name

CROWN OPAL

Type

Refrigerated cargo ship

IMO-number

9128063

Call sign

3FEV7

Flag

Republic of panama

Port of registry

Panama City

GT

10.519 t registered

DWT

10.316 t

NT

5.406 t registered

Number of 20ft containers

200

Reefer capacity

64

Length

151,99 m

Breadth

23,00 m

Draught

8,668 m

Moulded L x B x D

139,40 x 23,00 x 13,00 m

Registered L x B x D

141,15 x 23,00 x 13,00 m

Freeboard

Summer: 4.363 mm

Depth

13,00 m moulded

Speed

Trial: 22,8 knots

Built

1997

Keel laid

25.09.1996

Launch date

27.12.1996

Date of completion

08.04.1997

Builder

Iwagi Zosen Shipbuilding Co., Ltd.
Kamijima
Japan

Yard number

SZ-167

Hull material

Steel

Main engine

1x Mitsubishi 6UEC60LSII - 2 stroke single acting 6 cylinder 600 x 2.300 mm diesel engine - 11.915 kW at 105,0 rpm

Manufacturer: Mitsubishi Heavy Industries, Ltd. Kobe Shipyard & Machinery Works

Propellers

1

Propeller shaft

1x Oil lubrication shaft with monitoring device

Boilers

1x Auxiliary vertical boiler - 7,8 bar

Evaporation: 3,49 t/h

Manufacturer: Mitsubishi Heavy Ind., Ltd. (Marukin Sato Shipbuilding & Iron Products Co., Ltd.)

Generators

5x Diesel generatorsets 3.810 kVA

Cargo capacity

Reefer: 15.507 m³

Tank capacities

Fuel oil: 1.806 m³

Fresh water: 381 m³

Water ballast: 923 m³

Cargo gear

2x Cranes - SWL 35,0 t

2x Cranes - SWL 8,0 t

Manager

NYKCOOL AB
Katarinavagen 17
Stockholm
Sweden

Operator

NykCool

Owner

NYK Reefers
London
United Kingdom

Registered owner

NYK Reefers Limited
