| Antwerpen 19 December 2012 |
|
Name |

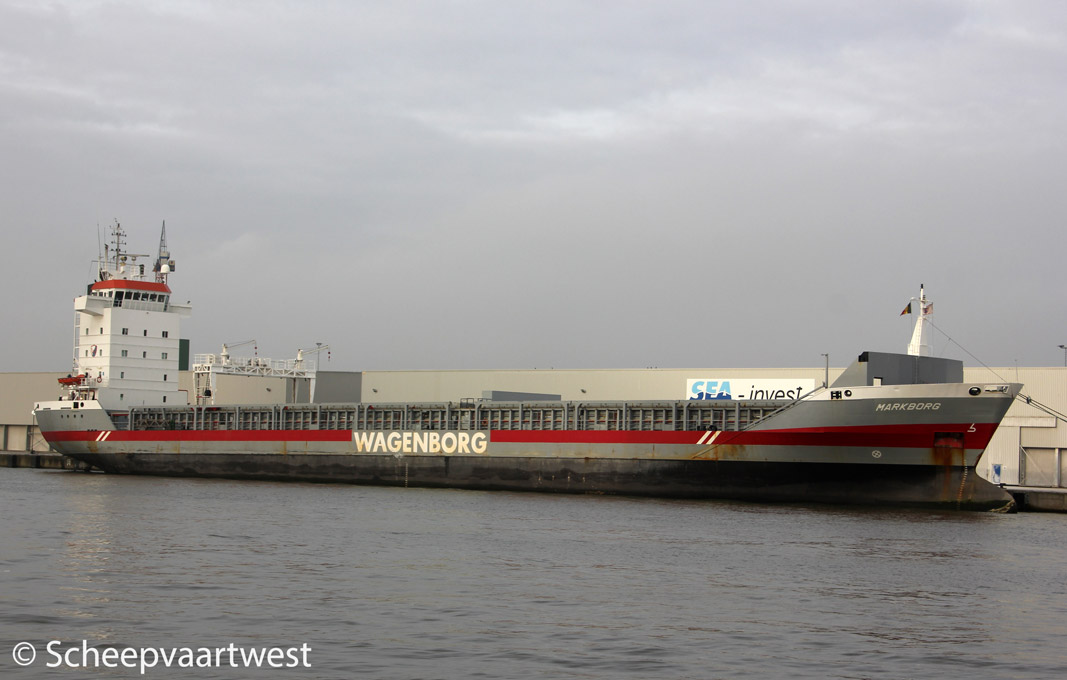

MARKBORG |
|
Previous names |
01/1997 - 04/2002 Markborg 04/2002 - 01/2004 MSC Suomi 01/2004 - 09/2014 Markborg |
|
Type |
Multi-purpose dry cargo carrier - Containership |
|
IMO-number |
9142540 |
|
Call sign |
PJDQ |
|
Flag |
Curaçoa |
|
Port of registry |
Willemstad |
|
Previous flag |
|
|
GRT |
6.540 t |
|
DWT |
Summer: 9.221 t |
|
NRT |
3.464 t |
|
Number of 20ft containers |
In hold: 264 On deck: 340 Total: 604 |
|
Length |
134,56 m overall |
|
Breadth |
16,53 m |
|
Draught |
7,12 m |
|
Moulded L x B x D |
127,20 x 16,50 x 9,80 m |
|
Registered L x B x D |
127,85 x 16,50 x 9,80 m |
|
Air draft |
33,50 m |
|
Freeboard |
2.693 mm |
|
Depth |
9,80 m |
|
Speed |
15,5 knots |
|
Built |
1997 |
|
Keel laid |
12/04/1996 |
|
Launch date |
01/11/1996 |
|
Date of completion |
08/01/1997 |
|
Builder |
Bijlsma Shipyard BV Lemmer The Netherlands |
|
Yard number |
677 |
|
Hull material |
Steel |
|
Hull type |
Single hull |
|
Watertight compartments |
8 |
|
Continuous decks |
1 |
|
Main engine |
1x Stork Wärtsilä 8SW38 - 4 stroke single acting 8 cylinder 380 x 475 mm combustion engine 5.280kW / 7.173 hp at 600 rpm Built: 1996 Builder: Stork-Wärtsilä Diesel B.V., Zwolle - The Netherlands |
|
Propellers |
1x Controllable pitch propeller - aft at 145 rpm |
|
Boilers |
1x CHM 22,00 m² - 10,0 bar 1x CHR 78,00 m² - 10,0 bar |
|
Electric installations |
Power voltage: 380 V Lighting voltage: 220 V Frequency: 60 Hz |
|
Shaft generator |
1x 938 kVA - 750 kW |
|
Generators |
3x Diesel generatorsets each 363 kVA - 290 kW |
|
Number of holds |
2 Hold 1: 39,20 x 13,50 x 10,86 m Hold 2: 52,50 x 13,50 x 10,86 m |
|
Total capacity of holds |
Bale/Grain: 13.086 m³ / 450.000 ft³ |
|
Number of hatches |
2 Hatch 1: 39,20 x 13,50 m Hatch 2: 52,50 x 13,50 m |
|
Number of tanks |
Ballast: 27 Fuel oil: 8 Diesel oil: 6 Lubricating oil: 5 Sludge: 3 Waste water: 3 Fresh water: 2 Potable water: 2 Thermal oil: 2 Hydraulic oil: 2 Chain: 1 |
|
Tank capacities |
Ballast: 4.293 t Fuel: 680,3 m³ Fresh water: 66,34 m³ Lube oil: 27 t |
|
Crew size |
11 |
|
Manager |
Wagenborg Shipping B.V. Delfzijl The Netherlands |
|
Operator |
Wagenborg Shipping B.V. |
|
Owner |
W. Waller KG, m.s. Maxima Hemmoor Germany |
|
Previous names & owners |
|
|
Renamed |
2014 Bozok Cook Island, Avatiu- Call sign: E5U2863 2019 Bozok Marshall islands - Majuro - Call sign: V7A2281 2021 Dona Ble Republic of Paznama, Panama Cioty - Call sign: 3E2409 |
|
Latest data adjustment |
21 April 2023 |
