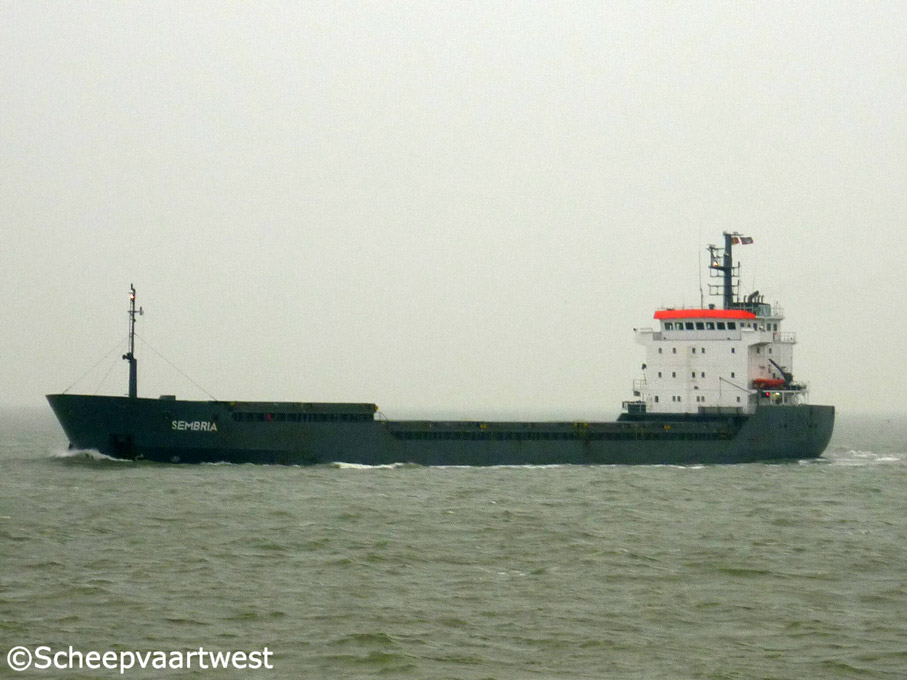

Sembria 01
Westerschelde 18 January 2012



Name

SEMBRIA

Previous names

1998 - 05/2011 Alina

Type

Multi-Purpose dry cargo ship - Strengthened for heavy cargo

IMO-number

9147875

Call sign

V2QG7

Flag

Antigua & Barbuda

Port of registry

St. John's

GT

5.381 t

DWT

7.580 t

NT

2.626 t

Number of 20ft containers

375

Length

107,57 m overall

103,12 m registered

Breadth

18,20 m registered

Draught

6,63 m

Air Draft

33,00 m draught max.

Forecastle

29,70 m

Poop

13,80 m

Depth

9,00 m moulded

Speed

11,5 knots

Built

1998

Keel laid

01/10/1996

Launch date

10/10/1997

Date of completion

22/05/1998

Builder

Turkiye Gemi Sanayii A.S. Halic Tersanesi

c/o Gema Maritime Industry Inc.

Fahrettin Kerim Gökay Cad. Ortaklar is Merkezi 71/45 Hasanp. Kadiköy

81040 Istanbul

Turkey

Yard number

241

Hull material

Shipbuilding steel (standard)

Hull type

Double bottom, continuous from peak to peak bulkhead

Watertight bulkheads

6

Continuous decks

1

Main engine

1x MAN-B&W 6S26 MC - 2 stroke 6 cylinder 260 x 980 mm combustion engine 2.400 kW / 3.263 hp at 250 rpm

Year of manufacture: 1997

Manufacturer: MAN B&W Diesel A/S Frederikshavn

Niels Juels Vej 15

9900 Frederikshavn

Kingdom of Denmark

Propellers

1x Controllable pitch propeller - aft

Boilers

1x Water heater, oil fired - 5,5 bar

Year of manufacture: 1996

Electric installations

2x Plant each 440/220 V - 312 kVA

1x Plant 440 V - 312 kVA

Generators

2x Main diesel generatorsets each 312 kVA

Emergency generator

1x Diesel generatorset 312 kVA

Compressed air receivers

2x Receivers each 500 litres - 30,0 bar

Bow thruster

1x Transverse thruster JASTRAM - 170 kW, forward

Number of holds

3

Dimensions:

Hold 1: 20,30 x 6,35 - 15,10 x 10,62 m

Hold 2: 28,60 x 15,10 x 8,92 m

Hold 3: 24,60 x 15,10 - 9,70 x 8,92 m

Cargo hold capacity

Grain: 9.729 m³ / 350.000 ft³

Bales: 345.000 ft³

Number of hatches

3

Dimensions:

Hatch 1: 17,49 x 15,20 m

Hatch 2: 25,89 x 15,20 m

Hatch 3: 23,09 x 15,20 m

Max permitted loads

Tanktop: Steel floored - max. load 15,0 t/m²

Tank capacities

Fuel oil: 537 m³

Ballast water: 2.358 m³

Anchor Equipment

3x Anchors weight each 3.300 kg

Chain length: 495,00 m

Diameter: 46 mm

Manager

Alpha Shipping Company SIA

7, Visbijas prospekts

1014 Riga

Latvia

Registered owner

Medea Shipping Company Limited

60, Nevis Street

St. Johns

Antigua and Barbuda

Renamed

02/2015 Lady Debora

Antigua & Barbuda, St. John’s - Call sign: V2QG7

reg. owner: Hadar Management Ltd.

Manager: Mestex Shipping & Trading Ltd.

Latest data adjustment

16 November 2020
