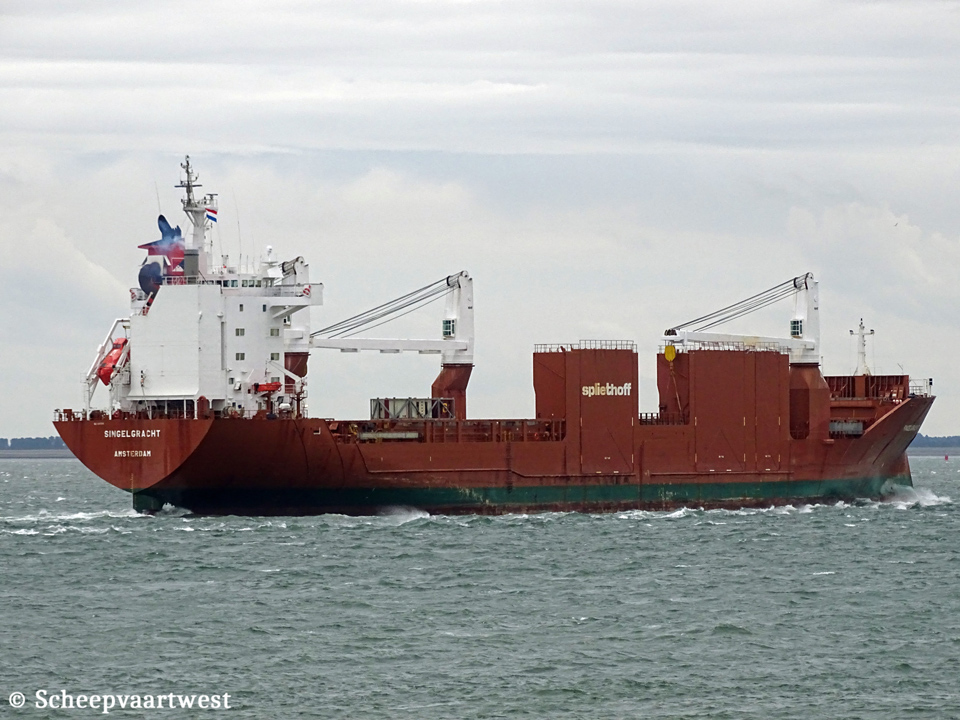

Vlissingen 18 July 2019 |
 |
 |
|

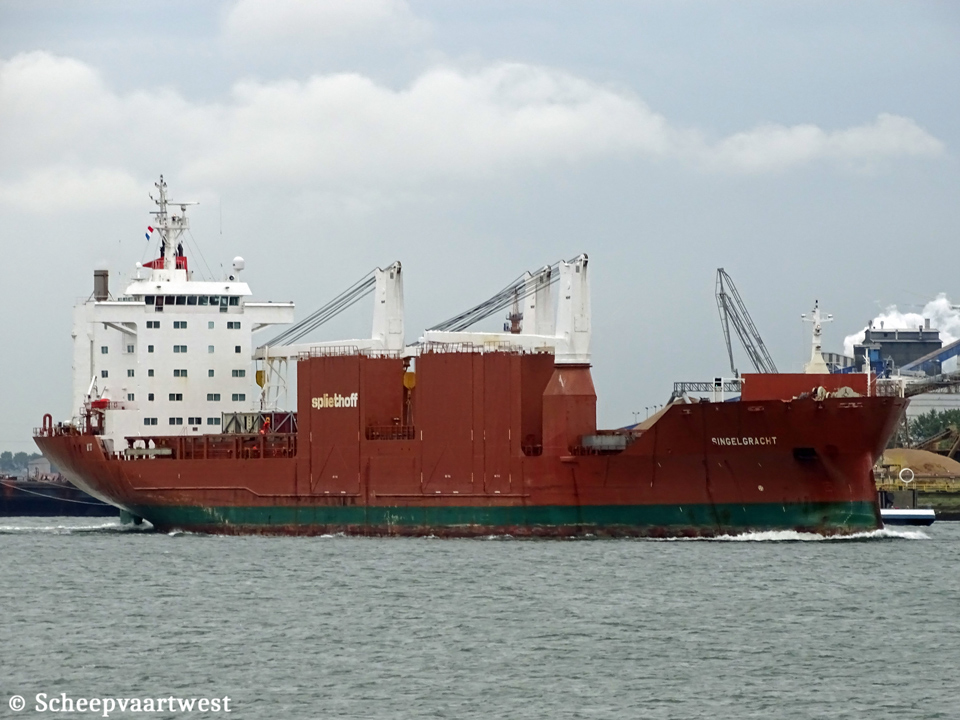

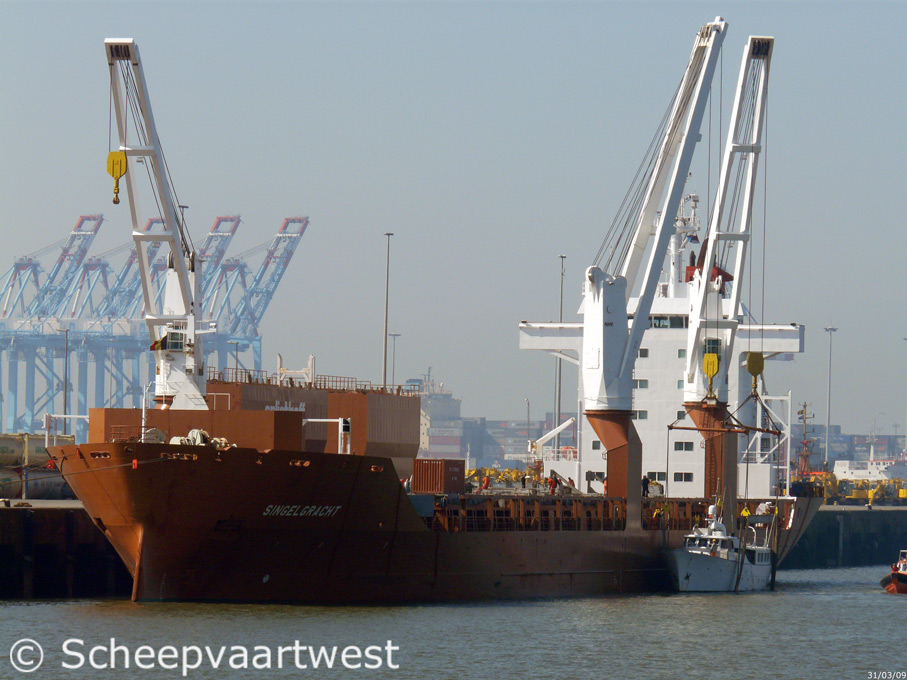

| Westerschelde 18/07/19 | Zeebrugge 31/03/09 |
|
Name |
SINGELGRACHT |
|
Type |
Dry cargo ships with deck cranes - Strengthened for heavy cargoes, container cargoes in holds, on upperdeck and upperdeck hatch covers, timber deck cargoes |
|
IMO-number |
9197375 |
|
Call sign |
PCGM |
|
Flag |
The Netherlands |
|
Port of registry |
Amsterdam |
|
GT |
16.641 t |
|
DWT |
Summer: 20.760 t |
|
NT |
6.700 t |
|
Number of 20ft containers |
In hold: 478 On deck: 649 Total: 1.127 |
|
Length |
168,14 m overall 162,08 m between perpendiculars |
|
Breadth |
25,36 m extreme |
|
Draught |
Summer: 10,74 m |
|
Freeboard |
4.750 mm |
|
Depth |
14,62 m |
|
Speed |
Draft 6,75 m: 19,8 knots Draft 10,00 m: 19,5 knots Draft 10,74 m: 19,1 knots |
|
Built |
2000 |
|
Launch date |
09/11/1999 |
|
Delivery date |
25/02/2000 |
|
Builder |
Mitsubishi Heavy Industries Co., Ltd. Shimonoseki Japan |
|
Yard number |
1061 |
|
Hull material |
Steel |
|
Hull type |
Single hull |
|
Number of decks |
1 |
|
Bulkheads / compartments |
Removable pontoons for up to 14 compartments at TEU interval |
|
Main engine |
1x Wärtsilä 6L64 - 4 stroke single acting 6 cylinder 640 x 900 mm combustion engine 16.400 hp / 12.060 kW Manufacturer: Fincantieri-Cant. Nav. Italiana S.p.A. (Grandi Motori), Triest - Italy |
|
Propeller |
1x Single pitch screw |
|
Bow thruster |
1.155 hp / 850 kW |
|
Power available for reefer connections |
Up to 850 kW |
|
Cargo capacity |
Grain = bale Hold 0: 15.250 ft³ / 430 m³ Hold 1: 161.200 ft³ / 4.565 m³ Hold 2/3: 665.000 ft³ / 18.820 m³ Total: 841.000 ft³ / 23.815 m³ If tween deck installed: 56.200 ft³ / 1.620 m³ less in holds |
|
Floor space |
Tank top: total 1.620 m² (no 0: 49 m², no 1: 340 m², no 2/3: 1.231 m²) Tween deck: total 1.840 m² (no 1: 425 m², no 2/3: 1.415 m²) Weather deck hatches, incl. cargo rail: total 2.400 m² (no 0: 60 m², no 1: 510 m², no 2: 920 m², no 3: 910 m²) |
|
Hatches |
Weather deck: No 0: 6,40 x 7,60 m No 1: 25,60 x 17,80/15,20 m No 2: 38,40 x 17,80 m No 3: 32,00 x 20,40 m Steel, end folding type Tween deck: No 1: 25,60 x 17,80/15,20/10,10 m No 2: 38,40 x 17,80 m Under crossbeam: 4,20 x 17,80 m No 3: 32,00 x 20,40 m |
|
Maximum load |
Weather deck hatch covers: 2,0 t/m² Tween deck hatch covers: Hatchway 1: 7,5 t/m² Hatchway 2: 5,5 t/m² Hatchway 3: 5,0 t/m² Tank top: 20,0 t/m² |
|
Tank capacities |
Fuel oil: 1.635 m³ Diesel oil: 220 m³ Ballast: 7.750 m³ |
|
Deck cranes |
3x NMF cranes of 120 t SWL / 14,00 m and 55 t SWL / 30,00 m 2x PS (after and mid) and 1 x SB (forward) |
|
Lifting equipment |
There are five side-loaders in the large housings on the upper deck: 5x 16 t SWL 5x SB |
|
Crew |
17 |
|
Manager |
Spliethoff´s Bevrachtingskantoor Radarweg 36 1042 AA Amsterdam The Netherlands |
|
Owner |
Rederij Singelgracht Amsterdam The Netherlands |
|
Previous owner |
2000 - 07/2012 C.V. Scheepvaartonderneming Singelgracht Amsterdam The Netherlands |
|
Latest data adjustment |
03 January 2021 |
