Varnebank 02
Westerschelde 24 September 2011

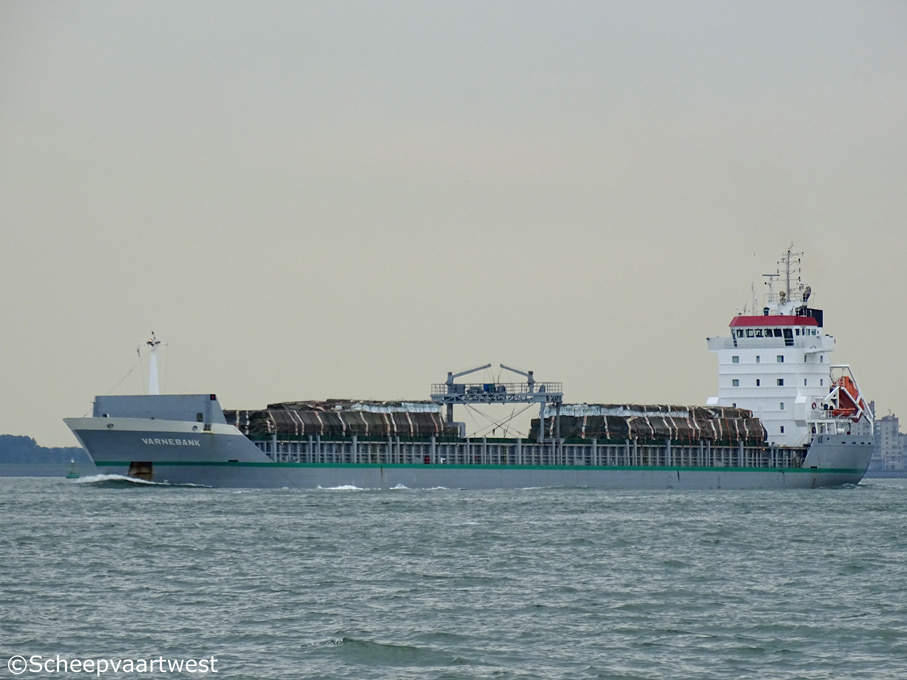

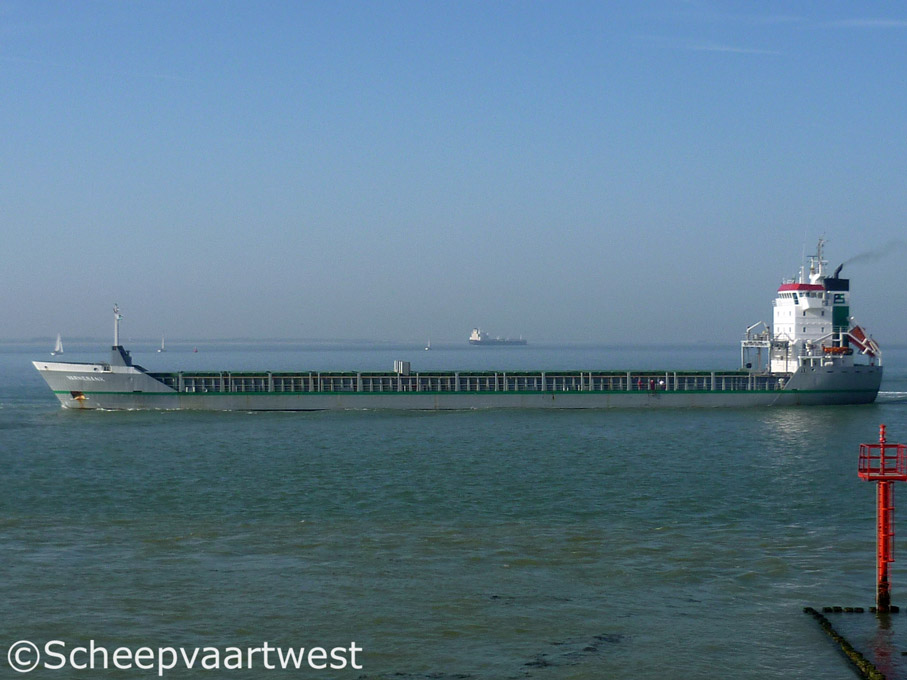

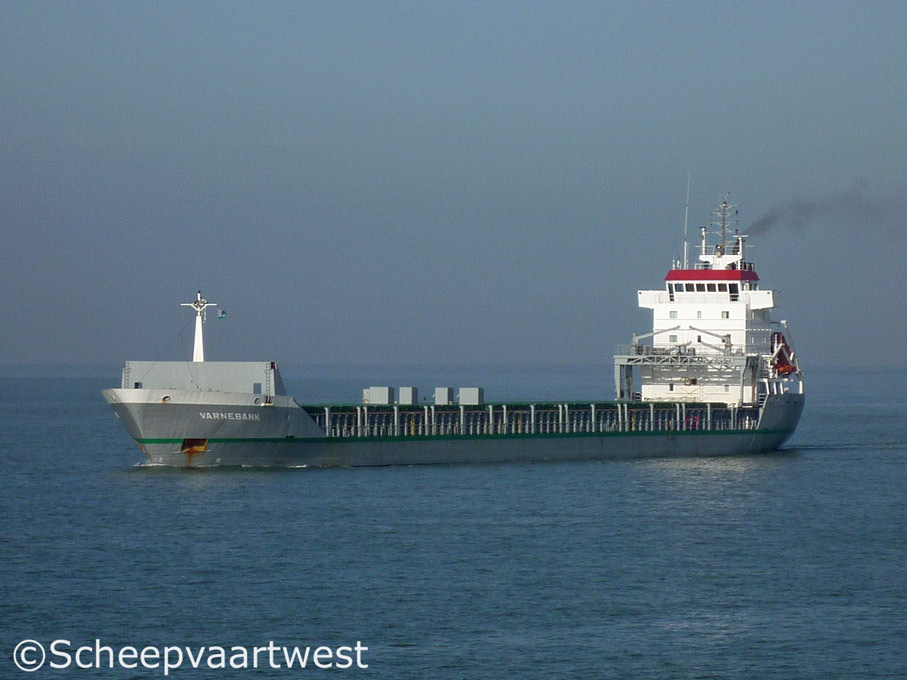

Varnebank 01   Varnebank 06   Varnebank 07
Westerschelde 24/09/11 Westerschelde 24/09/11 Westerschelde 07/07/16



Name

VARNEBANK

Type

Multi-purpose dry cargo carrier with container facilities - heavy cargo

IMO-number

9213739

Call sign

PBAH

Flag

The Netherlands

Port of registry

Delfzijl

GT

6.130 t

DWT

8.727 t

NT

3.424 t

Number of 20ft containers

552

Length

132,23 m overall

123,84 m between perpendiculars

Breadth

15,87 m moulded

Draught

Max.: 7,05 m

Freeboard

2.312 mm

Air draft

33,50 m

Depth

9,65 m moulded

Speed

14,8 knots

Built

2000

Launch date

19.07.2000

Date of completion

05.10.2000

Builder

Bodewes Scheepswerf Volharding Foxhol B.V.
Hoogezand
The Netherlands

Yard number

352

Hull material

Steel

Hull type

Single hull

Watertight Comp

6

Continuous decks

1

Main engine

1x MAK 8M32C - 4 stroke single acting 8 cylinder 320 x 480 mm diesel engine - 3.840 kW / 5.217 hp at 600 rpm

Built: 2000

Builder: MaK Motoren GmbH & Co. KG, Kiel - Germany

Electrical propulsion gen.

1x 650 kW - 440 Volt

Propelling system

1x Screw propeller controllable pitch - at 148 rpm

Boilers

1x CHO Wiesloch 17,50 m² - 13,0 bar
1x CHR Wiesloch 77,00 m² - 13,0 bar

Electrical installation

Power voltage: 440 V

Lighting voltage: 230 V

Frequency: 60 Hz

Generators

2x Main diesel generatorsets each 325 kVA - 260 kW - 376 hp

Emergency generators

1x Diesel generatorset 77 kVA - 62 kW - 95 hp

Number of holds

2

1x 39,95 x 13,20 x 10,84 m

1x 52,54 x 13,20 x 10,84 m

Total capacity of holds

12.805,55 m³

Cargo hatchways

2

1x 39,90 x 13,20 m

1x 52,40 x 13,20 m

Fuel capacity

466 m³

Manager

Pot Scheepvaart
Delfzijl
The Netherlands

Operator

Wagenborg BV
Delfzijl
The Netherlands

Owner

Skagenship B.V.
Handelskade West 28 /A
Delfzijl
The Netherlands

Registered owner:

C.V. Scheepvaartonderneming Varnebank
Delfzijl
The Netherlands

Latest data adjustment

07 August 2016
