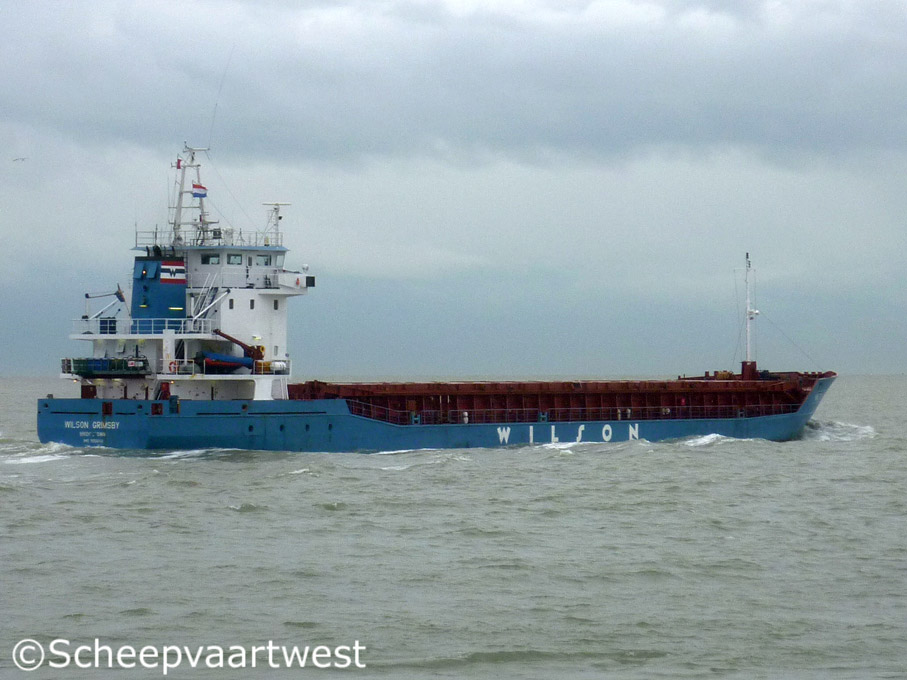

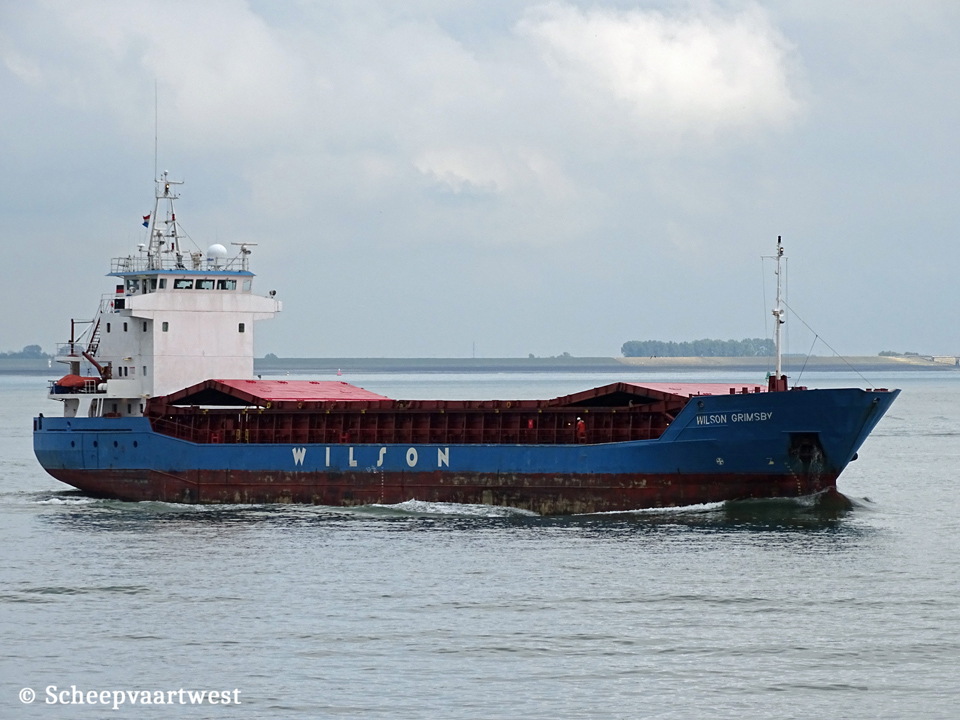

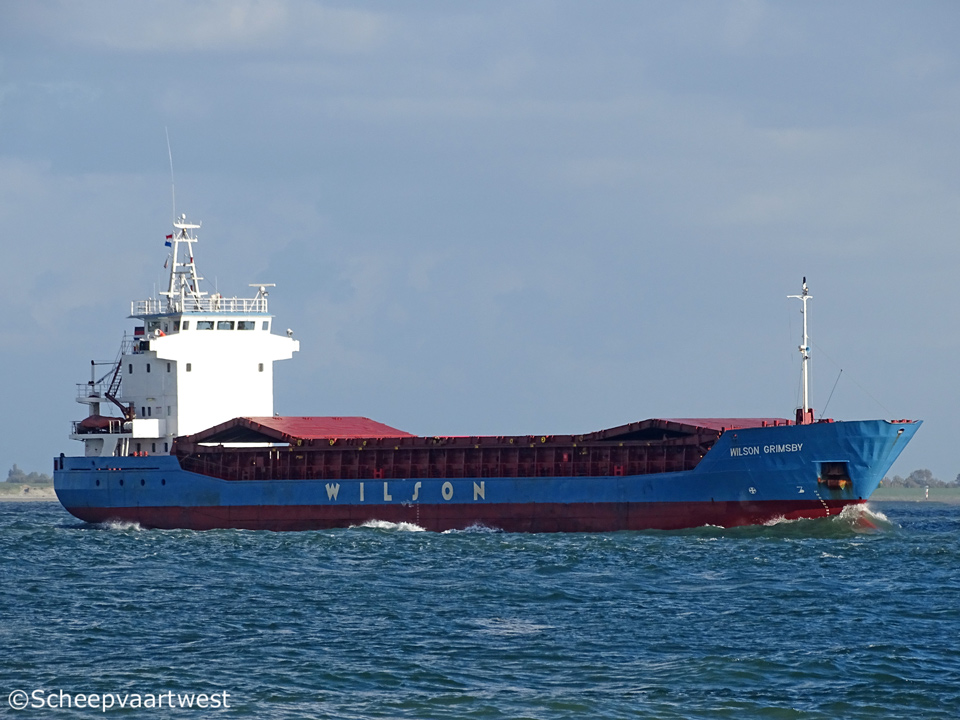

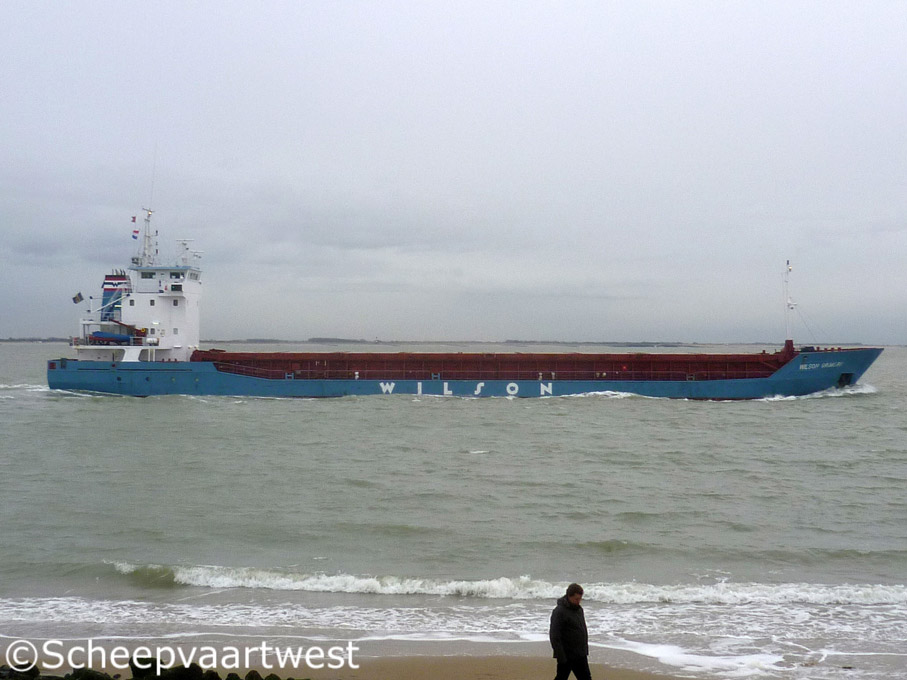

Westerschelde 12 June 2019 |
 |
 |
 |
||
| Westerschelde 03/10/17 | Westerschelde 14/12/11 | Westerschelde 14/12/11 |
|
Name |
WILSON GRIMSBY |
|
Previous names |
1993 - 20/09/1997 Poel 1997 - 06/02/1998 Seapride Spirit 1998 - 01/04/2005 Express |
|
Type |
General cargo ship - Strengthened for heavy cargo - Equipped for carriage of containers |
|
IMO-number |
9056040 |
|
Call sign |
8PSB |
|
Flag |
Barbados |
|
Port of registry |
Bridgetown |
|
GT |
2.506 t |
|
DWT |
3.689 t |
|
NT |
1.351 t |
|
Number of 20ft containers |
In hold: 108 On deck: 60 Total: 168 |
|
Length |
87,70 m overall 81,85 m registered |
|
Breadth |
12,80 m registered |
|
Draught |
5,518 m |
|
Forecastle |
6,70 m |
|
Air draft |
Max.: 25,50 m |
|
Depth |
7,10 m moulded |
|
Speed |
Service: 10,5 knots |
|
Built |
1993 |
|
Keel laid |
02/07/1992 |
|
Launch date |
08/01/1993 |
|
Date of completion |
05/1993 |
|
Builder |
Slovenske Lodenice a.s. Rolnickej Skoly 1519 945 25 Komarno Slovak Republic |
|
Yard number |
2918 |
|
Hull material |
Shipbuilding steel (standard) |
|
Hull type |
Double bottom, continuous from peak to peak bulkhead |
|
Watertight bulkheads |
4 |
|
Continuous decks |
2 |
|
Main engine |
1x MAN-B&W 6L28/32 A - 4 stroke 6 cylinder 280 x 320 mm combustion engine 1.470 kW at 775 rpm Year of manufacture: 1992 Manufacturer: MAN B&W Diesel A/S Frederikshavn Niels Juels Vej 15 9900 Frederikshavn Kingdom of Denmark |
|
Propeller |
1x Controllable pitch propeller - aft at 252 rpm |
|
Boilers |
1x Water heater, oil fired - 4,0 bar Year of manufacture: 1992 |
|
Electric installations |
2x plant 380/220 V each 263 kVA 1x Plant 380 V - 460 kVA 1x Plant 380 V - 50 kVA |
|
Shaft generator |
1x 460 kVA |
|
Generators |
2x MAN D2866LE main diesel generatorsets each 263 kVA |
|
Emergency generator |
1x MAN D0226 diesel generatorset 50 kVA |
|
Compressed air Receivers |
1x Receiver 10 litres - 32,0 bar 2x Receivers each 250 litres - 30,0 bar |
|
Bow thruster |
1x Transverse thruster JASTRAM - 185 kW, forward |
|
Cargo capacity |
Grain: 4.649 m³ / 164.178 ft³ Bales: 4.612 m³ / 162.872 ft³ |
|
Number of holds |
1 Dimension: 56,50 x 10,20 x 8,13 m |
|
Number hatches |
1 Dimension: 56,50 x 10,20 m |
|
Hatch type |
Kvaerner Multifold crocodile, with hydraulic control |
|
Max. permissible load |
On deck: 1,56 t/m² Tanktop: 15,00 t/m² |
|
Tank capacities |
Ballast water: 1.629,30 m³ Fuel oil: 1293 m³ |
|
Anchor equipment |
3x Anchors weight each 1.920 kg Chain length: 446,40 m Diameter: 38 mm |
|
Crew size |
10 |
|
Manager |
Wilson Ship Management AS Bradbenken 1 5835 Bergen Norway |
|
Operator |
Wilson Shipping |
|
Owner |
Wilson Shipowning AS 4145 Dreggen 5835 Bergen Norway |
|
Special annotation |
Grain bulkhead removable |
|
Latest data adjustment |
17 June 2021 |
