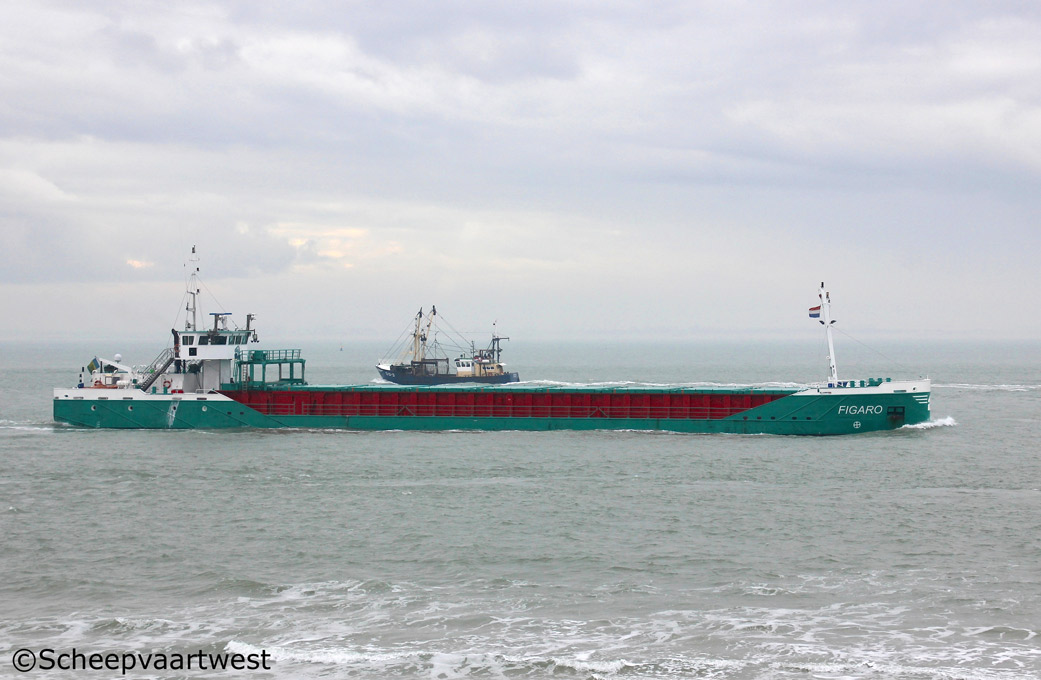

Figaro 03

Westerschelde 20 January 2016

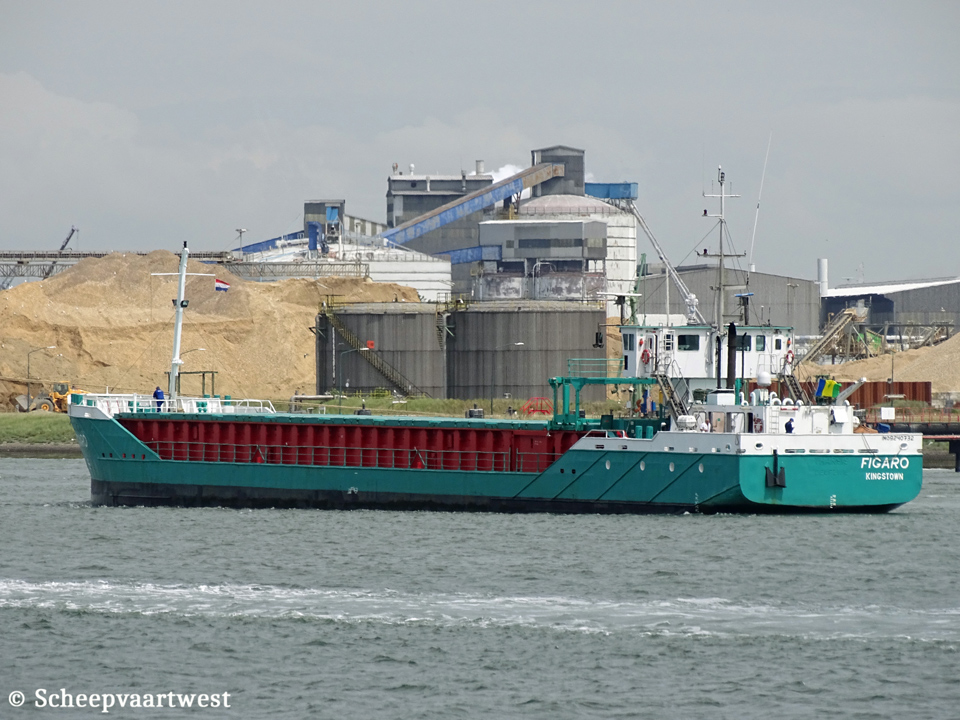

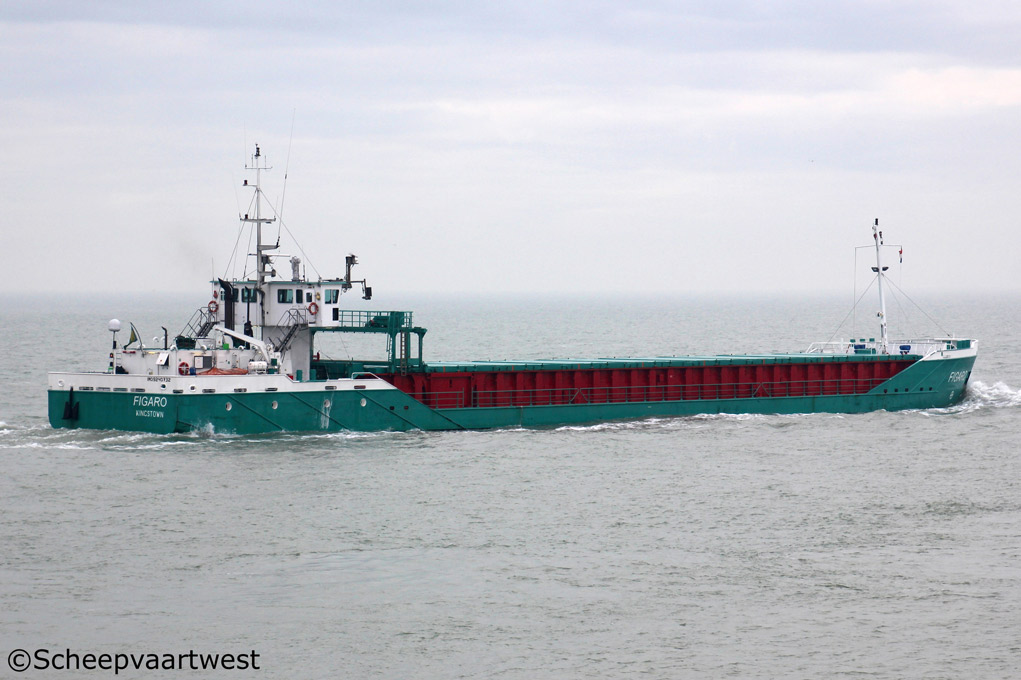

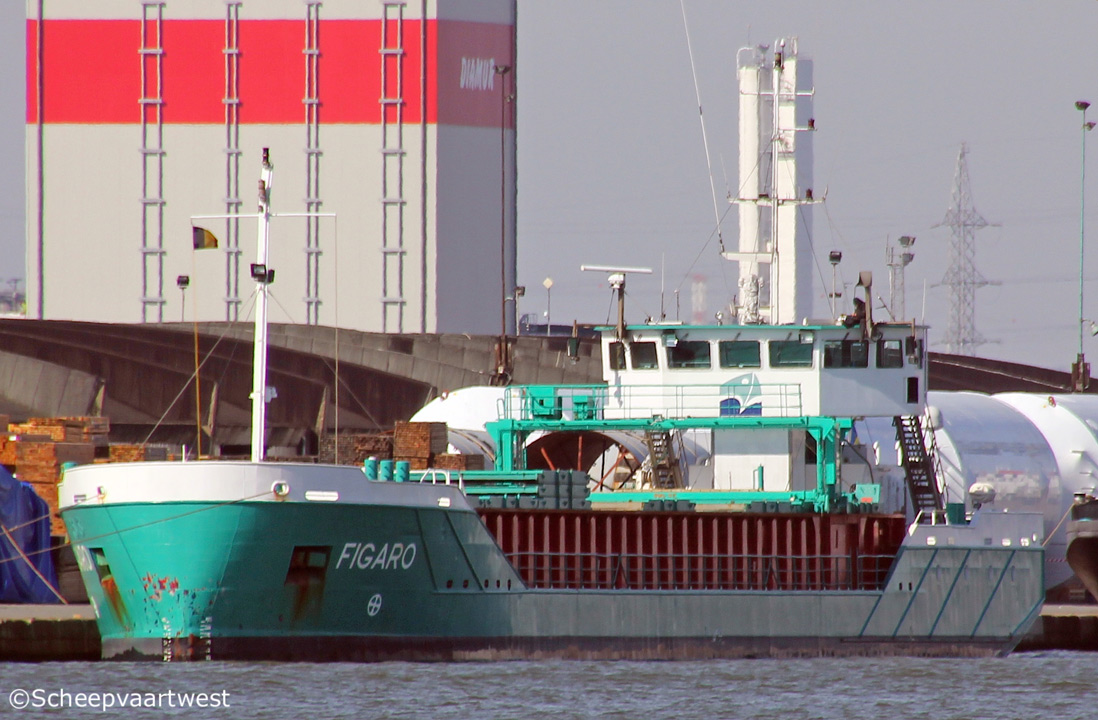

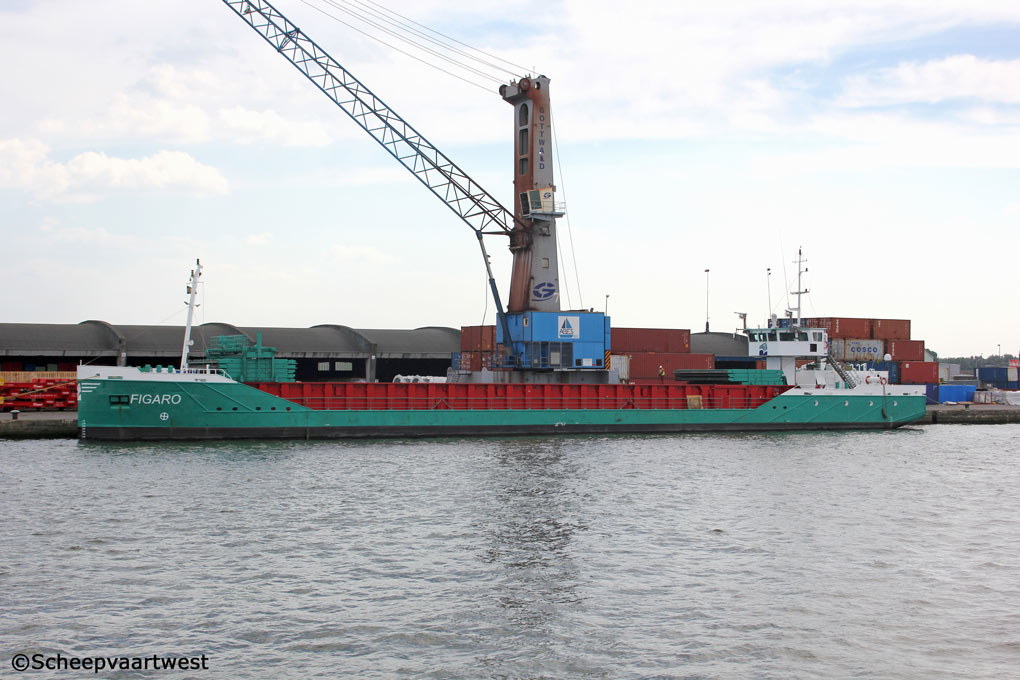

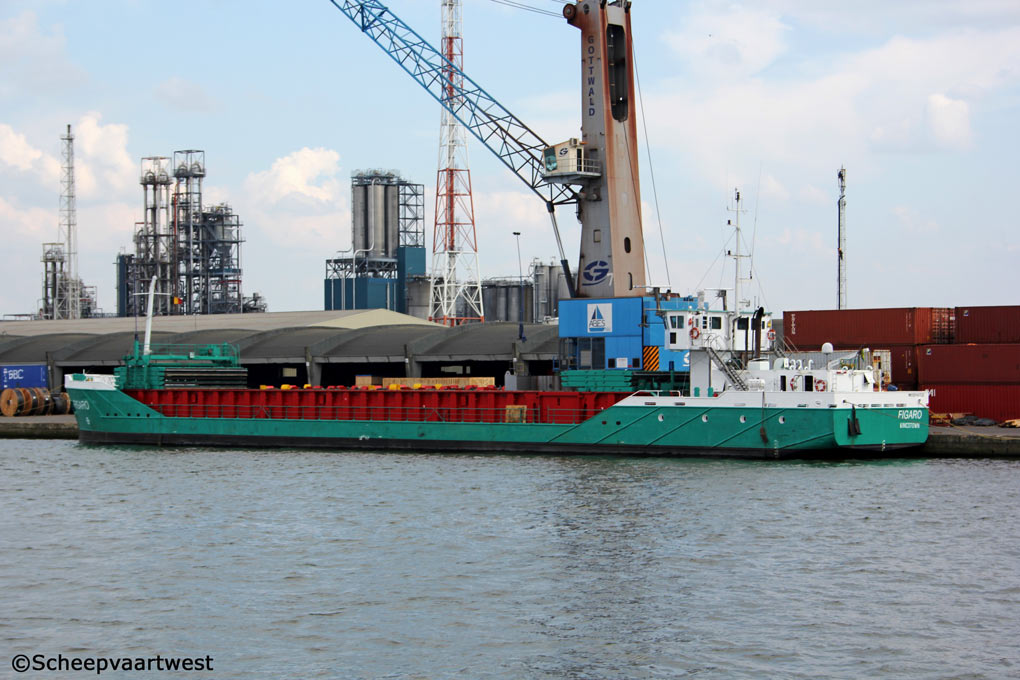

Figaro 04   Figaro 02   Figaro 01   Figaro 05   Figaro IMO 9240732 06
20/01/16 Westerschelde Antwerpen 24/07/14 Antwerpen 24/07/14 Antwerpen 06/04/18   Vlissingen 03/06/19



Name

FIGARO

Previous names

Build as 2003 Hansa Marseille

09/2003 - 11/2007 Christine

11/2007 - 12/2011 Tharsis

Type

Multi-purpose general cargo ship - Heavy cargo tanktop - Strength bottom

Singledecker - Boxlike

IMO-number

9240732

Call sign

J8B4640

Flag

Saint Vincent & Grenadines

Port of registry

Kingstown

GT

1.435 t

DWT

Summer: 1.700 t

Winter: 1.760 t

NT

718 t

Number of 20ft containers

72

Length

79,99 m overall

78,80 m between perpendiculars

Breadth

10,40 m moulded

Draught

3,59 m

Air draft

6,30 m

Freeboard

919 mm

Depth

4,80 m moulded

Speed

Max.: 10,5 knots

Service: 9,5 knots

Built

2003

Launch date

15/12/2002

Date of completion

26/09/2003

Builder hull

Inkobrod Shipyard

Korcula

Croatia

Builder completion

Peters Shipyard B.V.

Kampen

The Netherlands

Yard number

480

Hull material

Steel

Watertight compartments

6

Movable bulkhead

2

Continuous decks

1

Main engine

1x Caterpillar 3512TA - 4 stroke single acting 12 cylinder 170 x 215 mm combustion engine 954 kW/ 1.346 bhp at 1.600 rpm

Built: 2002

Builder: Caterpillar Tractor Company Inc., Peoria (Illinois), U.S.A.

Propellers

1x Fixed pitch propeller

Bow thruster

1x 175 kW

Electric installations

Power voltage: 400 V

Lighting voltage: 230 V

Frequency: 50 Hz

Generators

1x Diesel generatorset 250 kVA - 200 kW - 268 hp

2x Diesel generatorsets each 80 kVA - 64 kW - 95 hp

Number of holds

1

53,20 x 8,40 m x 6,00 m

Hold capacity

Grain / bales: 95.000 ft³ - 2.691 m³

Cargo hatchways

1

53,20 x 8,40 m

Max permitted loads

Tanktop: 15,0 t/m²

Commercial manager

Baltnautic Shipping Ltd.

Janonio str. 20

LT-92252 Klaipeda

Lithuania

ISM manager

Baltnautic Shipmanagement Ltd.

Virsutine g 20

LT-92258 Klaipeda

Lithuania

Previous managers

09/2003 - 11/2007 Wagenborg Shipping B.V., Delfzijl, The Netherlands

11/2007 - 12/2011 Bannier Scheepvaart B.V., The Netherlands

Registered owner

Waterway Shipping Ltd., Kingstown - St. Vincent & the Grenadines

Care of Baltnautic Shipping Ltd

J Janonio g 20,

LT-92252 Klaipeda

Lithuania

Previous names & owners

09/2003 - 11/2007 Christine - Combinatie van Donderen (Klaas en Afien van Donderen, Arthur Schwering en Jamie Muijlaerts), Delfzijl, The Netherlands

11/2007 - 12/2011 Tharsis - Scheepvaartonderneming Tharsis C.V., Delfzijl, The Netherlands

Latest data adjustment

08 October 2021
