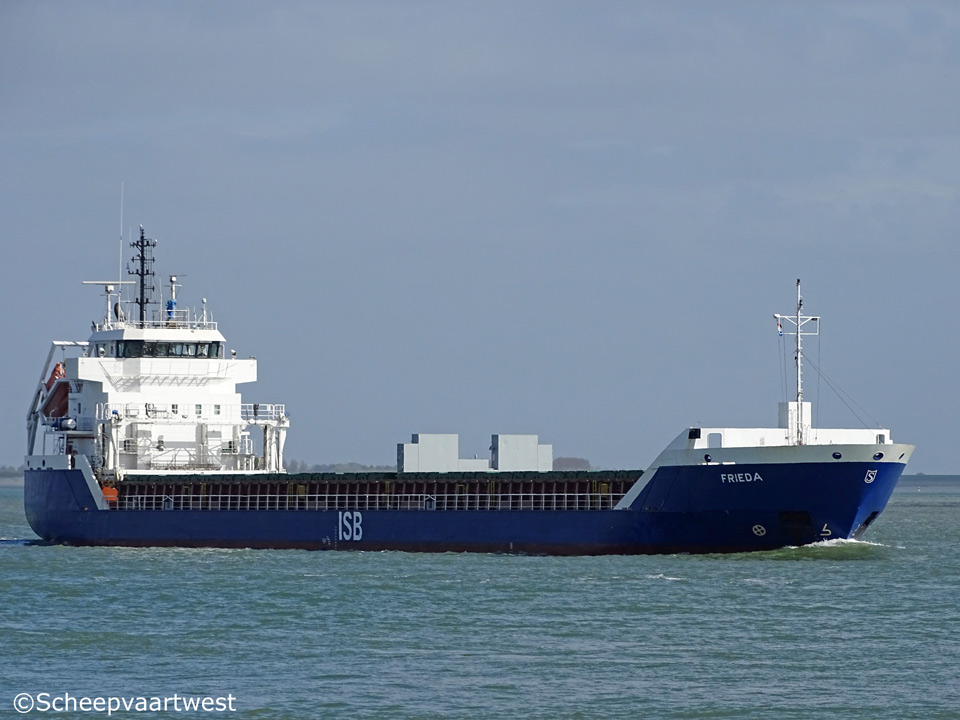

Frieda 02

 Westerschelde 06 April 2017

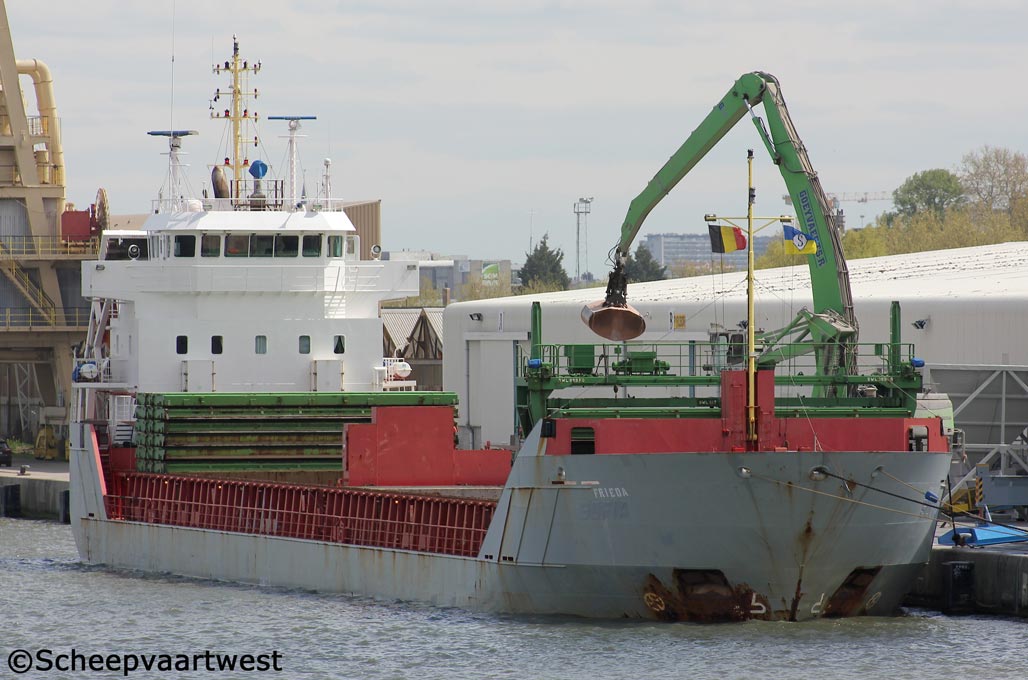

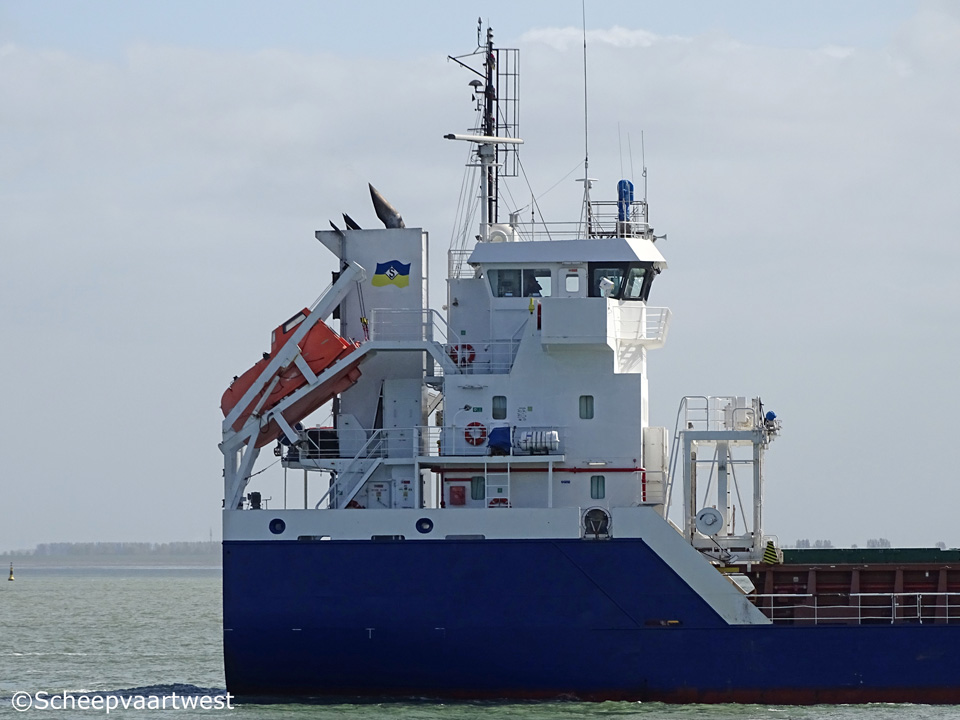

Frieda 03   Frieda 01
Westerschelde 06/04/17 Antwerpen 27/04/15



Name

FRIEDA

Previous names

2004 - 06.03.2015 Sofia

Type

General cargo ship / Container ship

IMO-number

9312690

Call sign

V2GR2

Flag

Antigua & Barbuda

Port of registry

St. John's

Previous flags

04.2005 - 10.10.2010 Willemstad (NA) / Netherlands Antilles - Call sign: PJKK

10.10.2010 - 06.03.2005 Willemstad (Curaçao) / Curaçao - Call sign: PJKK

GT

3.870 t

DWT

5.750 t

NT

2.132 t

Number of 20ft containers

240

Length

106,12 m overall

100,01 m between perpendiculars

Breadth

14,40 m

Draught

Max.: 6,14 m

Freeboard

1.972 mm

Depth

8,10 m moulded

Speed

Max.: 13,0 knots

Service: 10,0 knots

Built

2005

Launch date

21.12.2004

Date of completion

17.06.2005

Builder casco

Maritim Sp. z.o.o.
Gdansk
Poland

Builder completion

Koninklijke Niestern Sander B.V.
Delfzijl
The Netherlands

Yard number

823

Hull material

Special steel

Watertight compartments

8

Continuous decks

1

Main engine

1x Mak 9M25 - 4 stroke single acting 9 cylinder 255 x 400 mm diesel engine - 2.700 kW / 3.668 hp at 750 rpm

Built: 2004

Builder: MaK Motoren GmbH & Co. KG, Kiel - Germany

Propellers

1x Screw propeller controllable pitch

Electric installations

Power voltage: 400 V

Lighting voltage: 230 V

Frequency: 50 Hz

Shaft generator

1x 438 kVA - 350 kW

Generators

2x Main diesel generatorsets each 189 kVA - 151 kW - 220 hp

Emergency generator

1x Diesel generatorset 105 kVA - 84 kW - 125 hp

Bow thruster

1x 350 kW

Number of holds

2x With one bulkhead each

Total capacity of holds

Grain: 7.645 m³

Cargo hatchways

2

Dimensions: 37,50 x 11,70 m each

Tank capacities

Fuel oil: 255 m³

Manager

HS Schiffahrts G.m.b.H. & Co. KG
Haren/Ems
Germany

Previous managers

04.2005 - 10.10.2010 Intersee Schiffahrtsgesellschaft m.b.H. & Co K.G., Haren/Ems - German Federal Republic

Owner

HS Schiffahrt
Thyssenstraße 16
49733 Haren/Ems
Germany

Registered owner

HS-Schiffahrt GmbH & Co.KG MS ''FRIEDA''

St. John's

Antigua & Barbuda

Previous names & owners

04.2005 - 10.10.2010 Sofia - Sofia Schiffahrts Reederei K.G., Haren/Ems - Germany

Latest data adjustment

30 July 2017
