Antwerpen 28 July 2015 |
Name |

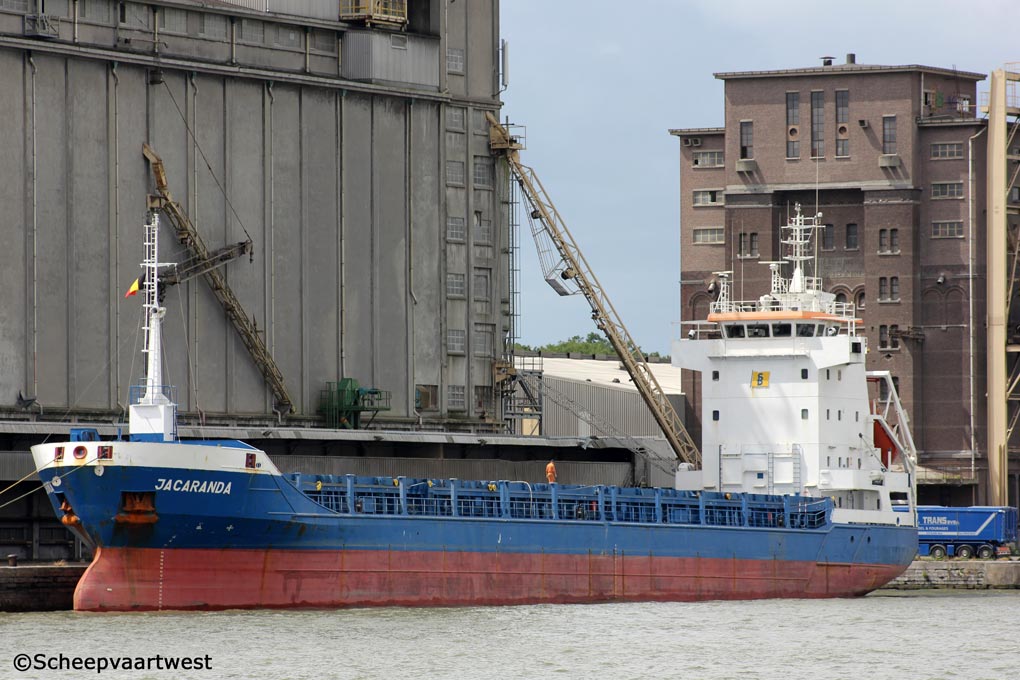

JACARANDA |
Type |
General cargo ship with double hull - Equipped for carriage of containers - Strengthened for heavy cargo Gearless box singledecker |
IMO-number |
9191266 |
Call sign |
V2PC5 |
Flag |
Antigua & Barbuda |
Port of registry |
St. John's |
Previous flags |
1998 - 1999 Germany |
GT |
2.997 t |
DWT |
Summer: 4.442 t |
DWCC |
Summer: 4.200 t Winter: 4.100 t |
NT |
1.741 t |
Number of 20ft containers |
In hold: 129 On deck: 168 Total: 297 |
Container capacity 14t |
185 |
Reefer plugs |
30 |
Length |
99,90 m overall 95,80 m between perpendiculars |
Breadth |
12,80 m moulded |
Draught |
Summer: 5,67 m Winter: 5,56 m |
Air draft |
26,70 m |
Depth |
7,55 m |
Speed |
Max.: 12,5 knots Economic: 10,5 knots |
Built |
1998 |
Keel laid |
18.11.1997 |
Launch date |
17.06.1998 |
Date of completion |
01.10.1998 |
Builder |
Slovenske Lodenice A.S. |
Yard number |
3018 |
Hull material |
Steel |
Hull type |
Double hull |
Movable bulkhead |
2x Movable, max. 3 compartments |
Main engine |
1x Deutz MWM TBD 645 L 6 - 6 cylinder diesel engine 2.550 kW at 600 rpm |
Propellers |
1x Controllable pitch propeller |
Boilers |
1x Auxiliary boiler, oil/gas fired type CX 155 |
Generators |
2x Deutz MWM TBD 234 V 8 diesel generatorsets |
Emergency generator |
1x Deutz F6L912 diesel generatorset |
Bow thruster |
1x 250 kW |
Number of holds |
1 Dimensions: 70,85 x 10,20 x 8,17 m (under hatch joints 8,01 m high) |
Hold capacity |
Grain/Bale: 208.000 ft³ |
Hold ventilation |
6x air changes per hour (basis empty hold) |
Number of hatches |
2 Dimensions: 37,95 x 31,25 x 10,20 m |
Hatch type |
Mc Gregor folding hatch covers with hydraulic opening system |
Max. permitted loads |
Tank top: 15,0 t/m² Hatch covers: 1,7 t/m² |
Tank capacities |
Fuel oil MDO: 240 m³ Lub oil: 10 m³ Fresh water: 52 m³ Ballast: 1.669 m³ |
Anchor equipment |
Length: 469,20 m Diameter: 36 mm |
Manager |
Bojen Bereederung GmbH & Co. KG |
Previous managers |
1998 - 1999 Reederei Siegfried Bojen 1999 - 2012 Bojen MS "JACARANDA" KG 2012 - 2013 Bojen Bereederung GmbH & Co. KG 2013 - 2013 Bojen MS "JACARANDA" KG |
Registered owner |
Bojen MS "JACARANDA" KG |
Previous owners |
1998 - 1999 Bojen MS "JACARANDA" KG 1999 - 2013 Flowerhill Shipping Ltd. |
Latest data adjustment |
24 November 2015 |
