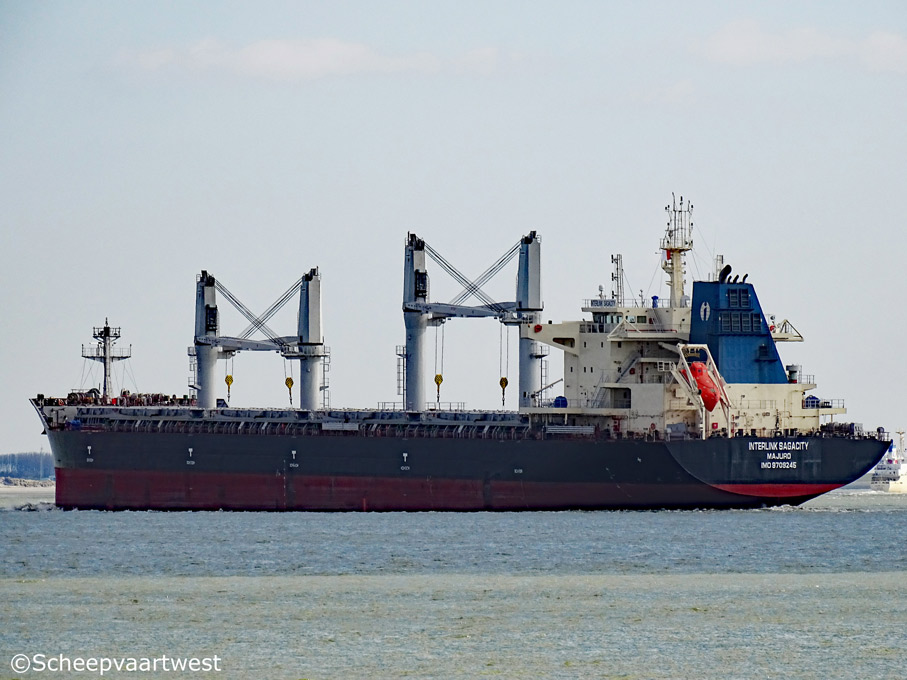

Interlink Sagacity 01

Westerschelde 29 February 2016



Name

INTERLINK SAGACITY

Type

Bulk carrier

Products

carrying dry bulk and break bulk cargo, such as coal, bauxite, phosphates, iron ore, coke, grain including soya, soya bean meals, salt, sugar, fertilizers, steel products (sheet, rolls, coils, pipe), forest product

IMO-number

9709245

Call sign

V7GD2

Flag

Marshall Islands

Port of registry

Majuro

GT

25.546 t

DWT

38.500 t

NT

13.000 t

Length

180,00 m overall

177,00 m between perpendiculars

Breadth

32,20 m moulded

Draught

10,50 m

Air draft

31,20 m full load conditions

Depth

15,00 m moulded

Speed

13,7 knots

Built

2015

Date of completion

08.2015

Builder

Kouan Shipbuilding Co., Ltd.
Taizhou Jiangsu
China

Hull material

Steel

Hull type

Double hull

Main engine

1x MAN 5S 50ME-B9.3 - 2 stroke 5 cylinder diesel engine 6.100 kW at 99,0 rpm

Propellers

1x Solid fixed pitch, aerofoil section keyless - 4 blades

Generators

3x Main diesel generatorsets each 700 kW

Emergency generator

1x Diesel generatorset 120 kW

Number of hold

5

Hold 1: 25,50 x 19,5/4,5 m Breadth tapered

Hold 2: 28,70 x 27,0 m

Hold 3: 26,30 x 27,0 m

Hold 4 27,90 x 27,0 m

Hold 5: 28,00 x 4,5/25,0 m Breadth tapered

Hold capacity

Grain: 50.500 m³

Bale: 49.400 m³

Cargo hold ventilation

Explosion proof exhaust fans at 6 air changes per

hour

Number of hatches

5

Hatch 1: 9,60/6,40 m (l) x 20,80/16,20 m (w)

Hatches 2-5: 20,00 m (l) x 27,00 m (w)

Hatch type

Steel folding type, weather tight double skin construction, hydraulically operated

Pumps

Ballast pump electric motor driven centrifugal, bronze casting and phosphor bronze impeller - 700 m³/h sets

Max. permitted loads

Upper deck hatch cover:
Uniform Load 3,0 t/m²

Upper deck:
Outside line of opening 2,5 t/m²

Inside line of opening 2,5 t/m²

Tank Top:
Uniform Load 25,0 t/m²

Tank capacities

Ballast water: (w/No 3 Hold) 16.500 m³

Ballast water tanks: 12.000 m³

Heavy fuel oil: 1.000 m³

Diesel oil: 50 m³

LSMDO / MGO: 300 m³

Fresh water: 200 m³

Drinking water: 50 m³

Cargo gear

4x Electro-hydraulic wire luffing type jib cranes with provision for grab handling - SWL 30,0 t each

Accommodation

Complement:

Captain class: 2

Senior Officer class: 2

Junior Officer class: 6

Rating class: 13

Owner, Pilot: 2

Total: 25

Manager

Interlink Maritime Corp.

Owner

Interlink
Hamilton
Bermuda

Latest data adjustment

05 May 2016
