Westerschelde 13 May 2016 |
|
Name |

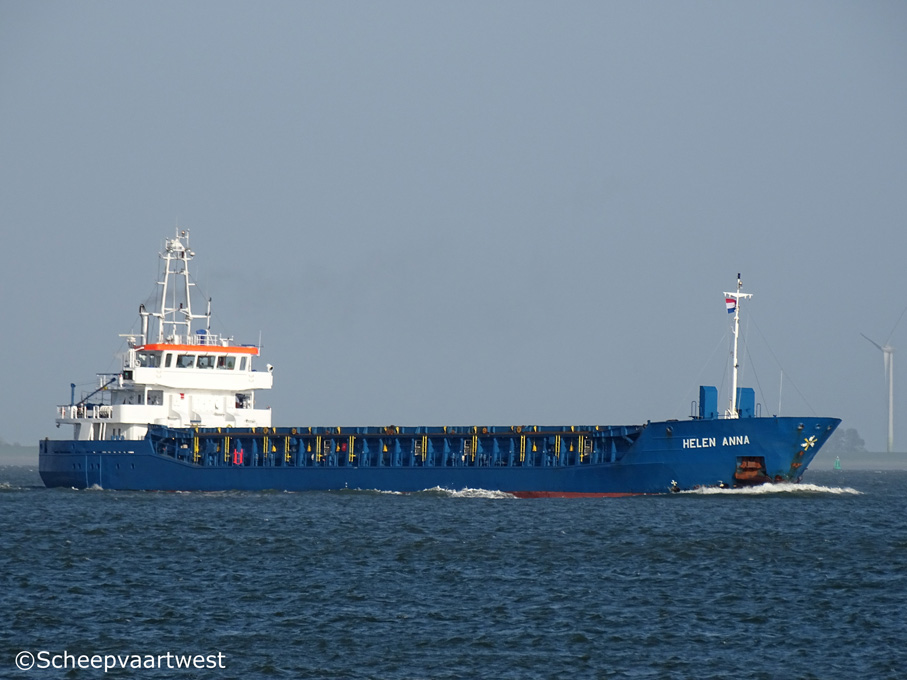

HELEN ANNA |
|
Previous names |
2010 - 08.2013 Helen Anna 08.2013 - 09.2014 Wilson Lubeck |
|
Type |
Multi-purpose dry cargo ship - Equipped for carriage of containers |
|
IMO-number |
9582867 |
|
Call sign |
V2FD3 |
|
Flag |
Antigua & Barbuda |
|
Port of registry |
St. John's |
|
GT |
2.452 t |
|
DWT |
Summer: 3.675 t Winter: 3.555 t |
|
NT |
1.369 t |
|
Number of 20ft containers |
On hatch: 36 |
|
Length |
87,84 m overall 81,32 m between perpendiculars |
|
Breadth |
12,90 m extreme 12,80 m moulded |
|
Draught |
5,49 m moulded |
|
Air draft |
15,95 m |
|
Depth |
7,10 m to main deck |
|
Speed |
Service: 10,5 knots |
|
Built |
2010 |
|
Keel laid |
23.06.1998 |
|
Launch date |
01.10.2010 |
|
Date of completion |
22.11.2010 |
|
Builder |
Slovenské lodenice Komárno a. s |
|
Yard number |
2984 |
|
Hull material |
Steel |
|
Movable bulkheads |
2x Moveable grain bulkheads with ten stowage positions |
|
Main engine |
1x MaK 8M20C - 8 cylinder diesel engine 1.520 kw Manufacturer: Caterpillar Motoren, Kiel - Germany |
|
Propellers |
1x Schottel controllable pitch propeller |
|
Boilers |
1x Auxiliary boiler, oil/gas fired 1(oil fired water heater) |
|
Shaft generator |
1x Leroy Sommer 300 kVA, 3x 400 Volt, 50 Hz |
|
Generators |
2x MAN D2866 LXE 30 main diesel generatorsets each 225 kVA |
|
Emergency & harbour gen. |
1x Cummins 6BT5.9-D(M) diesel generatorset 95 kVA |
|
Compressed air receivers |
2x Starting air compressors |
|
Bow thruster |
1x Fixed pitch propeller type STT110LK - Output 185 kW at 790rpm |
|
Number of holds |
1 56,55 x 10,02 x 8,10 m |
|
Cargo hold capacity |
Grain: 4.600 m³ / 162.450 ft³ Bale: 4.588 m³ / 162.000 ft³ |
|
Max. permitted loads |
Tanktop: 15,0 t/m² Hatch: 1,56 t/m² |
|
Tank capacities |
Ballast approx: 1.340,00 m³ HFO approx: 199,30 m³ MGO approx: 68,60 m³ Potable water: 52,00 m³ Lubrication oil: 13,40 m³ |
|
Anchor equipment |
Length: 467,50 m Diameter: 36 mm |
|
Accommodation |
For captain and crew of a total 9 persons with heating, ventilation and air-conditioning |
|
Manager |
Hermann Lohmann Schiffahrts GmbH & Co. KG |
|
Owner |
Hermann Lohmann Schiffahrts GmbH & Co. KG |
|
Latest data adjustment |
06 June 2016 |
