Westerschelde 04 March 2017 |
 |
 |
 |
 |
 |
||||

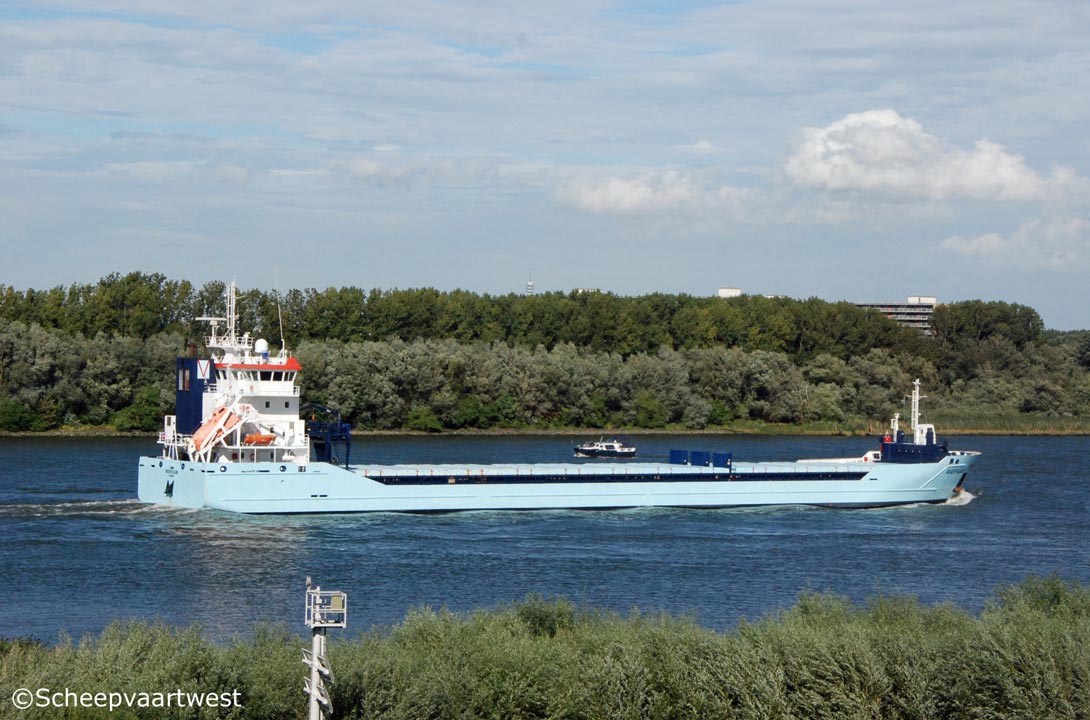

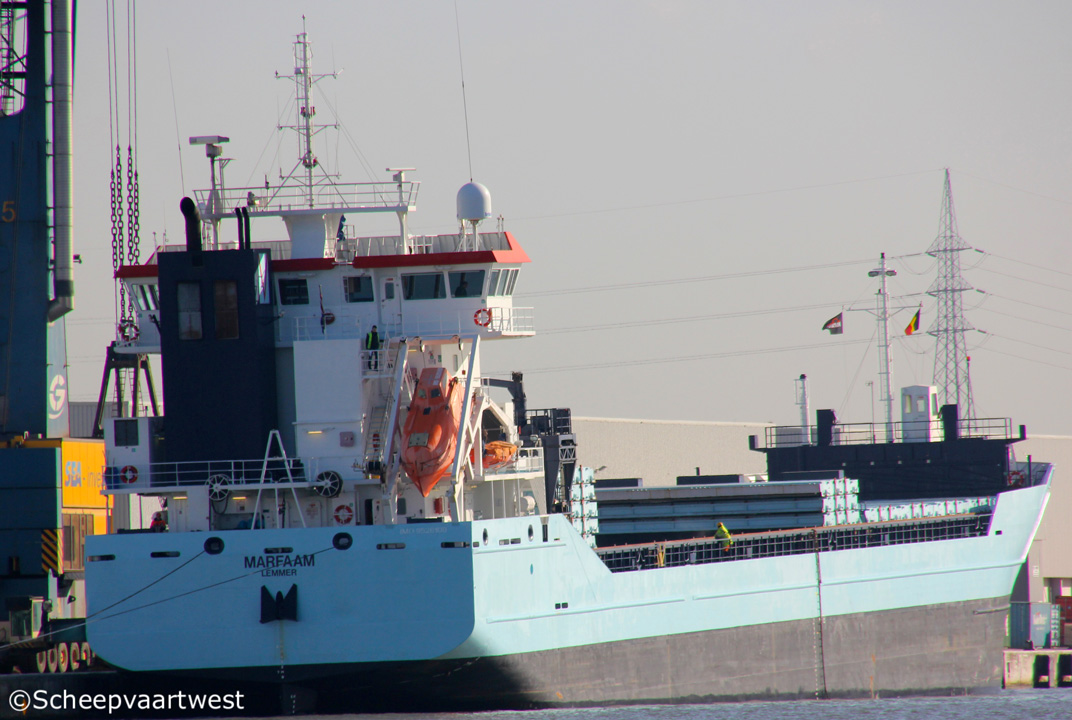

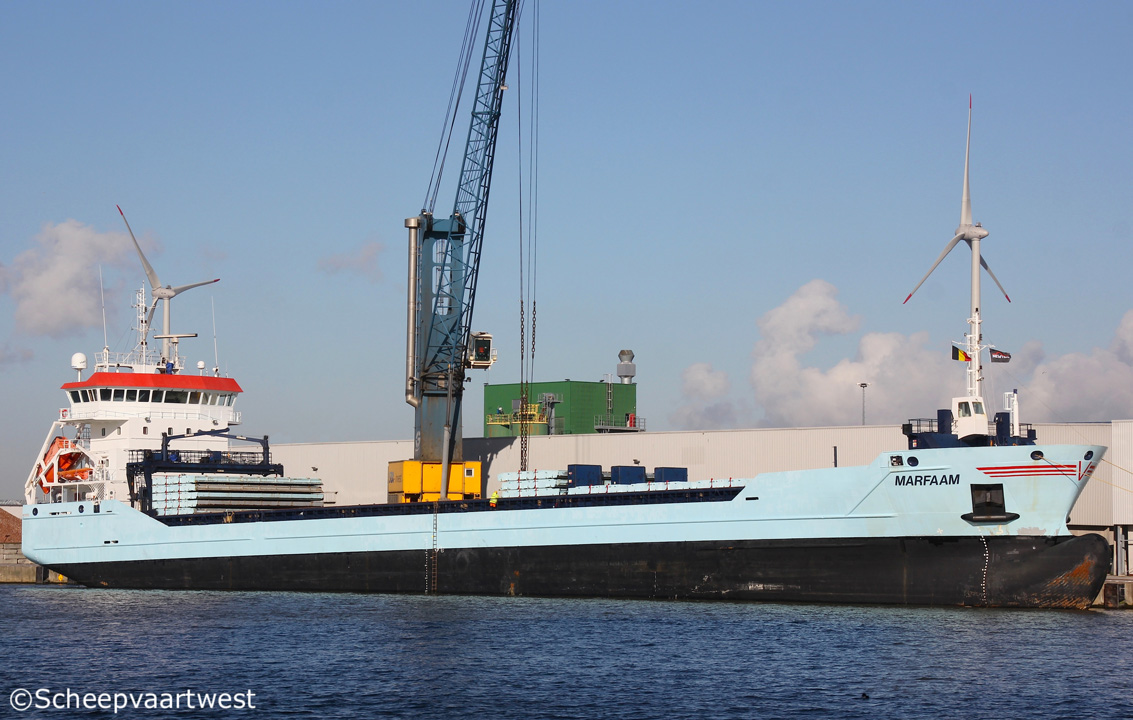

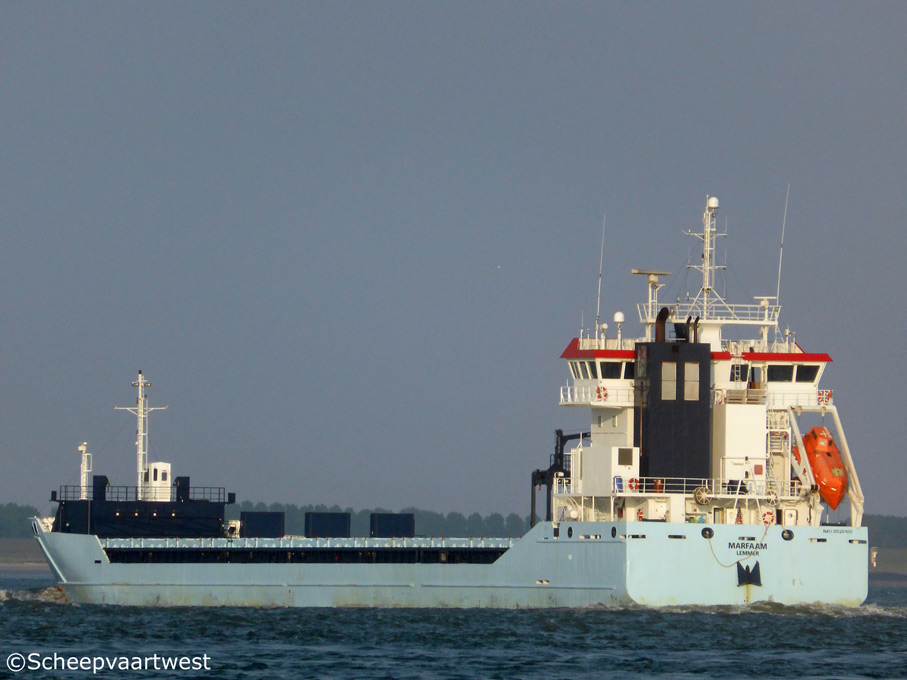

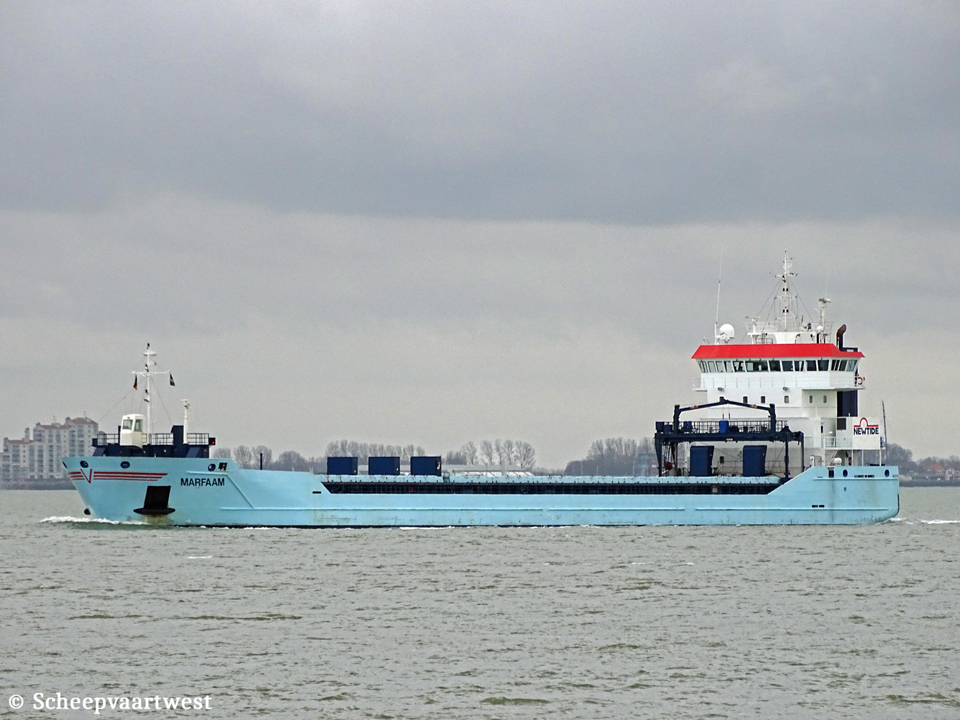

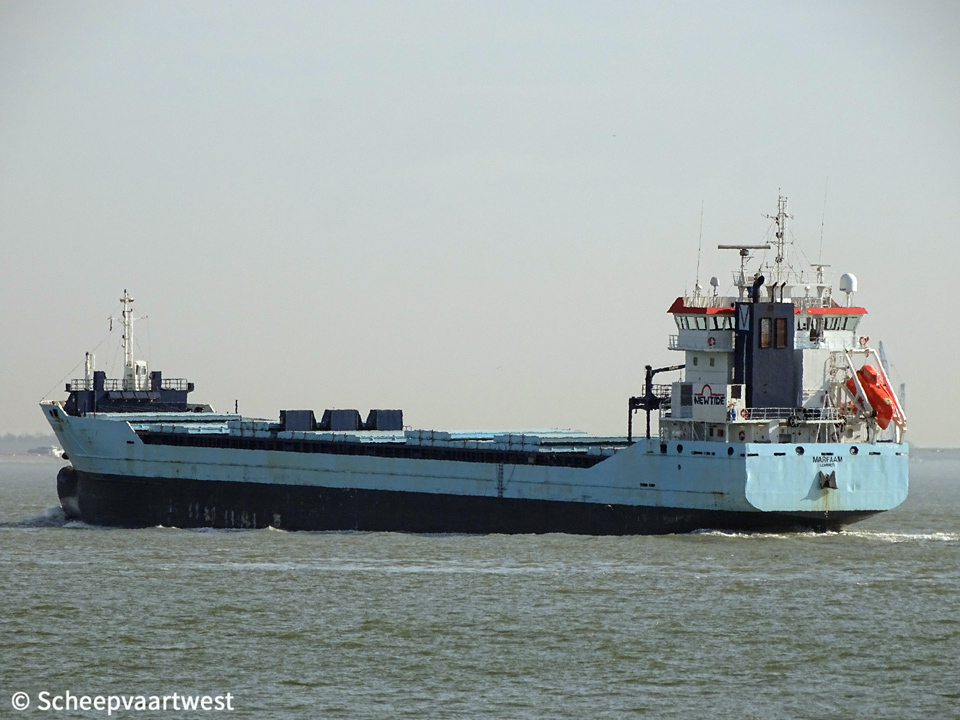

| Spijkenisse 22/08/16 | Westerschelde 30/05/14 | Antwerpen 12/02/18 | Antwerpen 12/02/18 | Westerschelde 17/02/19 | ||||
|
Name |
MARFAAM |
|
Type |
General cargo ship - Box shaped - Equipped for dangerous goods - Strengthened for heavy cargo |
|
Basic functions |
Transport of bulk - steel coils - containers - forest products |
|
IMO-number |
9526100 |
|
Call sign |
PCNH |
|
Flag |
The Netherlands |
|
Port of registry |
Lemmer |
|
GT |
5.422 |
|
DWT |
Summer: 8.429 t Winter: 8.165 t |
|
NT |
2.949 |
|
Number of 20ft containers |
In hold: 171 On deck: 170 Total: 341 |
|
Length |
118,14 m overall 112,29 m between perpendiculars |
|
Breadth |
15,90 m moulded 16,13 m extreme |
|
Draught |
Max. summer: 7,20 m 4,60 m ballast |
|
Air draft |
32,00 m ballast |
|
Depth |
8,80 m moulded |
|
Speed |
Max.: 13,6 knots |
|
Built |
2011 |
|
Keel laid |
18/09/2008 |
|
Date of completion |
19/11/2011 |
|
Builder casco |
ATVT Sudnobudivnyi Zavod "Zali Zaliv Shipyards Kerch Ukraine Yard number: 01510 |
|
Builder completion |
Damen Shipyards Bergum Bergum The Netherlands Yard number: 9425 |
|
Hull material |
Steel |
|
Movable bulkheads |
3x Grain bulkheads in hold 2 |
|
Continuous decks |
1 |
|
Main engine |
1x MaK 9M25C - 4 stroke single acting 9 cylinder 255 x 400 mm combustion engine 2.970 kW / 4.147 bhp at 750 rpm |
|
Propellers |
1x Controllable pitch propeller Diameter 4.250 mm |
|
Shaft generator |
530 kVA |
|
Generators |
2x Main diesel generatorsets each 260 kW |
|
Emergency generator |
1x Diesel generatorset 120 kVA |
|
Compressed air receivers |
2x Starting air compressors |
|
Bow thruster |
1x Fixed pitch propeller 400 kW electrically driven |
|
Auxiliary equipment |
2x HFO separators 1x MGO separator 1x LO separator 1x Booster unit 2x Fuel oil trim pump 1x Bilge water separator acc. to Marpol Regulations 2x General service pumps 1x Fire fighting pump 1x CO2 fire fighting system for the engine room and holds |
|
Deck lay-out and equipment |
Steering gear type balance rudder, rotary vane gear Container fittings in tank top and on hatch covers Lashing eyes in hold and outside of coaming Hold ventilation: 105.000 m³/h Fresh water generator of 2,0 m³/ 24 hours |
|
Number of holds |
2 Hold 1: 32,66 x 13,20 x 9,76 m Hold 2: 51,12 x 13,20 x 9,76 m |
|
Total hold capacity |
10.510 m³ / 371.155 ft³ |
|
Hold ventilation |
10 air changes / hour |
|
Number of hatches |
2 Hatch 1: 32,66 x 13,20 m Hatch 2: 51,12 x 13,20 m |
|
Hatch type |
Pontoon covers |
|
Max. permitted loads |
Hatchcover: 1,75 t/m² Tanktop: 17,0 t/m² |
|
Tank capacities |
IFO: 491 m³ MGO: 57 m³ Fresh water: 52 m³ Water ballast: 2.946 m³ Lub oil: 34 m³ Dirty oil: 9 m³ Sludge: 19 m³ Sewage: 50 m³ Potable water: 52 m³ |
|
Accommodation |
For captain, officers and crew for a total of 12 persons with heating, ventilation and air-conditioning |
|
Manager |
Boomsma Shipping B.V. Harste 15 8602 JX Sneek The Netherlands |
|
Operator |
NedNor B.V |
|
Owner |
Steven Visser Shipping C.V. Lemmer The Netherlands |
|
Latest data adjustment |
15 January 2025 |
