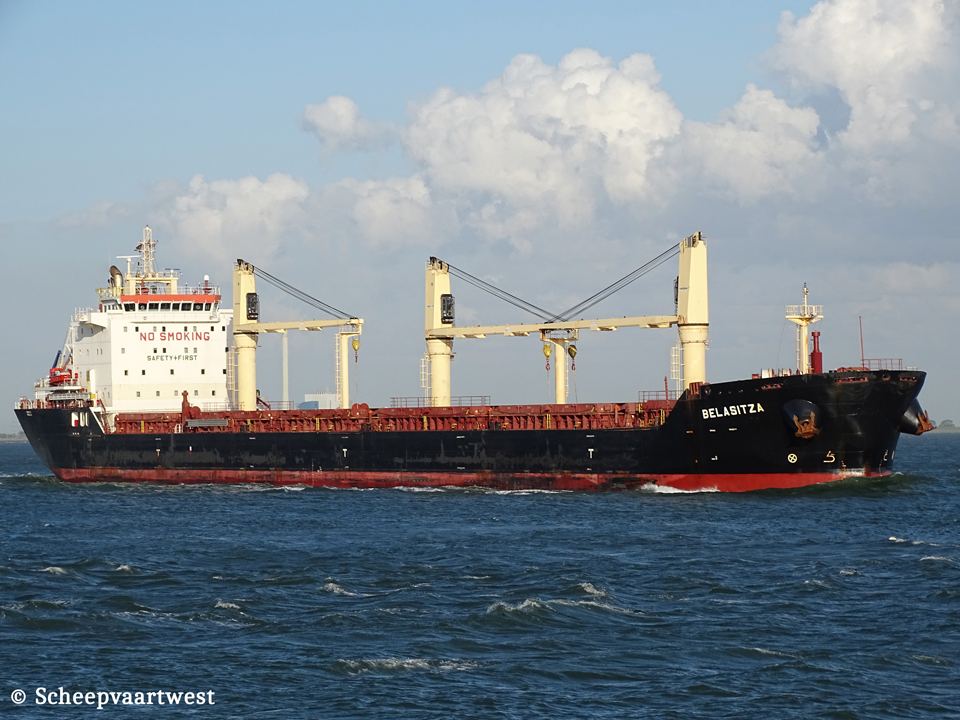

Westerschelde 07 August 2019 |
 |
|

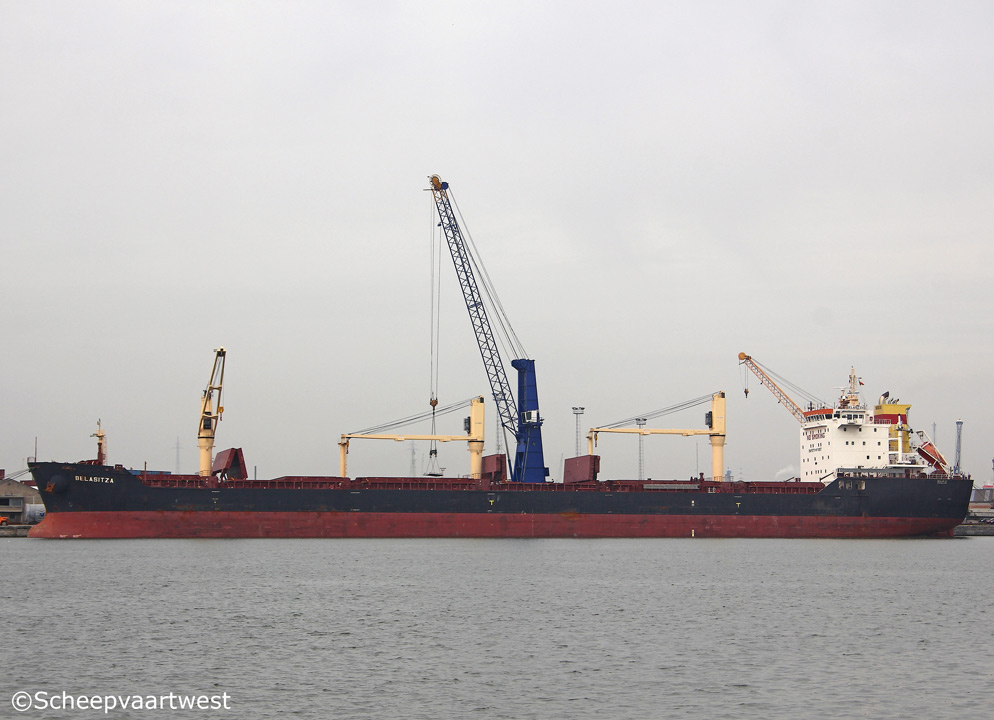

| Antwerpen 22/05/15 | |
|
Name |
BELASITZA |
|
Type |
Dry bulk carrier - Strengthened for heavy cargo |
|
IMO-number |
9498262 |
|
Call sign |
9HA2903 |
|
Flag |
Malta |
|
Port of registry |
Valletta |
|
GT |
19.906 t |
|
DWT |
Summer: 30.695,5 t Winter: 29.795,6 |
|
NT |
10.279 t |
|
Displacement |
Summer: 39.662,5 t Winter: 38.762,6 t |
|
Light ship |
8.967 t |
|
Length |
186,00 m overall 178,80 m between perpendiculars 179,31 m registered |
|
Breadth |
23,70 m extreme |
|
Draught |
Summer: 10,41 m Winter: 10,20 m |
|
Freeboard |
Summer: 4.227 mm Winter: 4.444 mm |
|
Depth |
14,60 m |
|
Speed |
14,0 knots |
|
Built |
2011 |
|
Keel laid |
03/12/2010 |
|
Launch date |
12/08/2011 |
|
Date of completion |
15/12/2011 |
|
Builder |
Shanhaiguan Shipbuilding Industry Co., Ltd. Qinhuangdao Hebei China |
|
Yard number |
SHG-030 |
|
Hull material |
Steel |
|
Bulkheads |
9 |
|
Continuous decks |
1 |
|
Main engine |
1x MAN-B&W 6S46MC-C - 2 stroke 6 cylinder 460 x 1.935 mm combustion engine 7.200 kW / 9.655 bhp at 118,0 rpm Builder: Yichang Marinediesel Engine Co., Ltd. |
|
Propellers |
1x Solid Propeller (Keyless) |
|
Boilers |
1x Auxiliary boiler, composite AQ16 |
|
Generators |
3x MAN 6L23/30 H main diesel generatorsets each 680 kW |
|
Emergency generator |
1x Sisu 634 DSBG diesel generatorset |
|
Bow thruster |
1x 900 kW |
|
Number of holds |
6 Hold 1: 19,20 x 14,20/20,00 x 14,50 m Hold 2: 26,40 x 23,70 x 14,50 m Hold 3: 26,40 x 23,70 x 14,50 m Hold 4: 23,20 x 20,00 x 14,50 m Hold 5: 26,40 x 23,70 x 14,50 m Hold 6: 20,80 x 20,00/6,40 x 14,50 m |
|
Cargo hold capacity |
Grain / Bale Hold 1: 4.690,5 m³ / 4.431,5 m³ Hold 2: 7.678,3 m³ / 7.027,3 m³ Hold 3: 7.400,2 m³ / 6.754,8 m³ Hold 4: 6.242,3 m³ / 5.791,3 m³ Hold 5: 7.400,2 m³ / 6.754,8 m³ Hold 6: 5.461,3 m³ / 5.053,8 m³ Total: 38.872,7 m³ / 35.813,3 m³ |
|
Cargo hold ventilation |
Mechanical - 6 air-changes per hour |
|
Number of hatches |
6 Hatch 1: 10,40 x 13,20 m Hatch 2: 19,20 x 17,40 m Hatch 3: 19,20 x 17,40 m Hatch 4: 19,20 x 17,40 m Hatch 5: 19,20 x 17,40 m Hatch 6: 13,60 x 17,40 m |
|
Hatch type |
6x Mc Gregor hydraulic folding |
|
Max. permitted loads |
Tanktop: 20,00 t/m² Hatch covers: 2,10 t/m² On deck: 2,50 t/m² |
|
Tank capacities |
Ballast: 16.161,4 m³ Fuel oil: 1.400,6 m³ Diesel oil: 220,3 m³ Fresh water: 270,1 m³ Lub oil: 129,3 m³ |
|
Anchor equipment |
Length: 605,00 m Diameter: 64 mm |
|
Cargo gear |
3x Deck cranes - SWL 30,0 t each Grabs: 24,0 t |
|
Crew |
22 |
|
ISM & commercial manager |
Navigation Maritime Bulgare JSC Navibulgar House 1, Primorski Boulevard 9000 Varna Bulgaria |
|
Registered owner |
Belasitza Maritime Ltd. Care of Navigation Maritime Bulgare Navibulgar House 1, Primorski Boulevard 9000 Varna Bulgaria |
|
Latest data adjustment |
08 February 2023 |
