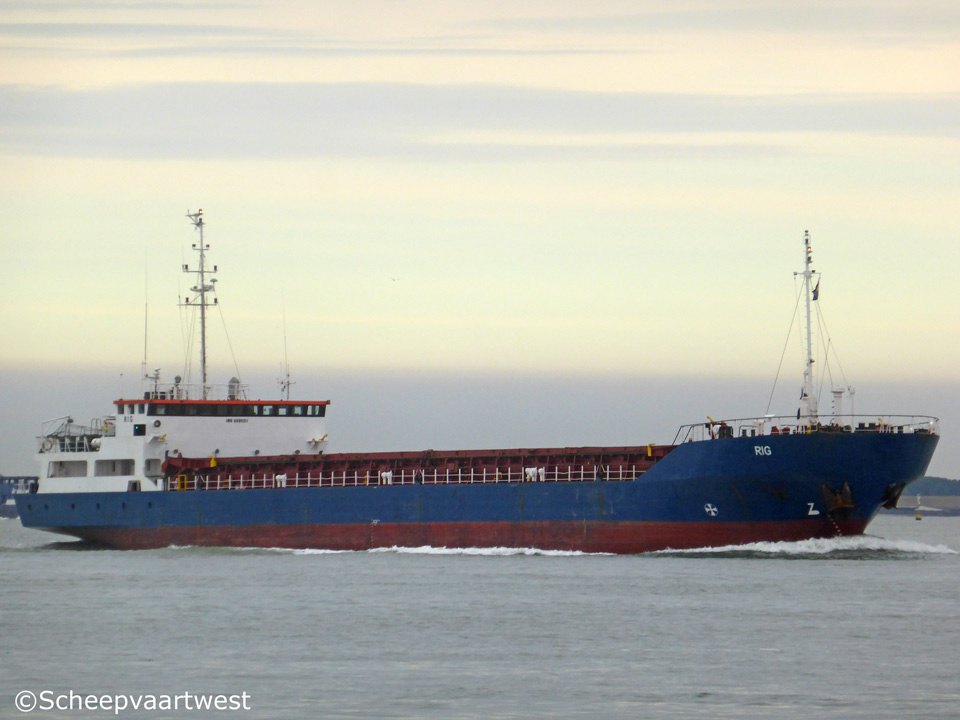

Westerschelde 11 August 2015 |
|
Name |
RIG |
|
Previous names |
1989 - 10.1993 Port Sado 10.1993 - 02.1995 Amrum 02.1995 - 2000 Lady Anna 2000 - 01.2005 Borneiro |
|
Type |
General cargo ship - heavy cargo -equipped for carriage of containers |
|
IMO-number |
8801137 |
|
Call sign |
9HBU8 |
|
Flag |
Malta |
|
Port of registry |
Valletta |
|
GT |
2.351 t |
|
DWT |
Summer: 2.809 t |
|
NT |
1.149 t |
|
Number of 20ft containers |
202 |
|
Length |
87,00 m overall 82,73 m between perpendiculars |
|
Breadth |
13,00 m |
|
Draught |
6,07 m |
|
Freeboard |
2.037 mm |
|
Depth |
7,10 m |
|
Speed |
11,5 knots |
|
Built |
1989 |
|
Launch date |
25.06.1989 |
|
Delivery date |
05.09.1989 |
|
Builder |
ENVC - Estaleiros Navais De Viana Do Castelo, S.A. |
|
Yard number |
152 |
|
Hull material |
Steel |
|
Continuous decks |
2 |
|
Main engine |
1x Alpha-MAN-B&W 8L23/30 - 4 stroke 8 cylinder 300 x 225 mm diesel engine 1.080 kW / 1.467 hp at 825 rpm Built: 1989 Builder: MAN B&W Diesel A/S, Frederikshavn - Denmark |
|
Propellers |
1x Screw propeller controllable pitch - aft at 170 rpm |
|
Electric installations |
Power voltage: 380 V Lighting voltage: 220 V |
|
Shaft generator |
1x 270 kVA - 216 kW |
|
Generators |
2x Main diesel generatorsets each 137 kVA - 110 kW - 181 hp |
|
Emergency generator |
1x Diesel generatorset 130 kVA - 104 kW - 113 hp |
|
Number of holds |
1 |
|
Cargo hold capacity |
4.630 m³ |
|
Cargo hatchways |
1 57,30 x 10,20 m |
|
Manager |
Astramar Transport Ltd. Katrīnas dambis 14 |
|
Registered owner |
Rig Shipping Ltd. |
|
Previous owners |
Rig Shipping Ltd. Helsinki |
|
Latest data adjustment |
20 January 2017 |
