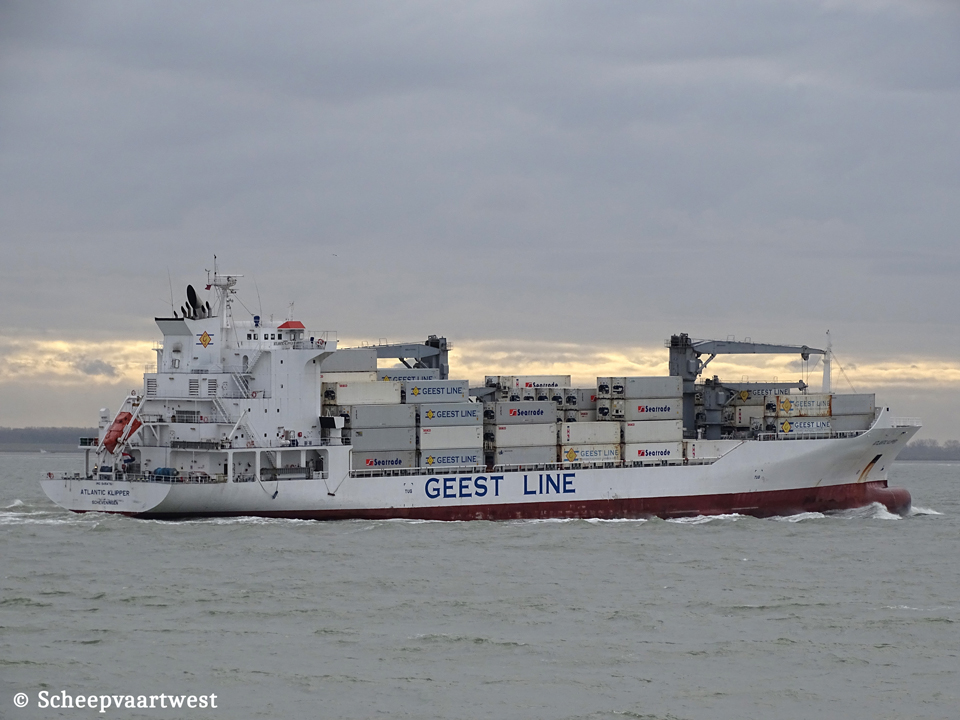

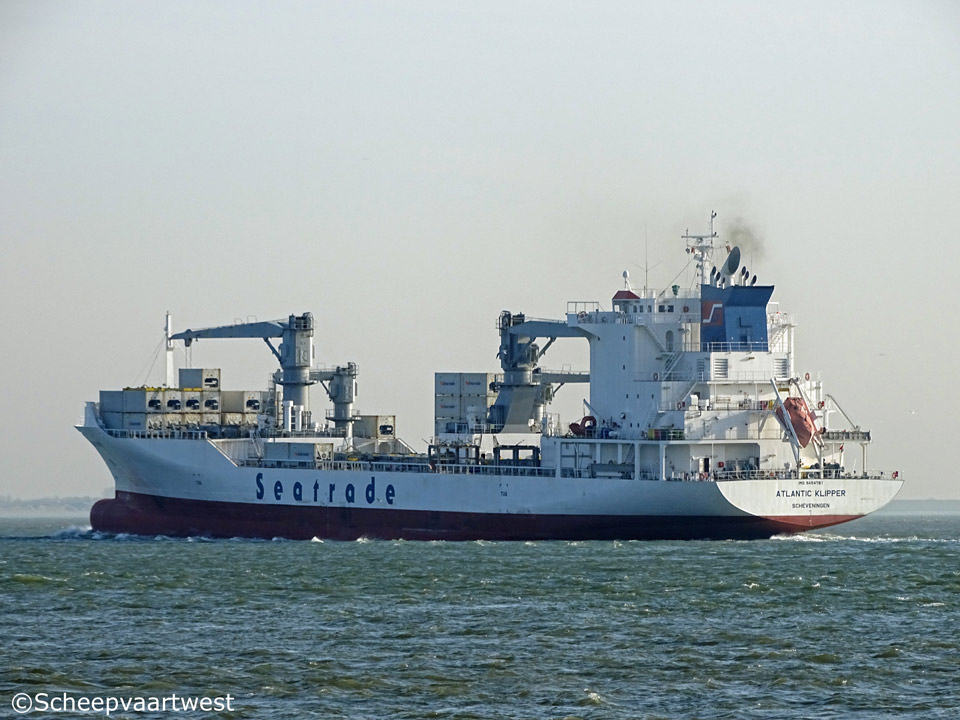

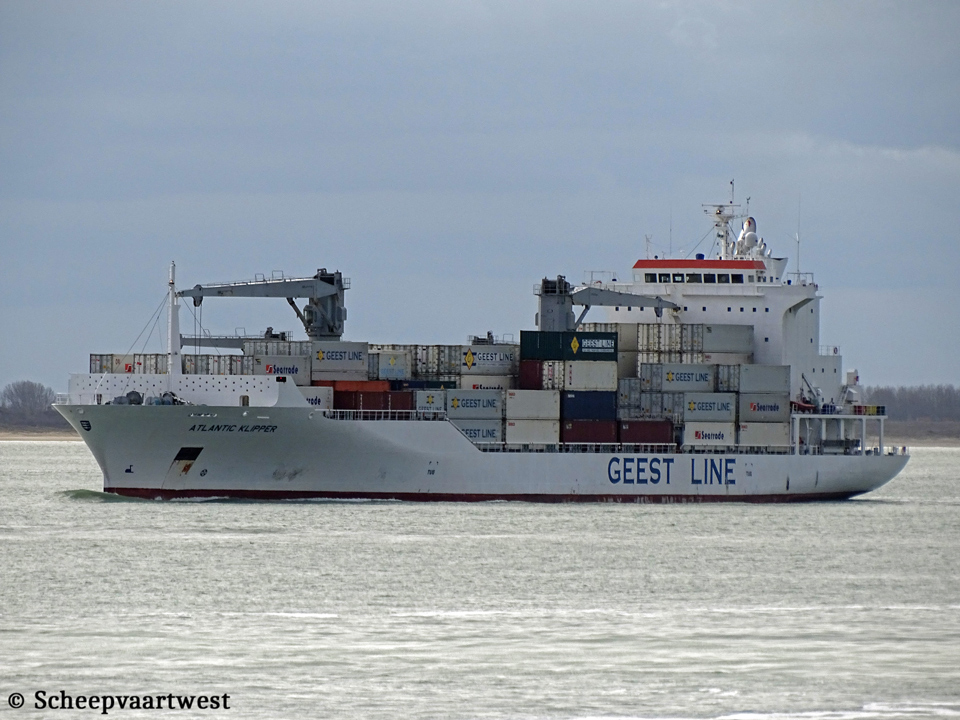

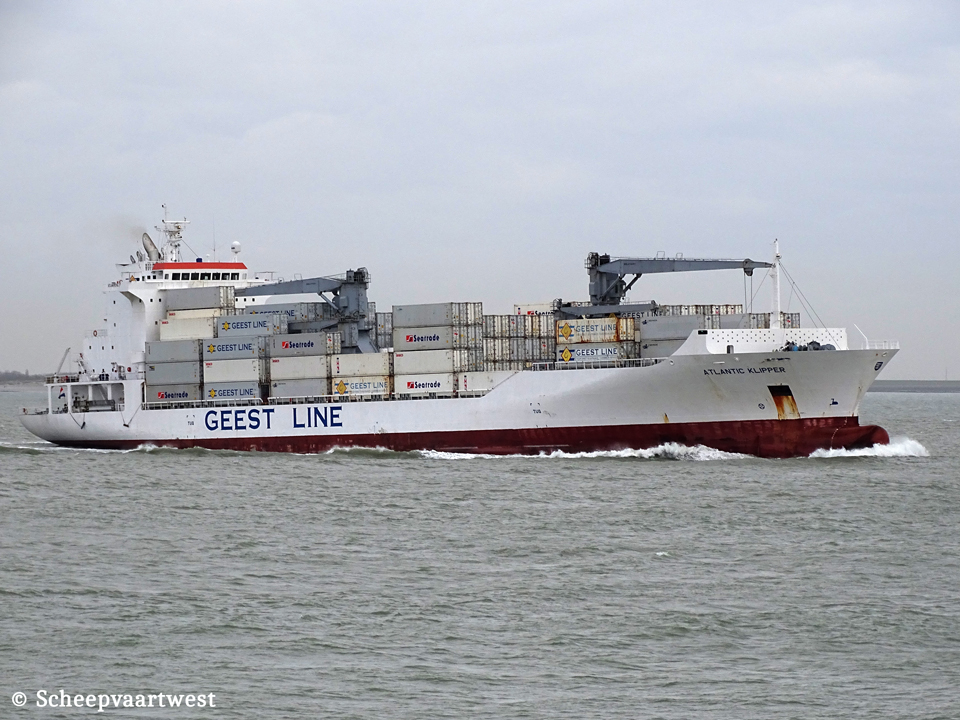

Westerschelde 27 August 2018 |
 |
 |
 |
 |
|||
| Westerschelde 15/12/16 | Westerschelde 05/02/20 | Westerschelde 04/01/20 | Westerschelde 04/01/20 | |||
|
Name |
ATLANTIC KLIPPER |
|
Type |
Refrigerated cargo ship - Equipped for the carriage of vehicles - Container ship |
|
IMO-number |
9454761 |
|
Call sign |
PCIU |
|
Flag |
The Netherlands |
|
Port of registry |
Scheveningen |
|
GT |
14.091 t |
|
DWT |
15.692 t |
|
NT |
7.603 t Panama: 11.824 t Suez: 12.766,65 t |
|
Number of 20ft containers |
267 FEU + 9 TEU or 552 TEU |
|
Reefer capacity |
200 |
|
Length |
165,00 m overall 153,50 m between perpendiculars |
|
Breadth |
25,00 m |
|
Draught |
Summer: 10,32 m Winter: 10,10 m |
|
Freeboard |
3.712 mm |
|
Depth |
14,00 m |
|
Speed |
23,2 knots |
|
Built |
2011 |
|
Launch date |
28/08/2010 |
|
Date of completion |
04/01/2011 |
|
Builder |
Kitanihon Shipbuilding Co., Ltd. Hachinohe Japan |
|
Yard number |
392 |
|
Hull material |
Steel |
|
Watertight compartments |
10 |
|
Continuous decks |
4 |
|
Main engine |
1x Hitachi/MAN-B&W-6S60MC-C - 2 stroke single acting 6 cylinder 600 x 2.400 mm diesel engine 14.280 kW / 19.402 bhp at 105 rpm Built: 27/03/2010 Builder: Hitachi Zosen K.K. Corporation Ariake Works, Ariake - Japan |
|
Propellers |
1x Screw propeller solid - aft at 105 rpm |
|
Boilers |
1x CHR Miura Co., Ltd. 168,30 m² - 9,8 bar 1x CHO Miura Co., Ltd. 37,80 m² - 9,8 bar |
|
Generators |
4x Main diesel generatorsets each 1.875 kVA - 1.500 kW - 2.201 hp |
|
Emergency generator |
1x Diesel generatorset 150 kVA - 120 kW - 190 hp |
|
Bow thruster |
1 |
|
Number of holds |
4 |
|
Number of hatches |
4 |
|
Number of compartments |
16 |
|
Temperature zones |
8 |
|
Total capacity of holds |
18.071,91 m³ |
|
Temperature range |
-25/+15C° |
|
Floorspace |
7.118,2 m |
|
Pallets |
9.392 |
|
Tank capacities |
Fuel oil: 2.105,76 m³ |
|
Cargo gear |
2x Deck cranes - SWL 40,0 t each 2x Deck cranes - SWL 8,0 t each |
|
Manager |
Geest Reefer Line Head office: Eaglepoint Little Park Farm Road Segensworth, Fareham, PO15 5TD United Kingdom |
|
ISM Manager |
Seatrade Groningen B.V. Leonard Springerlaan 17 9727 KB Groningen The Netherlands |
|
Operator |
Seatrade |
|
Owner |
Jaczon Klipper B.V. Scheveningen The Netherlands |
|
Registered owner |
Jaczon Atlantic Klipper B.V. Care of Seatrade Groningen B.V., 9727 KB Groningen - The Netherlands |
|
Latest data adjustment |
20 June 2021 |
