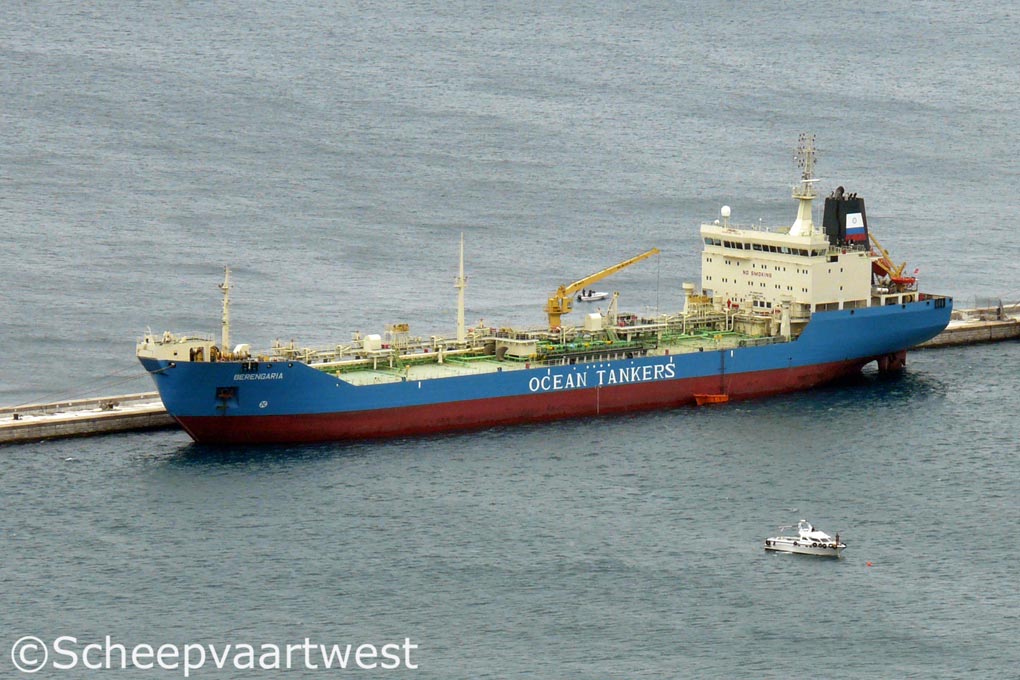

Berengaria 03
Gibraltar 21 September 2011


Name

BERENGARIA

Previous names

2001 - 22.04.2006 Kaliningrad

2006 - 24.11.2007 Georgy Ushakov

Type

Product / Oil tanker

IMO-number

9171199

Call sign

9HKE8

Flag

Malta

Port of registry

Valletta

GT

13.817 t

Suez: 39.642,32 t

DWT

Summer: 19.831 t

NT

6.326 t

Panama: 11.556 t

Suez: 30.485,38 t

Displacement

Summer: 27.502 t

Light ship

7.637,80 t

Length

157,40 m overall

147,20 m between perpendiculars

Breadth

24,50 m moulded

Draught

Max.: 9,77 m

Freeboard

Summer: 3.644 mm from deck line

Depth

13,40 m moulded

Speed

14,0 knots

Built

2001

Date of completion

14.02.2001

Builder

Admiralteyskiy Sudostroitelny Zavod Shipyard
ST. Petersburg
Russia

Yard number

2372

Hull material

Steel

Hull type

Double hull

Main engine

1x MAN B&W 6S50MC-C Mk VII - 2 stroke single acting 6 cylinder 500 x 2.000 mm diesel engine - 8.580 kW / 11.658 hp at 127 rpm with one ABB Turbo Systems Ltd. turbo-charger, type VTR 564D32

Built: 1999

Builder: Bryansk Engineering Works (Russia)

Propelling system

1x Screw propeller controllable pitch

4 blades

Builder: Ulstein Propeller AS

Boilers

3x CHO Aalborg 102,00 m² - 8,0 bar
1x CHR Aalborg 308,00 m² - 8,0 bar

Generators

3x Main diesel generatorsets each1.065 kVA - 8.52 kW - 1.223 hp

Emergency generators

1x Diesel generatorset 269 kVA - 215 kW - 272 hp

Number of cargo tanks

10

Cargo tank cap. at 98%

22.232,9 m³

Cargo pumps

4x Vertical electrically driven screw self priming cargo pumps, type L4NG-240/160 ASMK1-G, 600 m³/h capacity, 10,0 bar at 1.493 rpm, each driven by an AEG electric motor type AM400X8/4 IEC 400X IMV1 - 190/385 kW, 380 Volt at 1.493 rpm

Builder: Leistritz AG, Nurnberg, Germany

1x Electrically driven screw stripping pump, type IPR-100/110LX-03, 24 m³/h capacity, 40 m head, 4,0 bar, 1.445 rpm.

Builder: ITUR Bomba, Spain

Ballast pumps

3x Electrically driven centrifugal ballast pumps, one is of type CGD(B) 80 V48 BAN + PBM (used for the Fore Peak only), 100 m³/h, and two of types CGD(B) 250 T BAN, each 600 m³/h, 30 m head, 1.475 rpm (for remainder ballast tanks), and all driven by ABB Motors electric motors.

Builder: Kvaerner/Hamworthy KSE

2x Water driven ballast educators, with a capacity of 63 m³/h and 100 m³/h

Tank capacities

Fuel oil: 1.138 m³

Diesel oil: 133 m³

Ballast tank cap. 100%: 600,4 m³

Crew

20

Manager

Admibros Shipmanagement
Nicosia
Cyprus

Operator

Ocean Tankers
Blue Anchor House
4R Parou Street
1082 Nikosia
Cyprus

Owner

Berengaria Maritime Co. Ltd.
