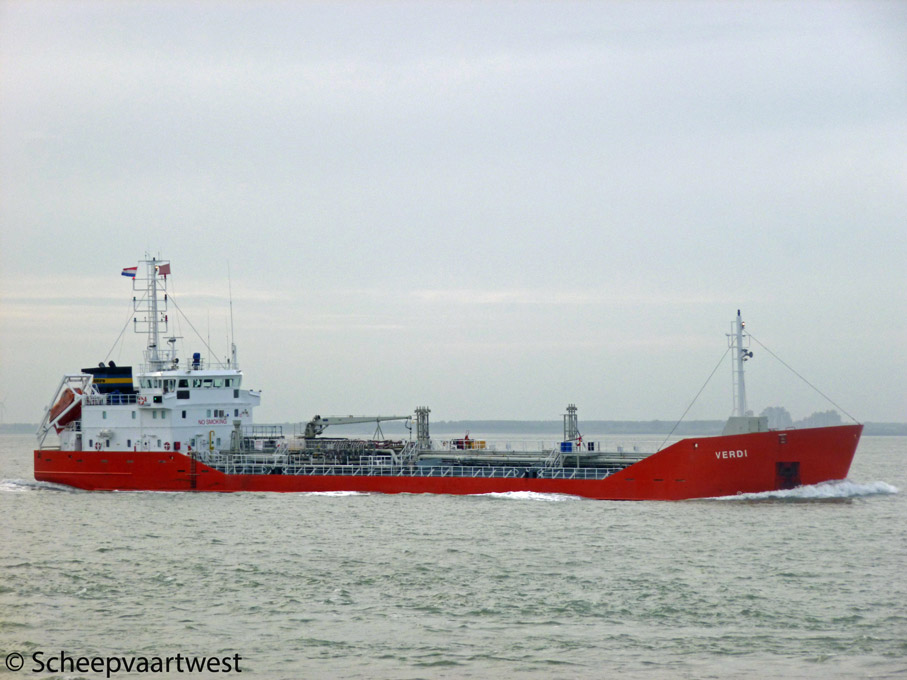

Verdi 01
Westerschelde 21 October 2013

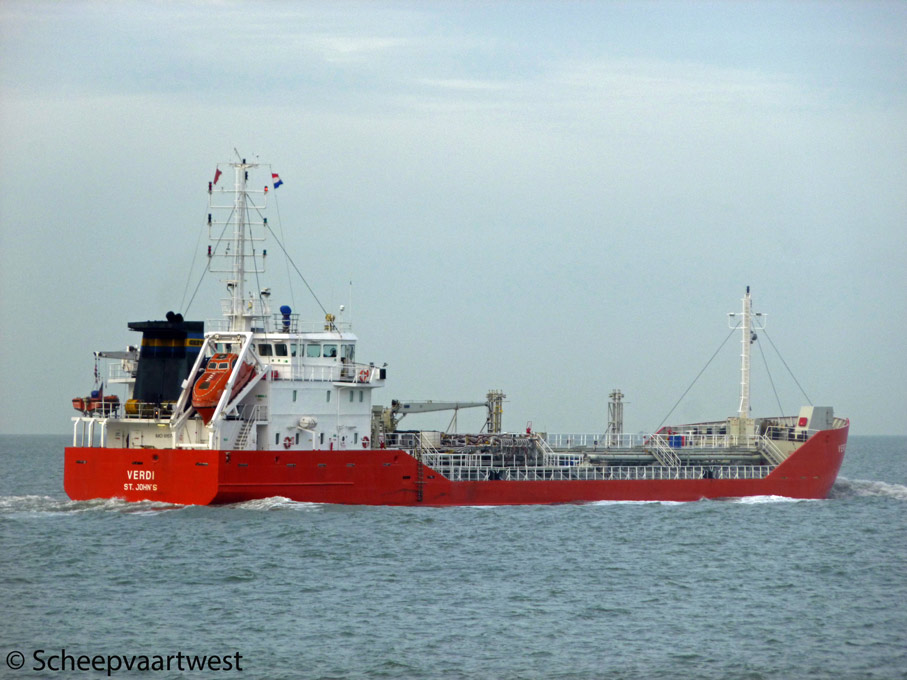

Verdi 03   Verdi 04   Verdi 05

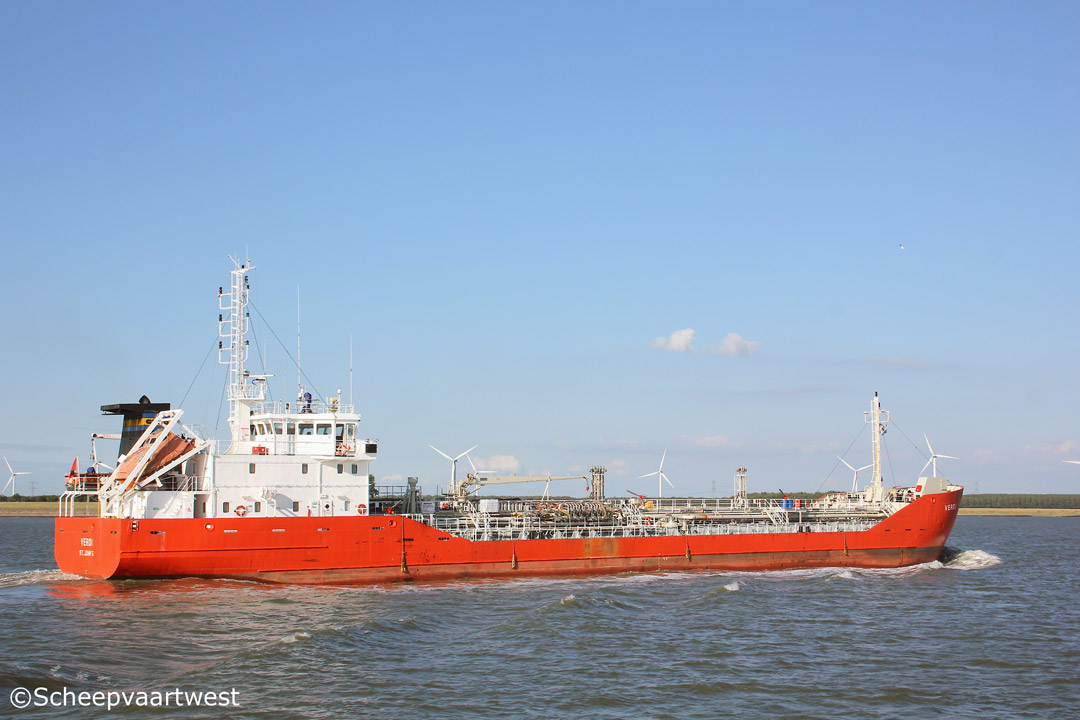

Westerschelde 21/10/13 Westerschelde 19/07/15 Antwerpen 19/07/15


Name

VERDI

Type

Oil & chemical tanker

IMO-number

9157002

Call sign

LXVN

Flag

G.D. Luxembourg

Port of registry

Luxembourg City

Previous flags

1999 - 2016 Antigua & Barbuda, St. John's - Call sing: V2AP4

GT

2.195 t

DWT

Summer: 3.045 t

NT

832 t

Length

93,99 m overall

89,54 m registered

Breadth

12,50 m registered

Draught

4,65 m

Forecastle

10,34 m

Poop

18,60 m

Freeboard

1.722 mm

Depth

6,35 m moulded

Speed

13,0 knots

Built

1999

Keel laid

21.05.1998

Launch date

10.12.1998

Date of completion

11.06.1999

Builder casco

Ceske Lodenice A.S.
Valtirov
Czech Republic

Builder completion

Scheepswerf K. Damen B.V.
Hardinxveld-Giessendam

The Netherlands

Yard number

712

Hull material

Shipbuilding steel (higher tensile)

Hull type

Double hull

Double bottom

Watertight bulkheads

9

Continuous decks

1

Main engine

1x MAN B&W Alpha 8 L 28/32 A - 4 stroke 8 cylinder 280 x 320 mm diesel engine - 1.980 kW / 2.692 hp at 775 rpm

Year of Manufacture: 1999

Manufacturer: MAN B&W Diesel A/S Frederikshavn
Niels Juels Vej 15
9900 Frederikshavn
Kingdom of Denmark

Propellers

1x Controllable pitch propeller - aft at 304 rpm

Boilers

1x Thermal oil heater, oil fired - 10,0 bar

Heating Surface: 64,7 m²

Year of Manufacture: 1998

Manufacturer: Wiesloch Marine & Industries B.V.
Ohmweg 8
3208 KE Spijkenisse

The Netherlands

1x Thermal oil heater, exhaust gas heated - 10,0 bar

Heating Surface: 30,0 m²

Year of Manufacture: 2006

Manufacturer: TUBE-TEC Rohrverformungstechnik GmbH
Hirtscheider Str. 13-15
57647 Nistertal
Federal Republic of Germany

Electric installations

2x Plants each 440/220 V - 269 kVA

1x Plant 440/220 V - 450 kVA

1x Plant 440 V - 156 kVA

Generators

1x Main diesel generatorset 450 kVA

2x Main diesel generatorsets each 269 kVA

Emergency generator

1x Diesel generatorset 156 kVA

Compressed air receivers

2x Receivers each 250 litres - 30,0 bar

1x Receiver 500 litres - 11,0 bar

Bow thruster

1x Transverse thruster JASTRAM - 270 kW, forward

Number of cargo tanks

12

Cargo liquid capacity

3.226 m³

Tank capacities

Fuel: 196 m³

Ballast water: 1.603 m³

Anchor equipment

3x Anchors weight each 1.740 kg

Chain length: 440,00 m

Crew

10

Manager

GEFO Gesellschaft für Öltransporte mbH
Kurze Mühren 2
20095 Hamburg
Federal Republic of Germany

Operator

Gefo Gesellschaft fur Oeltransporte mbH, Duisburg - Germany

Owner

Hansa Befrachtungsgesellschaft mbH

Registered owner

Hansa-Befrachtungs-GmbH
Kurze Mühren 2
20095 Hamburg
Federal Republic of Germany

Latest data adjustment

13 March 2017
