| Westerschelde 15 February 2020 |
 |
 |
 |
 |
 |
 |
|||||
| Westerschelde 05/02/20 | Westerschelde 24/11/13 | Westerschelde 24/11/13 | Westerschelde 30/12/19 | Westerschelde 17/05/18 | Westerschelde 10/01/16 | |||||
|
Name |

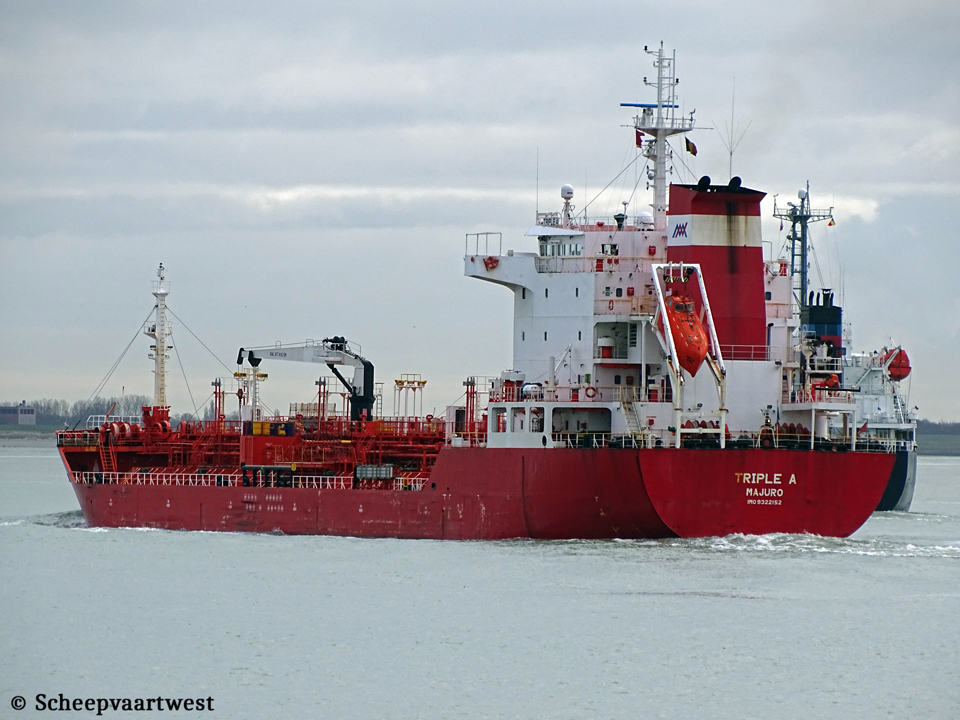

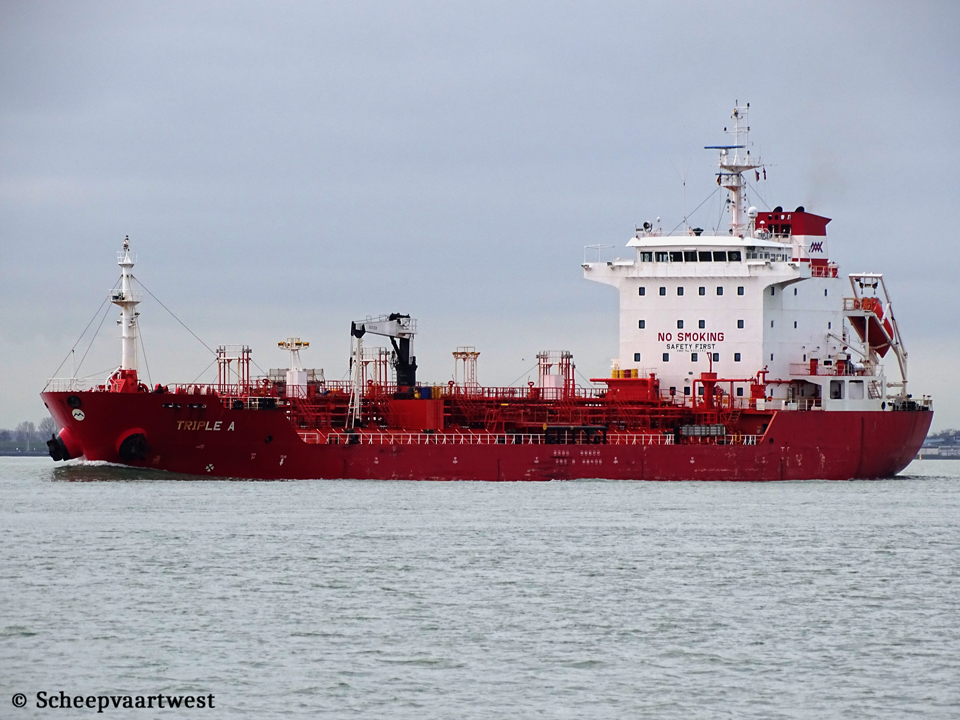

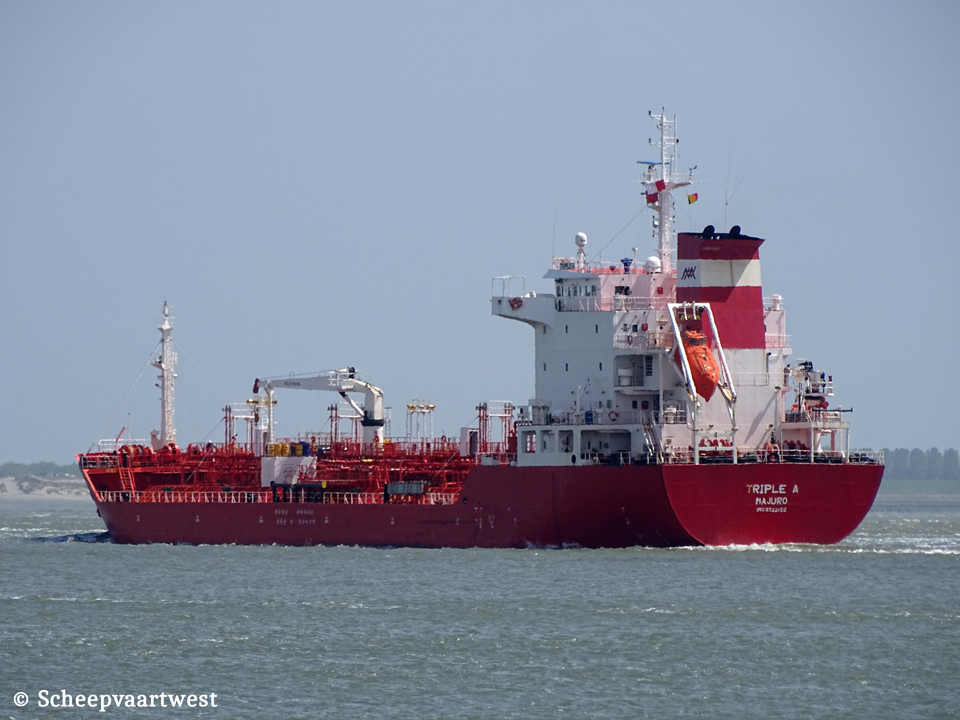

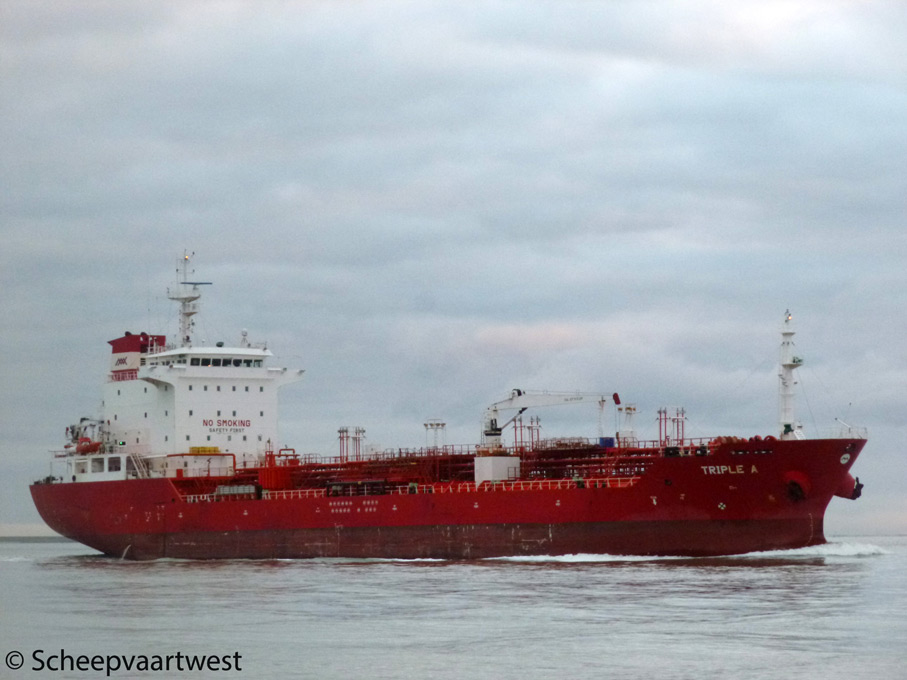

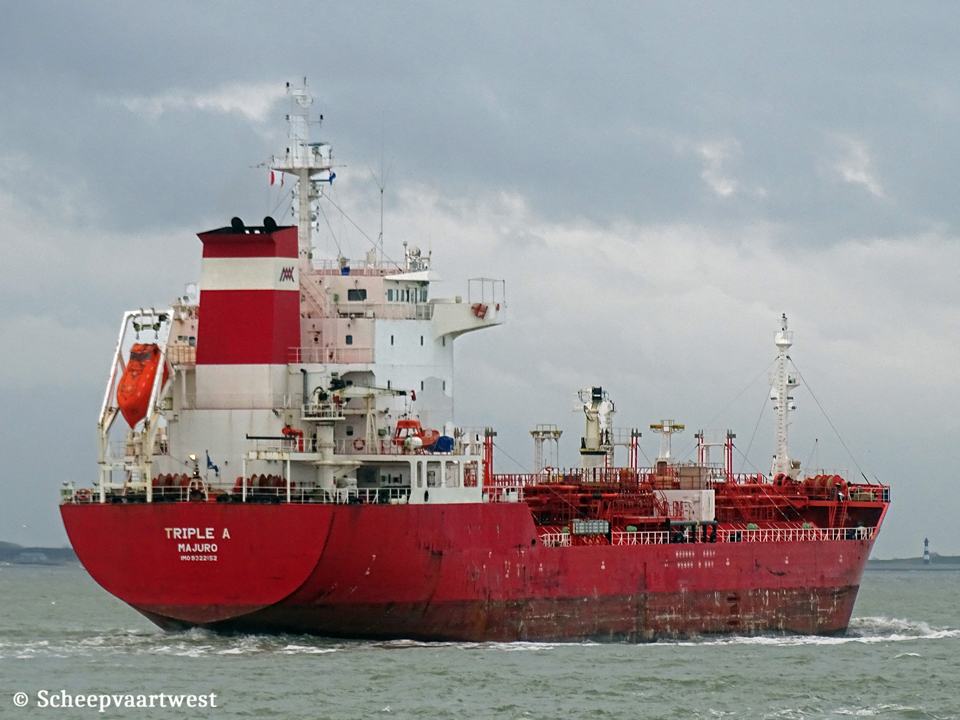

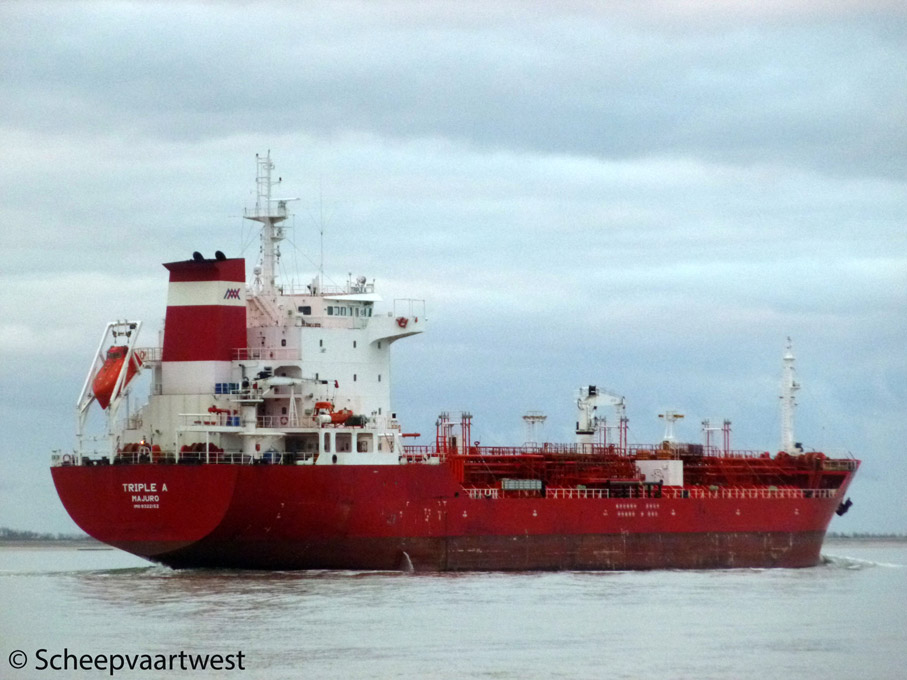

TRIPLE A |
|
Type |
Oil tanker / Chemical tanker |
|
IMO-number |
9322152 |
|
Call sign |
V7JL6 |
|
Flag |
Marshall Islands |
|
Port of registry |
Majuro |
|
GT |
8.539 t registered Suez: 8.986,25 t |
|
DWT |
Summer: 13.039,82 t |
|
NT |
4.117 t registered Panama: 7.254 t Suez: 7.200,81 t |
|
Length |
128,60 m overall 120,40 m between perpendiculars |
|
Breadth |
20,40 m moulded |
|
Draught |
8,71 m |
|
Keel to mast end |
40,83 m |
|
Freeboard |
2.812 mm |
|
Depth |
11,50 m moulded |
|
Speed |
13,5 knots |
|
Built |
2006 |
|
Keel laid |
21/09/2005 |
|
Launch date |
14/01/2006 |
|
Date of completion |
25/04/2006 |
|
Builder |
21st Century Shipbuilding Co., Ltd. #14-1, Bongpyung-Dong, Tongyoung-Si Gyungnam 650-140 South Korea |
|
Yard number |
CSN-211 |
|
Hull material |
Ordinary strength steel |
|
Hull type |
Double hull |
|
Bulkheads |
Water tight: 11 Oil tight: 8 |
|
Main engine |
1x MAN-B&W/STX 6S35MC-MK7 - 2 stroke 6 cylinder 350 x 1.400 mm combustion engine 4.440 kW / 6.038 hp at 173,0 rpm Manufacturer: STX Engine Co.,Ltd. |
|
Propellers |
1x Fixed pitch propeller Manufacturer: Wuhan Heavy Ltd. Casting and Forging Co.,Ltd. |
|
Boilers |
1x Exhaust gas boiler AV6N - 12,0 bar 1x Auxiliary boiler MISSION OL - 9,0 bar Manufacturer: PT. Aaborg Industries |
|
Generators |
3x Diesel engine coupled with Taiyo FE547A-10 generator each 480 kW Manufacturer: Taiyo Electric Co.,Ltd. |
|
Bow thruster |
1x 382 kW |
|
Number of cargo tanks |
12 + 2 slop tanks |
|
Cargo oil capacity 100% |
13.961,65 m³ / 13.682,41 t |
|
Number of pumps |
12x Cargo pumps each 300 m³/h |
|
Number of tanks |
Ballast: 15 Fuel oil: 10 Lubricating oil: 9 Fresh water: 6 Diesel oil: 4 Waste water: 3 Chain: 2 Hydraulic oil: 1 Slop: 1 Sludge: 1 |
|
Tank capacities 100% |
Diesel Oil: 76,829 m³ Freshwater: 428,94 m³ Fuel Oil: 692,19 Hydraulic Oil: 5,78 m³ Lube Oil: 88,41 m³ Tank Ballast: 5.278,25 m³ |
|
Lifting equipment |
1x Hose handling crane ARHC-1015 - SWL 10,0 t 1x Stern hose and rescue boat handling crane ARPV/RVD-2190 - SWL 2,1 t Manufacture: A-RIM Machinery & Engineering Co.,Ltd. |
|
Commercial manager |
NGM - Nicholas G. Moundreas Shipping S.A. 47-49 Bouboulinas Street Piraeus Greece |
|
ISM manager |
V Ships Limited Limassol Cyprus |
|
Registered owner |
Walworth Holding S.A - Republic of Panama Care of NGM Energy SA , 2nd Floor 47-49, Boumpoulinas Street 185 35 Piraeus Greece |
|
Renamed |
09/2022 Kaponte Marshall Islands, Majuro - call sign: V7JL6 Reg. owner: Kaponte Shipping, S.A. Operator: V.Ships Limited |
|
Last data update |
11 February 2023 |
