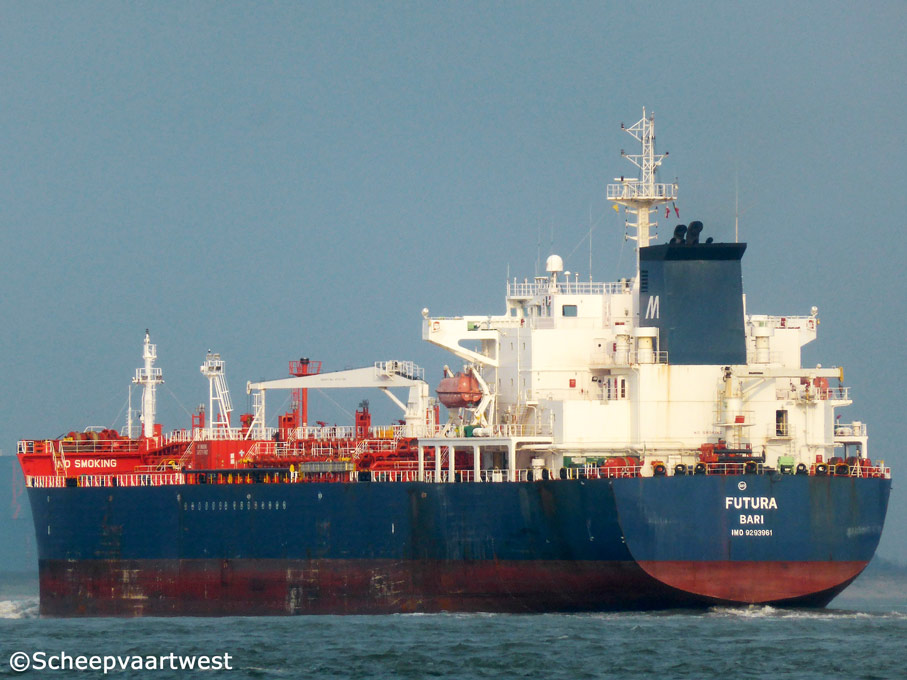

Futura 01

Westerschelde 28 July 2014



Name

FUTURA

Type

Oil / Chemical tanker

IMO-number

9293961

Call sign

IBMC

Flag

Bari

Port of registry

Italy

GT

25.373 t registered

Suez: 26.761,43 t

DWT

Summer: 40.085 t

Winter: 38.895,24t

NT

9.959 t registered

Panama: 21.109 t

Suez: 22.822,89 t

Length

175,96 m overall

Breadth

31,03 m

Draught

10,88 m

Freeboard

6.130 mm

Depth

17,20 m moulded

Speed

15,0 knots

Built

2006

Keel laid

16.11.2005

Launch date

19.01.2006

Date of completion

28.03.2006

Builder

Shinasb Yard Co., Ltd.
Tongyoung
South Korea

Yard number

SAS440

Hull material

High strength steel

Ordinary strength steel

Hull type

Double hull

Bulkheads

Water tight: 1

Oil tight: 11

Main engine

1x Doosan MAN B&W 6S50MC - 6 cylinder 500 x 1.910 mm diesel engine - 8.561 kw at 127,0 rpm

Manufacturer: Doosan Engine Co., Ltd.

Propellers

1

Manufacturer: Silla Metal Co., Ltd.

Boilers

Exhaust Gas Economizer AV-6N - 9,0 bar

Auxiliary Watertube boiler Mission OL 18T/H - 9,0 bar

Manufacturer Aalborg Industries Ltd.

Generators

1x Main diesel generatorset 990 kW

2x Main diesel generatorset each 740 kW

Manufacturer: Taiyo Electric Co. Ltd.

Bow thruster

Yes

Number of cargo tanks

12

Number of slop tanks

2

Number od recovery Tanks

1

Cargo tank capacity 98%

42.885,30 m³ m³

Slop capacity 98%

1.491,86 m³

Recovery tank at 98%

413,49 m³

Total capacity at 98%

44.790,65 m³

Number of pumps

12x Pumps each 500 m³/h

2x Pumps each 200 m³/h

1x Pump 70 m³/h

Segregations

7

Number of tanks

Ballast: 14

Lubricating oil: 7

Fuel oil: 7

Fresh water: 4

Diesel oil: 4

Waste water: 2

Chain: 2

Sludge: 2

Slop: 1

Hydraulic oil: 1

Tank capacity

Diesel Oil: 201,24 m³ / 171,60 t

Fresh water: 288,67 m³

Fuel Oil: 1.693,06 m³ / 1.658,66 t

Hydraulic Oil: 19,66 m³ / 17,70 t

Lube Oil: 87,32 m³ / 78,58 t

Tank Ballast: 20.651,38 m³ / 21.167,66 t

Lifting equipment

1x Crane - SWL 10,0 t amidships

1x Crane - SWL 3,0 t poop deck

Manager

Morfini SPA

Via de Rossi, 225
Bari
Italy

Operator

Morfini SPA

c/o Millenia Maritime Inc.

53, Vouliagmenis Avenue

Glyfada

Greece

Registered owner

Morfini SPA

Latest data adjustment

22 August 2014
