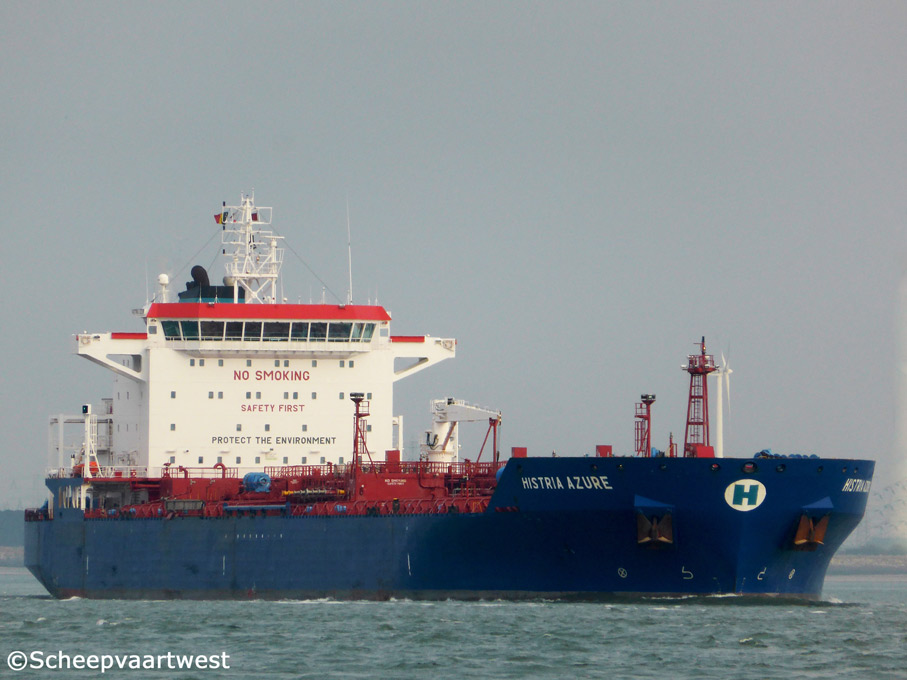

Histria Azure - IMO 9357561

Westerschelde 04 October 2014

Name

HISTRIA AZURE

Type

Oil / Chemical tanker

IMO-number

9357561

Call sign

V7MG7

Flag

Marshall Islands

Port of registry

Majuro

GT

25.804 t

DWT

Summer: 40.439 t

NT

11.369 t

Length

179,83 m overall

173,65 m registered

172,00 m between perpendiculars

Breadth

32,20 m registered

Draught

10,50 m

Forecastle

11,84 m

Freeboard

Summer: 6.000 mm

Depth

16,50 m moulded

Speed

Service: 15,0 knots

Built

2007

Keel laid

08.03.2006

Launch date

14.03.2007

Date of completion

27.04.2007

Builder

Santierul Naval Constanta S.A.
Incinta Port 1
900900 Constanta, Constanta
Romania

Yard number

573

Hull material

Shipbuilding steel (standard)

Higher tensile steel

Hull type

Double hull

Double bottom

Watertight bulkheads

10

Continuous decks

1

Main engine

1x MAN B&W 6S50MC-C - 2 stroke 6 cylinder 500 x 2.2000 mm diesel engine - 9.480 kW / 17.713 bhp at 127,0 rpm

Year of manufacture: 2006

Manufacturer: STX Engine Co., Ltd.
36, Gongdanro474-gil Sungsan-gu
Changwon, Kyongsang-namdo
Republic of Korea

Propellers

1x Solid propeller - aft at 127,0 rpm

Boilers

1x Steam boiler, oil fired / exhaust gas heated - 10,0 bar

Heating Surface: 230,0 m²

Year of manufacture: 2006

Manufacturer: TPK Nova d.o.o.
Slavonska avenija 20
10000 Zagreb
Croatia

1x Steam boiler, oil fired - 12,0 bar

Heating Surface: 174,0 m²

Year of manufacture: 2006

Manufacturer: TPK - Kotlogradnja d.d.
Zitnjak B.B.
10000 Zagreb
Croatia

Electric installations

3x Plants each 440 V - 1.219 kVA

1x Plant 440 V - 250 kVA

Generators

3x Main diesel generatorsets each 1.219 kVA

Emergency generator

1x Diesel generatorset 250 kVA

Compressed air receivers

2x Receivers each 5.000 litres - 30,0 bar

1x Receiver 500 litres - 30,0 bar

1x Receiver 2.000 litres - 10,0 bar

Bow thruster

1x Transverse thruster 850 kW, forward

Number of tanks

10

Cargo Capacity at 98 %

47.803 m³

Slop tanks

2

Pumps

10x Centrifugal Framo capacity 500 m³/h

2x Framo Centrifugal pump 200 m³/h

1x Framo Centrifugal Pump 150 m³/h

1x Framo Centrifugal pump 80 m³/h

1x Framo reciprocating pumps (stripping) 30 m³/h

2x Centrifugal Framo Ballast pumps capacity 800 m³/h

Anchor equipment

3x Anchors weight each 8.700 kg

Chain length: 632,50 m

Lifting equipment

1x Crane - SWL 10,0 t

Crew size

31

Manager

Histria Shipmanagement S.R.L.
Strada Oborului 24
900162 Constanta, Constanta
Romania

Operator

Scorpio Handymax Tanker Pool (Monaco)

Registered owner

Kenward Marine Ltd.
Trust Company Complex Ajeltake Road Ajeltake Island
96960 Majuro
Republic of the Marshall Islands

Latest data adjustment

20 November 2014
