Antwerpen 30 July 2014 |
 |
| Antwerpen 30/06/14 |
|

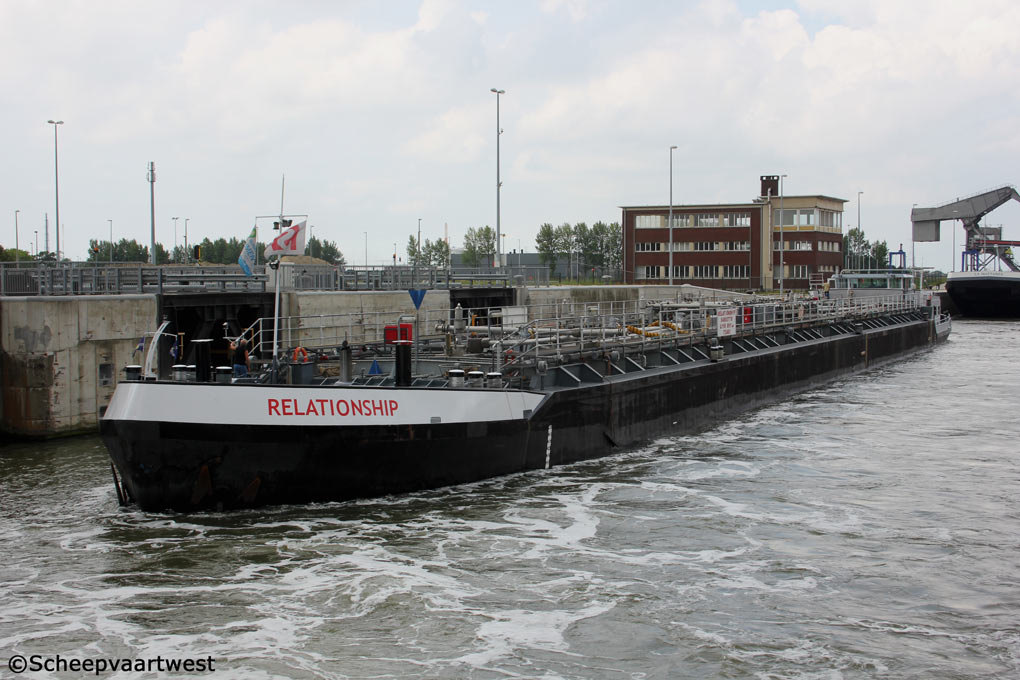

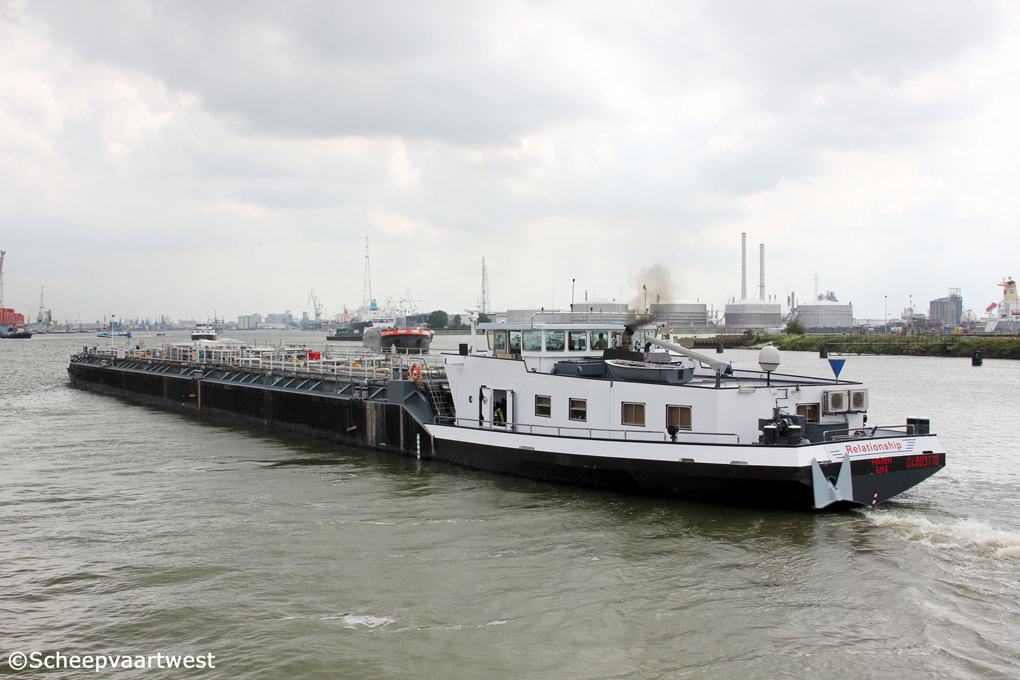

Name |
RELATIONSHIP |
|
Previous names |
1984 Santa Ponsa - EU-number: 6002037 2005 Tanja Deymann 2008 Relationship |
|
Type |
Inland tanker |
|
ENI-number |
04803770 |
|
Call sign |
DB2696 |
|
Flag |
Germany |
|
Port of registry |
Haren/Ems |
|
GT |
1.832 t |
|
DWT |
2.375,3 t |
|
Length |
109,23 m overall 106,50 m between perpendiculars |
|
Breadth |
11,40 m |
|
Draught |
3,22 m |
|
Freeboard |
688 mm |
|
Depth |
5,03 m |
|
Built |
1984 Transformation year: 1994 - Equipped with a new midship |
|
Date of completion |
10.1984 |
|
Builder |
Vahali |
|
Yard number |
469 |
|
Hull material |
Steel |
|
Hull type |
Double hull |
|
Watertight compartments |
16 |
|
Continuous decks |
1 |
|
Main engine |
1x MTU 12V 4000 - 4 stroke 12 cylinder 165 x 190 mm diesel engine 1.326 kW / 1.802 hp at 1.800 rpm Built: 2004 |
|
Propellers |
1x Screw propeller solid - aft at 380 rpm |
|
Boilers |
2x CHO Clayton |
|
Generators |
1x Diesel generatorset 159 hp |
|
Number of cargo tanks |
8 |
|
Cargo handling |
8x Cargo pumps 800 m³/h |
|
Owner |
2008 Erste Relationship Gesellschaft |
|
Previous names & owners |
1984 Santa Ponsa - Intermas Rederij NV, Gent - Belgium 2005 Tanja Deymann - Deymann, Haren-Ems - Germany 2008 Relationship - Erste Relationship Gesellschaft, Haren-Ems - Germany |
|
Registered owner |
Erste Relationship Schifffahrts GmbH & Co. KG TMS Relationship |
|
Latest data adjustment |
04 March 2015 |
