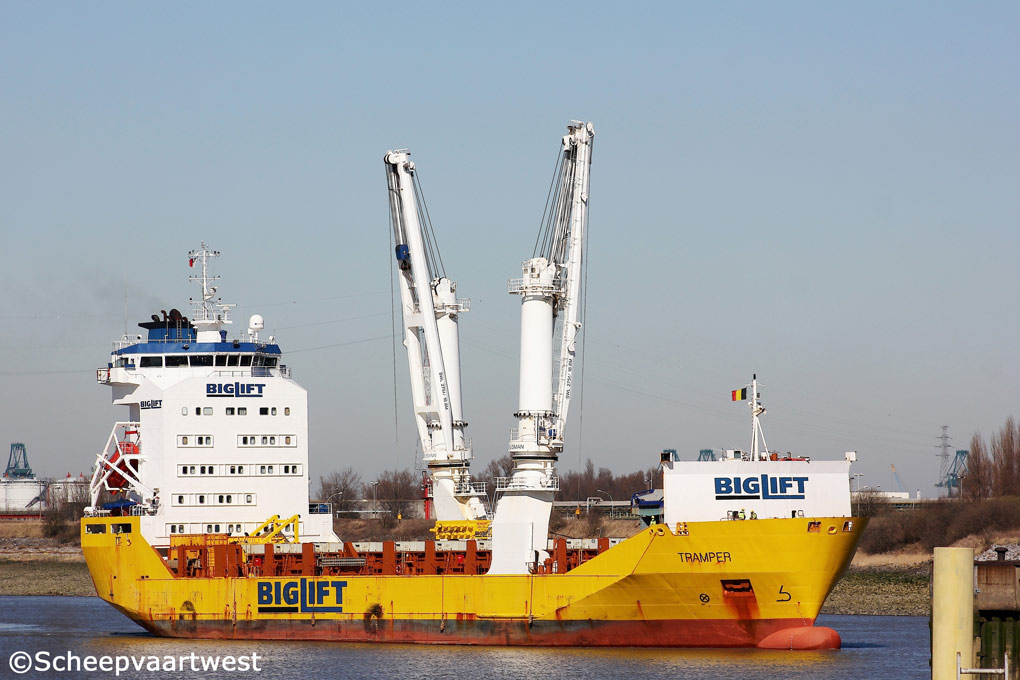

Tramper 02

Antwerpen 12 March 2015



Name

TRAMPER

Type

General cargo ship - strengthened for heavy cargoes - Container ship

IMO-number

9204697

Call sign

PHAA

Flag

The Netherlands

Port of registry

Amsterdam

Previous flags

05.1999 - 07.2004 Netherlands Antilles, Willemstad - Call sign: PJCI

GT

6.714 t

DWT

Summer: 8.734 t

NT

2.893 t

Number of 20ft containers

621

Reefer capacity

24

Length

100,42 m overall

94,82 m between perpendiculars

Breadth

20,40 m

Draught

Summer: 8,20 m

Freeboard

2.911 mm

Depth

11,10 m

Speed

16,5 knots

Built

1999

Date of completion

05.1999

Builder

Hudong Zhonghua Shipbuilding Group
Shanghai
China

Yard number

405

Hull material

Steel

Continuous decks

2

Main engine

1x Wärtsilä 8L46B - 4 stroke single acting 8 cylinder 460 x 580 mm diesel engine - 7.800 kW / 10.598 hp

Builder: Wärtsilä Finland OY, Turku - Finland

Propellers

1x Screw propeller controllable pitch - aft at 146 rpm

Boilers

1x CHO GEKA 45,50 m² - 10,0 bar
1x CHR AKHT 197,00 m² - 10,0 bar

Electric installations

Power voltage: 450 V

Lighting voltage: 220 V

Frequency: 60 Hz

Shaft generator

1x 1.340 kVA - 1.072 kW

Generators

3x Main diesel generatorsets each 685 kVA - 548 kW - 815 hp

Emergency generator

1x Diesel generatorset 135 kVA - 108 kW - 152 hp

Bow thruster

1x 500 kW

Number of holds

1

Heights in hold

Total: 11,75 m tween deck not installed

Hold capacity

Grain: 10.530 m³ tween deck not installed

Bale: 9.720 m³ tween deck not installed

Hatch openings

Weather deck: 64,40 x 15,30 m

Tween deck: 64,40 x 15,30 m

Floor space

Weather deck: 1.330 m²

Tween deck: 974 m²

Tank top: 850 m²

Allowable loads

Weather deck hatch covers: 3,0 t/m²

Tween deck hatch covers: 3,0 t/m²

tank top: 15,0 t/m²

Cargo gear

2x Huisman cranes - SWL 275 t

Combinable: 500 t

Crew

14

Manager



2012 BigLift
Radarweg 36
1042 AA Amsterdam
The Netherlands

Previous managers

05.1999 Graig Ship Management Ltd.

07.2004 Big Lift Shipping B.V., Amsterdam - The Netherlands

Owner

2012 Rederij Tramper
Amsterdam
The Netherlands

Previous owners

05.1999 West African Shipping Co.

07.2004 Tramper B.V., Amsterdam - The Netherlands

Latest data adjustment

15 April 2015
