Westerschelde 29 July 2015 |
|
Name |

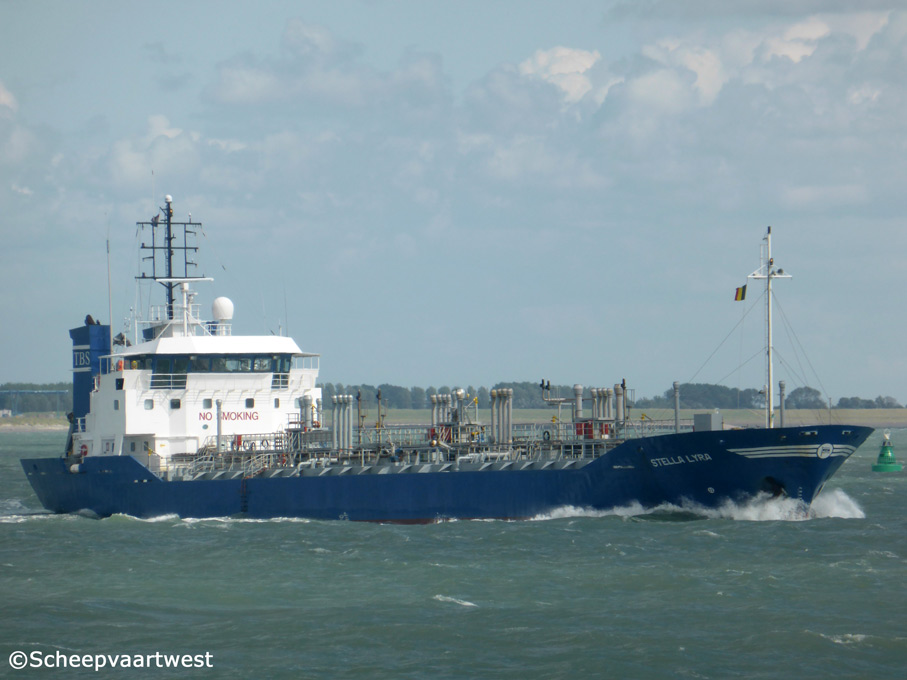

STELLA LYRA |
|
Type |
Bitumen, oil & chemical tanker |
|
IMO-number |
8801084 |
|
Call sign |
PHUJ |
|
Flag |
The Netherlands |
|
Port of registry |
Rotterdam |
|
GT |
2.874 t |
|
DWT |
Summer: 3.848 t |
|
NT |
884 t |
|
Length |
95,75 m overall 90,73 m between perpendiculars |
|
Breadth |
14,50 m |
|
Draught |
Max.: 5,71 m |
|
Freeboard |
2.598 mm |
|
Depth |
8,30 m moulded |
|
Speed |
12,0 knots Service: 10,5 knots |
|
Built |
1989 |
|
Launch date |
04/11/1988 |
|
Delivery |
04/04/1989 |
|
Builder |
Tille Scheepsbouw B.V. The Netherlands |
|
Yard number |
266 |
|
Hull material |
Steel |
|
Hull type |
Double hull |
|
Watertight compartments |
7 |
|
Continuous decks |
1 |
|
Main engine |
1x Wärtsilä 4R32D - 4 stroke single acting 4 cylinder 320 x 250 mm combudtion engine 1.480 kW / 2.038 hp at 750 rpm Built: 1988 Builder: Wärtsilä Diesel Oy, Vaasa/Vasa - Finland |
|
Propellers |
1x Screw propeller solid - aft at 170 rpm |
|
Boilers |
1x CHM thermal oil boiler Konus Kessel 31,00 m² - 10,0 bar |
|
Electric installations |
Power voltage: 380 V Lighting voltage: 220 V |
|
Generators |
4x Volvo Penta TMD 102 A - diesel generatorsets each 162 kVA - 130 kW - 177 hp at 1.800 rpm |
|
Bow thruster |
1x Jastram 20 F - 145 kW, forward |
|
Number of tanks |
12 6x 2 wing tanks |
|
Hold capacity 98% |
Hold 1: 340 m³ Hold 2: 338 m³ Hold 3: 318 m³ Hold 4: 319 m³ Hold 5: 319 m³ Hold 6: 317 m³ Hold 7: 322 m³ Hold 8: 319 m³ Hold 9: 144 m³ Hold 10: 144 m³ Hold 11 : 425 m³ Hold 12: 422 m³ Total: 3.727 m³ |
|
Cargo handling |
3x Houttuin pumps each 270 m³/h |
|
Manifolds |
Bow to centre manifold: 42,50 m |
|
Tank capacities |
Fuel oil: 151 m³ |
|
Manager |
Tarbit Tankers B.V. The Netherlands |
|
Previous managers |
04/1989 - 1999 Shipping Co. Stella Lyra B.V., Rotterdam - The Netherlands 1999 - 03/2007 Rederij Theodora B.V., Rotterdam - The Netherlands |
|
Registered owner |
Carnisse B.V. |
|
Previous owners |
04/4989 - 1999 Shipping Co. Stella Lyra B.V., Rotterdam - The Netherlands |
|
Renamed |
04/09/2018 George Comoros - Call sign: DGA2273 Manager: Durango Holding Ltd., Majuro - Marshall Islands |
|
Latest data adjustment |
07 November 2018 |
