Fjordstraum - IMO 9114763

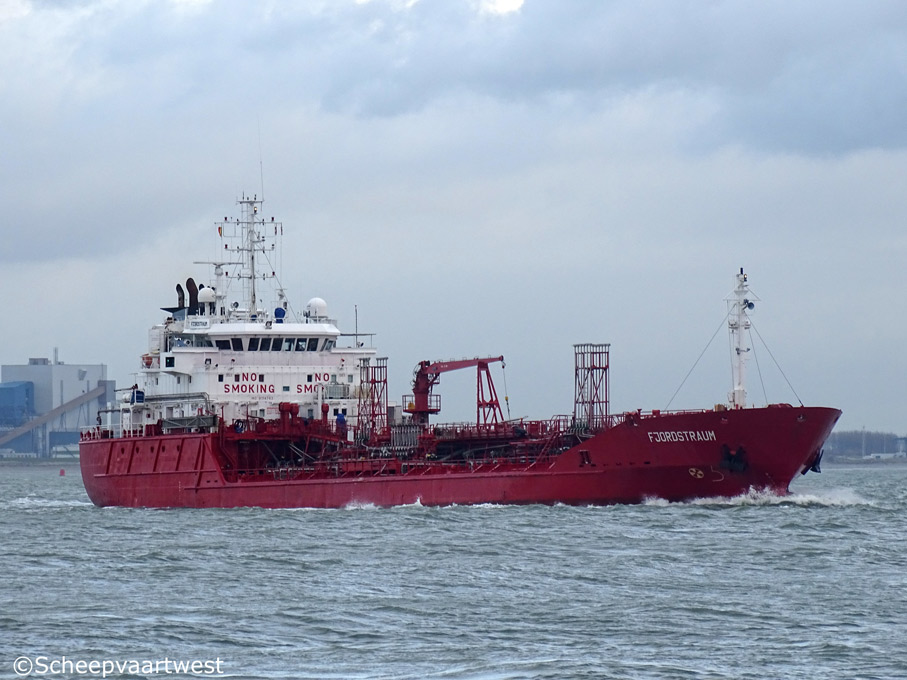

Westerschelde 27 May 2018

Name

FJORDSTRAUM

Previous names

1996 - 04.2005 Multitank Bahia

04.2005 - 09.2008 Bow Bahia

Type

Chemical tanker

IMO-number

9114763

Call sign

9HST9

Flag

Malta

Port of registry

Valletta

Previous flags

1996 - 1996 Germany

1996 - 1997 Liberia

1997 - 1997 Germany

1997 - 2008 Liberia

GT

3.726 t

Suez: 4.081 t

DWT

Summer: 5.846 t

NT

1.668 t

Length

99,98 m overall

94,90 m between perpendiculars

Breadth

16,75 m extreme

16,50 m moulded

Draught

6,79 m

Keel to masthead

35,60 m

Forecastle

7,80 m

Poop

24,05 m

Freeboard

Summer: 1.525 mm

Depth

8,30 m moulded

Speed

15,0 knots

Built

1996

Keel laid

27.10.1995

Launch date

06.04.1996

Date of completion

31.10.1996

Builder

ENVC - Estaleiros Navais de Viana do Castelo, S.A.
Avenida Praia do Norte
4901-851 Viana do Castelo
Portugal

Yard number

185

Hull material

Shipbuilding steel (standard)

Hull type

Double bottom

Watertight bulkheads

11

Continuous decks

1

Main engine

1x MAN 7S35 MC - 2 stroke 7 cylinder 350 x 1.400 mm diesel engine 4.165 kW at 145 rpm

Year of manufacture: 1995

Manufacturer: MAN B&W Diesel A/S Frederikshavn
Niels Juels Vej 15
9900 Frederikshavn
Denmark

Propellers

1x Controllable pitch propeller - aft

Boilers

1x Thermal oil heater, exhaust gas heated - 10,0 bar

Heating surface: 82,0 m²

2x Thermal oil heater, oil fired - 10,0 bar

Heating surface: 61,6 m²

Year of manufacture: 1995

Manufacturer: Keu Energie- und Umwelt- Technik GmbH Niederlassung Wiesloch
Baiertaler Str. 92-98
69168 Wiesloch
Federal Republic of Germany

Electric installations

2x Plant 380/220 V - 790 kVA

1x Plant 380 V - 688 kVA

1x Plant 380 V - 103 kVA

Shaft generator

1x 688 kVA

Generators

2x 3508 DITA main diesel generatorsets each 790 kVA

Emergency generator

1x 3304 DIT diesel generatorset 103 kVA

Compressed air receivers

1x Receiver 1.000 litres - 30,0 bar

2x Receivers each 500 litres - 30,0 bar

1x Receiver 200 litres - 30,0 bar

1x Receiver 80 litres - 30,0 bar

2x Receivers each 1.000 litres - 8,0 bar

Bow thruster

1x Fixed pitch propeller SCHOTTEL - 299,99 kW / 402,3 bhp, forward

Number of cargo tanks

20

Seg 1: 350 m³ (1 P / S)
Seg 2: 641,4 m³ (2 P / S)
Seg 3: 785,7 m³ (3 P / S)
Seg 4: 212,7 m³ (4 P / S)
Seg 5: 796 m³ (5 P / S)
Seg 6: 1.113,2 m³ (6 P / S)
Seg 7: 749,2 m³ (7 P / S)
Seg 8: 312,8 m³ (8 P / S)
Seg 9: 476,6 m³ (9 P / S + 10 P / S)

Cargo tank capacity 98%

5.950,0 m³ excluding slop tanks

Pumping systems

20x Centrifugal cargo pumps each 100 m³/h

1x Centrifugal cargo pump - 70 m³/h

2x Centrifugal ballast pumps each 200 m³/h

Manifolds

Bow to centre manifold: 50,71 m

Stern to centre manifold: 49,22 m

Distance bridge front to centre of manifold: 27,29 m

Distance between cargo manifold centres: 450 mm

Distance ships rail to manifold: 3.150 mm

Distance manifold to ships side: 3.350 mm

Distance main deck to centre of manifold: 2.120 mm

Tank capacities

Fuel oil: 363 m³

Ballast: 2.439,1 m³

Anchor equipment

3x Anchors weight each 2.640 kg

Length: 471,12 m

Diameter: 40 mm

Lifting equipment

1x Crane - SWL 3,0 t

2x Derricks - SWL 1,0 t each

Manager

Utkilen AS
Strandgaten 197
5004 Bergen
Norway

Previous managers

1996 - 2009 Fleet Management Europe Ltd.

Owner

Utkilen Shipping AS

Previous owners

1996 - 1997 Tankreederei Ahrenkiel GmbH

1997 - 2008 Partenreederei MT "MULTITANK BAHIA"

2008 - 2014 Utkilen AS

Latest data adjustment

23 February 2016
