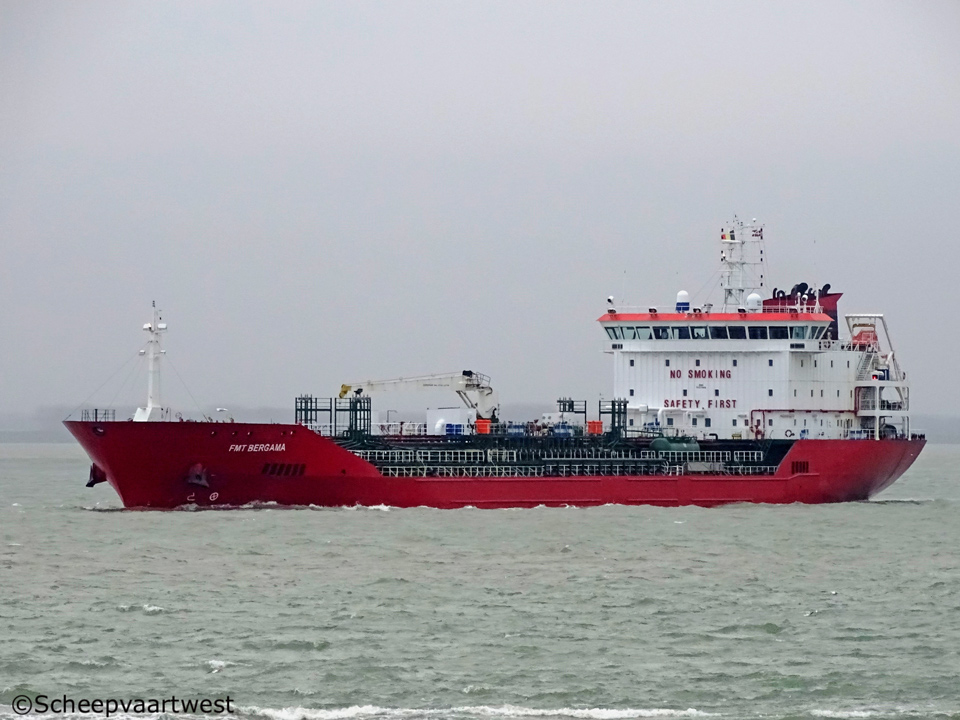

FMT Bergama 01

Westerschelde 23 December 2017

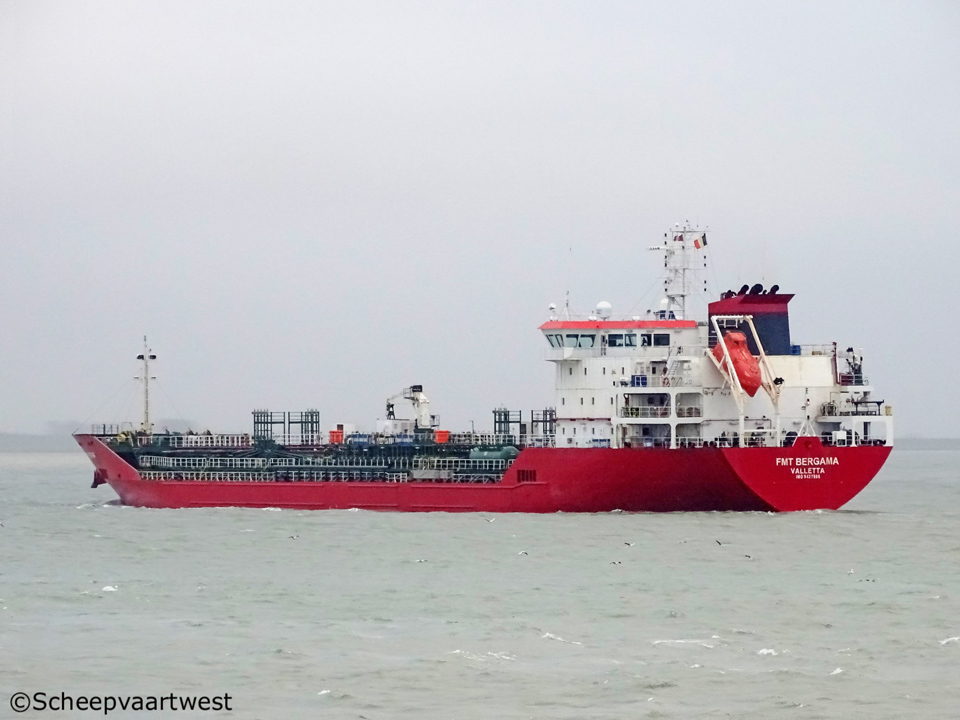

FMT Bergama 03   FMT Bergama 02
Westerschelde 23/12/17 Westerschelde 23/15/17


Name

FMT BERGAMA

Previous names

2009 Launch as: Nagidos

10/2009 - 17/2017 Borchali

Type

Oil tanker/Chemical tanker

IMO-number

9427988

Call sign

9HA2150

Flag

Malta

Port of registry

Valletta

GT

8.995 t registered

DWT

Summer: 14.368 t

NT

4.523 t registered

Lightship

4.539 t

Length

142,98 m overall

134,00 m between perpendiculars

Breadth

21,70 m moulded

Draught

8,69 m

Freeboard

2.417 mm

Depth

11,10 m moulded

Speed

14,0 knots

Built

2009

Keel laid

16/10/2007

Delivery date

22/10/2009

Builder

Celiktekne Sanayii ve Ticaret
Tuzla-Istanbul
Turkey

Yard number

71

Hull material

Ordinary strength steel

Hull type

Double hull

Watertight bulkheads

12

Main engine

1x MAN B&W 6S35MC - 2 stroke 6 cylinder 350 x 1.400 mm diesel engine 4.440 kW at 173,0 rpm

Manufacturer: MAN B&W Diesel A/S

Propellers

1x Controllable pitch propeller

Boilers

2x Auxiliary boiler- 7,0 bar

1x Exhaust gas boiler - 7,0 bar

Manufacturer: Euroboilers Garioni Naval

Shaft generator

1x Leroy Somer 850 kW

Generators

3x Leroy Somer diesel generatorsets each 715 kW

Emergency generator

1x Diesel generatorset 200 kW

Bow thruster

1x 500 kW

Number of cargo tanks

14

Cargo tank capacity 100%

15.873,09 m³

Pumps

14x cargo pumps each 330 m³/h

Number of tanks

Ballast: 15

Fuel oil: 7

Fresh water: 7

Lubricating oil: 7

Diesel oil: 3

Slop: 2

Chain: 2

Organic compound: 1

Hydraulic oil: 1

Waste water: 1

Sewage: 1

Sludge: 1

Tank capacities 100%

Diesel Oil: 138,14 m³ / 124,32 t

Freshwater: 333,85 m³

Hydraulic Oil: 4,82 m³

Lube Oil: 40,08 m³ / 36,07 t

Tank Ballast: 5.562,19 m³ / 5.701,24 t

Lifting equipment

1x Hose handling crane - SWL 10,0 t

1x Provision crane - SWL 2,0 t

Manufacturer: Gurdesan Machinery

Crew size

18

Operator

Marine Tankers Shipmanagement SIA
Stabu Iela 24
Riga, LV-1011
Latvia

Registered owner

Lycia Shipping Ltd.

Latest data adjustment

14 February 2018
