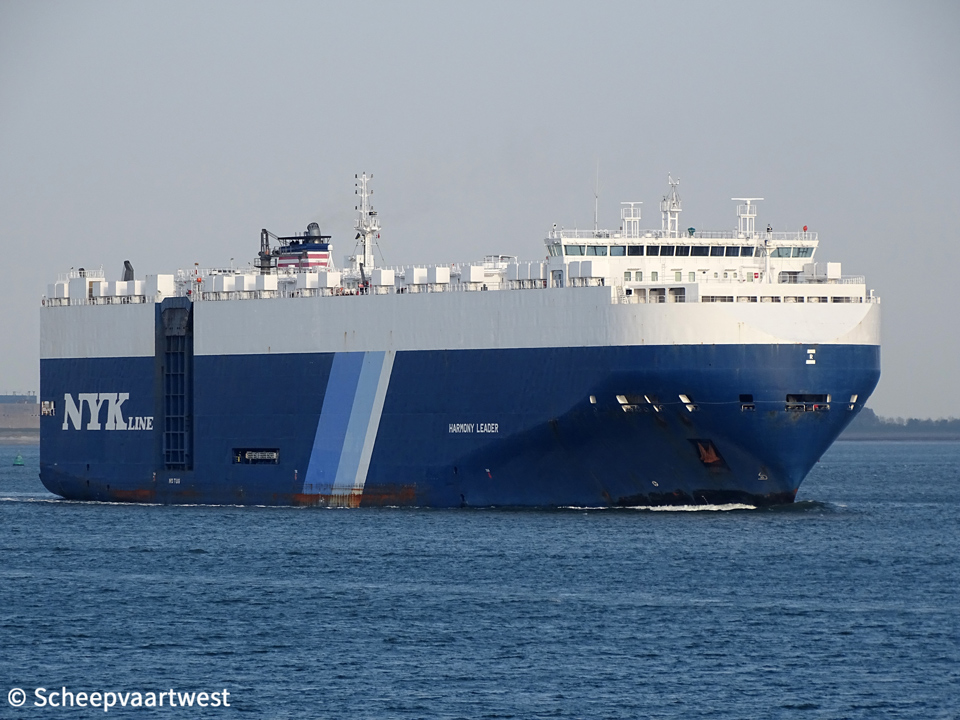

Harmony Leader 02

Westerschelde 17 April 2020

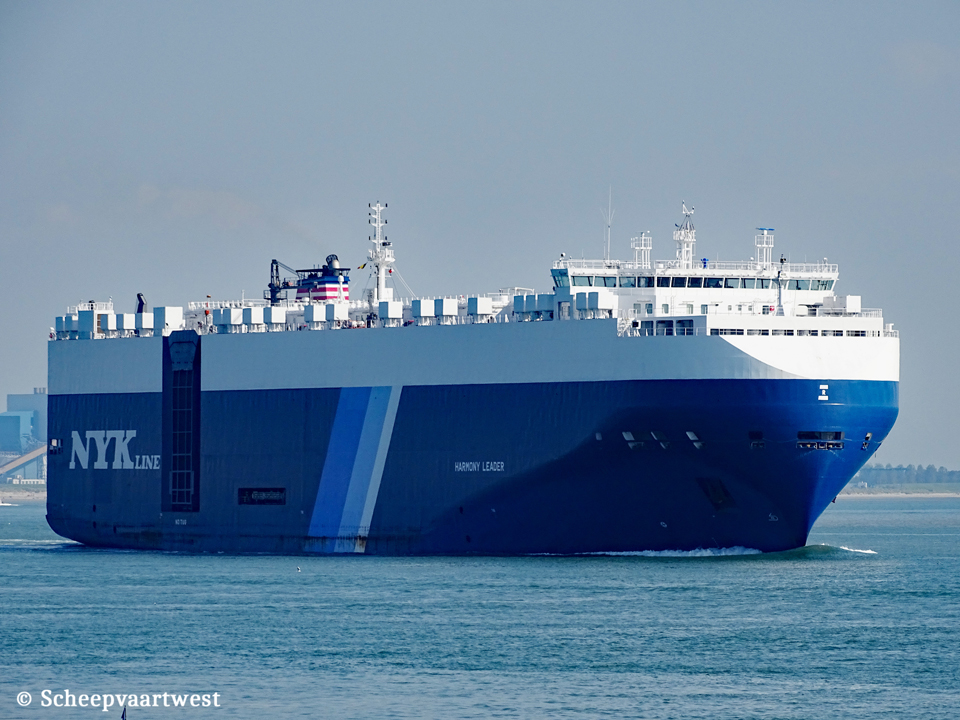

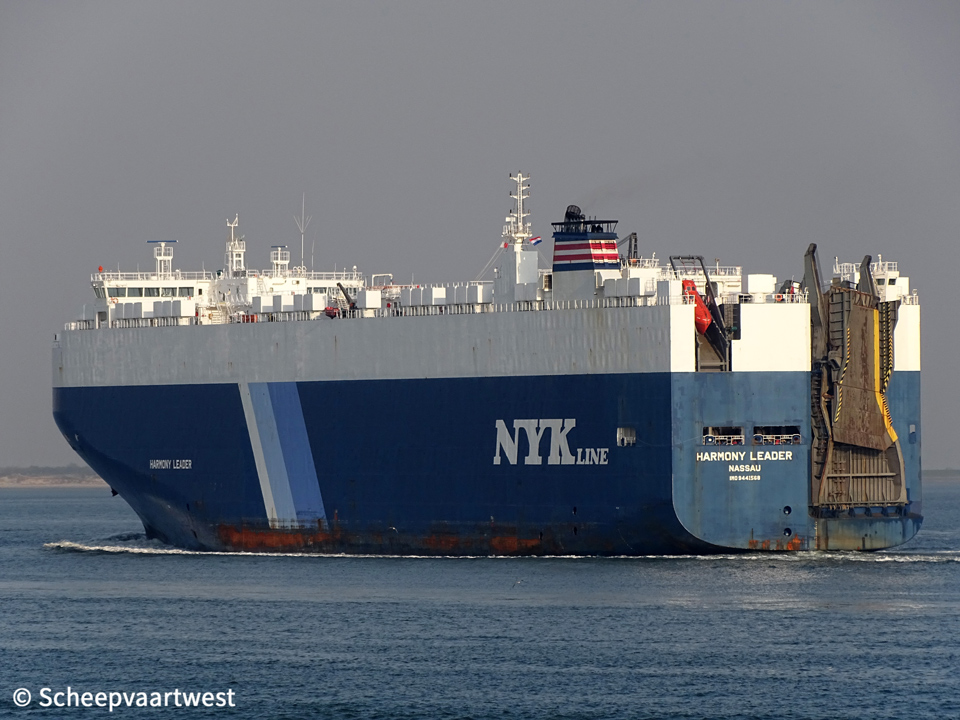

Harmony Leader 01   Harmony Leader IMO 9441568 04
Westerschelde 16/04/20   Westerschelde 23/09/17


Name

HARMONY LEADER

Type

Roll-On/Roll-Off carrier - Vehicle carrier

PCTC - Pure Car and Truck Carrier

IMO-number

9441568

Call sign

C6YP3

Flag

Bahamas

Port of registry

Nassau

GT

58.767 t registered

DWT

Summer: 20.434 t

NT

19.972 t registered

Length

199,95 m overall

191,00 m between perpendiculars

Breadth

32,29 m

Draught

Summer: 10,02 m

Air draft

46,20 m

Depth

35,00 m

Speed

Max: 20,0 knots

Built

2011

Keel laid

14/12/2010

Launch date

09/03/2011

Date of completion

26/07/2011

Builder

Hyundai Mipo Dockyard Co., Ltd.

Ulsan

South Korea

Yard number

8039

Hull material

Steel

Hull type

Single hull

Main engine

1x HHI/MAN-B&W 7S60MC-C - 2 stroke 7 cylinder 600 x 2.400 mm combustion engine 15.820 kW at 105,0 rpm

Propellers

1x Mono-block fixed pitch propeller

Boilers

1x Auxiliary boiler, exhaust gas heated (Economizer)

1x Auxiliary boiler, oil/gas fired

Manufacturer: Kangrim Heavy Industries Co.,Ltd.

Generators

3x Hyundai/Himsen 6H25/33 - 4 stroke 6 cylinder 250 x 330 diesel engines each 1.800 kW connected with generators each 1.700 kW

Manufacturer: Hyundai Engine & Machinery Co. Ltd.

Emergency generator

1x Doosan AD126TIS diesel generatorset

Number of cars

6.697

Ro-Ro Ramps

1x starboard

1x starboard aft

Tank capacities

Ballast: 8.906,1 m³

Anchor equipment

Length: 687,50 m

Diameter: 81 mm

Crew size

24

Manager

Stamco Ship Management Co. Ltd.

21 Akti Miaouli

Pireaus

Greece

Operator

NYK-Line - Nippon Yusen Kaisha

Registered owner

Harmony Maritime Ltd.

Care of Ray Car Carriers Ltd.

4th Floor, 1 Circular Road

Douglas

Isle of Man

United Kingdom

Latest data adjustment

17 September 2020
