| Zeebrugge 24 February 2019 |
 |
| Zeebrugge 21/09/09 |
|

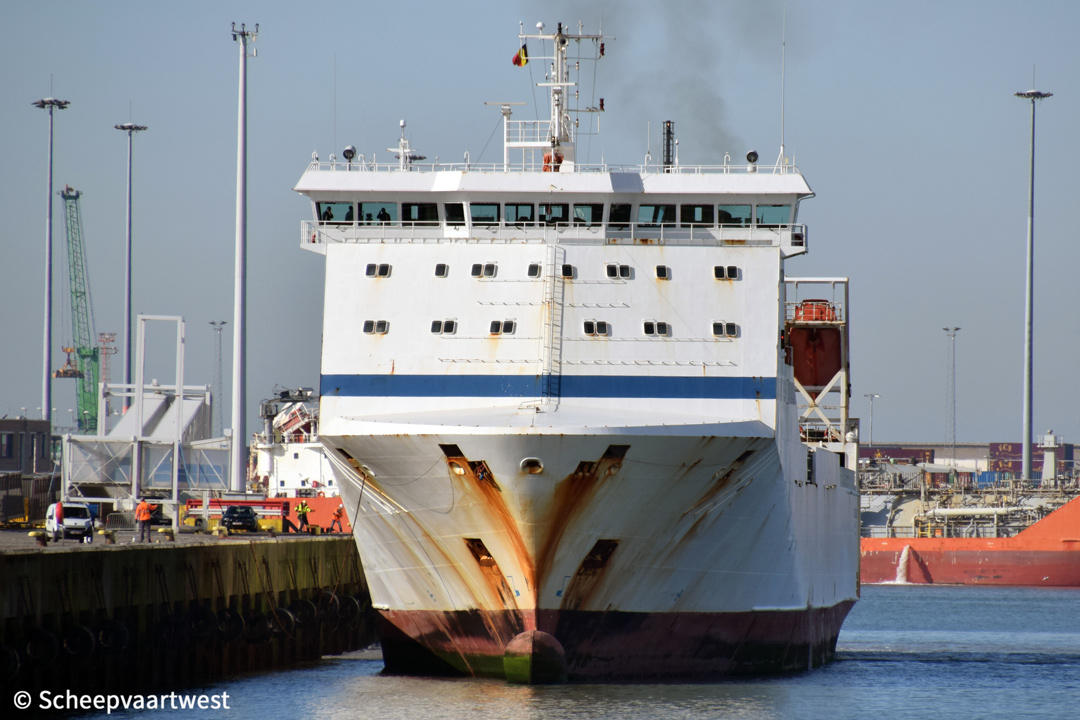

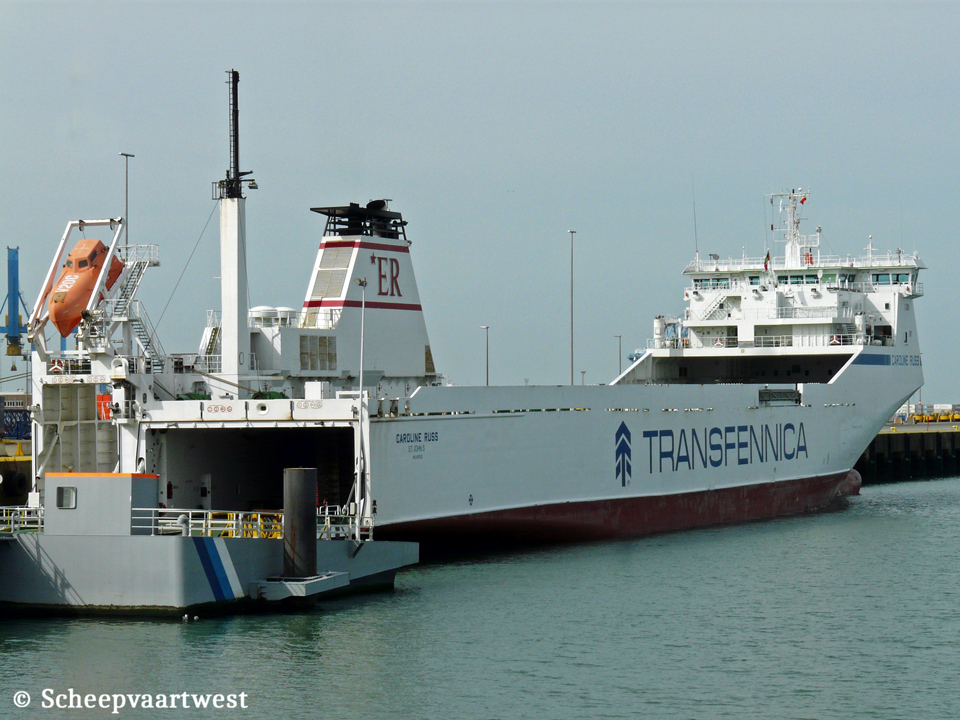

Name |
CAROLINE RUSS |
|
Type |
Roll-On / Roll-Off vessel - Equipped for carriage of containers |
|
IMO-number |
9197533 |
|
Call sign |
CQBF |
|
Flag |
Portugal |
|
Port of registry |
Madeira |
|
Previous flag |
1999 - 2016 Antigua & Barbuda, St. John's - Call sign: V2OC |
|
GT |
10.488 t registered |
|
DWT |
7.097 t |
|
NT |
3.146 t registered |
|
Number of 20ft containers |
303 weather deck: 101 max.: 3 high |
|
Length |
153,38 m overall 146,80 m between perpendiculars 146,20 m registered |
|
Breadth |
20,60 m registered |
|
Draught |
Summer: 6,988 m |
|
Forecastle |
28,59 m |
|
Freeboard |
1.443 mm |
|
Depth |
8,42 m moulded |
|
Speed |
20,0 knots |
|
Built |
1999 |
|
Keel laid |
19/12/1997 |
|
Launch date |
03/06/1999 |
|
Date as completion |
06/1999 |
|
Builder |
J.J. Sietas KG Schiffswerft GmbH & Co. |
|
Yard number |
1188 |
|
Hull material |
Shipbuilding steel (standard) |
|
Hull type |
Double bottom |
|
Watertight bulkheads |
9 |
|
Continuous decks |
2 |
|
Main engine |
1x Wärtsilä 16V46B - 4 stroke single acting 16 cylinder 460 x 580 mm combustion engine 15.600 kW Year of Manufacture: 1999 Manufacturer: Wärtsilä Diesel Oy |
|
Propeller |
1x Controllable pitch propeller - aft |
|
Boilers |
1x Thermal oil heater, oil fired - 10,0 bar Heating surface: 58,0 m² 2x Thermal oil heater, exhaust gas heated - 10,0 bar Heating surface: 149,0 m² Year of manufacture: 1999 Manufacturer: PWT Prozesswärmeträgertechnik GmbH |
|
Electric installations |
1x 380/220 V - 1.250 kVA 1x 380 V - 1.750 kVA 1x 380 V - 600 kVA |
|
Shaft generator |
1x 1.750 kVA |
|
Generators |
2x Main diesel generatorsets each 625 kVA |
|
Emergency generator |
1x Diesel generatorset 600 kVA |
|
Compressed air receivers |
2x Receivers, each 1.500 litres - 30,0 bar 1x Receiver 750 litres - 11,0 bar |
|
Bow thruster |
1x Fixed pitch propeller 'KAMEWA' - 800 kW, forward 1x Fixed pitch propeller 'KAMEWA' - 495 kW, aft |
|
Cargo capacity |
Bales: 14.599 m³ |
|
Tank capacities |
Fuel oil: 974 m³ Ballast water: 3.883 m³ |
|
Anchor Equipment |
3x Anchors weight each 4.590 kg Chain length: 550,00 m |
|
Crew |
14 |
|
Manager |
Ernst Russ GmbH & Co. KG |
|
Registered owner |
MS "CAROLINE RUSS" Schiffahrtsges. mbH & Co. KG |
|
Special annotations |
2x Fixed ramps, 1.624 lane meter |
|
Latest data adjustment |
21 March 2019 |
