Westerschelde 16 September 2018 |
|
Name |

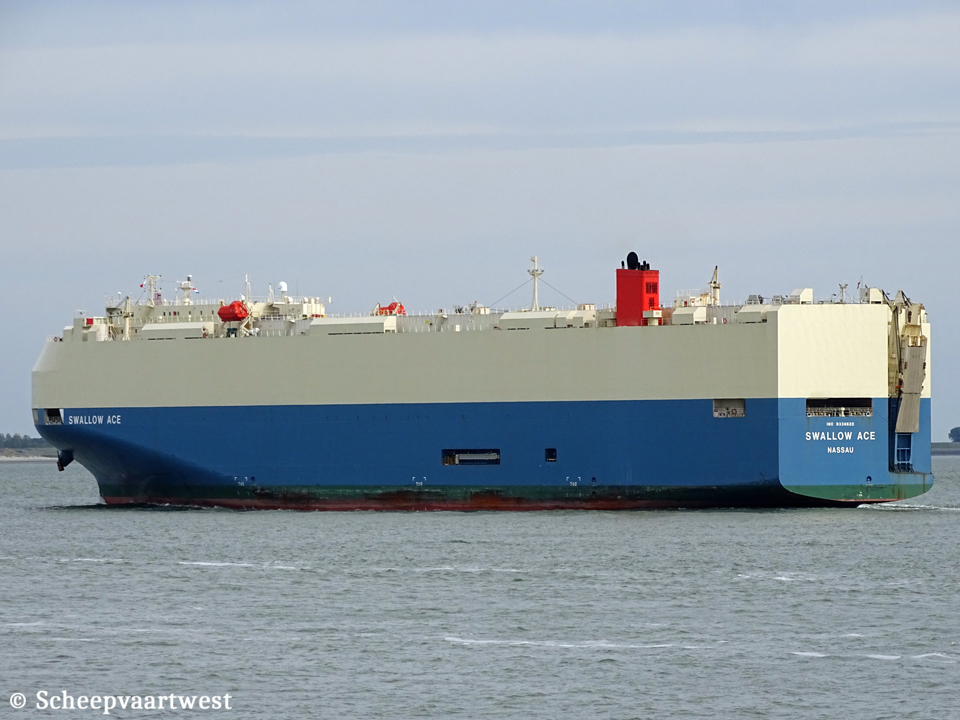

SWALLOW ACE |
|
Type |
Roll-On/Roll-Off carrier - Vehicle carrier |
|
IMO-number |
9338620 |
|
Call sign |
C6WR3 |
|
Flag |
Bahamas |
|
Port of registry |
Nassau |
|
GT |
58.685 t registered |
|
DWT |
Summer: 18.864 t |
|
NT |
18.167 t registered |
|
Length |
199,95 m overall |
|
Breadth |
32,20 m moulded |
|
Draught |
Summer: 9,82 m |
|
Moulded L x B x D |
190,00 x 32,20 x 14,70 m |
|
Registered L x B x D |
192,86 x 32,20 x 31,19 m |
|
Freeboard |
4.914 mm |
|
Depth |
14,70 m moulded |
|
Speed |
Service: 20,0 knots Max: 22,3 knots |
|
Built |
2007 |
|
Keel laid |
13/04/2007 |
|
Launch date |
06/08/2007 |
|
Date of completion |
20/11/2007 |
|
Builder |
Minaminippon Shipbuilding Co., Ltd. Usuki Japan |
|
Yard number |
697 |
|
Hull material |
Steel |
|
Main engine |
1x Mitsubishi/Kobe Hatsudoki 8UEC60LSH - 2 stroke single acting 8 cylinder 600 x 2.300 mm combustion engine 15.130 kW at 100,0 rpm Manufacturer: Kobe Diesel Co., Ltd. |
|
Propeller shaft |
1x Oil lubrication shaft with monitoring device Diameter: 620 mm |
|
Propellers |
1x Fixed propeller |
|
Boilers |
1x Auxiliary vertical boiler - 7,8 bar Evaporation: 4,01 t/h Manufacturer: Tortoise Engineering Co., Ltd. |
|
Generators |
4x Diesel generatorsets each 975 kW |
|
Bow thruster |
1.510 kW |
|
Number of cars |
5.213 |
|
Tank capacities |
Fuel oil: 2.956 m³ Fresh water: 398 m³ |
|
Lifting equipment |
2x Cranes - SWL 4,0 t each |
|
Crew |
22 |
|
Manager |
MOL Ship Management (Singapore) Pte. Ltd. |
|
Registered owner |
Snowscape Car Carriers SA Care of Mitsui OSK Lines (MOL) 1-1, Toranomon 2-chome Minato-ku, Tokyo 105-8688 Japan |
|
Latest data adjustment |
05 March 2021 |
