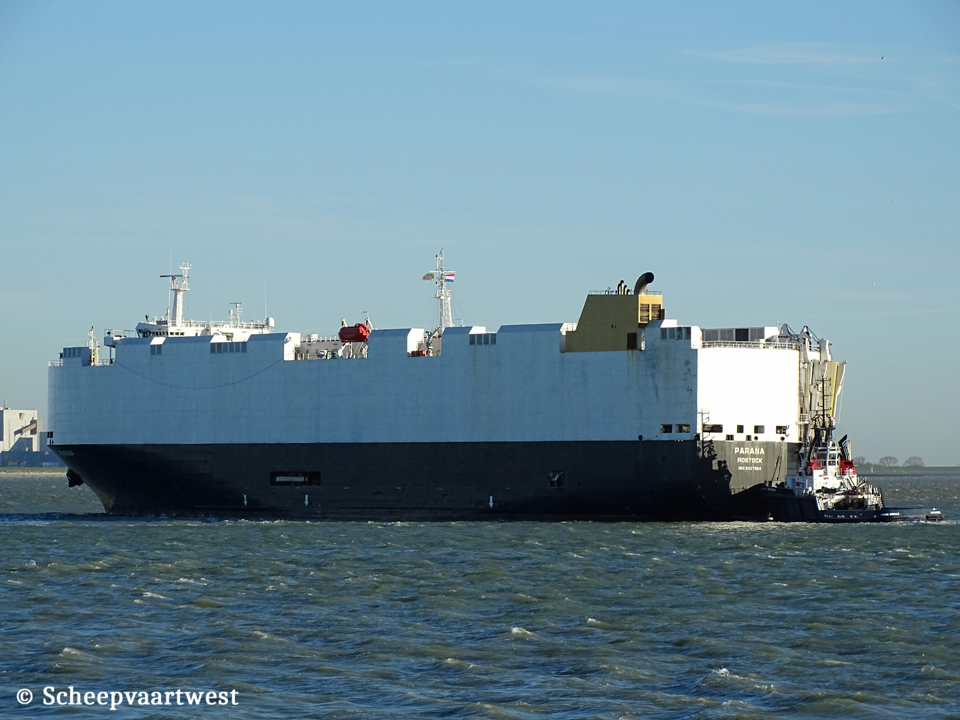

Westerschelde 18 August 2016 |
 |
|

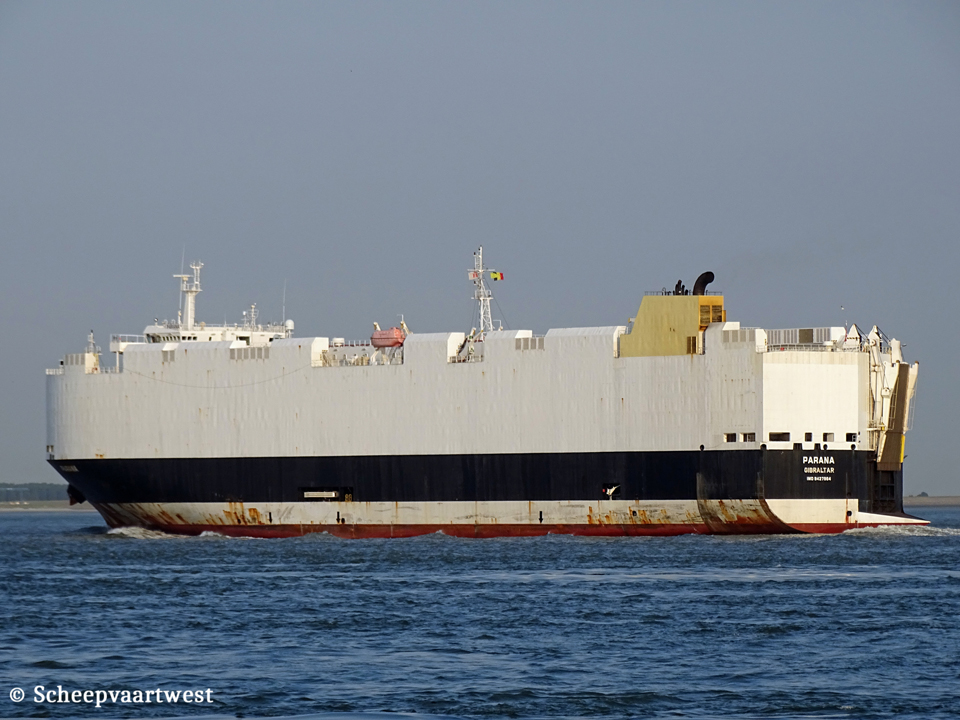

| Westerschelde 18/11/20 | |
|
Name |
PARANA |
|
Type |
Roll-On/Roll-Off car carrier |
|
IMO-number |
9427964 |
|
Call sign |
DHDT2 |
|
Flag |
Germany |
|
Port of registry |
Rostock |
|
Previous flags |
2012 - 2018 Liberia, Monrovia - Call sign: D5BS5 2018 - 2020 Gibraltar - Call sign: ZDNC4 |
|
GT |
47.053 t |
|
DWT |
Summer: 12.867,6 t |
|
NT |
14.551 t |
|
Length |
183,06 m overall 170,78 m between perpendiculars |
|
Breadth |
32,82 m extreme 31,50 m moulded |
|
Draught |
Summer: 9,10 m |
|
Depth |
12,80 m |
|
Speed |
Max: 21,07 knots |
|
Built |
2012 |
|
Keel laid |
01/12/2008 |
|
Launch date |
27/11/2011 |
|
Date of completion |
22/05/2012 |
|
Builder |
Yang Fan Group Co., Ltd. Dong Hai An Shipbuilding Ltd. Mayi Dao China |
|
Yard number |
2085 |
|
Hull material |
Steel |
|
Main engine |
1x HHI/MAN-B&W 9S50MC-C7 - 2 stroke 9 cylinder combustion engine 14.220 kW / 19.339 hp at 127,0 rpm |
|
Propellers |
1x Fixed propeller |
|
Boilers |
1x Auxiliary boiler, exhaust gas heated - Heating surface: 361 m² 1x Auxiliary boiler, oil/gas fired - Heating surface: 27 m² |
|
Generators |
2x HHI-HIMSEN 7H21/32 main diesel generatorsets each 1.053 kW 1x HHI-HIMSEN 5H21/32 main diesel generatorset 750 kW |
|
Emergency generator |
1x MAN D 2866 TE diesel generatorset 150 kW |
|
Bow thruster |
1x 1.100 kW |
|
Number of cars |
4.900 |
|
Tank capacities |
Ballast: 5.365,7 m³ |
|
Anchor equipment |
Length: 647,20 m Diameter: 76 mm |
|
Manager |
Reederei F. Laeisz GmbH "Haus der Schiffahrt" Lange Straße 1a 18055 Rostock Germany |
|
Registered owner |
MS "PARANA" GmbH & Co. KG |
|
Latest data adjustment |
26 April 2021 |
