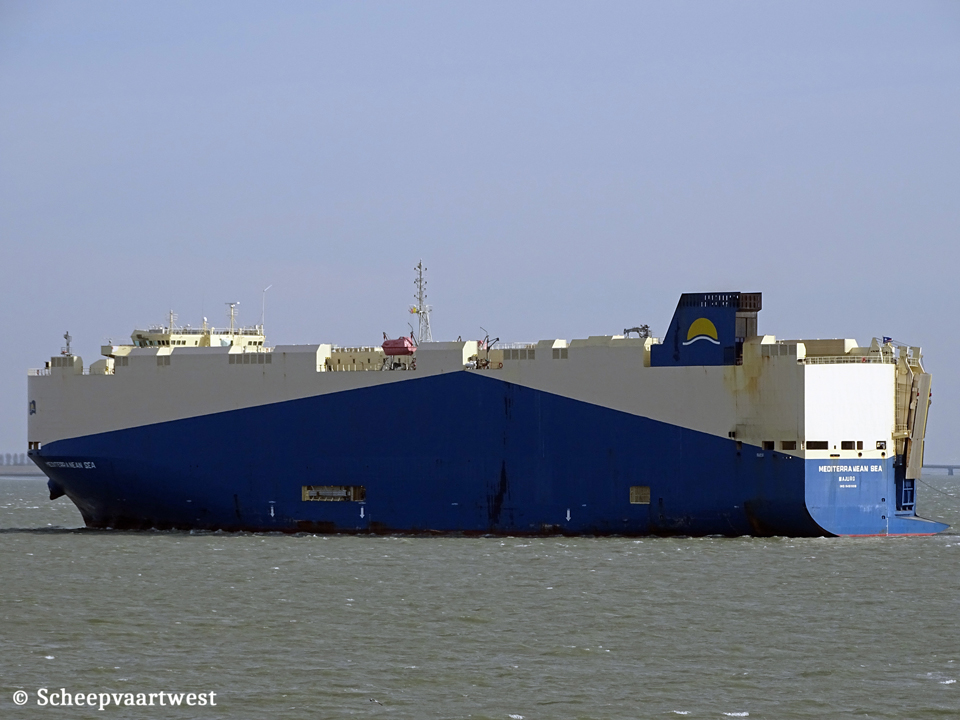

Westerschelde 07 February 2019 |
 |
|

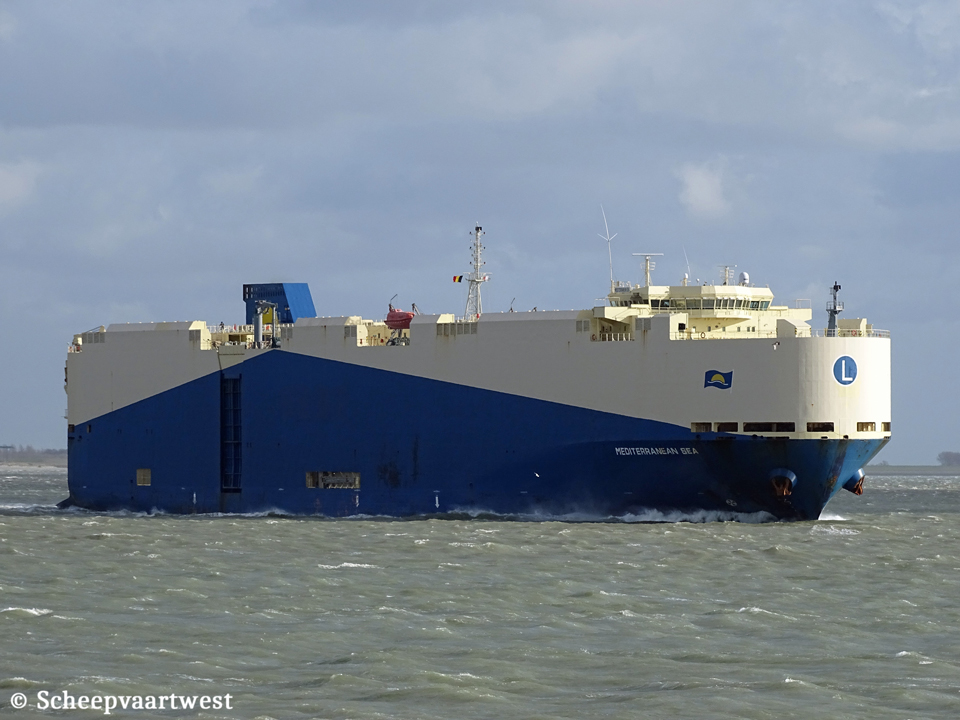

| Westerschelde 24/02/18 | |
|
Name |
MEDITERRANEAN SEA |
|
Previous names |
2010 Launch as: Mediterranean Sea 2010 - 2017 CSAV Rio Maipo |
|
Type |
Roll-On / Roll-Off carrier - Car Carrier PCTC - Pure Car and Truck Carrier |
|
IMO-number |
9451006 |
|
Call sign |
V7FX5 |
|
Flag |
Marshall Islands |
|
Port of registry |
Majuro |
|
Previous flags |
Antigua and Barbuda, St. John’s - Call sign: V2ER2 |
|
GT |
46.800 t Suez: 50.756 t |
|
DWT |
12.279,6 t |
|
NT |
14.264 t Suez: 47.037 t Panama: 46.600 t |
|
Length |
182,80 m overall 175,20 m between perpendiculars |
|
Breadth |
31,74 m overall 31,50 m moulded |
|
Draught |
Summer: 9,00 m Ballast: 7,2 m |
|
Keel to mast end |
48,70 m |
|
Depth |
19,26 m moulded |
|
Speed |
Service: 19,0 knots |
|
Built |
2010 |
|
Keel laid |
28/11/2008 |
|
Launch date |
21/09/2009 |
|
Date of completion |
08/01/2010 |
|
Builder |
Xiamen Shipbuilding Industry Corp. Ltd. Paitou Village Haicang Investment Zone Xiamen, Fujian People's Republic of China |
|
Yard number |
XSI 404 G |
|
Hull material |
Shipbuilding steel (standard) |
|
Watertight bulkheads |
4 |
|
Main engine |
1x Hyundai/MAN-B&W 9S50MC-C7 - 2 stroke 9 cylinder 500 x 2.000 mm combustion engine Mcr 14.220 kW / 19.333 hp at 127,0 rpm Year of manufacture: 2009 Manufacturer: Hyundai Heavy Industries Co., Ltd. 178, Sejong-ro, Jongro-gu Seoul Republic of Korea |
|
Propellers |
1x Solid propeller (Keyless) - aft at 127,0 rpm |
|
Boilers |
Steam boiler, oil fired - 9,0 bar Heating surface: 17,4 m² Steam boiler, exhaust gas heated - 9,0 bar Heating surface: 274,0 m² Year of manufacture: 2009 Manufacturer: Aalborg Industries Ltd. 86, Guangzhou Road North Jiaozhou Qingdao, Shandong People's Republic of China |
|
Electric installations |
1x Plant 450 V - 925 kVA 2x Plants each 450 V with 1.237,5 kVA |
|
Diesel generators |
2x Main diesel generatorsets each 1.237,5 kVA / 990 kW 1x Main diesel generatorset 925 kVA / 740 kW |
|
Emergency generator |
1x Diesel generatorset 150 kW |
|
Compressed air receivers |
1x Receiver 5.500 litres - 30,0 bar 1x Receiver 230 litres - 30,0 bar 1x Receiver 1.500 litres - 9,0 bar |
|
Bow thruster |
1x 1.100 kW |
|
Number of car decks |
11x Car decks, incl. 3 moveable decks |
|
Total effective car deck area |
40.728 m² including ramps |
|
Number of cars |
4.900 |
|
Car handling equipments |
Stern quarter ramp: -Position: Starboard quarter -Size: 33,00 x 7,60 m -Opening size: 7,60 x 5,30 m -Load base: 120 t Side ramp: -Position: Starboard -Size: 19,90 x 4,60 m -Opening size: 4,70 x 4,78 m -Load base: 10 t |
|
Ventilation |
10 air changes/h during sea voyages 20 air changes/h during loading and unloading |
|
Tank capacities |
Ballast: 5.951,6 m³ HFO: 3.013,0 m³ Diesel oil: 731,3 m³ Fresh water: 269,6 m³ Lub oil: 50 m |
|
Anchor equipment |
3x Anchors weight each 9.300 kg Chain Length: 660,00 m Diameter: 76 mm |
|
Crew |
21 |
|
Accommodation |
31 |
|
Manager |
Lauterjung Shipmanagement GmbH & Co. KG Promenade Am Alten Binnenhafen 10 26721 Emden Germany |
|
Registered owner |
Gram Car Carriers Shipowning AS Bryggegata 9 (Aker Brygge) 0250 Oslo Norway |
|
Latest data adjustment |
25 March 2024 |
