Malaga, Spain 24 May 2021 |
|
Name |

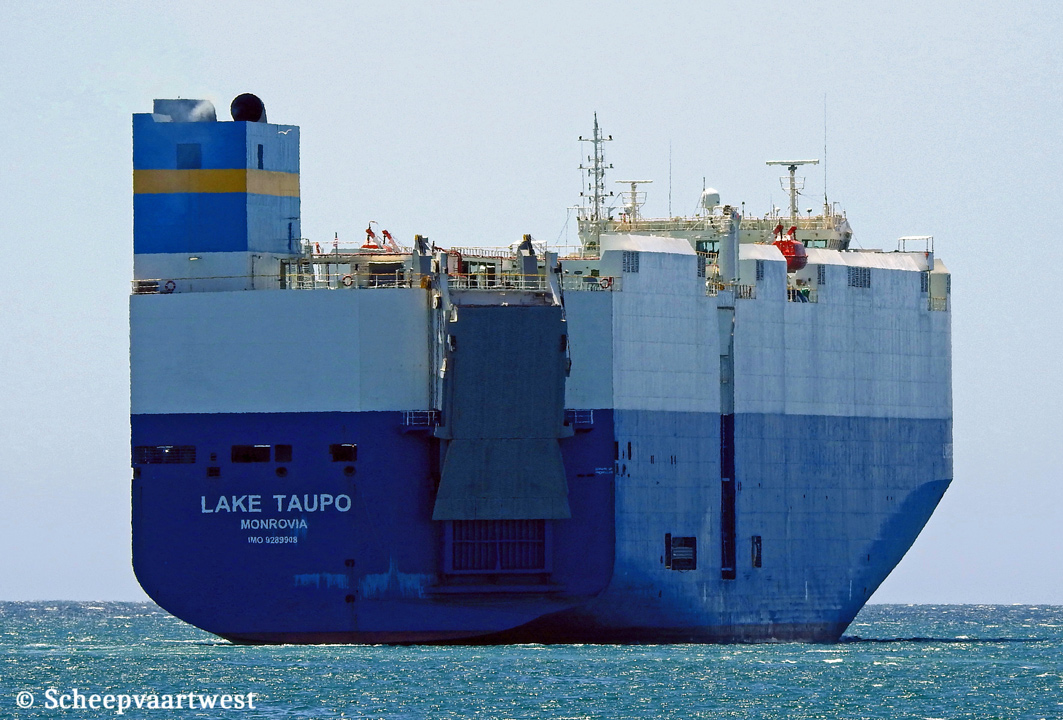

LAKE TAUPO |
|
Previous names |
2006 - 02/2017 Morning Miracle |
|
Type |
Roll-On/Roll-Off carrier |
|
IMO-number |
9289908 |
|
Call sign |
D5EZ7 |
|
Flag |
Liberia |
|
Port of registry |
Monrovia |
|
Previous flags |
01/2006 - 10/2013 United Kingdom - Call sign: MKVS2 |
|
GT |
46.800 Suez: 51.152,7 |
|
DWT |
Summer: 12.655 t |
|
NT |
14.264 Suez: 45.980,14 |
|
Displacement |
27.123 t |
|
Length |
182,80 m overall 170,68 m between perpendiculars |
|
Breadth |
31,53 m moulded |
|
Draught |
Summer: 9,00 m |
|
Freeboard |
3.814 mm |
|
Depth |
12,80 m moulded |
|
Speed |
Max: 20,0 knots |
|
Built |
2006 |
|
Keel laid |
13/12/2004 |
|
Delivery date |
16/01/2006 |
|
Builder |
Xiamen Shipbuilding Industry Co., Ltd. Paitou, Haicang Zone, Xiamen, 361026 China |
|
Yard number |
XS403A |
|
Hull material |
Steel |
|
Hull type |
Single hull |
|
Main engine |
1x MAN-B&W 9S50MC-C MK7 - 2 stroke 9 cylinder 500 x 2.000 mm combustion engine 14.220 kW / 19.334 kW at 127,0 rpm |
|
Propellers |
1x Fixed pitch propeller |
|
Boilers |
1x Exhaust gas boiler AQ-7 - 9,0 MPa 1x Auxiliary boiler, oil/gas fired MISSION OS 2000 - 9,0 MPa Manufacturer: Aalborg Industries Ltd., China |
|
Generators |
2x MAN-B&W 8 L 23/30 H - 4 stroke 8 cylinder 225 x 300 mm diesel engine 1.060 kW connected with generators each 990 kW 1x MAN-B&W 6 L 23/30 H - 4 stroke 6 cylinder 225 x 300 mm diesel engine 800 kW connected with generators each 760 kW Manufacturer: Zhenjiang Marine Diesel Works |
|
Emergency generator |
1x MWM TBD 234V6 diesel generatorset |
|
Bow thruster |
1x 1.100 kW |
|
Ventilation |
10x Air changes/h during sea voyages 20x Air changes/h during loading and unloading |
|
Number of decks |
11x Car decks, incl. 3 moveable decks |
|
Number of cars |
4.943 |
|
Ramps |
2x Ramp (1 stern ramp + 1 side ramp, both on starboard) |
|
Tank capacities |
Ballast: 5.951,50 m³ Fuel oil: 3.496,20 m³ Fresh water: 301,70 m³ Lub oil: 175,40 m³ |
|
Anchor equipment |
Length: 660,00 m Diameter: 76 mm |
|
Crew |
20 |
|
Commercial manager |
Volkswagen Konzernlogistik Heslingerstrasse 12 38436, Wolfsburg Germany |
|
ISM manager |
Eastern Pacific Shipping UK 2nd Floor, Colette House, 52-55, Piccadilly London, W1J 0DX United Kingdom |
|
Registered owner |
Xiang T62 Hk International c/o Volkswagen Konzernlogistik GmbH & Co. Heslingerstrasse 12 38436, Wolfsburg Germany |
|
Previous owner |
Bequint Marine Ltd., Monrovia - Liberia |
|
Latest data adjustment |
08 June 2025 |
