Malaga, Spain 19 September 2021 |
|
Name |

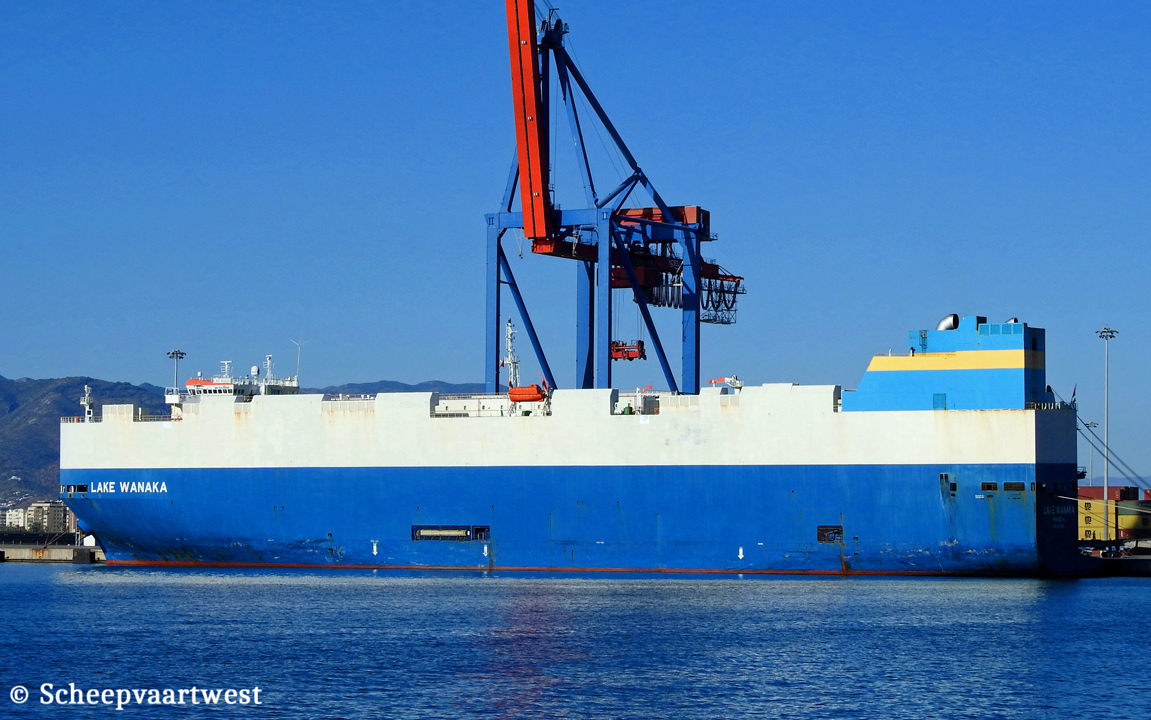

LAKE WANAKA |
|
Previous names |
05/2008 - 06/2019 Triumph |
|
Type |
Roll-On/Roll-Off carrier PCTC - Pure Car and Truck Carrier |
|
IMO-number |
9432892 |
|
Call sign |
D5EZ8 |
|
Flag |
Liberia |
|
Port of registry |
Monrovia |
|
Previous flags |
05/ 2008 - 09/2013 United Kingdom - Call sign: 2AMF2 |
|
GT |
46.800 Suez: 51.152,7 |
|
DWT |
12.272 t |
|
NT |
14.217 Suez: 45.906,21 |
|
Displacement |
27.123 t |
|
Length |
182,80 m overall 170,68 m between perpendiculars |
|
Breadth |
31,53 m extreme |
|
Draught |
Summer: 9,01 m |
|
Freeboard |
3.814 mm |
|
Depth |
12,80 m moulded |
|
Speed |
Max: 20,0 knots |
|
Built |
2008 |
|
Keel laid |
24/10/2007 |
|
Launch date |
20/02/2008 |
|
Delivery date |
08/05/2008 |
|
Builder |
Xiamen Shipbuilding Industry Co., Ltd. Paitou, Haicang Zone Xiamen, 361026 China |
|
Yard number |
XSI404D |
|
Hull material |
Steel |
|
Main engine |
1xMAN-B&W/ 9S50MC-C - 2 stroke 9 cylinder 500 x 2.000 mm combustion engine 14.220 kW / 19.334 hp at 127,0 rpm Manufacturer: Hyundai Heavy Industries |
|
Propellers |
1x Fixed pitch propeller |
|
Boilers |
1x Auxiliary fired boiler Mission OS - 9,0MPa 1x Exhaust Gas Economiser / Boiler AQ-7 - 9,0 MPa Manufacturer: Aalborg Industries |
|
Generators |
2x MAN-B&W 8L23/30 H main diesel generatorsets each 990 kW 1x MAN-B&W 6L23/30 H main diesel generatorset 740 kW Manufacturer: Dazu Xingye Marine Casting Co., Ltd. |
|
Emergency generator |
1x MWM TBD 234V6 diesel generatorset |
|
Bow thruster |
1x 1.100 kW |
|
Ventilation |
10x Air changes/h during sea voyages 20x Air changes/h during loading and unloading |
|
Number of decks |
11x Car decks, incl. 3 moveable decks |
|
Number of cars |
4.943 |
|
Number of ramps |
2 |
|
Deck area |
44.127 m² |
|
Tank capacities |
Diesel oil: 245,80 m³ Lub oil: 153,60 m³ Fuel oil: 3.498,60 m³ Ballast: 5.951,60 m³ Fresh water: 301,70 m³ |
|
Anchor equipment |
Length: 660,00 m Diameter: 76 mm |
|
Crew |
22 |
|
Commercial manager |
Volkswagen Konzernlogistik GmbH & Co. Heslingerstrasse 12 38436, Wolfsburg Germany |
|
ISM manager |
Eastern Pacific Shipping (UK) Ltd. 2nd Floor, Colette House, 52-55, Piccadilly London, W1J 0DX United Kingdom |
|
Registered owner |
Lombard Corporate Finance December 3 Limited c/o Volkswagen Konzernlogistik GmbH & Co. Heslingerstrasse 12 38436, Wolfsburg Germany |
|
Latest data adjustment |
08 June 2025 |
