Westerschelde 30 March 2019 |
|
Name |

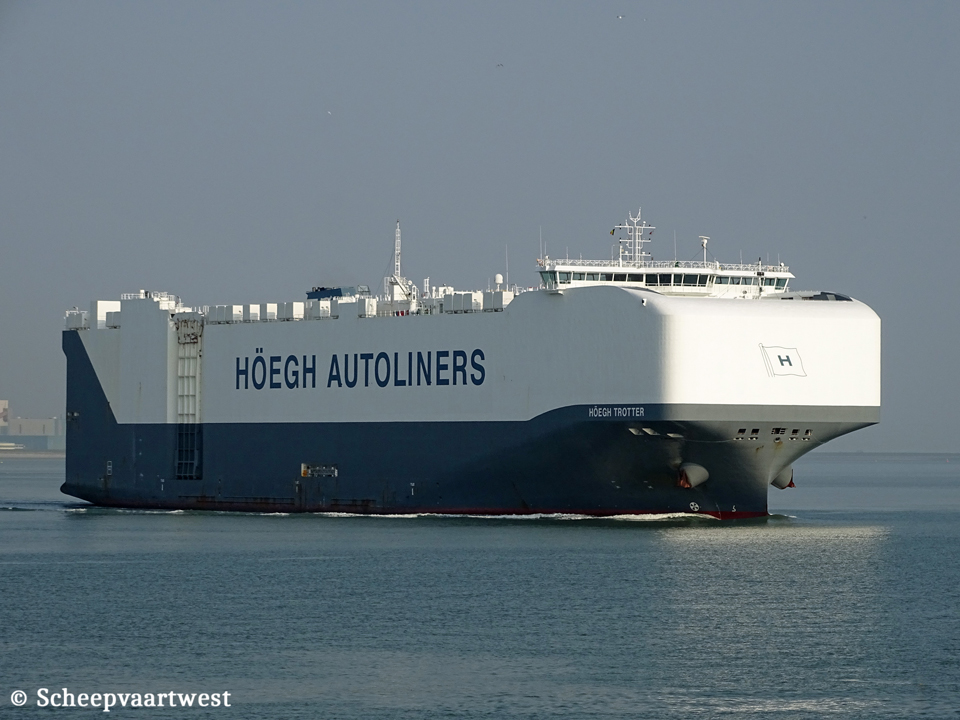

HÖEGH TROTTER |
|
Type |
Roll-On/Roll-Off carrier - Vehicle carrier Post-Panamax vessel |
|
IMO-number |
9710749 |
|
Call sign |
LAUO7 |
|
Flag |
Norway |
|
Port of registry |
Oslo |
|
GT |
76.420 t |
|
DWT |
21.901 t |
|
NT |
23.242 t |
|
Length |
199,87 m overall 193,05 m between perpendiculars |
|
Breadth |
40,76 m extreme 36,50 m moulded |
|
Draught |
Summer: 10,32 m |
|
Air draft |
46,50 m |
|
Depth |
22,90 m |
|
Speed |
19,0 knots |
|
Built |
2016 |
|
Keel laid |
25/06/2014 |
|
Launch date |
18/07/2016 |
|
Date of completion |
08/12/2016 |
|
Builder |
Xiamen Shipbuilding Industry Co., Ltd. Xiamen China |
|
Yard number |
XSI462F |
|
Hull material |
Steel |
|
Hull type |
Double bottom Single side |
|
Main engine |
1x MAN-B&W/Hyundai 6S60ME-C - 2 stroke 6 cylinder 600 x 2.400 mm combustion engine 11.735 kW / 15.955 hp at 92,0 rpm |
|
Propellers |
1x Fixed pitch mono-block propeller |
|
Boilers |
1x Auxiliary boiler, oil/gas fired (Exhaust) Mission OS-2000 1x Auxiliary boiler, oil/gas fired (Oil fired) Mission OC Builder: Alfa Laval Aalborg |
|
Generators |
2x 9L21/31 main diesel generatorsets each 1.900 kW 1x 5L21/31 main diesel generatorset 900 kW Builder: CSSC marine power Co., Ltd. |
|
Emergency generator |
1x Cummins QSM11 diesel generatorset 220 kW |
|
Bow thruster |
1x 1.800 kW |
|
Number of cars |
8.500 |
|
Number of decks |
14 |
|
Hoistable decks |
5 |
|
Cargo space |
71.475 m² |
|
Number of ramps |
2 Stern ramp: Length: 45,00 m - 375 t Side ramp: Length: 25,00 m - 22 t |
|
Door openings |
Stern: Width: 12,00 m - Height: 6,50 m Side: Width: 6,50 m - Height: 6,50 m |
|
Tank capacities |
Ballast: 6.907 m³ |
|
Anchor equipment |
Length: 715,00 m Diameter: 87 mm |
|
Crew |
23 |
|
Commercial manager |
Höegh Autoliners Management AS Drammensveien 134 0277 Oslo Norway |
|
ISM manager |
Höegh Technical Management Inc. Drammensveien 134 0277 Oslo Norway |
|
Registered owner |
Höegh Autoliners Shipping AS Drammensveien 134 0277 Oslo Norway |
|
Latest data adjustment |
29 November 2021 |
