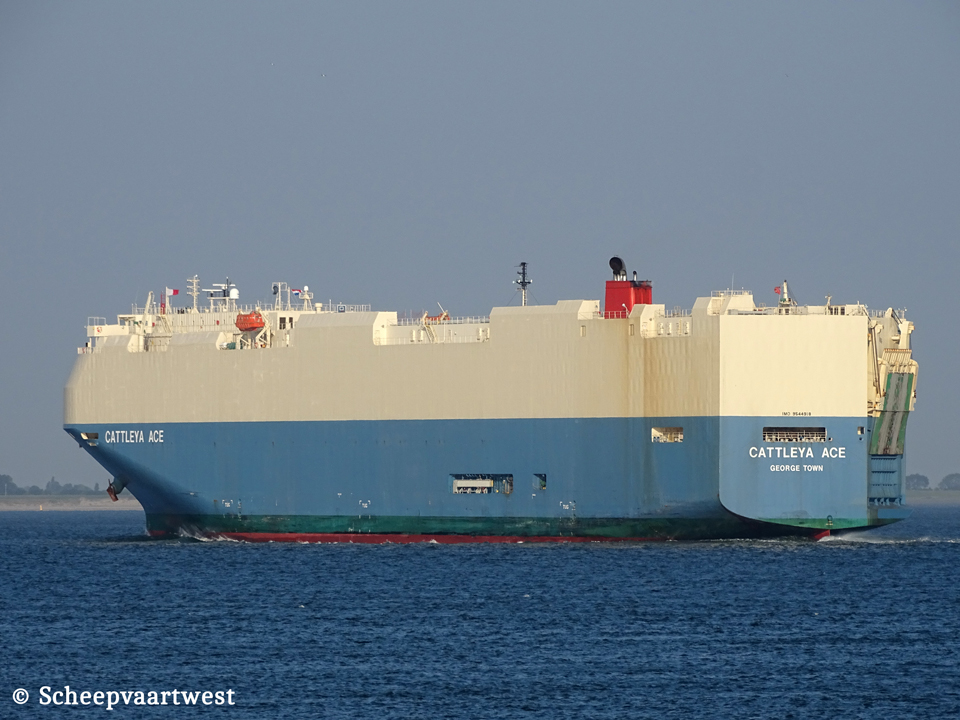

| Westerschelde 06 June 2018 |
|
Name |
CATTLEYA ACE |
|
Type |
Roll-On/Roll-Off carrier PCTC - Pure Car and Truck Carrier |
|
IMO-number |
9544918 |
|
Call sign |
7KKG |
|
Flag |
Japan |
|
Port of registry |
Tokyo |
|
Previous flags |
Cayman Islands, George Town - Call sign: ZGBV6 |
|
GRT |
38.985 t |
|
DWT |
16.384 t |
|
NRT |
18.848 t |
|
Length |
199,00 m overall |
|
Breadth |
32,26 m moulded |
|
Draught |
Summer: 9,73 m |
|
Moulded L x B x D |
192,00 x 32,26 x 14,65 m |
|
Registered L x B x D |
195,13 x 32,26 x 31,22 m |
|
Keel to mast end |
51,06 m |
|
Freeboard |
4.965 mm |
|
Depth |
14,65 m moulded |
|
Speed |
Max: 22,1 knots |
|
Built |
2011 |
|
Keel laid |
09/12/2010 |
|
Launch date |
02/06/2011 |
|
Date of completion |
16/09/2011 |
|
Builder |
Shin Kurushima Toyohashi Shipbuilding Co., Ltd. |
|
Yard number |
3643 |
|
Hull material |
Steel |
|
Hull type |
Single hull |
|
Main engine |
1x Mitsubishi 8UEC60LSII - 2 stroke single acting 8 cylinder 600 x 2.300 mm combustion engine 15.090 kW /20.516 hp at 98,0 rpm Manufacturer: Kobe Diesel Co., Ltd. |
|
Propeller shaft |
1x Oil lubrication shaft with monitoring device Diameter: 665 mm |
|
Propellers |
1x Fixed pitch propeller |
|
Boilers |
1x Auxiliary vertical boiler - 6,9 MPa Evaporation: 4,25 t/h Manufacturer: Tortoise Engineering Co., Ltd. |
|
Generators |
4x Generatorsets total 4.700 kVA |
|
Bow thruster |
1x 1.100 kW |
|
Cargo capacity |
Cars: 5.196 Trucks: 172 |
|
Number of ramps |
2 |
|
Tank capacities |
Fuel oil: 2.931 m³ Fresh water: 404 m³ |
|
Crew size |
24 |
|
Commercial manager |
Mitsui Osk Lines Ltd. 1-1, Toranomon 2-chome, Minato-ku Tokyo, 105-8688 Japan |
|
ISM manager |
MOL Ship Management (Singapore) Pte. Ltd. 17-04, UIC Building, 5, Shenton Way Singapore 068808 Republic of Singapore |
|
Registered owner |
Northpole Maritime Inc. Care of Mitsui OSK Lines Ltd (MOL) 1-1, Toranomon 2-chome, Minato-ku Tokyo, 105-8688 Japan |
|
Latest data adjustment |
18 December 2022 |
